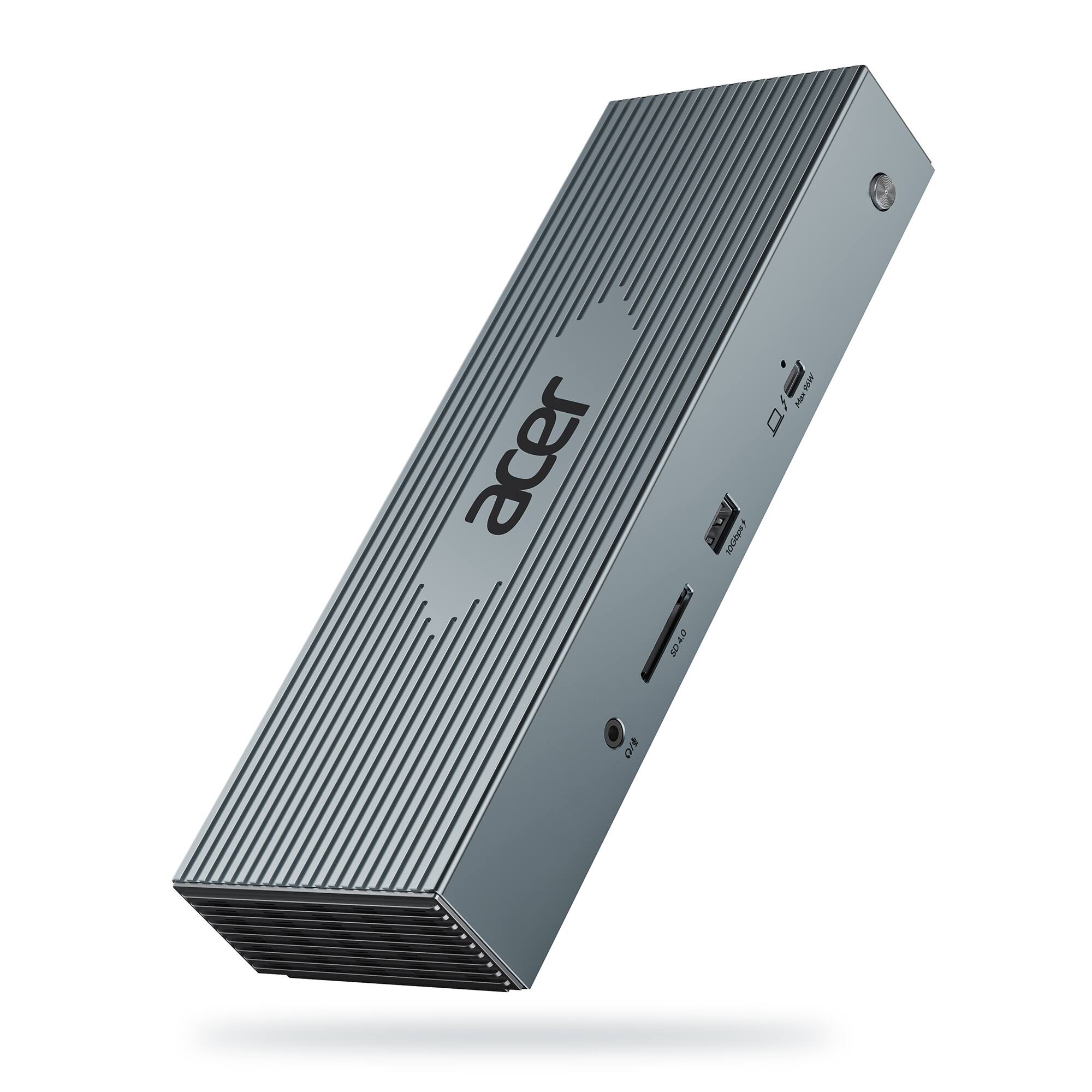

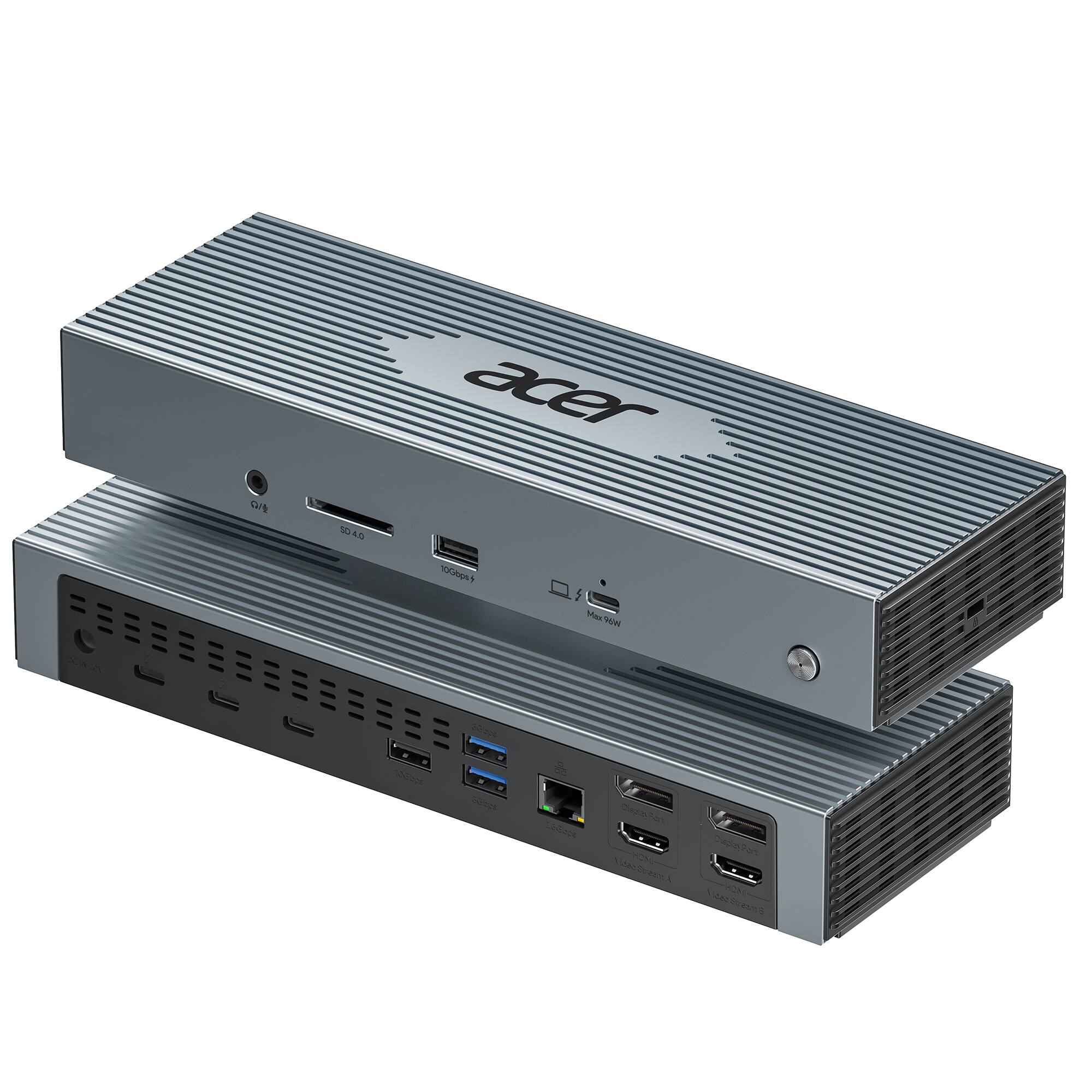

Acer - Thunderbolt 4 Dock, 16 in 1 Quad Monitor DisplayLink Docking Station 40Gbps with 8K Display - Gray
FREE shipping to
Related Item
About This Item
- Key Specs
- Maximum Number of Displays Supported: 4
- Number of DisplayPort Outputs (Total): 4
- Number of Thunderbolt Ports (Total): 3
- General
- Brand: Acer
- Model Number: ACER-UC1601-BBY
- Product Name: Thunderbolt 4 Dock, 16 in 1 Quad Monitor DisplayLink Docking Station 40Gbps with 8K Display
- Color: Gray
- Display
- Maximum Number of Displays Supported: 4
- Maximum Supported Refresh Rate: 60Hz (The number of frames per second the device can support, expressed as a frequency. Higher rates help produce smooth, seamless pictures.)
- Ports
- Display Connector(s): 2 x DisplayPort 1.2, 2 x HDMI 2.0 (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 4
- Number of HDMI Ports (Total): 2
- Number of Thunderbolt Ports (Total): 3
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number Of Ethernet Ports: 1
- Number of USB Ports (Total): 5
- USB Ports: 4 x USB-A (The number and type of USB ports the product has.)
- Memory Card Slot: true
- Memory Card Type: Memory Stick Duo
- Power
- Powered: true
- Compatibility
- Brand Compatibility: Universal
- Model Compatibility: MacBook Pro/Air, iPad Pro/Air, HP, Acer, Dell XPS, Surface, Switch, Steam
- Features
- Indicator Light(s): true
- Dimensions
- Product Height: 1.55 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 9.55 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 3.15 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 3.56 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 195133267649
Acer Thunderbolt 4 Dock, 16 in 1 Quad Monitor DisplayLink Docking Station 40Gbps with 8K Display, 10Gbps Data Ports, 160W Power, 2.5G Ethernet, SD 4.0 Card Reader USB C Hub for MacBook, PC, Laptop

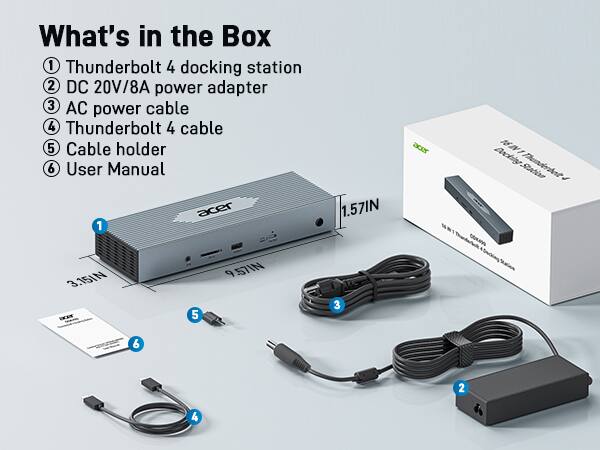

- 16-in-1 Extensive Connectivity: This thunderbolt 4 docking station is equipped with 3*Thunderbolt 4(40Gbps), 2*DisplayPort, 2*HDMI, 4*USB-A, 2.5G Ethernet, SD card reader, audio/mic port, USB-C Host(PD96W), and an Input 160W DC power port. Equipped with an advanced DisplayLink chip, it is compatible with both Windows and macOS systems

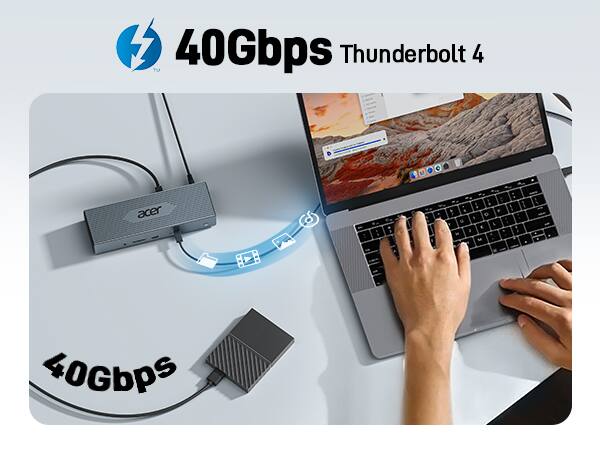

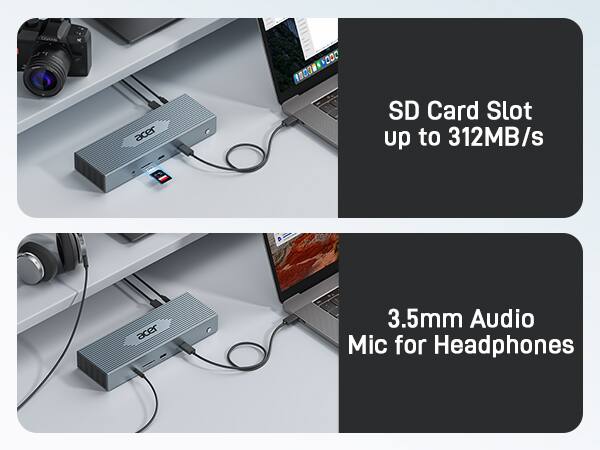

- Fast 40Gbps Data Transfer: With three Thunderbolt 4 ports supporting blazing-fast 40Gbps data transfer, you can quickly move large files with ease. Additionally, the 2x USB-A 3.2 (10Gbps) and 2x 3.0 (5Gbps) ports provide versatile connectivity options. For even greater flexibility, the built-in SD 4.0 card reader delivers impressive transfer speeds of up to 315MB/s.

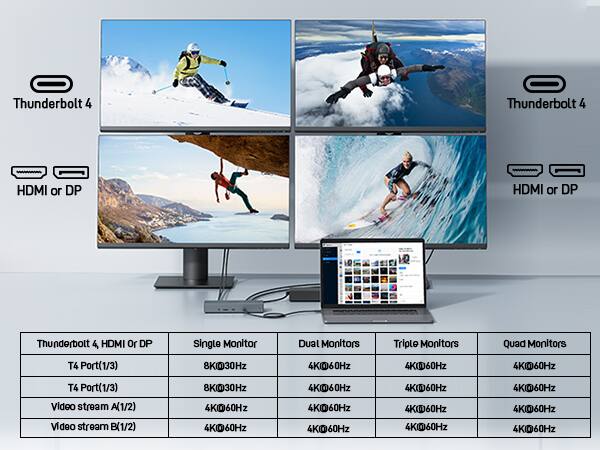

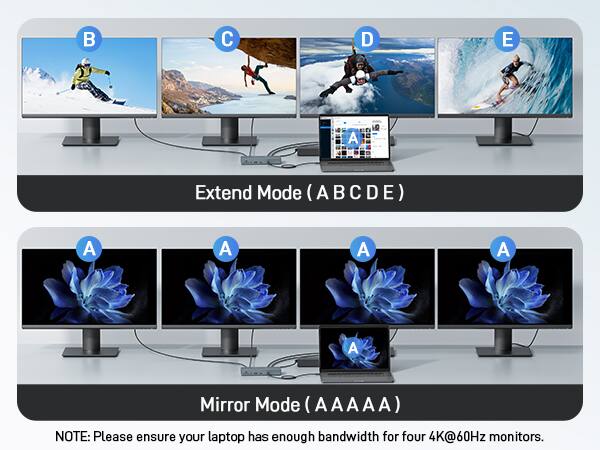

- Single 8K or Quad 4K@60Hz Display: The laptop docking station supports a single 8K@30Hz display or up to four 4K@60Hz displays (Apple M1/M2 computers can connect up to 3 external monitors.), allowing easy switching between extend and mirror modes for enhanced visual experience.

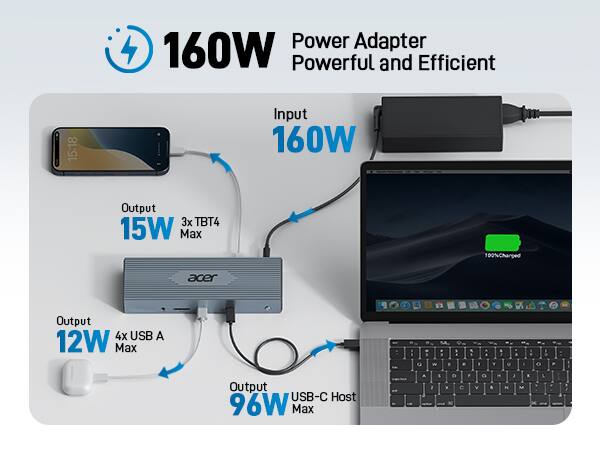

- 160W Super Power Adapter: The 160W power delivery is ideal for any Thunderbolt or USB-C host device. The USB-C host port provides up to 96W of power for charging laptops

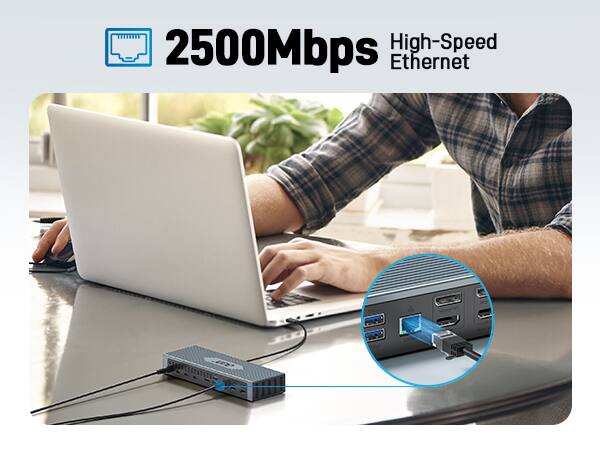

- 2.5 Gigabit Ethernet: The 2.5Gbps RJ45 Ethernet port guarantees a stable and fast-wired internet connection, backward compatible with 1Gbps devices. Features a 3.5mm audio/microphone jack for easy connection to headphones or mics, ensuring crystal-clear communication and rich audio quality.
- 16-in-1 Extensive Connectivity: This thunderbolt 4 docking station is equipped with 3*Thunderbolt 4(40Gbps), 2*DisplayPort, 2*HDMI, 4*USB-A, 2.5G Ethernet, SD card reader, audio/mic port, USB-C Host(PD96W), and an Input 160W DC power port. Equipped with an advanced DisplayLink chip, it is compatible with both Windows and macOS systems
- Fast 40Gbps Data Transfer: With three Thunderbolt 4 ports supporting blazing-fast 40Gbps data transfer, you can quickly move large files with ease. Additionally, the 2x USB-A 3.2 (10Gbps) and 2x 3.0 (5Gbps) ports provide versatile connectivity options. For even greater flexibility, the built-in SD 4.0 card reader delivers impressive transfer speeds of up to 315MB/s.
- Single 8K or Quad 4K@60Hz Display: The laptop docking station supports a single 8K@30Hz display or up to four 4K@60Hz displays (Apple M1/M2 computers can connect up to 3 external monitors.), allowing easy switching between extend and mirror modes for enhanced visual experience.
- 160W Super Power Adapter: The 160W power delivery is ideal for any Thunderbolt or USB-C host device. The USB-C host port provides up to 96W of power for charging laptops
- 2.5 Gigabit Ethernet: The 2.5Gbps RJ45 Ethernet port guarantees a stable and fast-wired internet connection, backward compatible with 1Gbps devices. Features a 3.5mm audio/microphone jack for easy connection to headphones or mics, ensuring crystal-clear communication and rich audio quality.
Disclaimers
- Note: Please download the latest DisplayLink driver before using the dock.
- Note: Please download the latest DisplayLink driver before using the dock.
