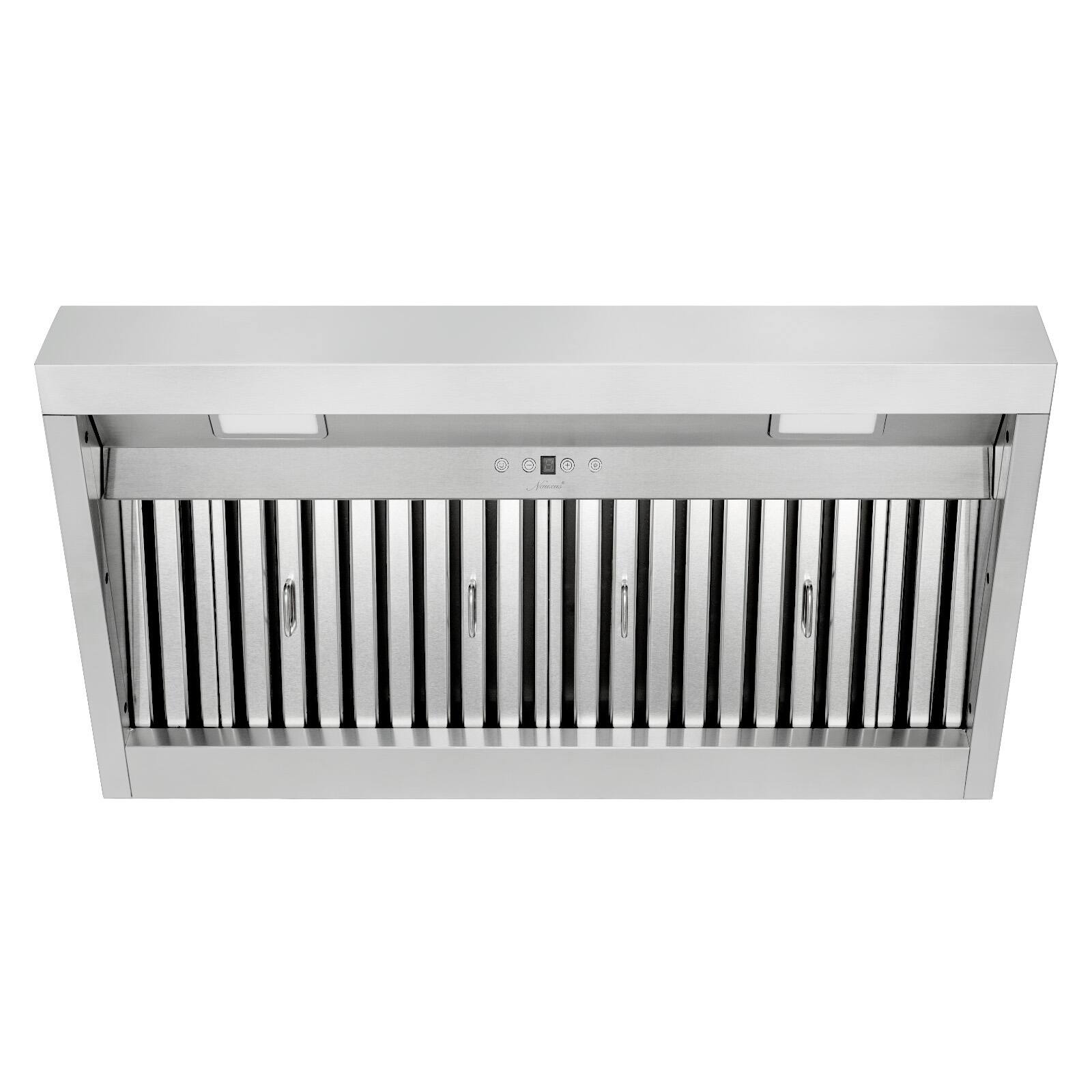

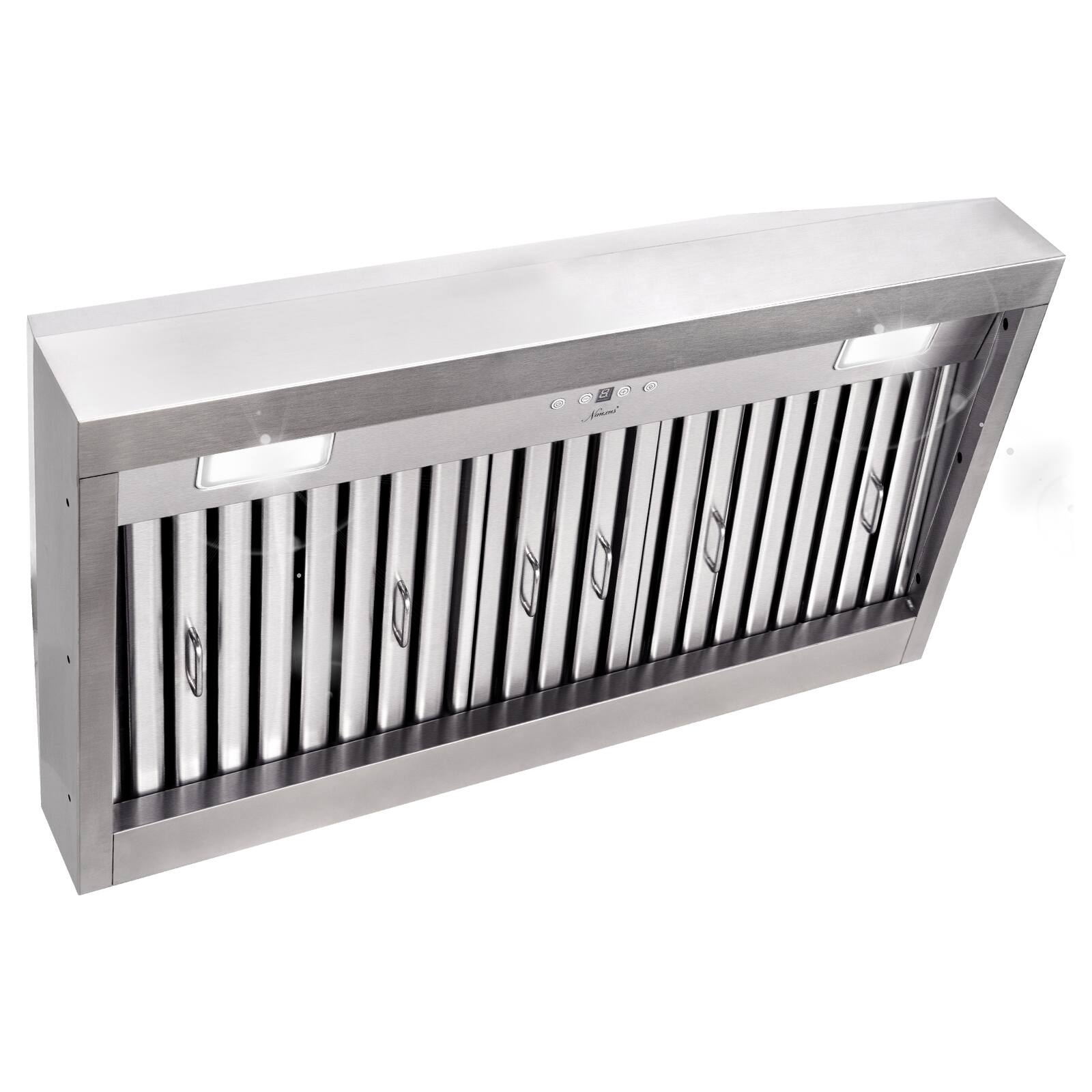

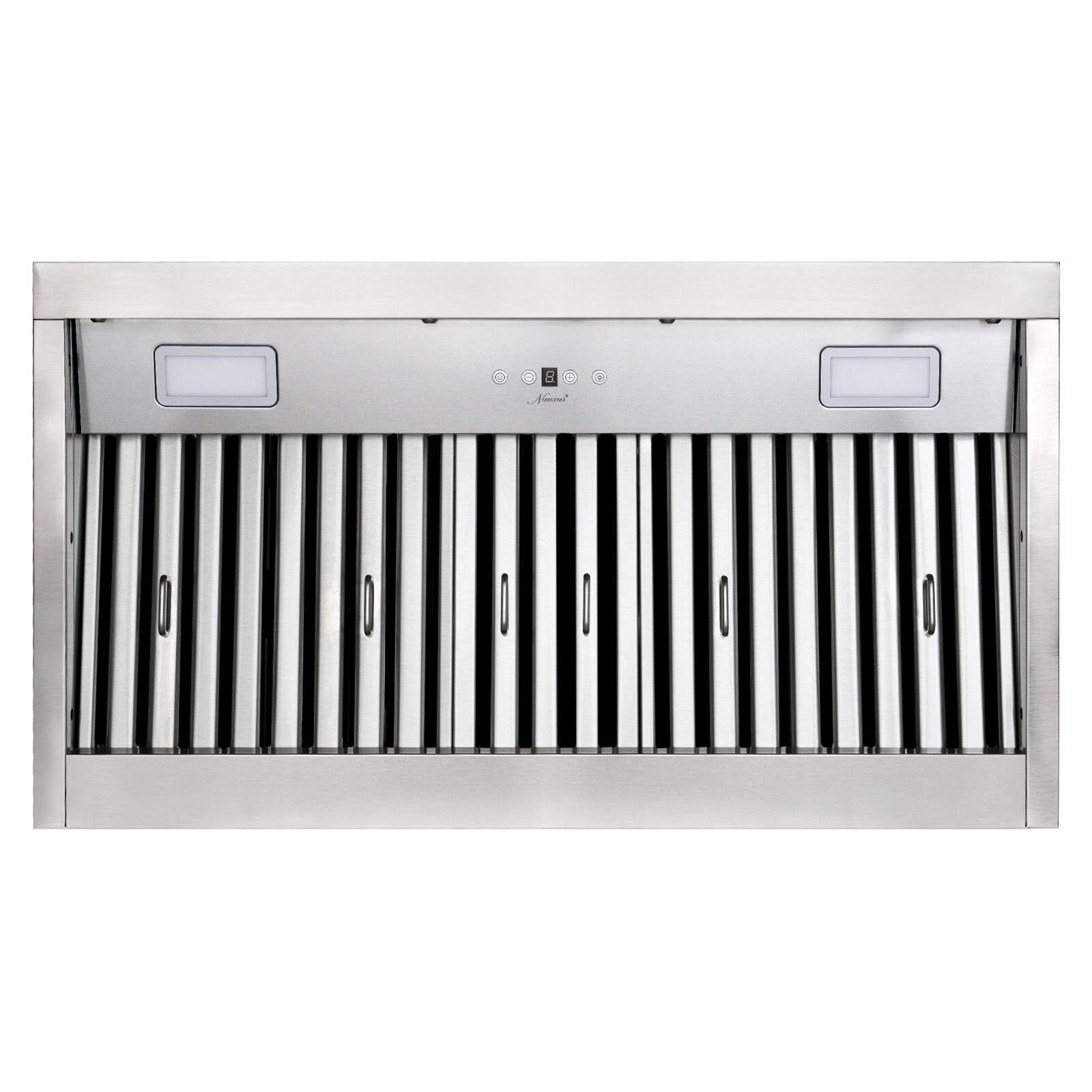

Akicon - 36 inches - Externally Vented - Range Hood Insert - Stainless Steel
Related Item
Specifications
- Color FinishStainless steelProduct Height14.5 inchesProduct Width34 inchesProduct Depth18.75 inchesExhaust Vent LocationBackVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 14.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 34 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.75 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Back
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Akicon
- Model Number: NX-19IL-36
- Product Name: Akicon 36 inch Ducted 600-CFM Stainless steel Insert Under Cabinet Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel

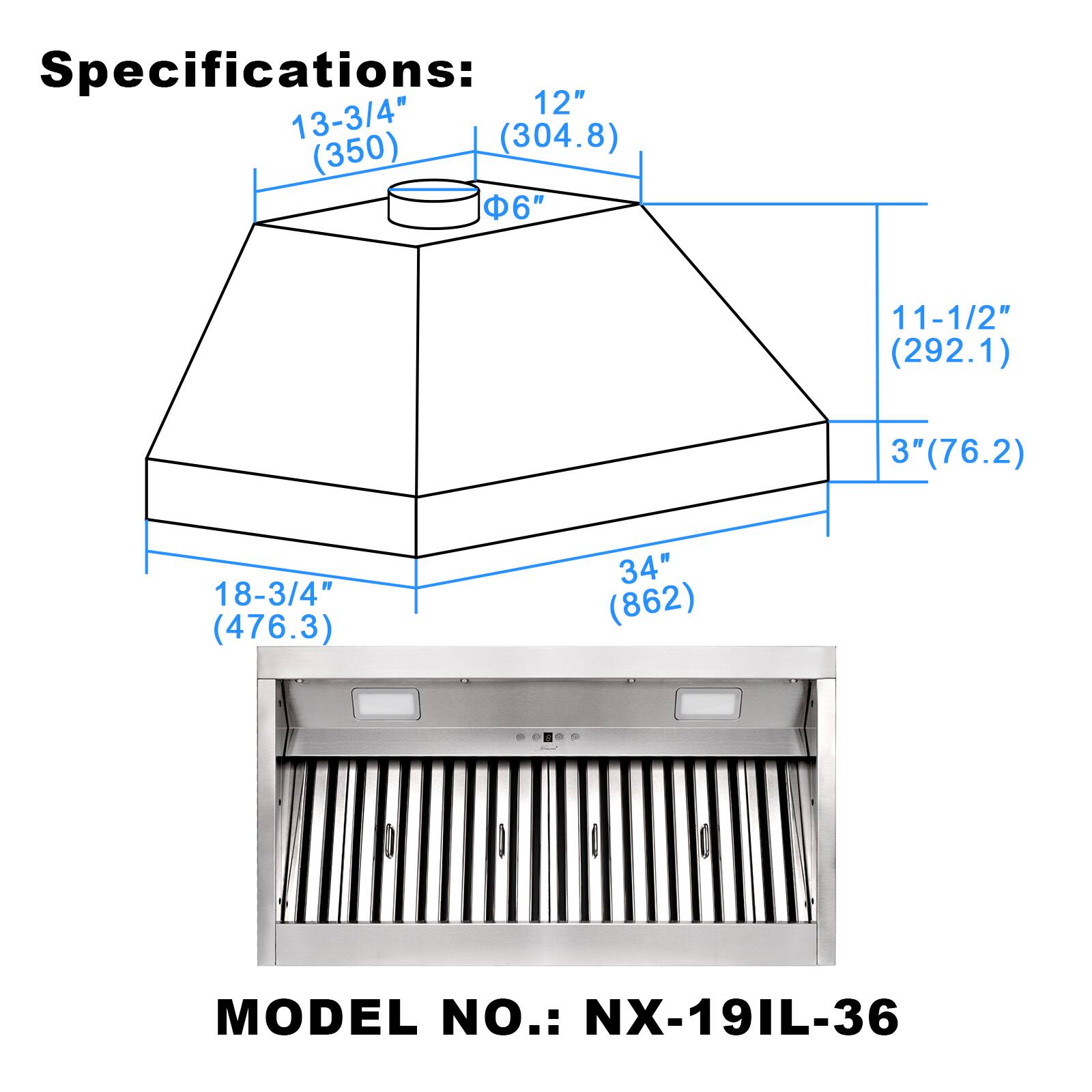

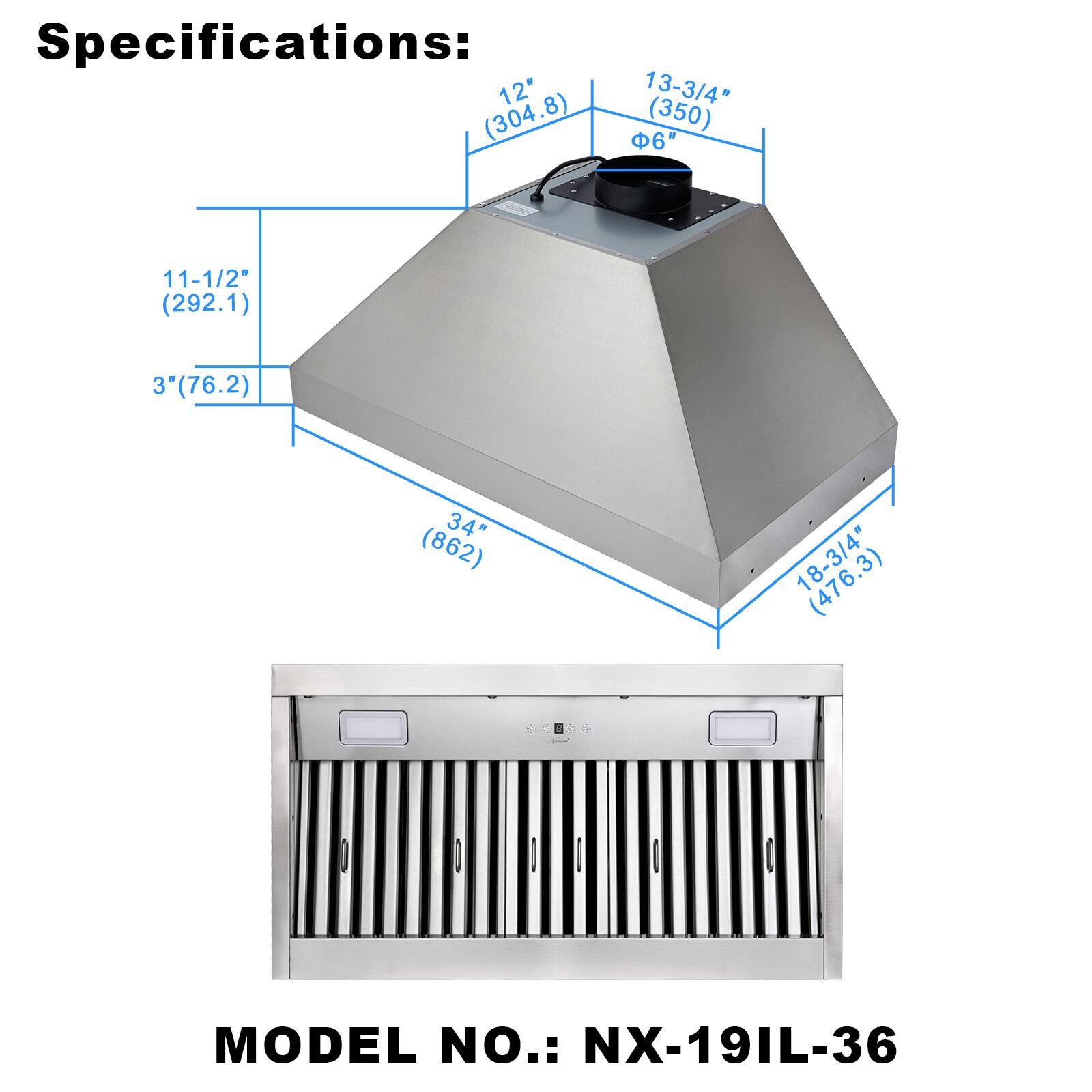

- Dimensions
- Product Height: 14.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 30 inches
- Product Width: 34 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.75 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 53 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Cut-Out Dimensions
- Cut-Out Height: 14.5 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 34 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 18.75 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Back
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 4
- Control Type: Button
- Display Type: LED
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 200 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 5.7 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Stainless Steel baffle filters
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 3
- Electrical
- Amperage: 3 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 3-Year
- Warranty - Labor: 1 year
- Other
- UPC: 810092565864

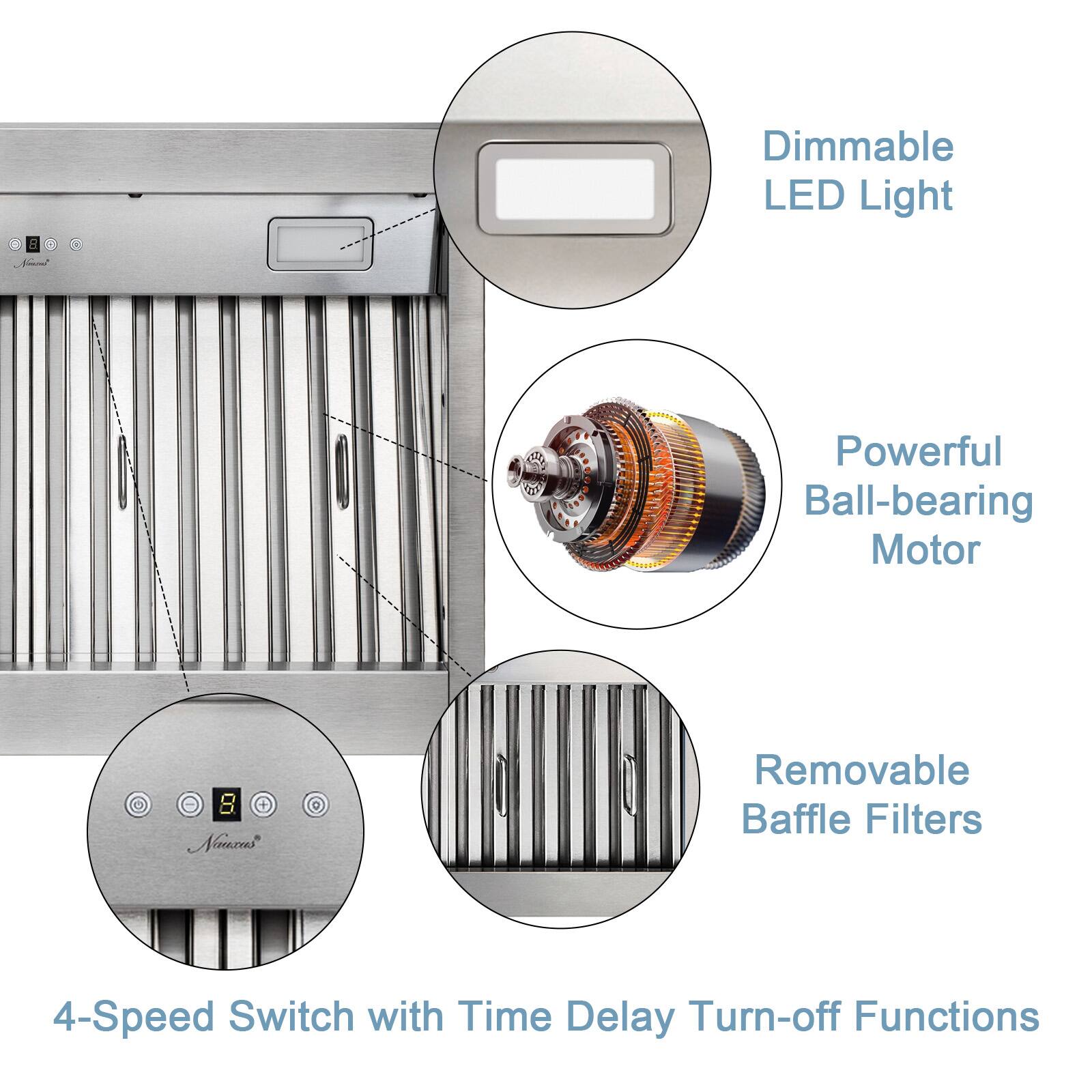

Constructed from durable, rustproof, food-grade brushed stainless steel, this range hood features a powerful copper ball-bearing motor and 6-inch duct with 3 speeds delivering up to 600 CFM of airflow. Its double-groove design effectively separates oil and water from cooking fumes, preventing drips onto your cooking area or surfaces. Ultra-quiet operation ranges from 35dB to 65dB, with a 1–9 minute time delay function that quietly removes smoke and odors. Energy-efficient LED lighting includes 2pcs of 6000K lights plus 2pcs of 3500K dimmable warm lights for versatile illumination. Easy to install with included instructions and video guidance, and simple to clean with dishwasher-safe stainless steel baffle filters. ETL certified and backed by a 3-year warranty, with dedicated after-sales support for any quality concerns.

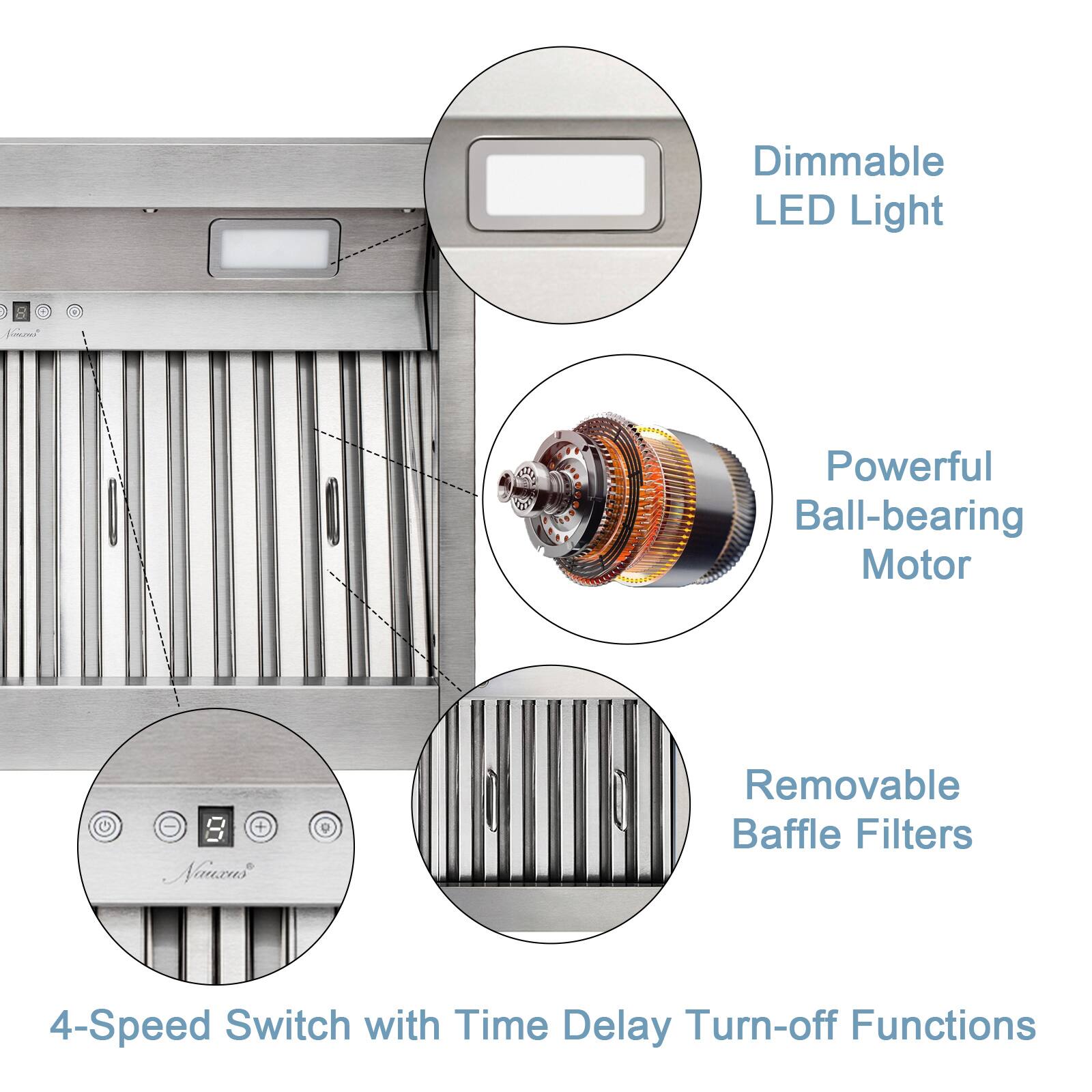

- POWERFUL AIRFLOW: POWERFUL AIRFLOW - Akicon range hood insert is equipped with an excellent copper ball-bearing motor which offers Max. 600 CFM powerful suction, ensuring rapid and effective removal of cooking fumes, harmful smoke, and odors from your kitchen. It reduces the potential damage to your skin and health
- POWERFUL AIRFLOW: POWERFUL AIRFLOW - Akicon range hood insert is equipped with an excellent copper ball-bearing motor which offers Max. 600 CFM powerful suction, ensuring rapid and effective removal of cooking fumes, harmful smoke, and odors from your kitchen. It reduces the potential damage to your skin and health
