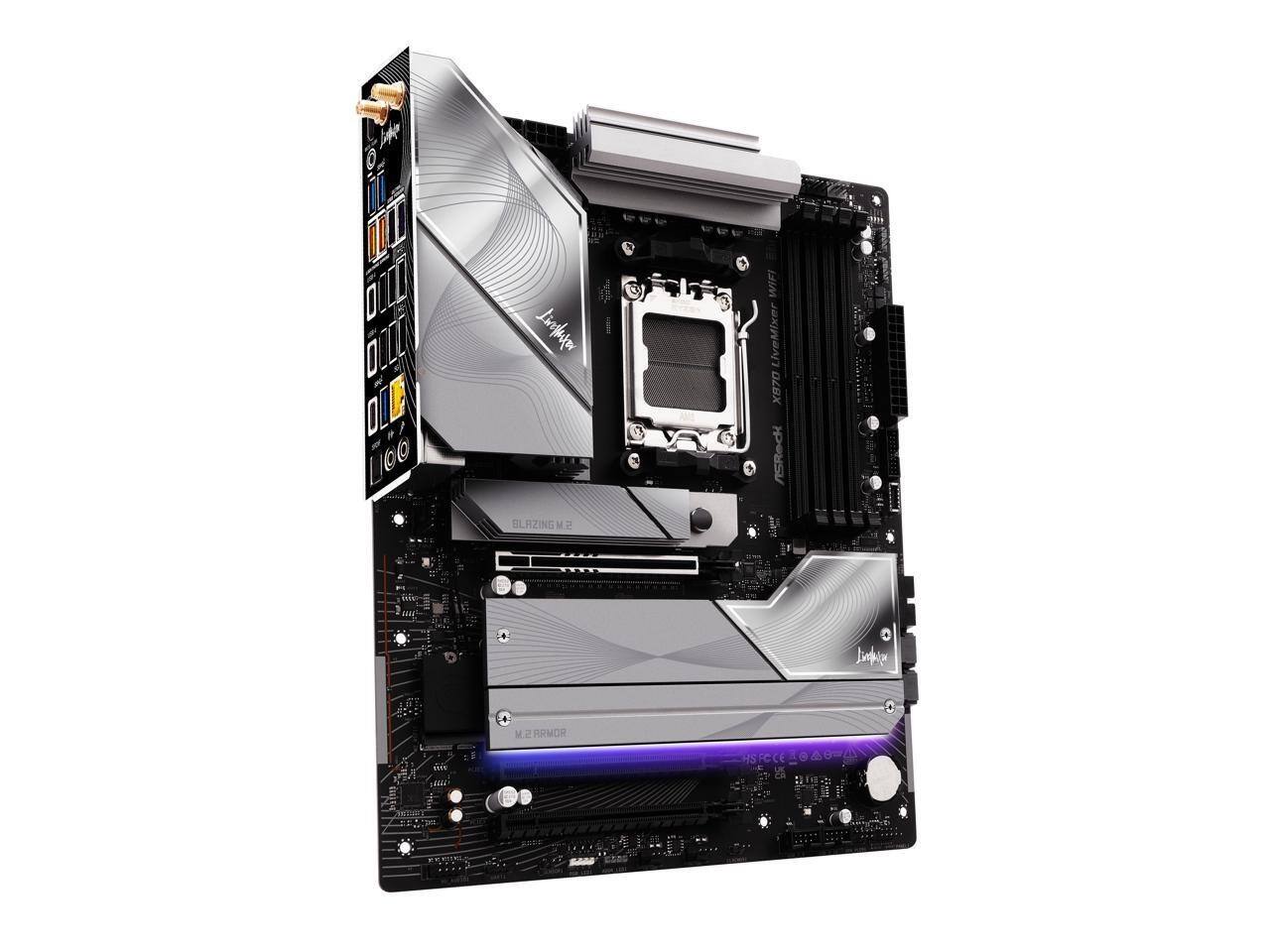

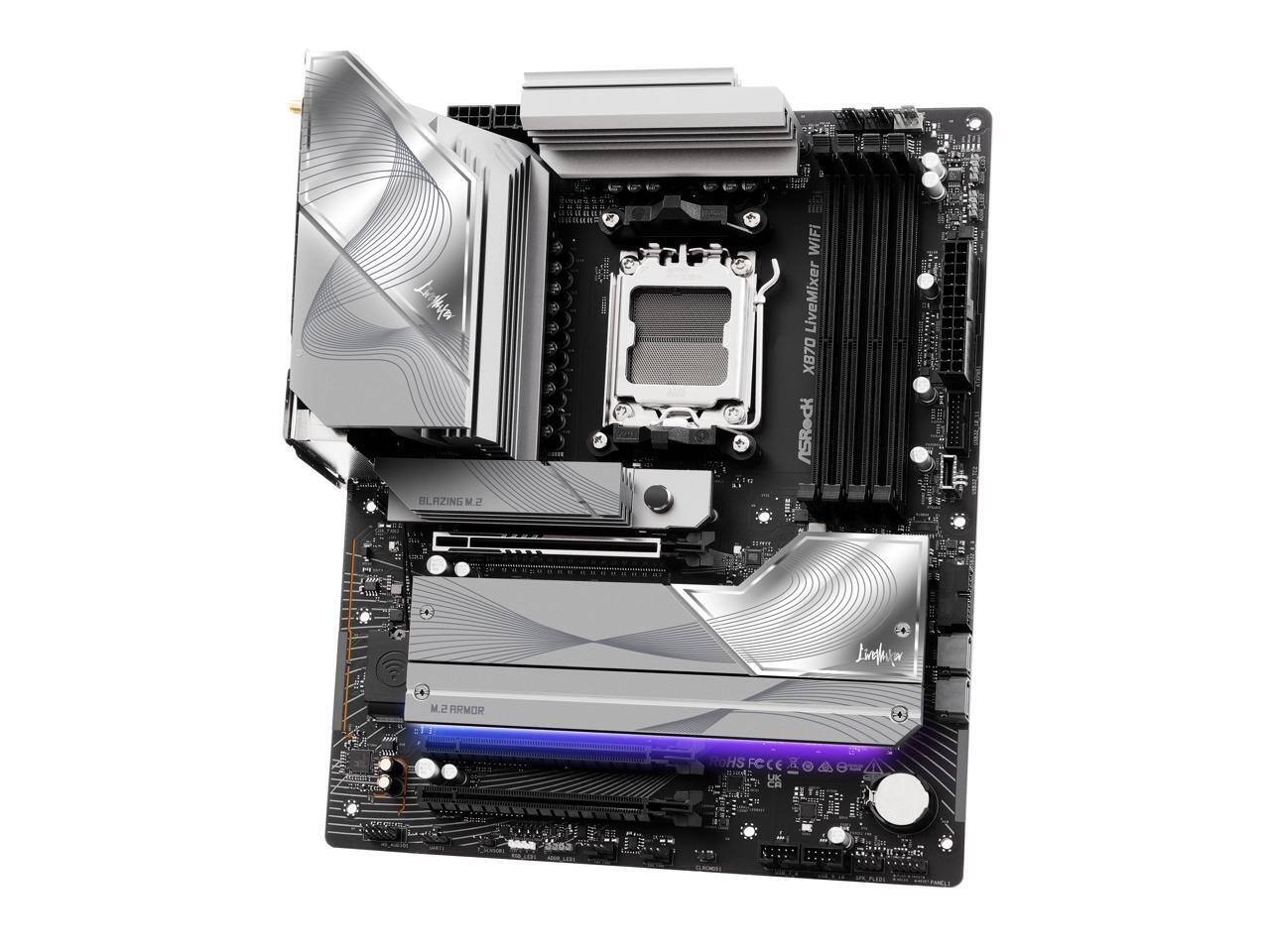

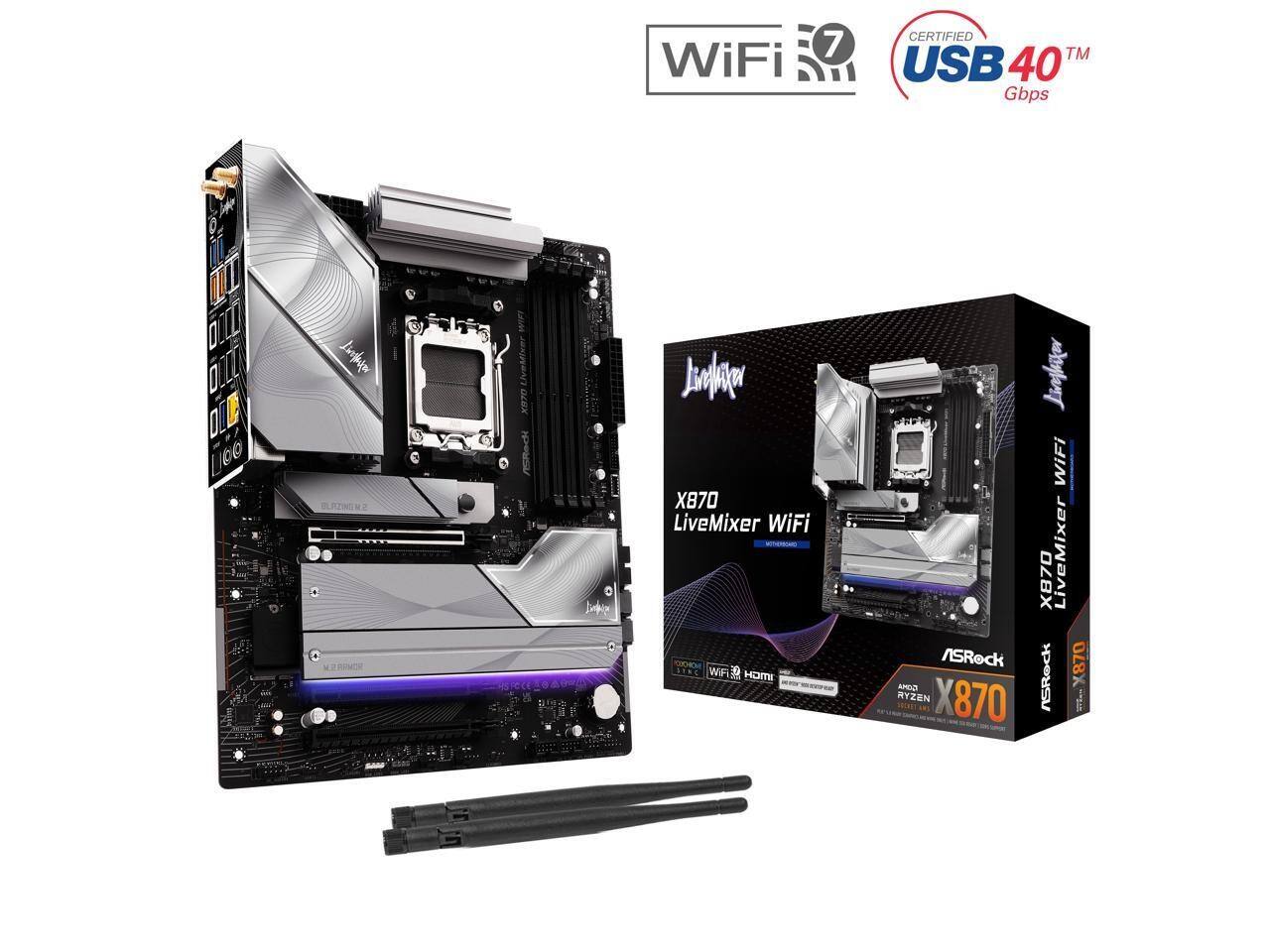

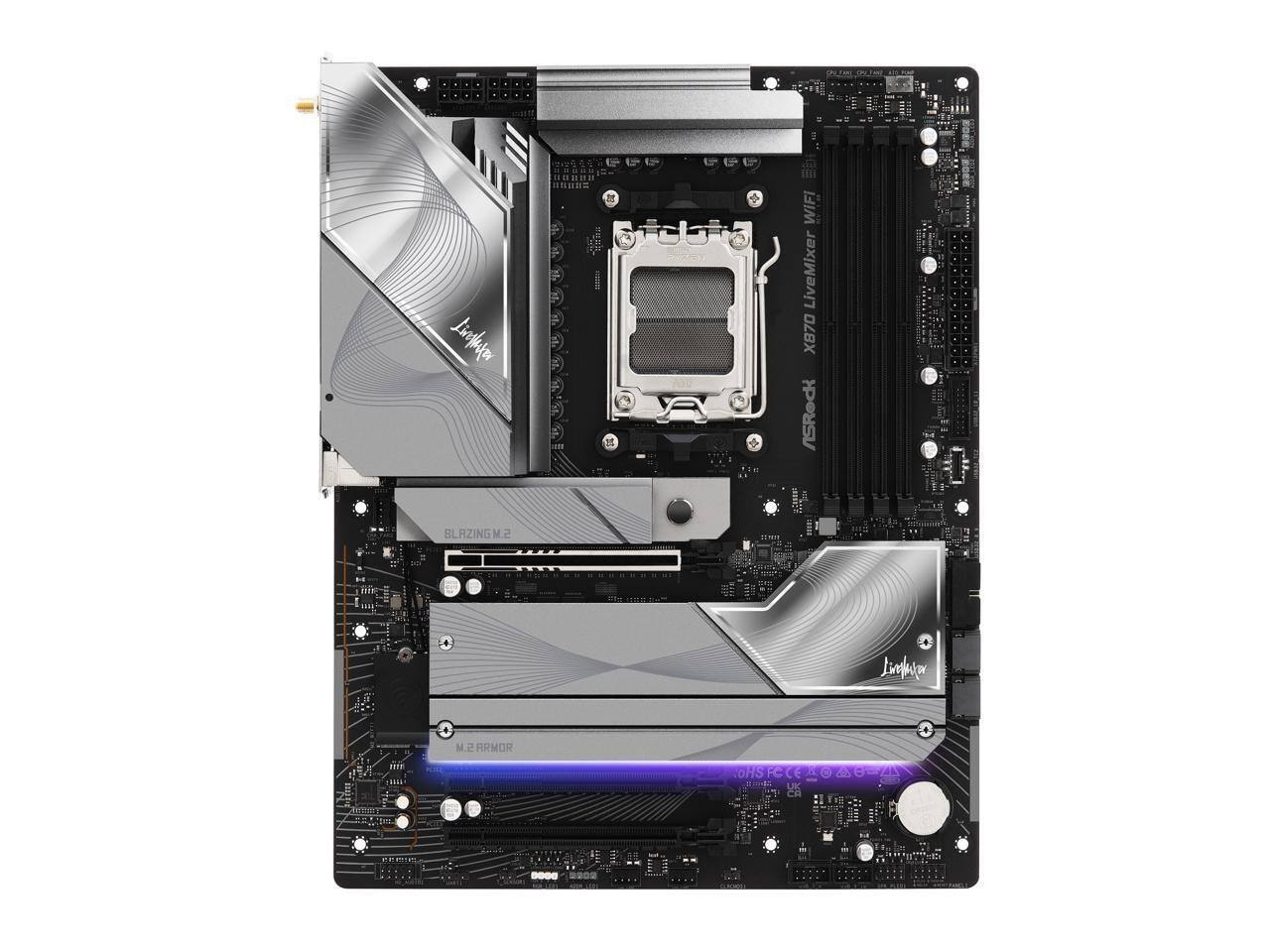

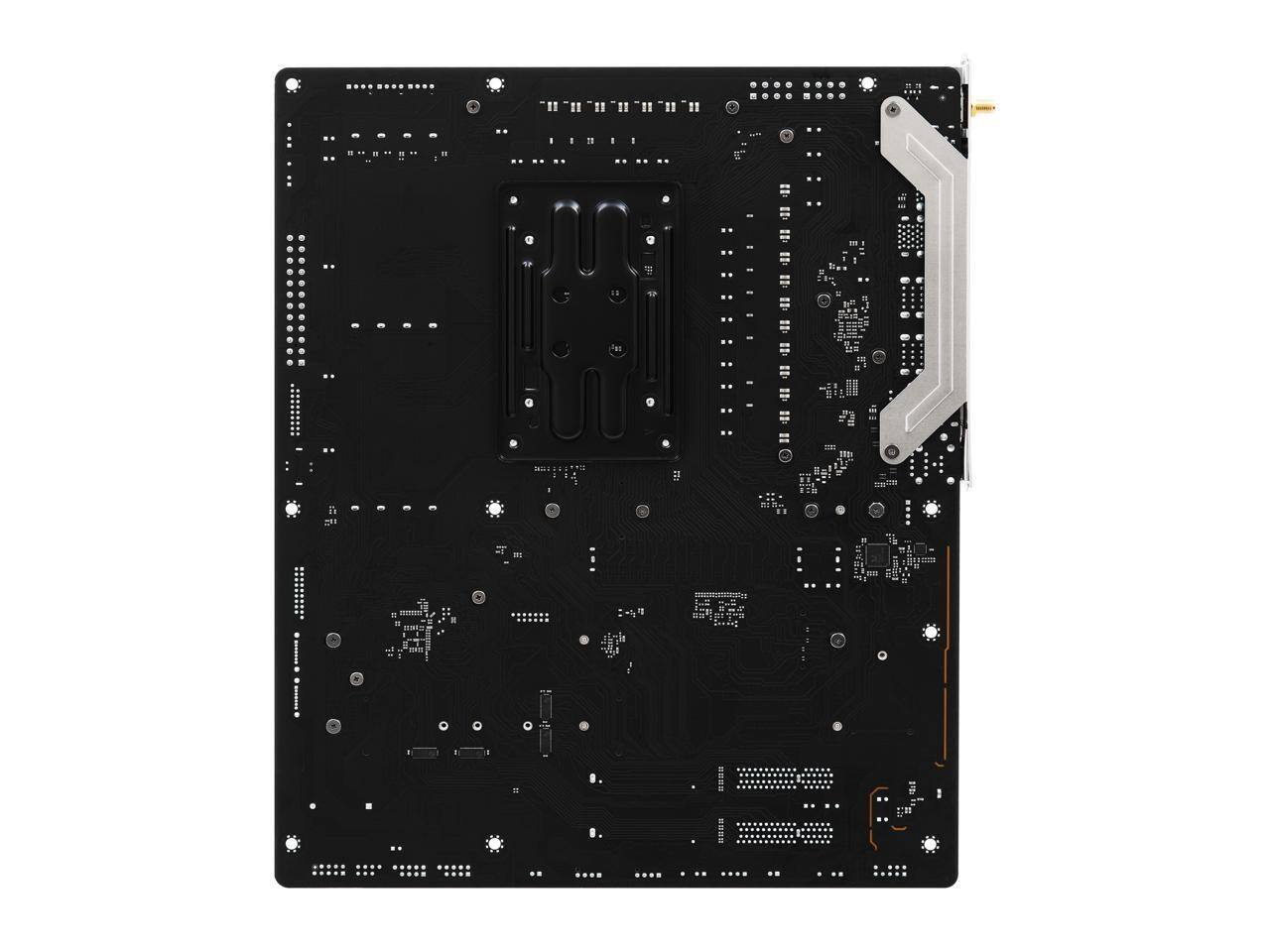

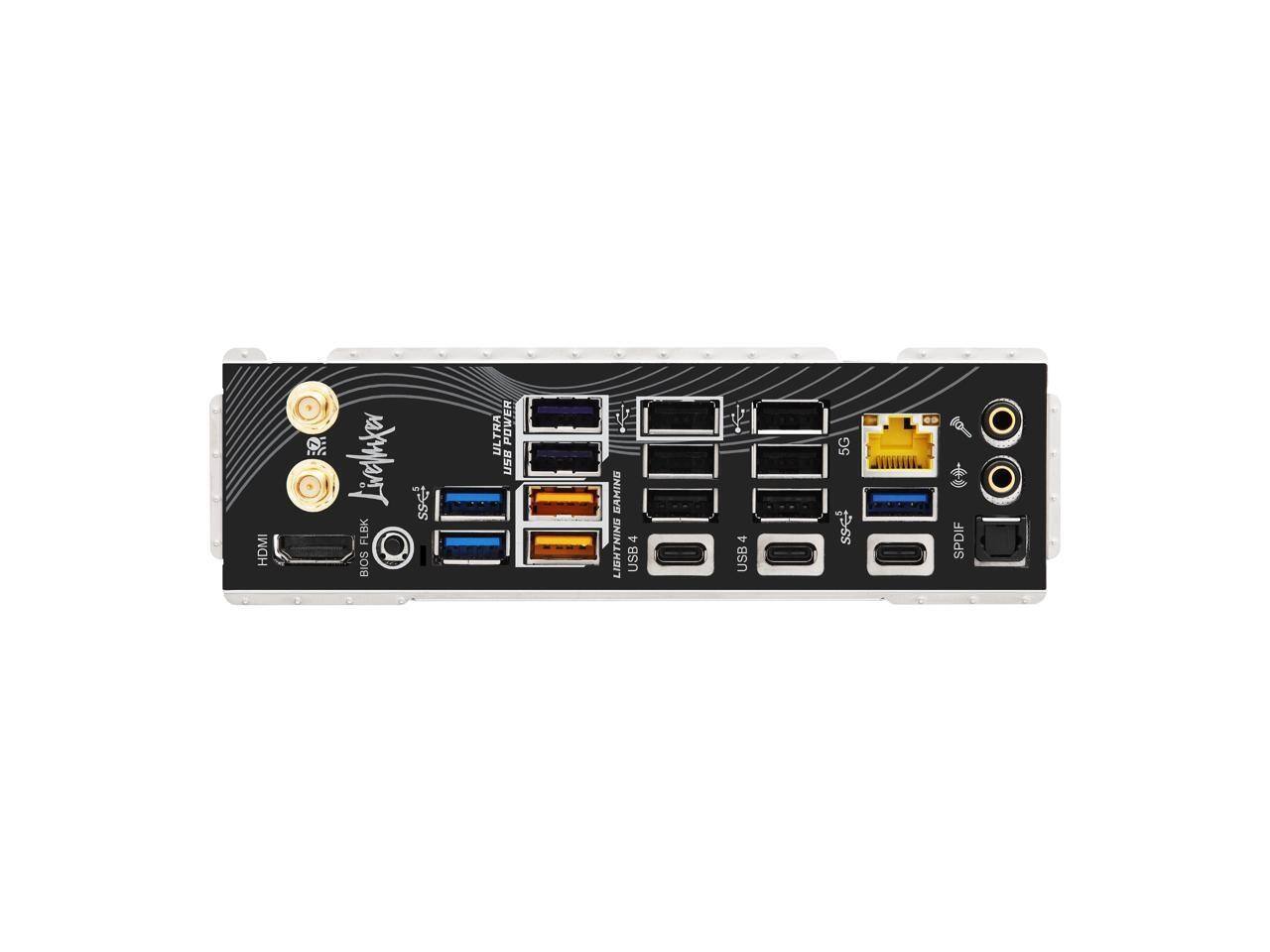

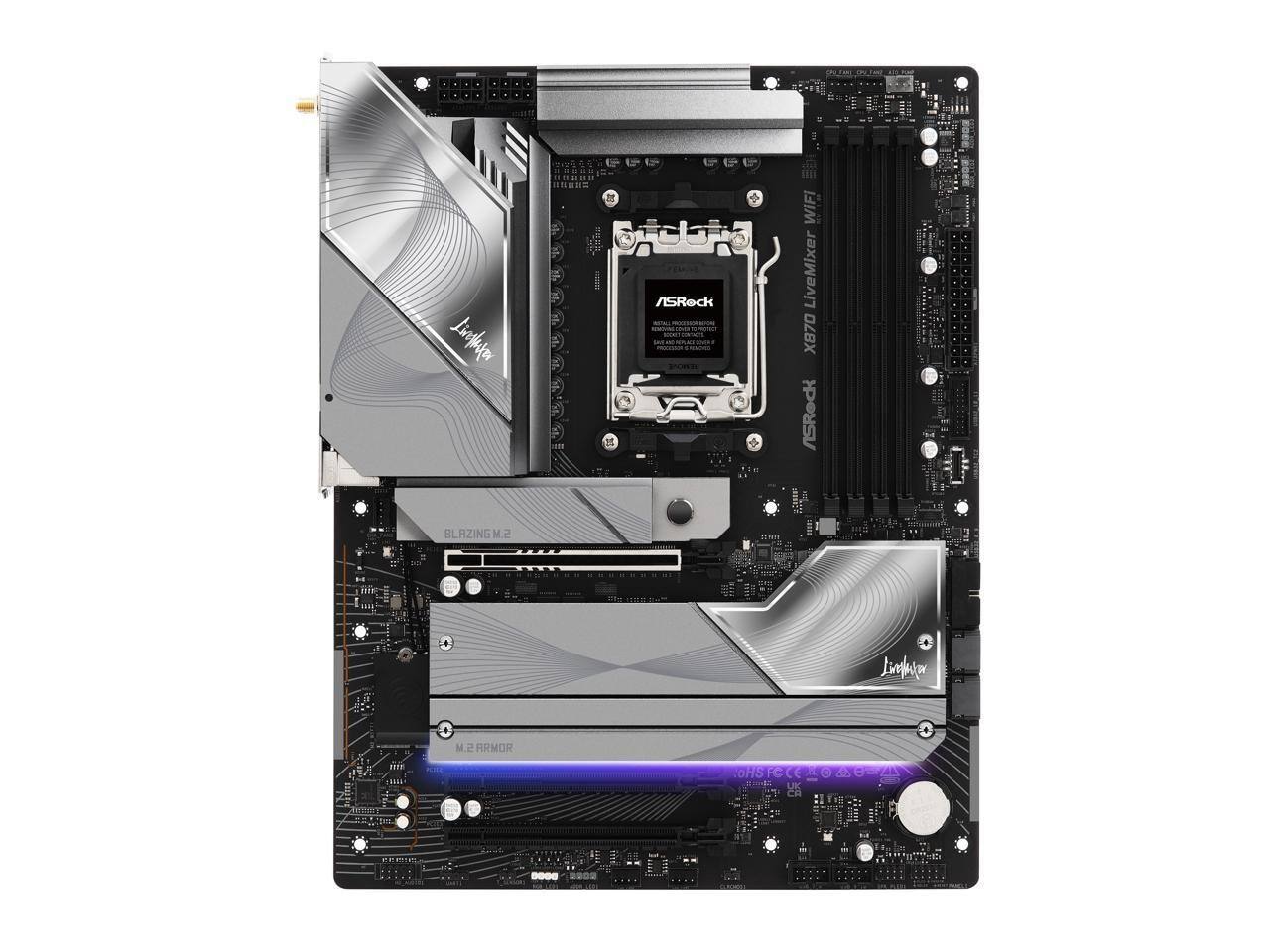

ASRock - X870 LiveMixer WiFi AM5 ATX Motherboard
FREE shipping to
More Buying Options
Related Item
Specifications
- ChipsetAMD X870Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: AMD X870
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASRock
- Product Name: X870 LiveMixer WiFi AM5 ATX Motherboard
- Compatibility
- Chipset: AMD X870
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 3 7000 Series, AMD Ryzen 3 8000 Series, AMD Ryzen 5 9000 Series
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 2 x USB-A, 2 x USB-A 2.0, 2 x USB-A 3.0, 2 x USB-A 3.1, 2 x USB-A 3.2, 2 x USB-B, 2 x USB-C, 2 x USB-C 2.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 12.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 14.1 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 4.75 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 8000+ (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 4711581491823
The ASRock X870 LiveMixer WiFi sets a new standard for high-performance AM5 motherboards, combining exceptional power delivery with striking visual design. Engineered to support AMD Ryzen 9000, 8000, and 7000 series processors, this board features a robust 16+2+1 power phase design with 80A Dr.MOS components, ensuring absolute stability for extreme overclocking and demanding workloads. With DDR5 memory support up to 8000+ (OC) and comprehensive cooling solutions including toolless M.2 heatsinks, it delivers uncompromised performance for enthusiasts and content creators. Connectivity reaches unprecedented levels with dual USB4 Type-C ports delivering 40Gbps speeds, next-gen WiFi 7, and 5GbE LAN for seamless networking. The storage configuration is equally impressive with dual PCIe 5.0 M.2 slots and additional PCIe 4.0 M.2 slots, while extensive USB connectivity including front-panel USB 3.2 Gen2x2 ensures future-ready expansion capabilities. Complete with premium Realtek ALC4082 audio enhanced by Nahimic technology and featuring the distinctive LiveMixer aesthetic, this motherboard represents the perfect fusion of performance, connectivity, and style. Whether you're building a flagship gaming rig or a powerful workstation, the X870 LiveMixer WiFi provides the foundation for an exceptional computing experience.
- Advanced Storage Solution: Includes two Blazing M.2 (PCIe Gen5x4) slots and two Hyper M.2 (PCIe Gen4x4) slots with toolless multi-layer heatsinks for optimal thermal performance.
- Comprehensive USB Expansion: Offers 25 USB ports, including two USB4 Type-C ports with 40Gbps data transfer and DisplayPort Alt Mode, plus HDMI for versatile display options.
- Cutting-Edge Memory Support: Supports four DDR5 DIMM slots with overclocked speeds up to 8000+ (OC) for maximum system responsiveness.
- Extreme Power Delivery: Features a 16+2+1 power phase design with 80A Dr.MOS for VCore, SOC, and MISC, ensuring uncompromising stability for overclocking and high-performance computing.
- High-Fidelity Audio: Equipped with Realtek ALC4082 7.1 CH HD Audio Codec enhanced with Nahimic Audio for immersive sound quality.
Compare similar products
The ASRock X870 LiveMixer WiFi sets a new standard for high-performance AM5 motherboards, combining exceptional power delivery with striking visual design. Engineered to support AMD Ryzen 9000, 8000, and 7000 series processors, this board features a robust 16+2+1 power phase design with 80A Dr.MOS components, ensuring absolute stability for extreme overclocking and demanding workloads. With DDR5 memory support up to 8000+ (OC) and comprehensive cooling solutions including toolless M.2 heatsinks, it delivers uncompromised performance for enthusiasts and content creators. Connectivity reaches unprecedented levels with dual USB4 Type-C ports delivering 40Gbps speeds, next-gen WiFi 7, and 5GbE LAN for seamless networking. The storage configuration is equally impressive with dual PCIe 5.0 M.2 slots and additional PCIe 4.0 M.2 slots, while extensive USB connectivity including front-panel USB 3.2 Gen2x2 ensures future-ready expansion capabilities. Complete with premium Realtek ALC4082 audio enhanced by Nahimic technology and featuring the distinctive LiveMixer aesthetic, this motherboard represents the perfect fusion of performance, connectivity, and style. Whether you're building a flagship gaming rig or a powerful workstation, the X870 LiveMixer WiFi provides the foundation for an exceptional computing experience.
A new era is here. The B650 EAGLE AX supports AM5 Processors and features unparalleled performance. GIGABYTE B650 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
The ASUS ROG Strix B850-A Gaming WiFi pairs powerful performance with sleek design. Featuring 14+2+2 power stages and thick metal heatsinks, it’s ready for AMD Ryzen 9000 Series processors. Enjoy DDR5 with AEMP, PCIe 5.0 M.2, WiFi 7 with Q-Antenna, four M.2 slots, advanced USB connectivity, and Aura Sync RGB.
ASUS ROG STRIX B650-A GAMING WIFI 6E white and silver scheme motherboard is designed with boosted power delivery and optimized cooling to cope with the demands of powerful Ryzen 7000 series processors. Along with Wi-Fi 6E and PCI Express 5.0 for superfast transfer speeds and storage, ROG STRIX B650-A GAMING WIFI 6E is ready to take the helm of your clean and neat white gaming gear.
| Pros for ASRock - X870 LiveMixer WiFi AM5 ATX Motherboard | |||
|---|---|---|---|
| There were no pros for this product— | Overall Performance, Ease of use, BIOS, Wi-Fi, M.2 Slots | Overall Performance, Installation Ease, BIOS Usability, Features, Connectivity | Overall Performance, Ease of use, BIOS, Wi-Fi 6E, Compatibility |
| Cons for ASRock - X870 LiveMixer WiFi AM5 ATX Motherboard | |||
| There were no cons for this product— | USB 2.0 | Driver Support | There were no cons for this product— |
