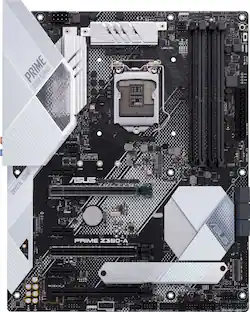

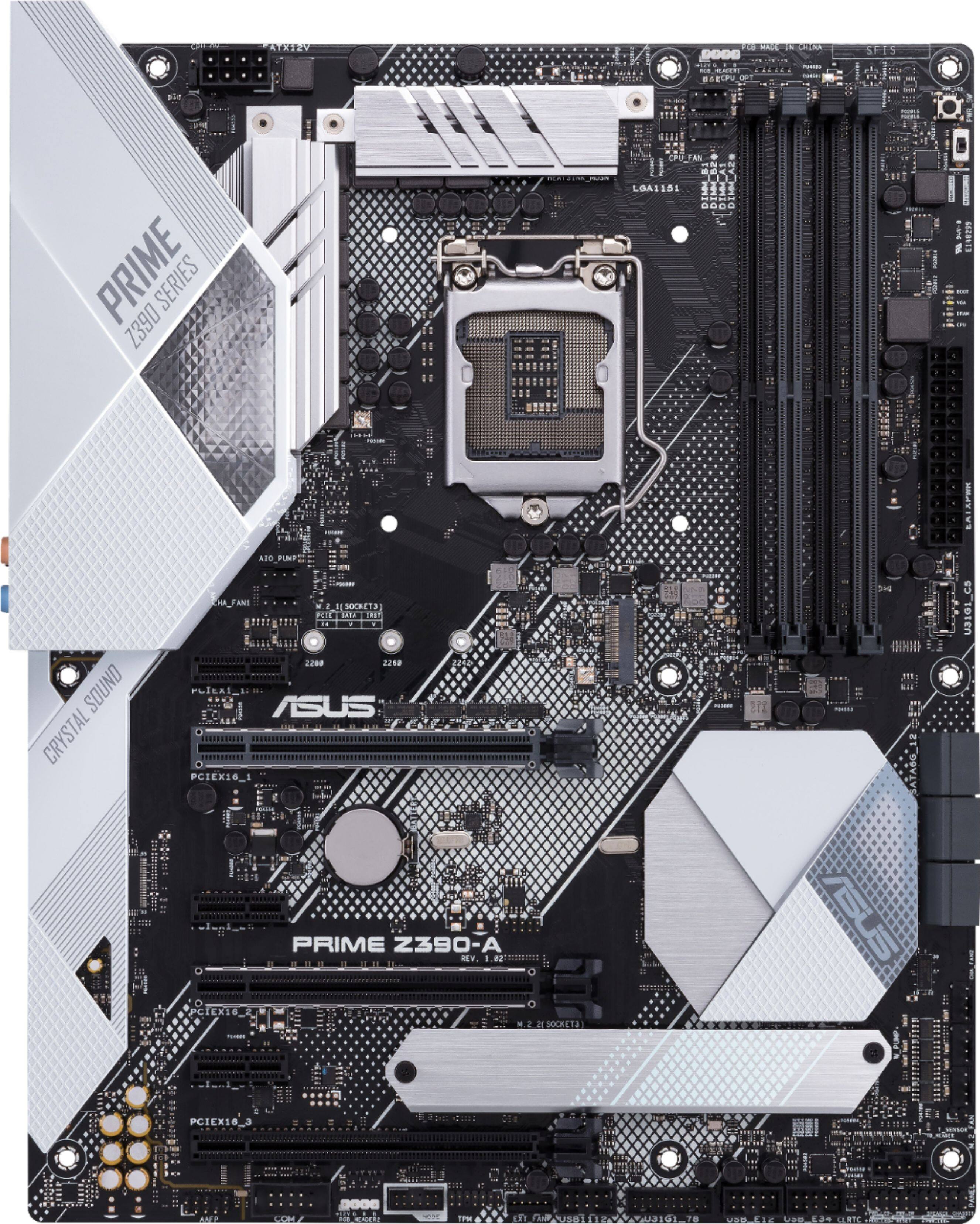

ASUS - PRIME Z390-A (Socket LGA1151) USB 3.1 Gen 1 Intel Motherboard with LED Lighting

Model: PRIME Z390-A
SKU: 6311238
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Chipset: Intel Z390
    • Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
    • Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
    • Number Of Memory Slots: 4
    • Maximum Memory Supported: 64 gigabytes
  • General
    • Brand: ASUS
    • Model Number: PRIME Z390-A
    • Product Name: PRIME Z390-A (Socket LGA1151) USB 3.1 Gen 1 Intel Motherboard with LED Lighting
  • Compatibility
    • Chipset: Intel Z390
    • Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
    • Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
    • Processor Compatibility: Intel Pentium, Intel Celeron, Intel Core i5, Intel Core i3, Intel Core i7
  • Connectivity
    • Power Connector: 24-pin main power connector, 8-pin ATX12V connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
  • Slot
    • Number Of Memory Slots: 4
  • Dimensions
    • Product Length: 9.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
    • Product Width: 12 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
  • Memory
    • Maximum Memory Supported: 64 gigabytes
    • Memory Slot Type: 288-pin DIMM
  • Other
    • UPC: 192876129692

Tailor a high-performance desktop with this ASUS Prime motherboard. Its AI overclocking feature identifies optimal settings for your CPU and cooling system for simplified manual tuning, and the Crystal Sound 3 audio interface with DTS Headphone:X technology supports surround sound formats. This versatile ASUS Prime motherboard lets you control thermal settings via the Fan Xpert 4 or UEFI BIOS application.

PC Gaming Buying Guide

  • Supports Intel® processors: Including Pentium®, Celeron®, Core™ i5, Core™ i3, Core™ i7 and Core™ i9 in an LGA 1151 socket.
  • Up to 4266MHz (OC) system speed: With an Intel® Z390 chipset for efficient operation.
  • NVIDIA 2-way SLI and AMD 3-way CrossFireX graphics support: Provides ultrarealistic image detail when gaming.
  • Four 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
  • Supports Realtek 8-channel audio: For an excellent sonic performance.
  • Peripheral interfaces: Include 1 HDMI, 1 LAN (Gigabit Ethernet), 2 USB 3.1 Gen 1, 2 USB 2.0, 1 TOSLINK, 1 DVI-D, 1 audio line-out, 1 microphone, 1 audio line-out (center/subwoofer), and more.
  • Expansion capabilities: Include 3 PCI Express 3.0 x16 and 3 PCI Express 3.0 x1.
Whats Included
  • ASUS PRIME Z390-A
  • 3 x Serial ATA cable
  • SLI bridge
  • I/O back plate, 2 x M.2 screws, ASUS fan holder
  • Software

Q: What is max watts this mother board has ?

A: That'd depend on your power supply, not your motherboard.

Q: does this motherboard comes with standoffs?

A: No it does not. Standoffs should be included with your case accessories.

Q: Does this motherboard have wifi?

A: No, this motherboard doesn't have wifi.
