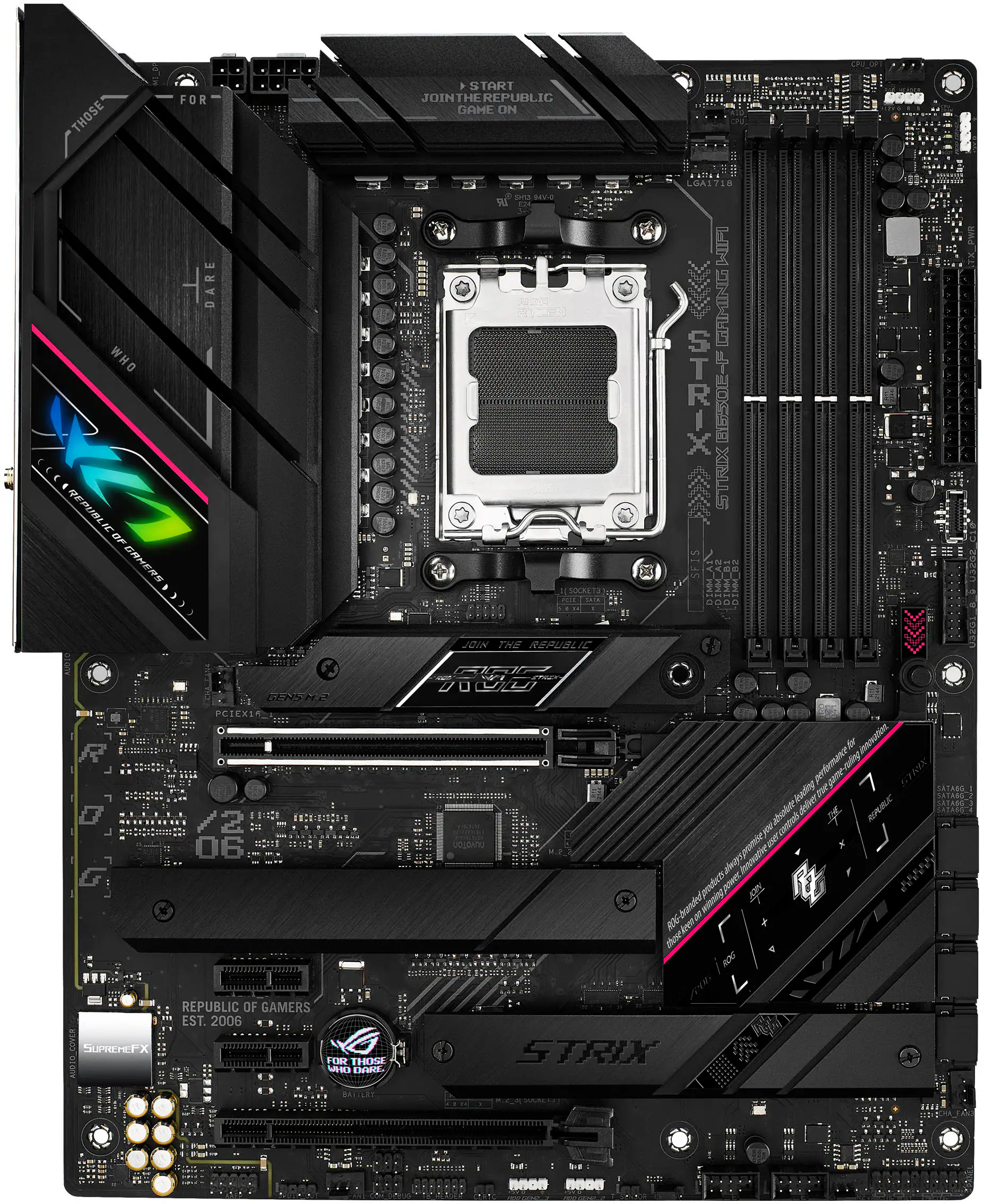

ASUS - ROG STRIX B650E-F GAMING WIFI (Socket AM5) AMD B650E ATX DDR5 Wi-Fi 6E Motherboard - Black
Intel - Core i7-12700K Desktop Processor 12 (8P+4E) Cores up to 5.0 GHz Unlocked LGA1700 600 Series Chipset 125W - Grey/Black/Gold$239.99$294.99
More Buying Options
Specifications
- ChipsetAMD B650Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots4Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4
- Key Specs
- Chipset: AMD B650
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 4 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Model Number: ROG STRIX B650E-F GAMING WIFI
- Product Name: ROG STRIX B650E-F GAMING WIFI (Socket AM5) AMD B650E ATX DDR5 Wi-Fi 6E Motherboard
- Color: Black
- Year of Release: 2022
- Compatibility
- Chipset: AMD B650
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 5 7000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 9 7000 Series
- Operating System Compatibility: Windows 11 Home
- Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 4 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 2
- Number Of PCI-E x1 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 1 x 4-pin CPU Fan header,1 x 4-pin CPU OPT Fan header,1 x 4-pin AIO Pump header,4 x 4-pin Chassis Fan headers (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 1 x USB-A 2.0, 1 x USB-A 3.0, 1 x USB-A 3.2 (The number and type of USB ports the product has.)
- Thunderbolt Ports: 1 x Thunderbolt 4 (The number and type of Thunderbolt ports the product has.)
- Audio Ports: 5 x Audio jacks
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 244.09 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244.09 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 57.6 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 01 (RAID 0+1), RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 195553944038
AMD’s latest 7000-series CPUs have arrived, and we launched a full family of X670E motherboards to accompany them. Featuring PCIe 5.0 connectivity and across-the-board DDR5 support.
- Processor Compatibility: AMD AM5 Socket AMD Ryzen Processors
- Speed: 4 x DIMM
- Graphics: Integrated graphics processor
- Memory: 128GB, DDR5
- Audio: Realtek ALC 4080

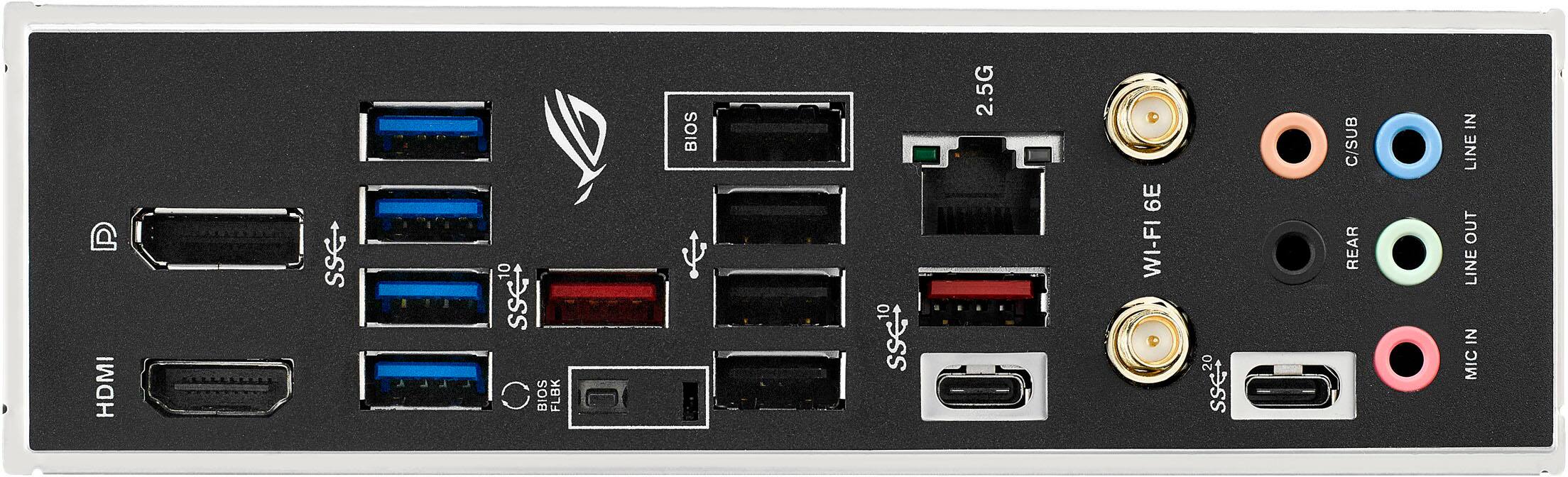

- Interfaces: Rear: 3.2 Gen 2x2: 1 x USB Type-C / 3.2 Gen 2: 6 x USB Type-A, 1 x USB Type-C / 2.0: 4 x USB Type-A. Front: 3.2 Gen 2: 1 x USB Type-C / 3.2 Gen 1: 2 x USB Type-A / 2.0: 4 x USB Type-A
- PCIe: 2 x pcie 5.0 x16 (@x16 or x8/x4) / 1 x pcie 4.0 x16 (x4)
- Ai Networking: gamefirst VI optimizes and organizes network bandwidth, effectively reducing jitter and eliminating spike lag to ensure smooth online gameplay
- Processor Compatibility: AMD AM5 Socket AMD Ryzen Processors
- Speed: 4 x DIMM
- Graphics: Integrated graphics processor
- Memory: 128GB, DDR5
- Audio: Realtek ALC 4080
- Interfaces: Rear: 3.2 Gen 2x2: 1 x USB Type-C / 3.2 Gen 2: 6 x USB Type-A, 1 x USB Type-C / 2.0: 4 x USB Type-A. Front: 3.2 Gen 2: 1 x USB Type-C / 3.2 Gen 1: 2 x USB Type-A / 2.0: 4 x USB Type-A
- PCIe: 2 x pcie 5.0 x16 (@x16 or x8/x4) / 1 x pcie 4.0 x16 (x4)
- Ai Networking: gamefirst VI optimizes and organizes network bandwidth, effectively reducing jitter and eliminating spike lag to ensure smooth online gameplay
Whats Included
- User's manual
- Supporting DVD
- M.2 SSD screw packages
- M.2 Rubber packages
- Cable ties packs
- User's manual
- Supporting DVD
- M.2 SSD screw packages
- M.2 Rubber packages
- Cable ties packs
Q: What is the maximum memory supported by this motherboard?
A: The maximum memory supported is 128 gigabytes.
Q: Does this motherboard have built-in Wi-Fi?
A: Yes, this motherboard comes with Wi-Fi 6E built-in.
Q: What is the form factor of this motherboard?
A: The form factor of this motherboard is ATX.
Q: Which processor socket does this motherboard use?
A: This motherboard uses the Socket AM5 (LGA 1718) processor socket.
Q: What type of memory does this motherboard support?
A: This motherboard supports DDR5 memory.
Q: How many SATA connectors does the motherboard have?
A: The motherboard has 4 SATA 6G connectors.
Q: Does this fit a ryzen 9 7900x?
A: Yes, a Ryzen 9 7900x fits this motherboard. FYI, that CPU does not come with a cooler so a separate CPU cooler will be required to purchase separately.
Q: is this board ready for 9000 series.
A: The ASUS ROG STRIX B650E-F GAMING WIFI motherboard is ready for AMD Ryzen 9000 series CPUs. https://rog.asus.com/motherboards/rog-strix/rog-strix-b650e-f-gaming-wifi-model/spec/
Compare similar products
AMD’s latest 7000-series CPUs have arrived, and we launched a full family of X670E motherboards to accompany them. Featuring PCIe 5.0 connectivity and across-the-board DDR5 support.
The ASUS ROG Strix B850-A Gaming WiFi pairs powerful performance with sleek design. Featuring 14+2+2 power stages and thick metal heatsinks, it’s ready for AMD Ryzen 9000 Series processors. Enjoy DDR5 with AEMP, PCIe 5.0 M.2, WiFi 7 with Q-Antenna, four M.2 slots, advanced USB connectivity, and Aura Sync RGB.
This mean machine powers your next hot rod. The ASUS ROG Strix B850-F GAMING WIFI features PCIe 5.0, DDR5 AEMP, WiFi 7 with Q-Antenna, robust 16+2+2 power stages, four M.2, total support of 19 USB ports including USB Type-C, AI Advisor, advanced cooling, and Aura Sync—perfect for Ryzen processors.
ASUS TUF GAMING B650E-PLUS WIFI motherboard features DDR5, PCIe 5.0 x16 SafeSlot, triple M.2 (one PCIe 5.0), Wi-Fi 6E, 2.5Gb LAN, USB-C 20Gbps, Q-Release, Q-LED, RGB Gen 2, BIOS FlashBack, and 12+2+1 80A DrMOS—built tough for performance, reliability, and next-gen gaming builds
| Pros for ASUS - ROG STRIX B650E-F GAMING WIFI (Socket AM5) AMD B650E ATX DDR5 Wi-Fi 6E Motherboard - Black | |||
|---|---|---|---|
| BIOS, Performance, Design, Ease of use | Overall Performance, Features, BIOS, Installation Ease | Overall Performance, Features | Overall Performance |
| Cons for ASUS - ROG STRIX B650E-F GAMING WIFI (Socket AM5) AMD B650E ATX DDR5 Wi-Fi 6E Motherboard - Black | |||
| Boot Time, Price, RAM, Wi-Fi | There were no cons for this product— | Heatsink Design | There were no cons for this product— |
Specs
Reviews
Customers are saying
Customers praise the ROG STRIX B650E-F GAMING WIFI motherboard's performance and ease of use, highlighting its user-friendly BIOS and straightforward installation process. However, some users reported slow boot times as a drawback. A few also experienced issues with Ethernet connectivity, particularly when Wi-Fi 6e was enabled.

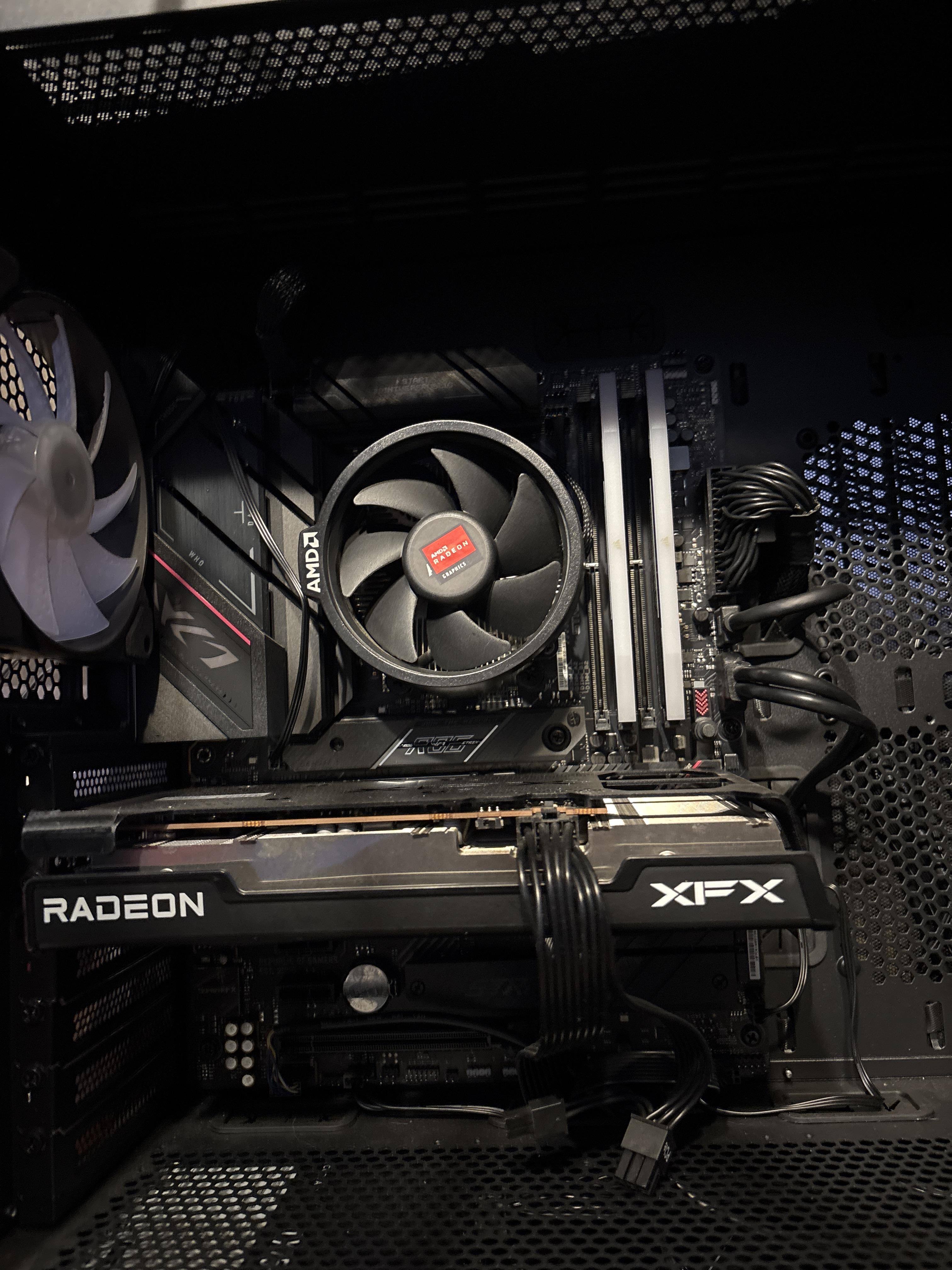

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 4 out of 5 stars
Decent for the 7950X
It gave me a bit of problems in the beginning when trying to run this with my cpu and especially my ram. It still cant run my ram at full capacity (6000mhz) but it runs regardless.
Posted by canadoodle
- Rated 5 out of 5 stars
Really good motherboard
I’ve been running the ASUS ROG STRIX B650E-F GAMING WIFI in a high-performance, dual-boot environment for AI development and gaming, and this board has absolutely delivered. Paired with an AMD Ryzen 7 7800X3D, an RTX 3090, and a 7800XT, it’s currently in workstation/gaming hybrid that handles everything from deep learning model training to 4K AAA gaming.
Posted by NoeG
- Rated 5 out of 5 stars
Love this MB
I have a amd ryzen 7 9800x 3d cpu hooked up to this beast and i have a gigabit 5090 oc also hooked up to it. Have no issues with this thing and would highly recommend it.
Posted by Josh
