Specifications
- ChipsetAMD B850Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported192 gigabytes
- Key Specs
- Chipset: AMD B850
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Product Name: ROG STRIX B850-A GAMING WIFI R2 ATX Motherboard
- Compatibility
- Chipset: AMD B850
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 3 7000 Series, AMD Ryzen 3 8000 Series, AMD Ryzen 5 9000 Series
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 2 x USB-C, 6 x USB-A, 4 x USB-A 2.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 12.0 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 9.6 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 4.95 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 8000 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 197105983472

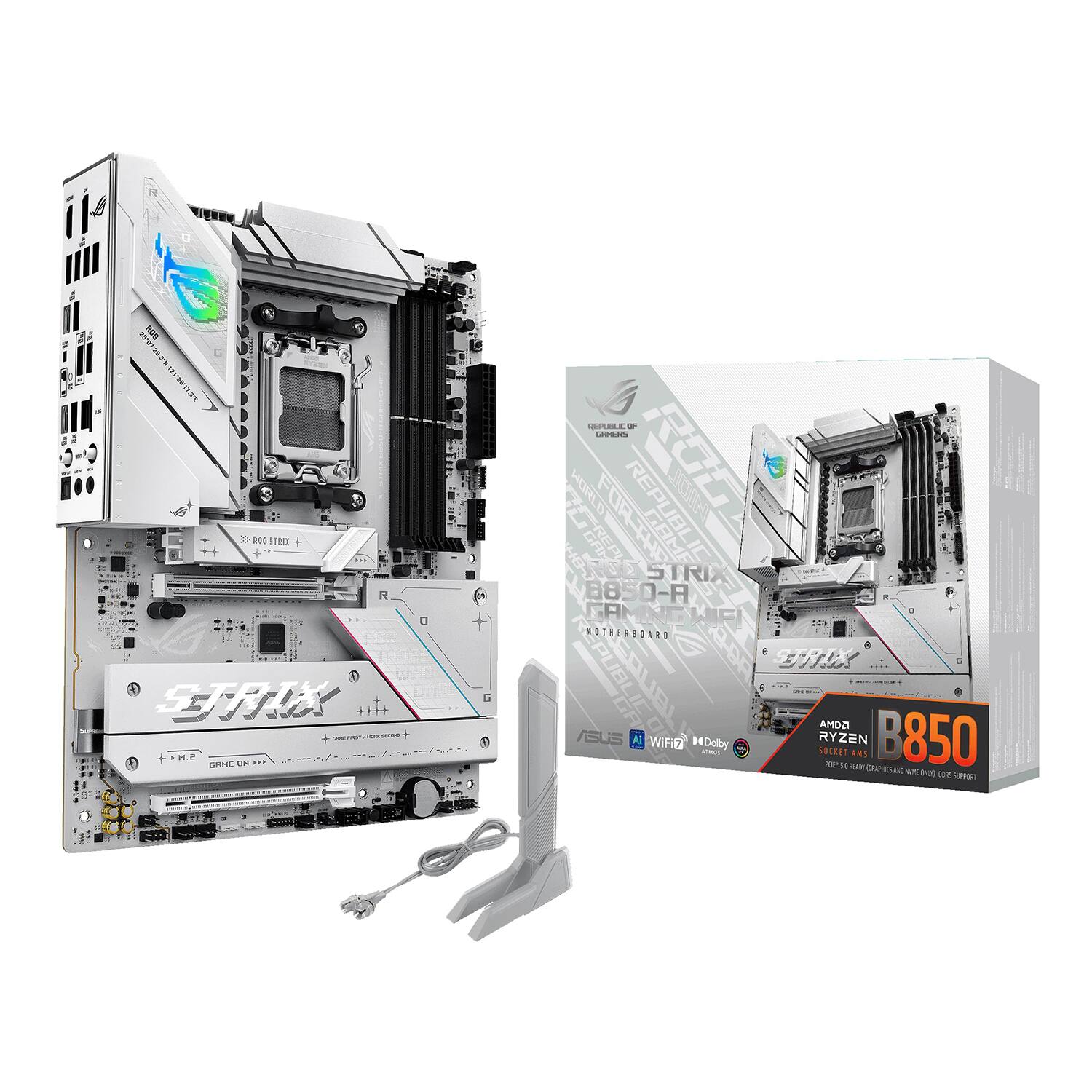

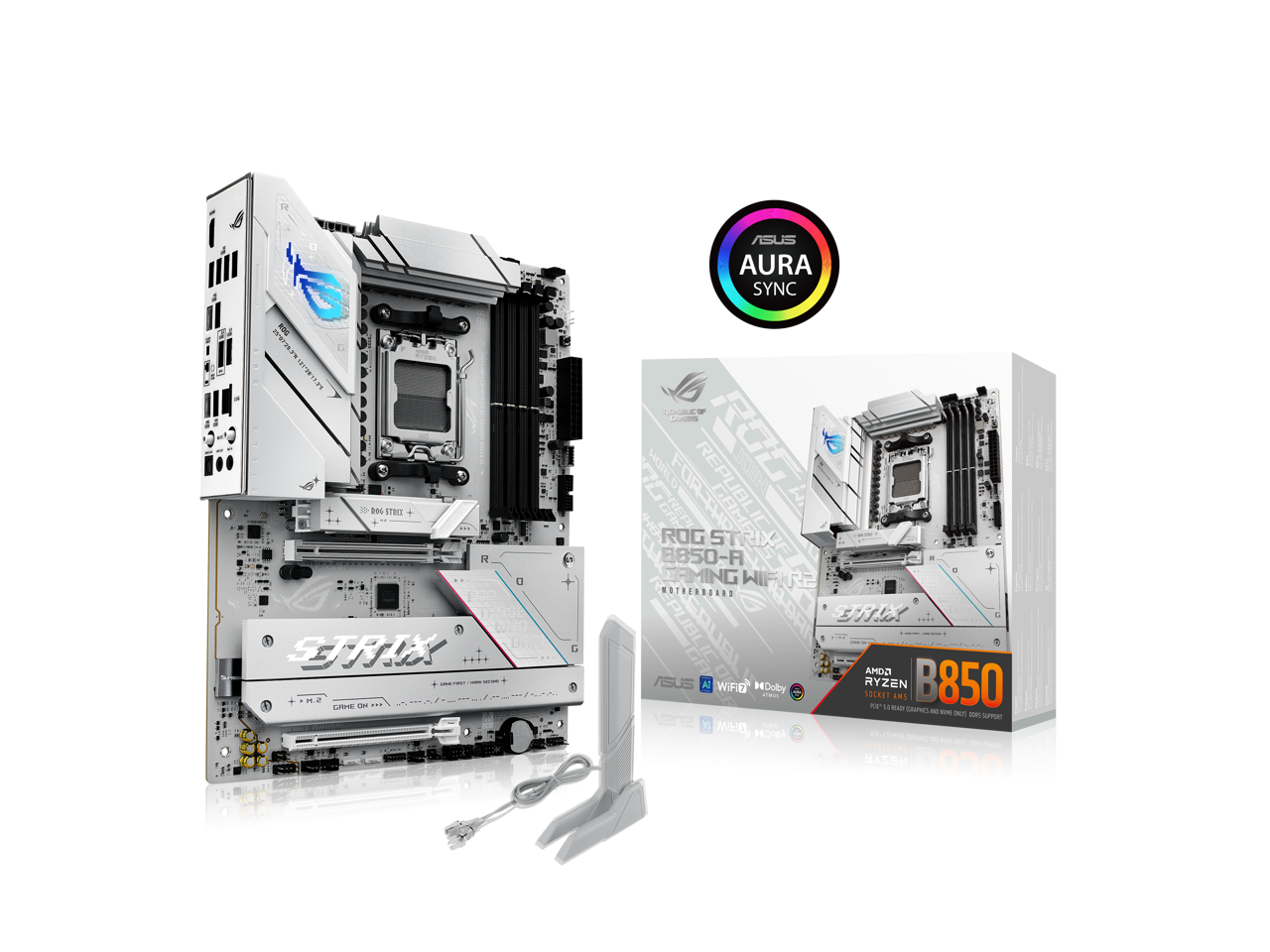

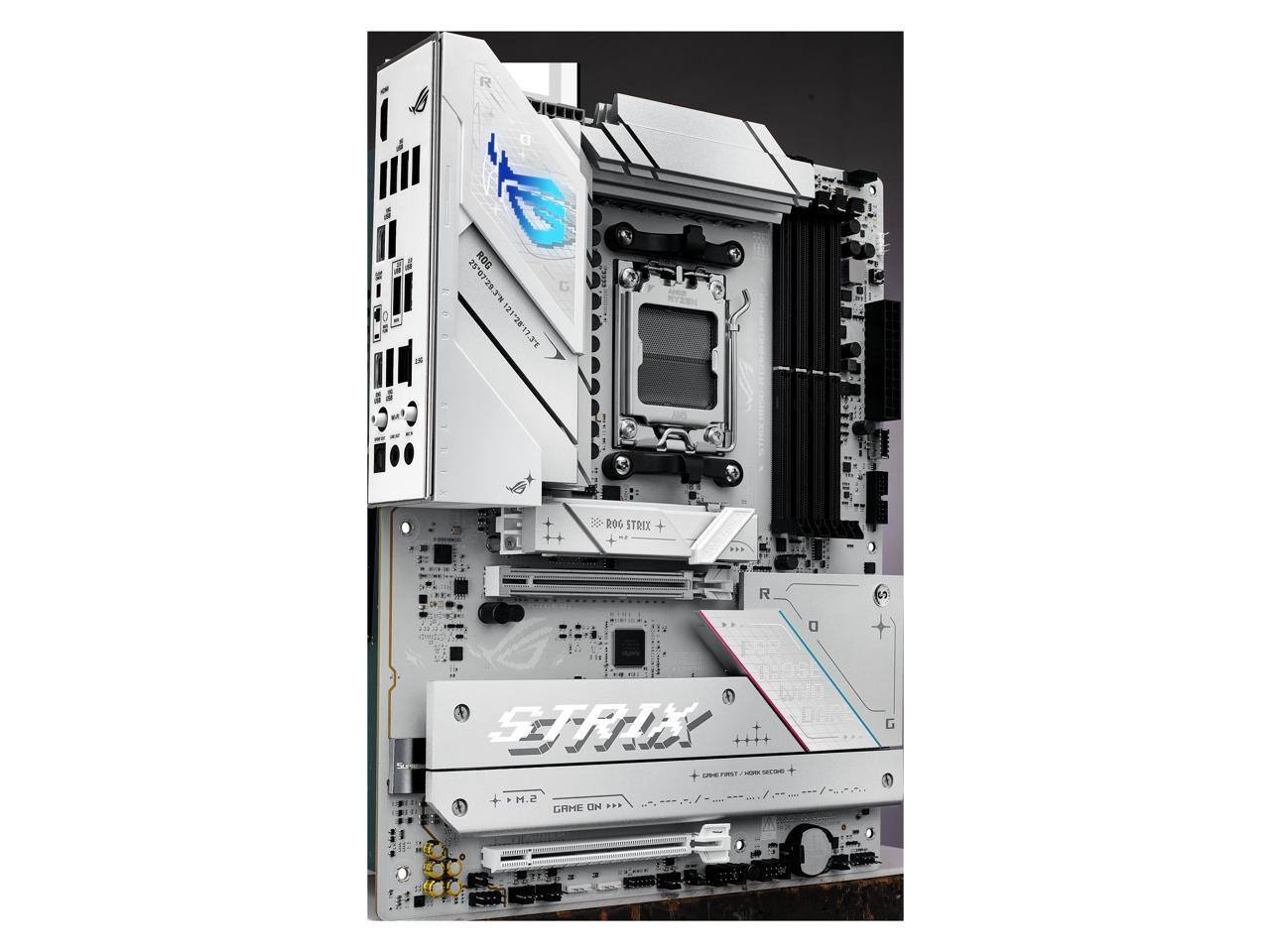

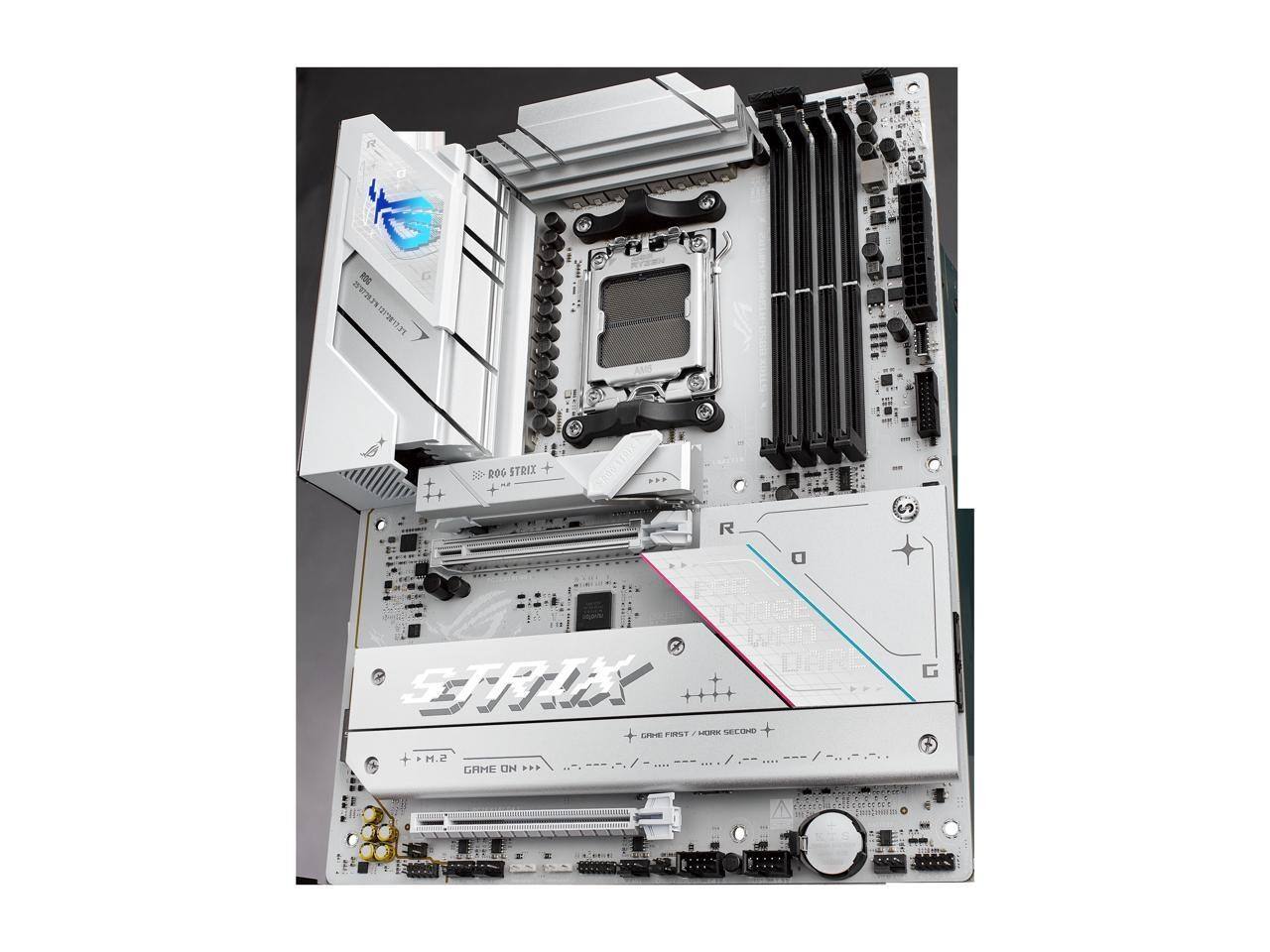

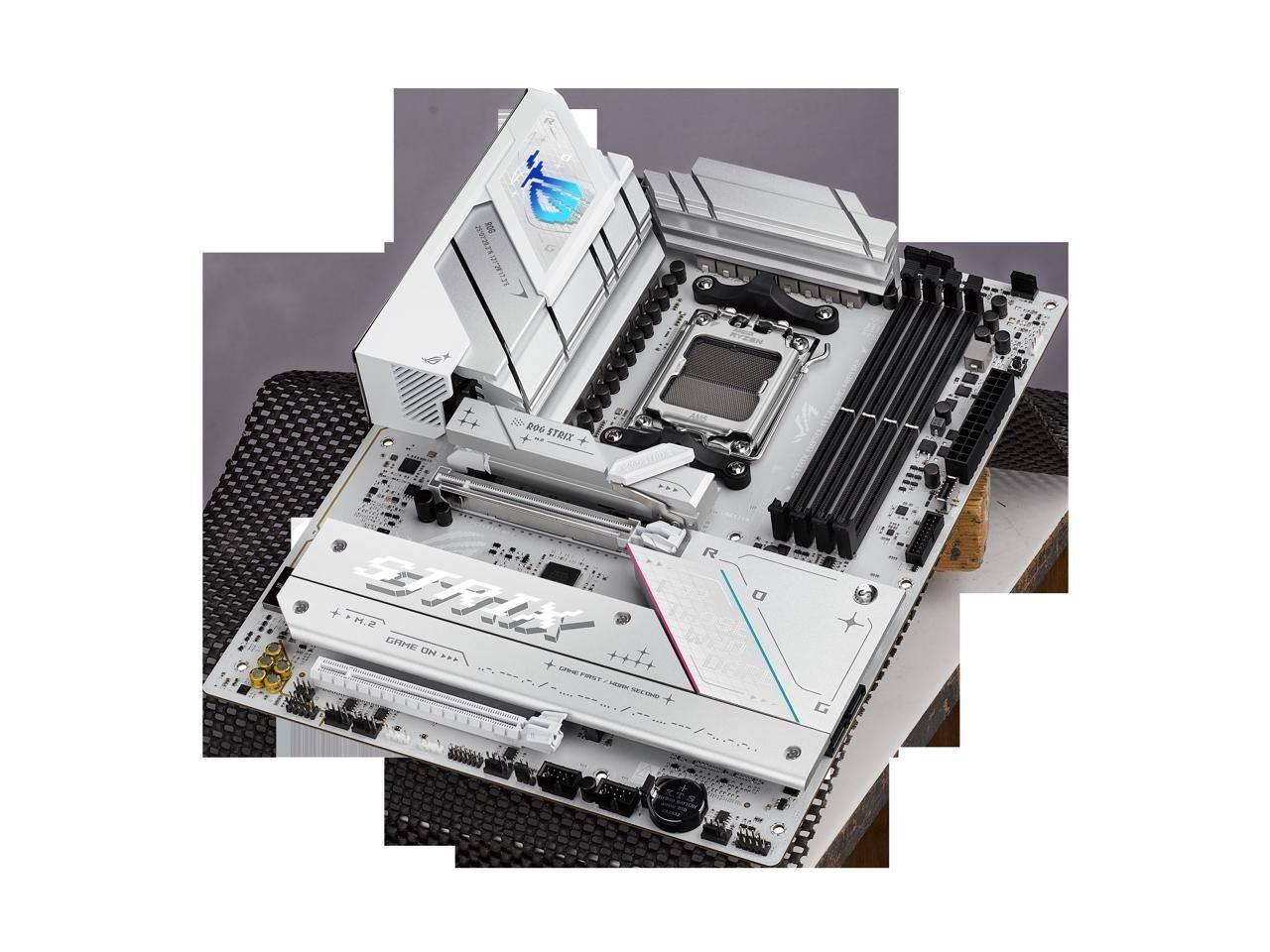

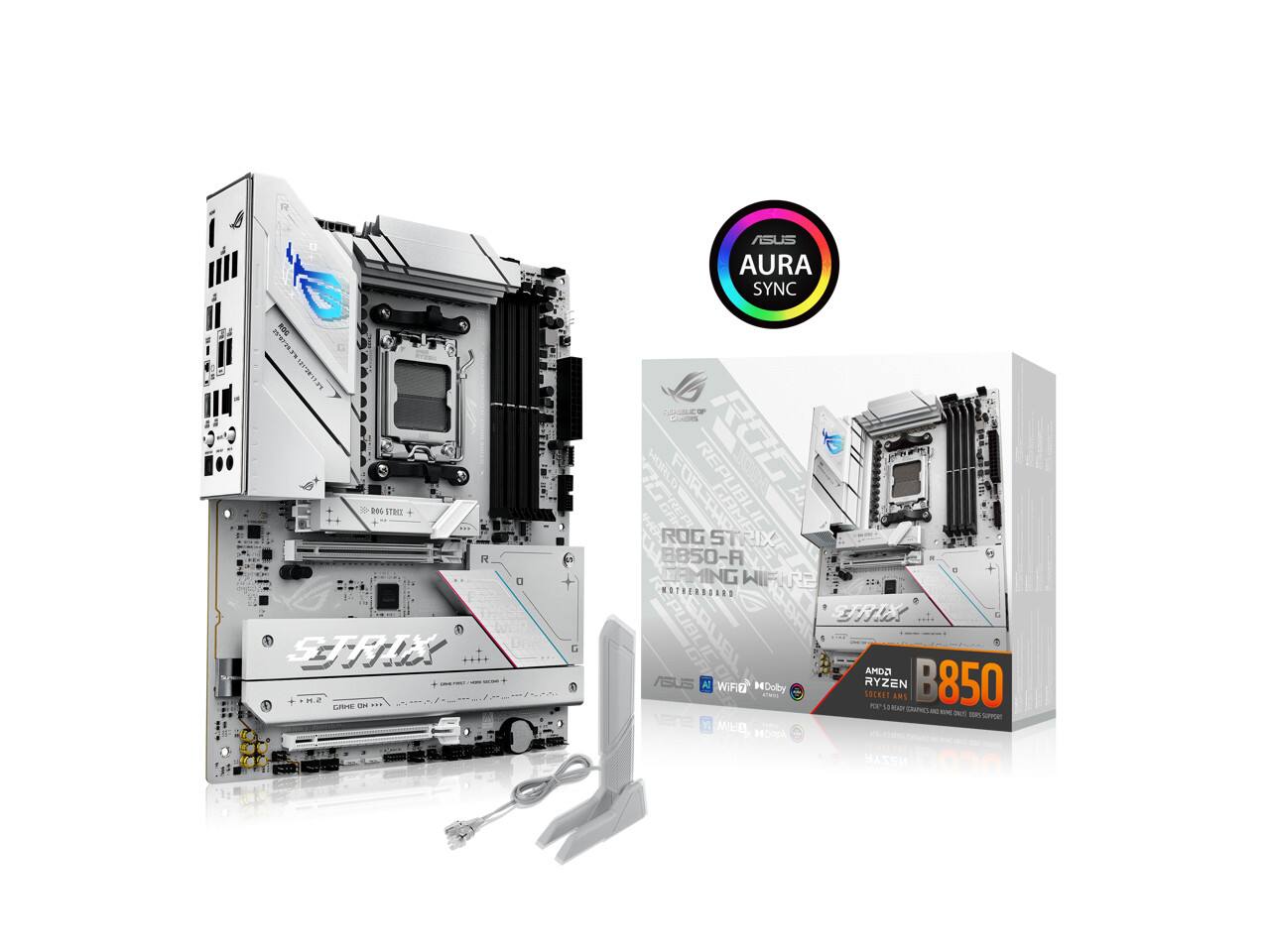

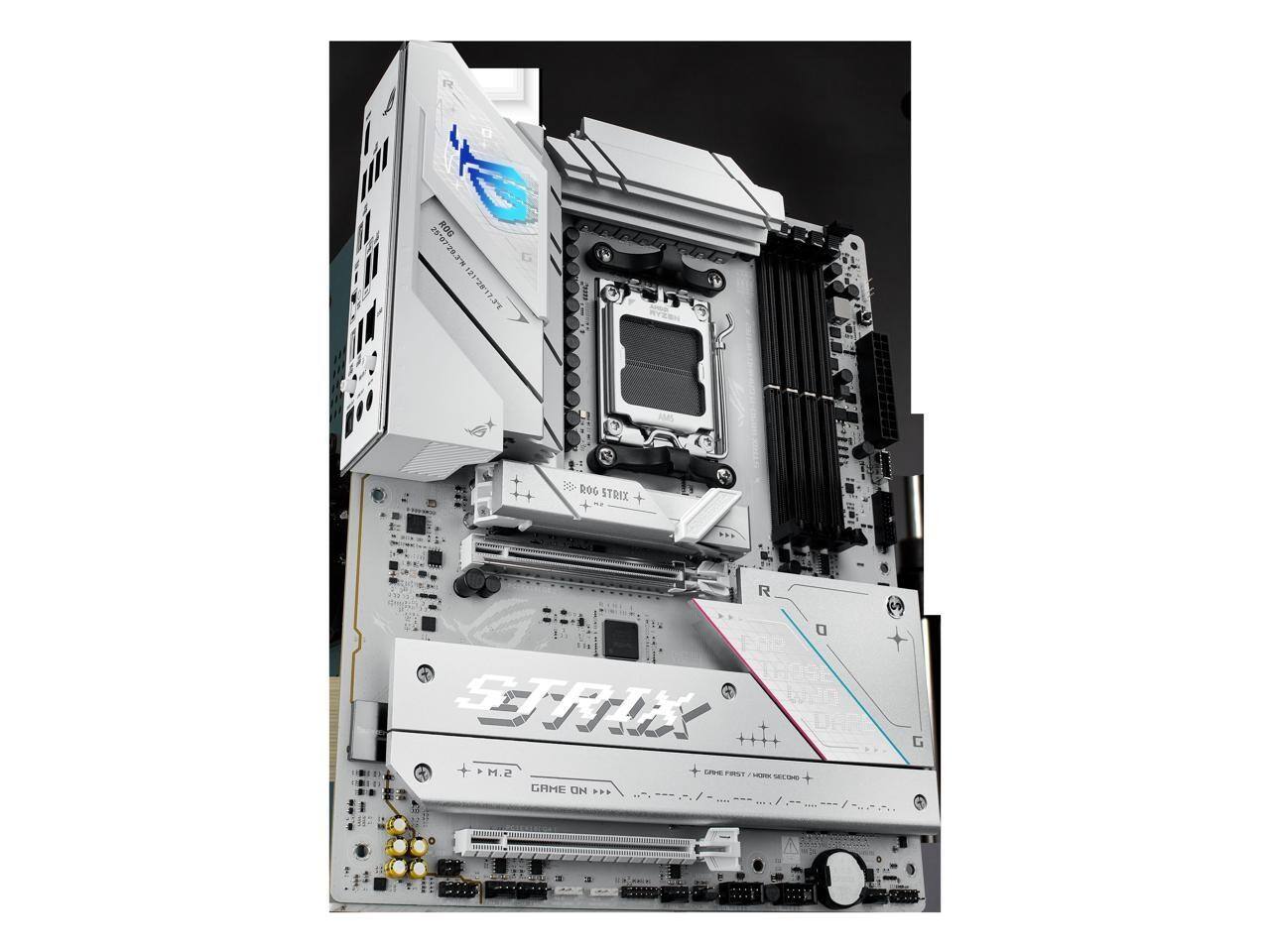

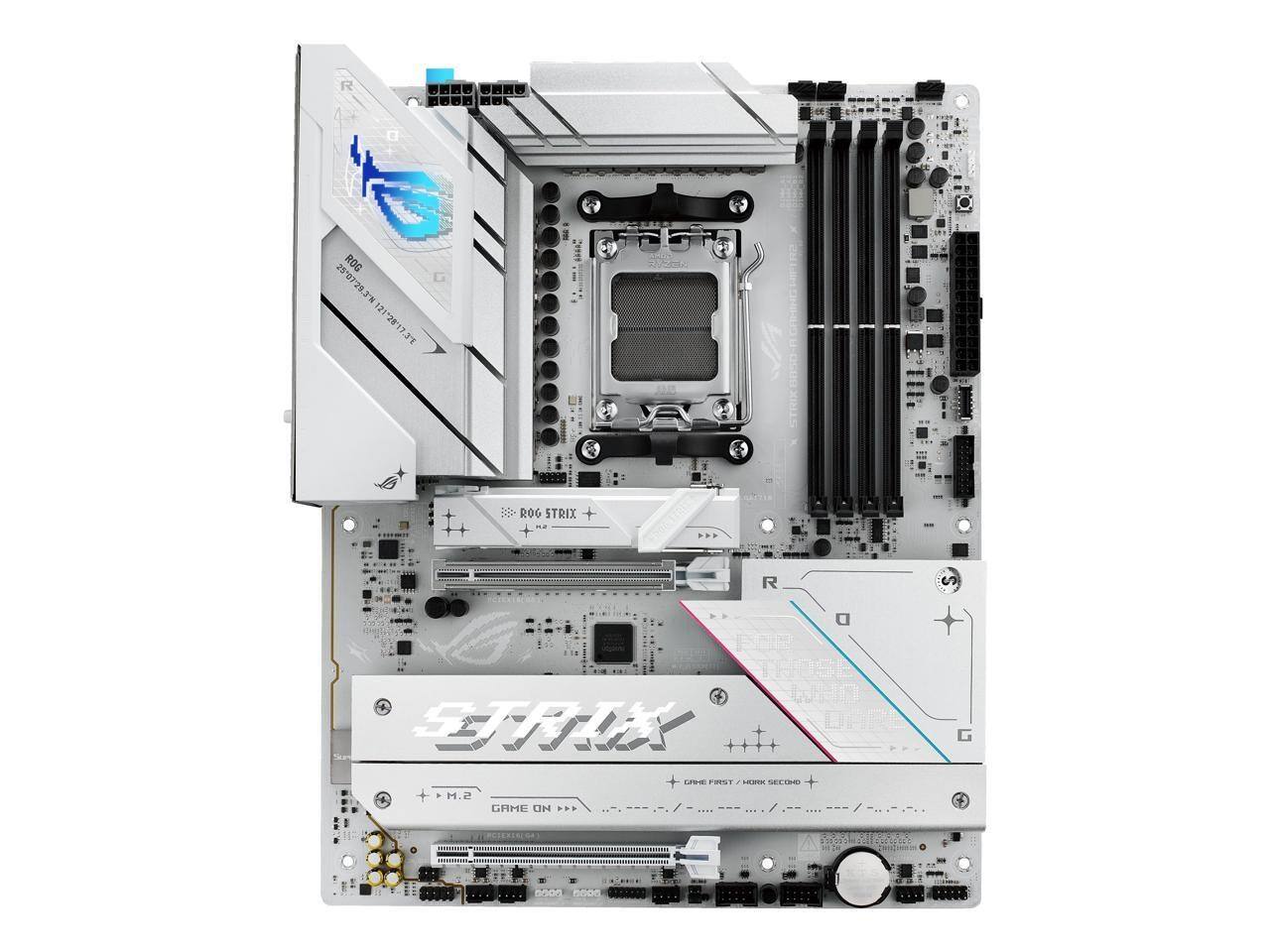

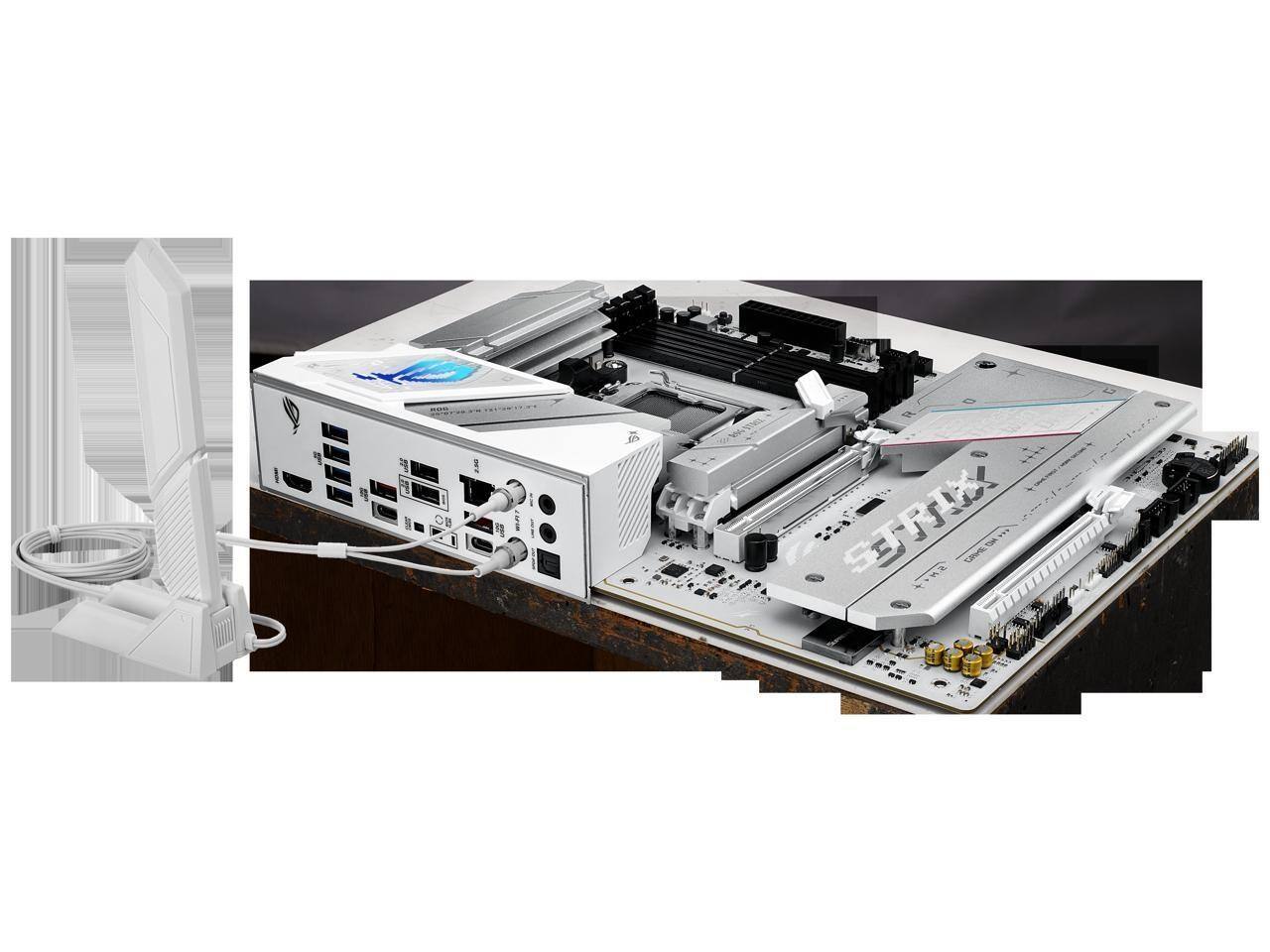

The ROG STRIX B850-A GAMING WIFI R2 ATX Motherboard is designed for high-performance gaming and computing. It features an AMD AM5 socket compatible with AMD Ryzen 7000, 8000, and 9000 Series Desktop Processors. The motherboard supports up to 192 GB of DDR5 memory at speeds up to 8000 MT/s (OC) and offers comprehensive cooling solutions, including VRM and PCH heatsinks, hybrid fan headers, and Fan Xpert 2+ for efficient thermal management. Connectivity options include a PCIe 5.0 x16 slot, four M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 7, and a USB 20Gbps Type-C port. Additionally, it features Aura Sync RGB Lighting with onboard Addressable Gen 2 headers for RGB LED strips, easily synchronized with Aura Sync-capable hardware.
- AMD AM5 Socket: Compatible with AMD Ryzen 7000, 8000, and 9000 Series Desktop Processors.
- DDR5 Memory Support: Supports up to 192 GB of DDR5 memory at speeds up to 8000 MT/s (OC).
- Comprehensive Cooling Solutions: Equipped with VRM and PCH heatsinks, hybrid fan headers, and Fan Xpert 2+ for efficient thermal management.
- Ultrafast Connectivity: Features PCIe 5.0 x16 slot, four M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 7, and USB 20Gbps Type-C port.
- Aura Sync RGB Lighting: Includes onboard Addressable Gen 2 headers for RGB LED strips, easily synchronized with Aura Sync-capable hardware.
- AMD AM5 Socket: Compatible with AMD Ryzen 7000, 8000, and 9000 Series Desktop Processors.
- DDR5 Memory Support: Supports up to 192 GB of DDR5 memory at speeds up to 8000 MT/s (OC).
- Comprehensive Cooling Solutions: Equipped with VRM and PCH heatsinks, hybrid fan headers, and Fan Xpert 2+ for efficient thermal management.
- Ultrafast Connectivity: Features PCIe 5.0 x16 slot, four M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 7, and USB 20Gbps Type-C port.
- Aura Sync RGB Lighting: Includes onboard Addressable Gen 2 headers for RGB LED strips, easily synchronized with Aura Sync-capable hardware.
