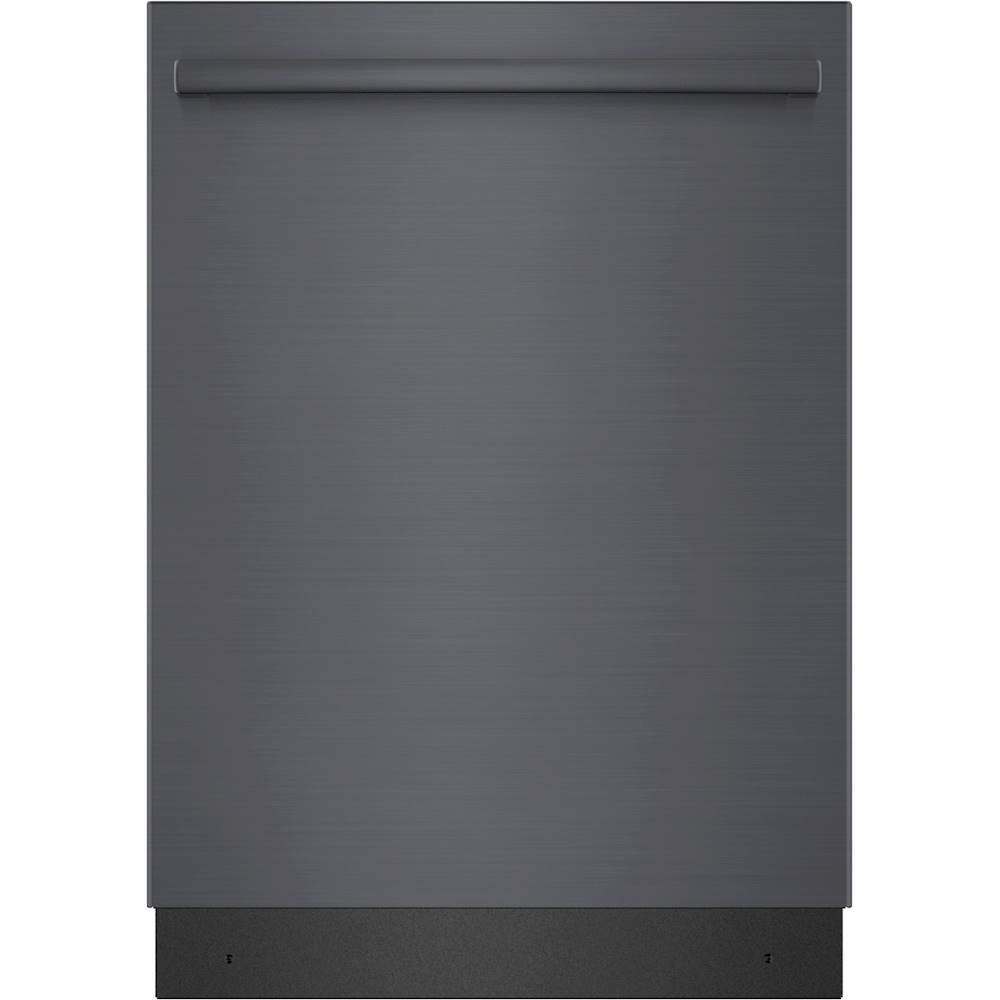

Bosch - 800 Series 24" Top Control Built-In Dishwasher with CrystalDry, Stainless Steel Tub, 3rd Rack, 42 dBa - Black Stainless Steel
- Key Specs
- Color Finish: Black stainless steel
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 42 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 3
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- General
- Brand: Bosch
- Model Number: SHXM78Z54N
- Product Name: 800 Series 24" Top Control Built-In Dishwasher with CrystalDry, Stainless Steel Tub, 3rd Rack, 42 dBa
- Color: Black Stainless Steel
- Color Finish: Black stainless steel
- Dimensions
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 102.1 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 33 9/10 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 23 3/5 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 42 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- Cycle Specifications
- Number of Cycles: 6 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Options and Programs: Half load, delicate wash, normal, auto, rinse, eco wash, heavy wash, sanitary, 1 hour, CrystalDry option
- NSF-Certified Sanitization Cycle: false (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Rack Features
- Number Of Racks: 3
- Third Rack Features: Rack handle (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Upper Rack Features: Rack handle (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Rack handle (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Other
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Button
- Control Location: Top control
- Display Type: LED
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Electrical Specification
- Estimated Annual Electricity Use: 269 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 35 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1440 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 825225958758
Make after-dinner cleanup simple with this Bosch 800 Series dishwasher. Intuitive touch controls make it easy to adjust settings and select cycles, and the large racks provide plenty of space for dishes. This Bosch 800 Series dishwasher uses CrystalDry technology to dry dishes quickly and has an AquaStop system that prevents leaks.
- The ultimate clean. The ultimate dry, even on plastics: Patented CrystalDry technology transforms moisture into heat to get dishes 60% drier, including plastics.
- Simple setting navigation: Electronic controls and LED display allow ease of use.
- Bar-style handle: For easy grasping.
- Enjoy a quiet kitchen: EcoSilence drive helps reduce disruptive sounds.
- 24-hour delay-start: Lets you set the dishwasher to start running while you're working, sleeping or running errands.
- Accommodates up to 16 place settings: Generous interior space means more clean dishes, less loads.
- Half load, delicate wash, normal, auto, and more: 6 cycle options offer a variety of cleaning choices.
Whats Included
- Bosch 800 Series 24" Top Control Built-In Dishwasher with Stainless Steel Tub, 3rd Rack, 42 dBa
- Cutlery basket
- Drain hose
- Power cord
Product Manuals
Documents
- Energy_Guide_PDF
A: I use three dishwasher products that the company recommends: FINISH Quantum tablets and FINISH Rinse Aid Jet Dry ( and FINISH Dishwasher cleaner once a week). I don't use any other products now because they do not work as well as the recommended ones. My dishes are cleaning and drying perfectly.
Q: Do you really see a difference with crystal dry. Is it worth the extra money
A: It’s hard to believe how hot this gets and how well it works. You have to wait a while before touching the dishes.... There is even a sanitize setting. I think it is well worth the money.
A: The flashing red light means you didn’t press the start button. Once you press the start button the flashing red light changes to a steady red light and your cycle begins normally. Anytime you open the door during a cycle the light flashes. Press the start button again to continue the cycle and close the door, your red light should stay steady and your cycle continues.
Q: does the Bosch have a water heater built in
A: Hi billybob, thank you for your question and interest in Model:SHXM78Z55N. Yes, Bosch dishwashers' flow-through water heaters increase water temperature inside the appliances, eliminating the need to pump hot water into them. The heaters can raise water temperature as high as 162 degrees Fahrenheit.In conventional dishwashers, water falls randomly onto a heater coil at the bottom of the appliances. These coils remain heated throughout the wash cycles, making them extremely hot. This often melts plastic items placed on the bottom racks. However, the Bosch dishwashers' flow-through water heater is confined, preventing its coils from damaging household items and ensuring water is heated more thoroughly. While traditional dishwashers only heat portions of the water that lands onto the coils, Bosch dishwashers heat 100 percent of the water that passes through its heating chamber between tightly spaced coils.
A: No. When it finishes its cleaning cycle, the "active" light goes off & the dishwasher powers down. If you're unsure if the dishes are clean - you have to examine them. There is no "all done" indicator.
Q: Does this have a hard food disposer?
A: Hi STEVEN. Thank you for your question. Model:SHXM78Z54N does not have a hard food disposer. All Bosch dishwashers utilize a Triple Filtration System. The Bosch® 3 part filter system is designed to prevent the need to pre-rinse normally attached food soils from your dishes. Simply scrape left over food soil off of dishware before loading. This process will conserve time, water and the energy require to heat your household water supply. Your dishwasher filter system is designed to filter 100% of the water entering the spray arms to provide a continuous supply of clean water to remove food soils from your dishware.
A: Hi Dvdk, thank you for your question and interest in Model:SHXM78Z55N. The depth of the Bar Handle is 2 inches in the center and 1 3/4 inches on the side. We also have a Pocket Handle Dishwasher, Model: SHPM78Z55N that might be a better solution for you.
A: The Bosch website shows a height range from 33-7/8" min to 35" max. You should be good with 34" but just barely.
