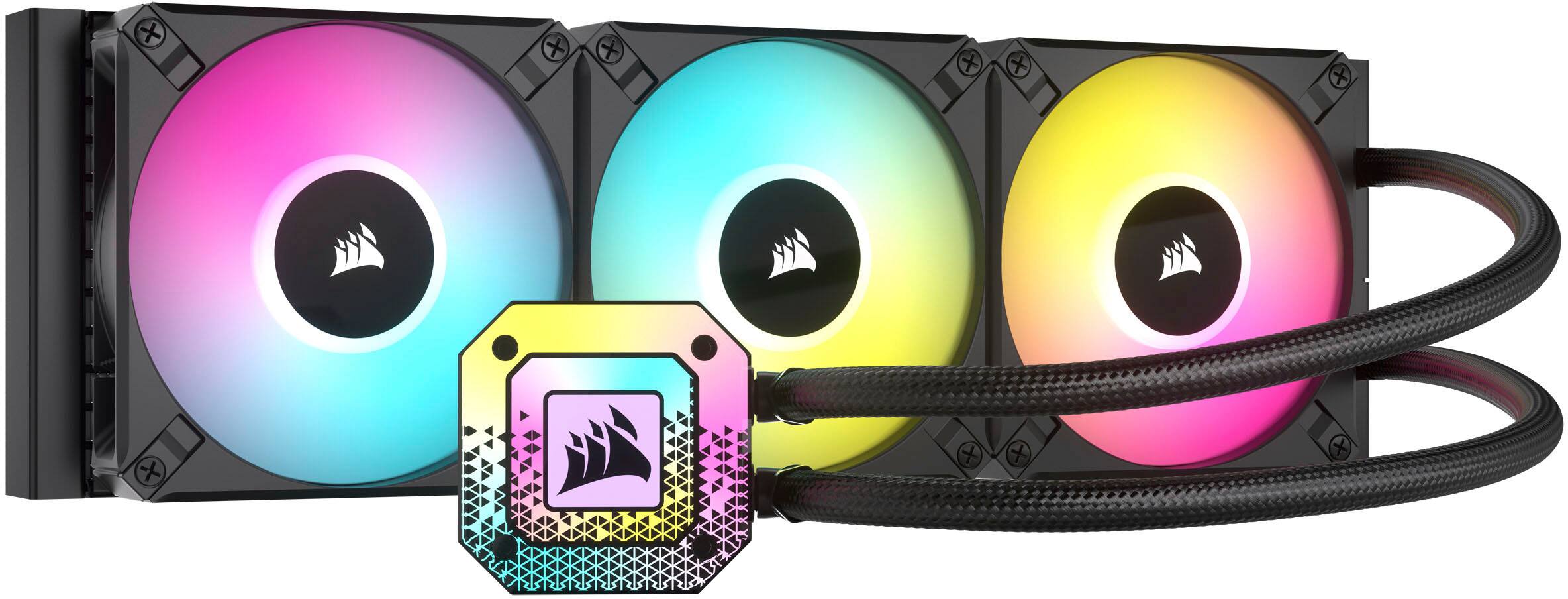

CORSAIR - iCUE H150i ELITE CAPELLIX XT 120mm Fans + 360mm Radiator Liquid Cooling System with ultra-bright CAPELLIX RGB LEDs - Black

Name: CORSAIR - iCUE H150i ELITE CAPELLIX XT 120mm Fans + 360mm Radiator Liquid Cooling System with ultra-bright CAPELLIX RGB LEDs - Black
Brand: CORSAIR
SKU: 6534177
Rating: 4.6 (392 reviews)

Model: CW-9060070-WW

SKU: 6534177

This item is no longer available in new condition. See similar items below

Key Specs
- Airflow Volume: 65.57 cubic feet per minute
- Cooling System: Liquid (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 120 millimeters
- Fan Speed: 2100 revolutions per minute
- Noise Level: 17.9 decibels adjusted
- Number of Fans Included: 3
- Lighting Type: RGB
- Product Height: 26.924 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 120 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Processor Socket: Socket AM4 (PGA 1331), Socket AM5 (LGA 1718), Socket H3 (LGA 1150), Socket H4 (LGA 1151), Socket H2 (LGA 1155), Socket H (LGA 1156), Socket LGA 1200, Socket LGA 1700, Socket R (LGA 2011), Socket LGA 2011-v3, Socket R4 (LGA 2066), Socket sTRX4/Socket SP3r3 (LGA 4094) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Radiator Size: 360 millimeters (The overall size of the radiator based on the number of fans held within multiplied by the individual fan size.)
General
- Brand: CORSAIR
- Model Number: CW-9060070-WW
- Product Name: iCUE H150i ELITE CAPELLIX XT 120mm Fans + 360mm Radiator Liquid Cooling System with ultra-bright CAPELLIX RGB LEDs
- Color: Black
Cooling
- Airflow Volume: 65.57 cubic feet per minute
- Cooling Fan Type: CPU
- Cooling System: Liquid (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 120 millimeters
- Fan Speed: 2100 revolutions per minute
- Noise Level: 17.9 decibels adjusted
- Number of Fans Included: 3
- Heatsink Material: Copper
- Bearing Type: Fluid Dynamic Bearing (FDB)
- Fan/Cooling System Connector: SATA Power + 4-pin PWM fan connector (The configuration of the connector as it connects a computer component to a fan or cooling system.)
Features
- Lighting Type: RGB
- Customizable Lighting: true
Power
- Power Consumption: 0.3 watts
- 12-Volt Rated: true
Dimensions
- Product Height: 26.924 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 120 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 397.482 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 92 ounces (The out of box weight of the item.)
Compatibility
- Processor Socket: Socket AM4 (PGA 1331), Socket AM5 (LGA 1718), Socket H3 (LGA 1150), Socket H4 (LGA 1151), Socket H2 (LGA 1155), Socket H (LGA 1156), Socket LGA 1200, Socket LGA 1700, Socket R (LGA 2011), Socket LGA 2011-v3, Socket R4 (LGA 2066), Socket sTRX4/Socket SP3r3 (LGA 4094) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Radiator Size: 360 millimeters (The overall size of the radiator based on the number of fans held within multiplied by the individual fan size.)
Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
Other
- UPC: 840006683490

The CORSAIR iCUE H150i ELITE CAPELLIX XT Liquid CPU Cooler provides powerful, high-performance cooling for your Intel® or AMD® processor. With 3x CORSAIR AF RGB ELITE fans, a high-surface-area 360mm radiator, and a quiet, stylish pump head topped with 33 ultra-bright CAPELLIX LEDs, the H150i ELITE CAPELLIX XT is the all-in-one CPU cooler to keep your processor performing at its best. AF RGB ELITE fans produce incredible low-noise airflow with PWM-controlled speeds up to 2,100 RPM as quietly as 36 dBa, plus support for Zero RPM mode to eliminate fan noise entirely at low loads. CORSAIR AirGuide technology utilizes anti-vortex vanes to direct airflow for concentrated cooling, while eight RGB LEDs per fan illuminate your system in brilliant lighting effects. Orchestrate the light show and adjust speeds on up to six fans with the included CORSAIR iCUE COMMANDER CORE fan and lighting controller. Powerful CORSAIR iCUE software unites your setup, unlocking RGB lighting control and synchronization with all iCUE-compatible devices, and enables you to monitor system temps from a single intuitive interface. The H150i ELITE CAPELLIX XT is easy to install thanks to the extended 450mm tubing length, premium pre-applied CORSAIR XTM70 thermal paste, and modular tool-free bracket mounts. Install the cooler onto compatible Intel® and AMD® motherboard sockets including LGA 1700, 1200, 115X, and 2066, plus AMD Socket AM5 and AM4. With superb, quiet performance backed by a five-year warranty, the H150i ELITE CAPELLIX XT puts CPU cooling in a whole new light.

High-Performance All-in-One Liquid CPU Cooling: Cool the latest CPUs from Intel® or AMD®, complete with a 360mm radiator, 3x 120mm fans, copper cold plate, and an efficient pump head lined with stunning CAPELLIX LEDs.
Powerful AF RGB ELITE Fans: CORSAIR AF120 RGB ELITE PWM fans deliver massive low-noise airflow with AirGuide technology for extreme CPU cooling performance.
Quiet CPU Cooling with Zero RPM Mode Support: Dictate your exact fan speeds up to 2,100 RPM with PWM control as quietly as 36 dBa, plus support for 0 RPM PWM signals that allow fans to stop entirely at low temperatures, eliminating fan noise completely.
Included iCUE COMMANDER CORE Controller: An included iCUE COMMANDER CORE RGB lighting and fan speed controller gives you precise speed and lighting control over up to six CORSAIR RGB fans.
Ultra-Bright CAPELLIX LEDs: Light up your system with 33 ultra-bright CAPELLIX LEDs in the pump head and 24 fan RGB LEDs, for mesmerizing, customizable lighting effects.
Pre-Applied CORSAIR XTM70 Thermal Paste: Premium pre-applied thermal paste ensures quality thermal transfer and efficiency for years to come.
Unite Your Setup: Powerful CORSAIR iCUE software enables you to adjust fan and pump speeds, control and synchronize your cooler’s RGB lighting with all iCUE-compatible devices, and monitor CPU and coolant temperatures, all from a single intuitive interface.
Extended Tubing and Easy Installation: Extended tubing length of 400mm and modular, tool-free mounting brackets make for easy installation on the latest Intel® and AMD® motherboard sockets, including LGA 1700, 1200, 115X, and 2066, plus AMD Socket AM4.
Compatible with the CORSAIR ELITE LCD Upgrade Kit: Add an ELITE LCD Upgrade Kit (sold separately) to personalize your cooler and entire system with a vibrant LCD display.
Five-Year Warranty: Award-winning service and a five-year warranty mean you can enjoy your cooler worry-free.
Motherboard Sockets Supported: Compatible with LGA 1700 and AMD Socket AM5 and AM4, plus LGA 1200, 115X, 2066 sockets.

Whats Included

CORSAIR iCUE H150i ELITE CAPELLIX XT Liquid CPU Cooler
CORSAIR Commander CORE
Mounting kit for all modern CPU sockets
Three AF RGB ELITE Series PWM 120mm fans
Fan and radiator mounting screws
XTM70 Thermal Paste (pre-applied)
Alternative Pump Caps (x2)
Cap Removal Tool
Owner's Manual

Product Manuals

Quick Start Guide

Q: What kind of bearing does the fan use?

A: The fan uses a Fluid Dynamic Bearing (FDB).

Q: How many fans are included with the CPU cooler?

A: The CPU cooler comes with 3 fans.

Q: What is the radiator size of the CPU cooler?

A: The radiator size is 360 millimeters.

Q: What is the maximum fan speed?

A: The maximum fan speed is 2,100 revolutions per minute.

Q: What type of lighting does this CPU cooler use?

A: The CPU cooler uses RGB lighting.

Q: Is the lighting on the CPU cooler customizable?

A: Yes, the lighting is customizable.

Q: Do I need to refill the coolant?

A: No. The cooler comes filled already. I've had several different Corsair AIO coolers in different builds and they have never needed to be refilled. It's all plug and play, that's the beauty of an AIO cooler! :)

Q: Can you put the LX120 RGB fans on it?

A: Hello, You can use any 120mm fans on it. -Art

Customers are saying

Customers appreciate the iCUE H150i ELITE CAPELLIX XT's excellent cooling performance, ease of installation, and vibrant RGB lighting. Many found the system quiet and easy to use, resulting in positive feedback on overall performance. However, some users experienced issues with the pump's reliability and noted that the price point might be high for some consumers. A few also mentioned challenges with software and compatibility in certain setups.

This summary was generated by AI based on customer reviews.

Customer Images

The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.

Rated 5 out of 5 stars
Gorgeous, quiet cooling
I must preface this review by informing you that the thermal paste that comes provided (pre-installed on the pump) is NOT enough to adequately cover your processor. I would absolutley wipe off what comes with it using some isopropyl alcohol and apply your own thermal paste. If you’re installing an AIO I assume you have hardware knowledge, so this is a very easy adjustment to make. With that out of the way, I love this cooler. I replaced a noctua air cooler with the Corsair AIO because the air cooler was simply too large and limited what i could do with my build. While efficient and budget friendly, after a few years I grew tired of the bulky analogue look of my Noctua. I knew I needed to switch when it came time to upgrade my RAM and could not fit the new sticks in with the Noctua. Even though cooling provided by the Noctua showed better results while under load, the temperature differential was only a few degrees (≤ 5 degrees). Installation is a breeze - the radiator is quite large, so I would save it for last if building from the ground up to give yourself more room to connect cables, etc. The provided RGB command center is phenomenal, with so many programmable light patterns and colors you can customize, along with syncing to any other RGB Corsair products you have installed. If you have the budget and want top tier aethetics with good cooling, this is the AIO for you. Corsair never fails to deliver quality.
This review is from CORSAIR - iCUE H150i ELITE CAPELLIX XT Liquid CPU Cooler with RGB Lighting - White
Posted 2 years ago by Eriatarka
Rated 4 out of 5 stars
Good cooler, works well
Does a pretty good job at keeping a Ryzen 7 5800X3D cool. Keep in mind, orientation will significantly impact how well it cools. Ideally, you should mount it so that it's blowing the coldest possible air over it. So if it's a top mount as an exhaust for the case, your cooling power will be diminished as it's blowing already warm air over the radiator. Assembly was straightforward and it came with all the brackets and screws for a variety of CPU sockets (I had AM4). It also came with pre-applied thermal paste. The only reason I'm docking a star is because of the proprietary nature of this thing. It comes with a Fan/RGB hub, which is not compatible with any other fan brand. So unless your rig is all-corsair, other fans aren't compatible with the hub. Corsair's iCue software for fan and RGB control is buggy, but still one of the better programs for it. You don't technically need it, as both the pump and fans can run in hardware mode, but it does allow you to set various temp curves and lighting effects and whatnot. At full fan power it does get loud, but you should not need to run it at full power in most situations.
Posted 1 year ago by NicholasB
Rated 4 out of 5 stars
Decent cooling better rgb
My first 360mn aio in along time got it to cool a r7 7700x which given the cpu ability to run cooler when undervolted and pbo being able to give control over boost clock which is where the high temps concur it can be overkill but this all depends on your themal overhead all in all i get temps in the 50s idle and with my current undervolt 60s when gaming if your considering this aio make sure your have a clerance so the tubes can rest below the pump unless mounted on the top of the case to pervent pump problems the tubing is long enough to maneuver around the cpu socket the include fans have a nice rgb effect and can run on a high rpm while the sound is noticeable the included corsair controller is just a step down from the xt model and can be daisy chained to another fan controller the icue software is good with support for some thrid party rgb software it comes with two fave plates to change and i think this model can upgraded to the lcd display one quick note am5 is supported the mount is easy with two wires for the pump power and connector for the fan controller iam giving it four stars because the radiator could be thicker and for the price point better fans should have been included but your paying for rgb and the corsair name
This review is from CORSAIR - iCUE H150i ELITE CAPELLIX XT Liquid CPU Cooler with RGB Lighting - White
Posted 2 years ago by DanielE
