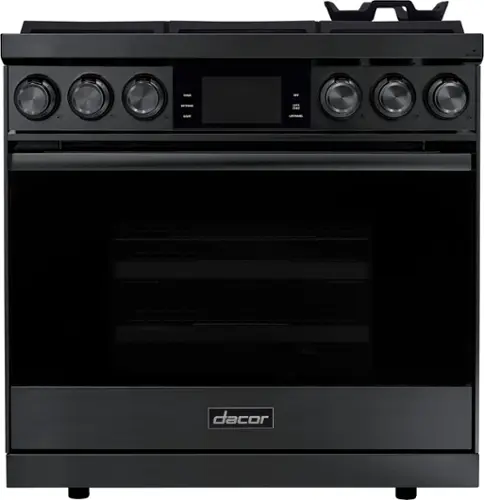

Dacor - Contemporary 4.8 Cu. Ft. Slide-In Dual Fuel Four-Part Pure Convection Range with GreenClean and Steam Assist - Graphite Steel

Name: Dacor - Contemporary 4.8 Cu. Ft. Slide-In Dual Fuel Four-Part Pure Convection Range with GreenClean and Steam Assist - Graphite Steel
Brand: Dacor
SKU: 6534979
Price: 12699 USD
Availability: InStock
Rating: 0 (0 reviews)

Model: DOP36C86DLM/DA

SKU: 6534979

$12,699.00

$705.50/mo.

suggested payments with 18-Month Financing

Show me how

Finance OptionsView your offers

Color

Graphite Steel

Protect your cooking appliance

What's included Terms & Conditions

Standard Geek Squad Protection

No Plan selected
No Plan
3-Year
$299.99
About $8.33/mo.
5-Year
$449.99
About $7.50/mo.

Availability

$39.99 delivery to

Sold by Best Buy

Need-haul away?

Haul away or move my old appliance to another room

$49.99

We’ll haul away your old item and make sure it’s properly and safely recycled.
We can also move it to another location in your home if the path is clear of obstructions.
We can’t remove doors from your home (or a product) to make an item fit through a doorway
Relocated appliances will not be connected to utilities

Return & Exchange Policy

Key Accessories:

Dacor - 36 inches - Externally Vented - Wall Range Hood - Graphite Steel
$3,299.00
Dacor - Griddle for 36" Pro-Ranges and Rangetops - Black
$399.00
Dacor - 22.8 Cu. Ft. 4-Door French Reveal Door 36" Counter Depth Refrigerator with Beverage Center - Graphite Stainless Steel
$4,199.00

$809.99

Specifications

Color Finish
Graphite steel
Product Height
37 7/8 inches
Product Width
36 1/8 inches
Product Depth
27 1/2 inches
Interior Oven Depth
19 1/8 inches
Interior Oven Height
18 7/16 inches

Key Specs
- Color Finish: Graphite steel
- Product Height: 37 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 1/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Interior Oven Depth: 19 1/8 inches
- Interior Oven Height: 18 7/16 inches
- Interior Oven Width: 25 1/32 inches
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Self-cleaning high heat, Steam cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 6
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
General
- Brand: Dacor
- Model Number: DOP36C86DLM/DA
- Product Name: Contemporary 4.8 Cu. Ft. Slide-In Dual Fuel Four-Part Pure Convection Range with GreenClean and Steam Assist
- Color: Graphite Steel
- Color Finish: Graphite steel
- Vendor Collection: Dacor Contemporary (Part of a line of different product types, like kitchen appliances.)
Dimensions
- Product Height: 37 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 1/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 403 pounds (The out of box weight of the item.)
- Interior Oven Depth: 19 1/8 inches
- Interior Oven Height: 18 7/16 inches
- Interior Oven Width: 25 1/32 inches
Capacity
- Oven Capacity: 4.8 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
Features
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Gas Type: Natural gas
- Range Power Source: Dual fuel
- Ignition Type: Electric
- Soft Close Door: true
- Control Type: Backlit knob, Touchscreen
- Oven Control Location: Front panel
- Clock Display: true
- Oven Light: true
- Propane (LP) Convertible: true
- Propane Kit Model Compatibility: Included in box
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
Design
- Display Type: LCD
Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Bake, Broil, Convection, Roast, Proof, Dehydrate
- Oven Settings: Bake/Broil, Convection Bake/Broil/Roast, Steam Bake/Roast, Pure Convection Sear, Keep Warm, Low Proof, Proof, Stone Mode, Dehydrate, Instant Heat
Oven Features
- Convection Type: Multi-fan with heating element (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven Cleaning Method: Self-cleaning high heat, Steam cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Single/Double Oven: Single Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Number of Oven Racks: 3
- Number of Oven Rack Positions: 6
- Oven Window: true

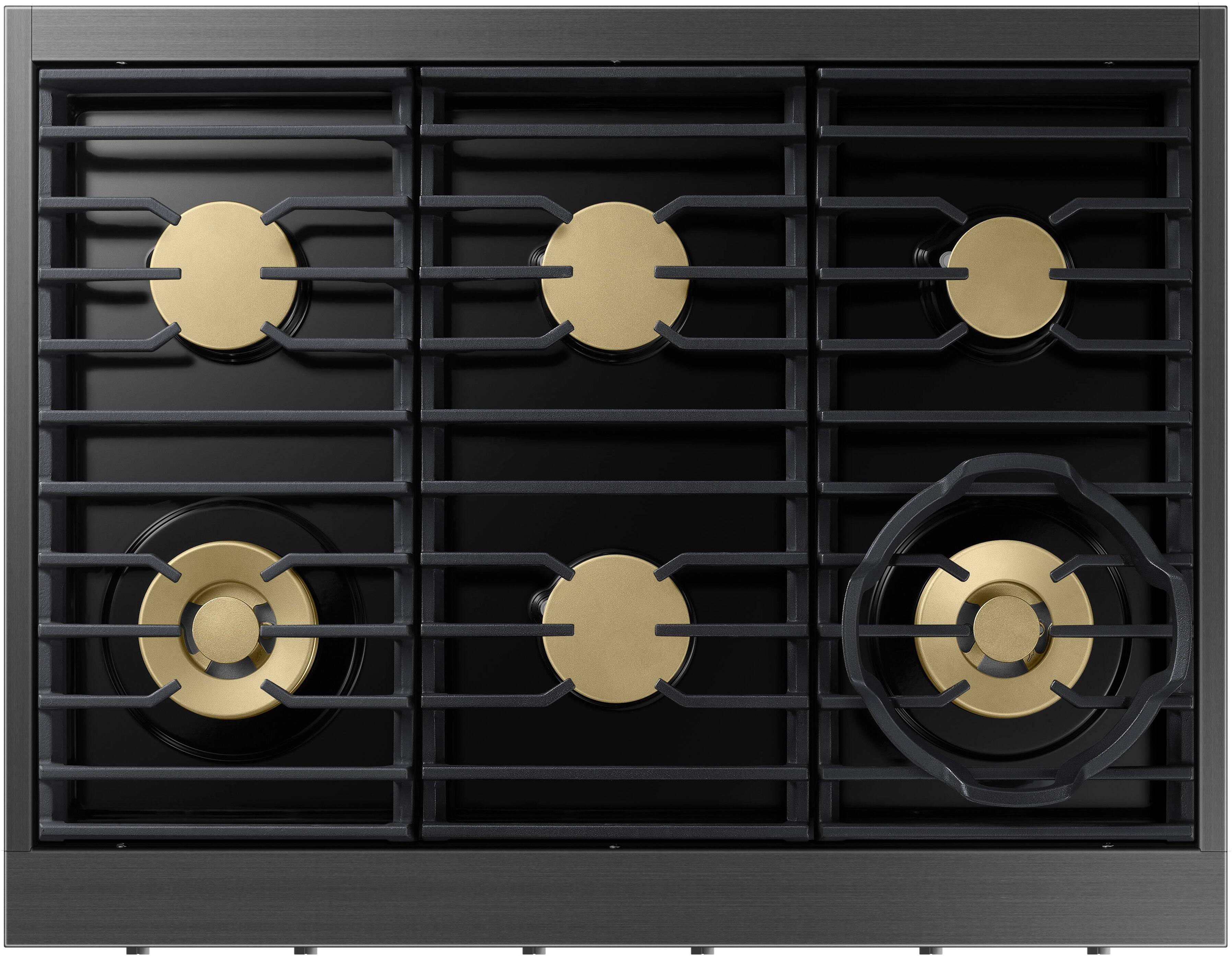

Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 6
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): 2 (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Griddle Included: false
Burner Rating
- Burner 1 Rating: 22000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 22000 british thermal units
- Burner 3 Rating: 16000 british thermal units
- Burner 4 Rating: 16000 british thermal units
- Burner 5 Rating: 16000 british thermal units
- Burner 6 Rating: 9000 british thermal units
- Total Maximum BTU Rating: 101000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Propane Conversion Kit Included: true
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
Certifications Listings & Approvals
- Chemical Disclosures: This product contains (Este producto contiene) one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. For more information on PFAS or chemicals in this product, visit (Para obtener mas informacion sobre PFAS o productos quimicos en este producto, visite) https://www.dacor.com/us/professionals/california-disclosure/ (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
Other
- UPC: 887276744100

Transform the way you cook with innovations like steam-roasting and steam-baking, speed convection, a built-in Wi-Fi-enabled LCD touchscreen, and the power of 22K BTU dual-stack sealed brass burners. Designed to inspire the imagination and make every meal an encore performance.

Wi-Fi-Enabled 7 Inch Lcd Control Panel: Automatically tilting, 7inch smooth touch glass panel provides a full-touch culinary command center for pre-programmed settings and step-by-step recipes.
Steam Assist Oven: For meats that are juicy on the inside, yet brown and crispy on the outside. Bake artisan bread with a light, fluffy center with a flaky crust.
Chef Mode: Receive expert cooking advice straight from the 7inch screen, guiding the user on the optimum rack setting, temperatures and timing.
Dual Four-Part Pure Convection: Superior consistency and zero flavor transfer with Dual Four-Part Pure Convection, reducing cooking time by distributing heat evenly across the entire oven.
SimmerSear Burners: Quickly boil water with 22K BTU of power or maintain a gentle simmer at 750 BTU with the all brass, Dual Valve, Dual Ring Burner.
Illumina Knobs: Warm, sophisticated and welcoming. The glowing knobs entice participation, inspire the imagination and accentuates the beauty of the product.
Luxurious Finishes: Dacor exclusive Graphite and Silver Stainless Steel finishes bring beauty and style to match any kitchen design or concept.
SmartThings Integration: Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.
Wi-Fi-Enabled 7 Inch Lcd Control Panel: Automatically tilting, 7inch smooth touch glass panel provides a full-touch culinary command center for pre-programmed settings and step-by-step recipes.
Steam Assist Oven: For meats that are juicy on the inside, yet brown and crispy on the outside. Bake artisan bread with a light, fluffy center with a flaky crust.
Chef Mode: Receive expert cooking advice straight from the 7inch screen, guiding the user on the optimum rack setting, temperatures and timing.
Dual Four-Part Pure Convection: Superior consistency and zero flavor transfer with Dual Four-Part Pure Convection, reducing cooking time by distributing heat evenly across the entire oven.
SimmerSear Burners: Quickly boil water with 22K BTU of power or maintain a gentle simmer at 750 BTU with the all brass, Dual Valve, Dual Ring Burner.
Illumina Knobs: Warm, sophisticated and welcoming. The glowing knobs entice participation, inspire the imagination and accentuates the beauty of the product.
Luxurious Finishes: Dacor exclusive Graphite and Silver Stainless Steel finishes bring beauty and style to match any kitchen design or concept.
SmartThings Integration: Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.

Whats Included

36" Dual Fuel Range
LP Conversion Kit
Cast Iron Grates (3)
Wire Rack (1), Glide Racks (2)
Temperature Probe (1)
Convection Filters (2)
Burner Caps (brass and porcelean)
Anti-Tip Bracket
Wok Ring (1)
36" Dual Fuel Range
LP Conversion Kit
Cast Iron Grates (3)
Wire Rack (1), Glide Racks (2)
Temperature Probe (1)
Convection Filters (2)
Burner Caps (brass and porcelean)
Anti-Tip Bracket
Wok Ring (1)

Product Manuals

Q: Does this range have a self-cleaning feature?

A: Yes, this range has a self-cleaning feature. The "Self clean" option is listed under the "Cleaning Features" section in the user manual.

Q: Are the burners sealed to prevent spills from entering the oven?

A: Yes, the burners are sealed to prevent spills from entering the oven. The product specifications mention "Sealed Burners: true".

Q: Does the range have a Sabbath mode?

A: Yes, the range has a Sabbath mode. The Sabbath mode can be activated by tapping "Sabbath" in the settings menu. Once activated, the oven will stay on until the Sabbath feature is canceled.

Q: What is the maximum temperature the oven can reach?

A: The maximum temperature the oven can reach is 550 °F (285 °C) in various modes, including Bake, Convection Bake/Roast, Convection Broil, Steam Bake/Roast, and Dual 4-Part Pure Convection.

Q: How many burners does the cooktop have and what are their BTU ratings?

A: The cooktop of this Dacor range has four burners with the following BTU ratings: - Burner 1: 22,000 BTU - Burner 2: 22,000 BTU - Burner 3: 16,000 BTU - Burner 4: 16,000 BTU

Q: Is the range compatible with a propane gas connection?

A: Yes, the range is compatible with a propane gas connection. The Propane Conversion Kit is included in the box. The context mentions "Propane (LP) Convertible: true" and "Propane Kit Model Compatibility: Included in box".

Q: What type of ignition system does the range use?

A: The range uses an electronic ignition system. When the knob is turned to the flame symbol, a spark is generated to light the burner.

Q: What are the dimensions of the range (height, width, and depth)?

A: The dimensions of the range are: - Height: 37 7/8 inches - Width: 36 1/8 inches - Depth: 27 1/2 inches
