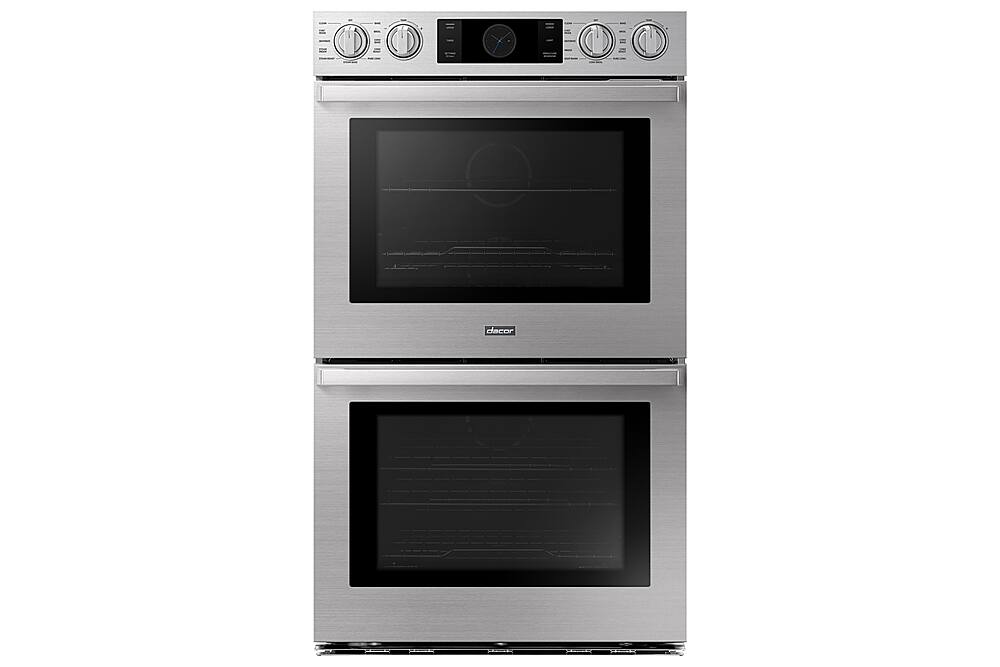

Dacor - Transitional 30" Electric Double Wall Oven with Dual Four-Part Pure Convection - Multi
- Key Specs
- Product Height: 51 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Dacor
- Model Number: DOB30P977DS/DA
- Product Name: Transitional 30" Electric Double Wall Oven with Dual Four-Part Pure Convection
- Color: Multi
- Vendor Collection: Dacor Transitional (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 51 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 327.4 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 51 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 30 1/4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 7/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 5.1 cubic feet
- Oven 2 Capacity: 5.1 cubic feet
- Features
- Oven Type: Double wall oven
- Oven Power Source: Electric
- Control Type: Touchscreen
- Clock Display: true
- Oven Light: true
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Keep Warm Setting: true
- Timer: true
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: true
- Dehydration Settings: true (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
- Oven 1 Specification
- Oven 1 Location: Upper
- Oven 1 Interior Height: 18 7/16 inches
- Oven 1 Interior Width: 25 1/32 inches
- Oven 1 Interior Depth: 19 1/8 inches
- Oven 1 Cavity Material: Enamel
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Convection Type: True Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven 1 Cleaning Method: Self-High Heat Cleaning, Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Oven 2 Specification
- Oven 2 Location: Lower
- Oven 2 Interior Height: 18 7/16 inches
- Oven 2 Interior Width: 25 1/32 inches
- Oven 2 Interior Depth: 19 1/8 inches
- Oven 2 Cavity Material: Enamel
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection Type: True Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven 2 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Certifications Listings & Approvals
- Chemical Disclosures: This product contains (Este producto contiene) one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. For more information on PFAS or chemicals in this product, visit (Para obtener mas informacion sobre PFAS o productos quimicos en este producto, visite) https://www.dacor.com/us/professionals/california-disclosure/ (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 887276427829
The 30" Double Wall Oven includes the Dual Four-Part Pure Convection for reduced cooking time and superior consistency with zero flavor transfer. A Wi-Fi enabled 7" LCD touch control panel and LED illuminated knobs provides convience and the abillity to use SmartThings integration for communication between appliances, remote monitoring and operation.
- Steam-Assist Oven: For meats that are juicy on the inside, yet brown and crispy on the outside. Bake artisan bread with a light, fluffy center with a flaky crust.
- Dual Four-Part Pure Convection: Cook multiple dishes at once knowing that there will be zero flavor transfer while promoting precise distribution of heat using dual Four-Part Pure Convection
- Dual Four-Part Pure Convection: Easily slide oven racks in and out using Gliderack with ballbearing slides
- Powerful Broiling: Even browning and powerful searing with a 10 Pass, 4400W broiler.
- Softshut Hinges: Prevents slamming by delicately closing doors.
- Self Cleaning: Easily clean the oven cavity using pyretic self clean or gentler steam Greenclean
- Glideracks: Easily slide oven racks in and out using Gliderack with ballbearing slides
- Flush installation compatible: Create a seamless, integrated look with flush installation. (Requires 25" cabinetry depth.)
- Steam-Assist Oven: For meats that are juicy on the inside, yet brown and crispy on the outside. Bake artisan bread with a light, fluffy center with a flaky crust.
- Dual Four-Part Pure Convection: Cook multiple dishes at once knowing that there will be zero flavor transfer while promoting precise distribution of heat using dual Four-Part Pure Convection
- Dual Four-Part Pure Convection: Easily slide oven racks in and out using Gliderack with ballbearing slides
- Powerful Broiling: Even browning and powerful searing with a 10 Pass, 4400W broiler.
- Softshut Hinges: Prevents slamming by delicately closing doors.
- Self Cleaning: Easily clean the oven cavity using pyretic self clean or gentler steam Greenclean
- Glideracks: Easily slide oven racks in and out using Gliderack with ballbearing slides
- Flush installation compatible: Create a seamless, integrated look with flush installation. (Requires 25" cabinetry depth.)
Product Manuals
Q: What is the capacity of each oven in this double wall oven?
A: The capacity of each oven in this double wall oven is 4.8 cubic feet.
Q: What type of cleaning method do these ovens use?
A: The ovens use a Self-Steam Cleaning method for both Oven 1 and Oven 2. This feature allows for easy cleaning and maintenance of the oven interior.
Q: Does this oven have a Sabbath Mode?
A: Yes, this oven has a Sabbath Mode feature. The Sabbath Mode can be activated by tapping "Settings" > "Sabbath" on the oven's control panel. Once activated, the oven will remain on continuously until the Sabbath feature is canceled.
Q: How many rack positions are there in each oven?
A: Each oven of the Dacor Transitional 30" Built-In Electric Four-Part Pure Convection Double Wall Oven with Steam Assist and Chef Mode has six rack positions.
Q: Does this oven have a built-in timer?
A: Yes, this oven has a built-in timer. The product specifications indicate that the "Timer" feature is "true". Additionally, the user manual provides instructions on how to set the timer.
Q: What is the maximum temperature that this oven can reach?
A: The maximum temperature that this oven can reach is 550 °F (285 °C). This temperature can be achieved in the following modes: Bake, Convection Bake, Convection Roast, Pure convection, Steam Bake, Steam Roast, and Convection Broil.
Q: What is the Chef Mode feature and how does it assist in cooking?
A: The Chef Mode feature in the Dacor double wall oven offers a guided cooking experience for inexperienced cooks. It provides 11 gourmet auto-cook features, such as garlic prime rib, mustard filet mignon, and soft buttermilk cornbread. When a Chef Mode feature is selected, the oven automatically adjusts the cooking time and temperature based on the chosen recipe, simplifying the cooking process and ensuring optimal results.
Q: Can you explain the True Flush Integration design and its benefits?
A: The True Flush Integration design allows for a seamless installation of the oven, creating a sleek and modern look in the kitchen. It eliminates any gaps or protrusions between the oven and the surrounding cabinetry, resulting in a clean and cohesive appearance. This design also makes it easier to clean the area around the oven, as there are no crevices where dirt and grime can accumulate.
