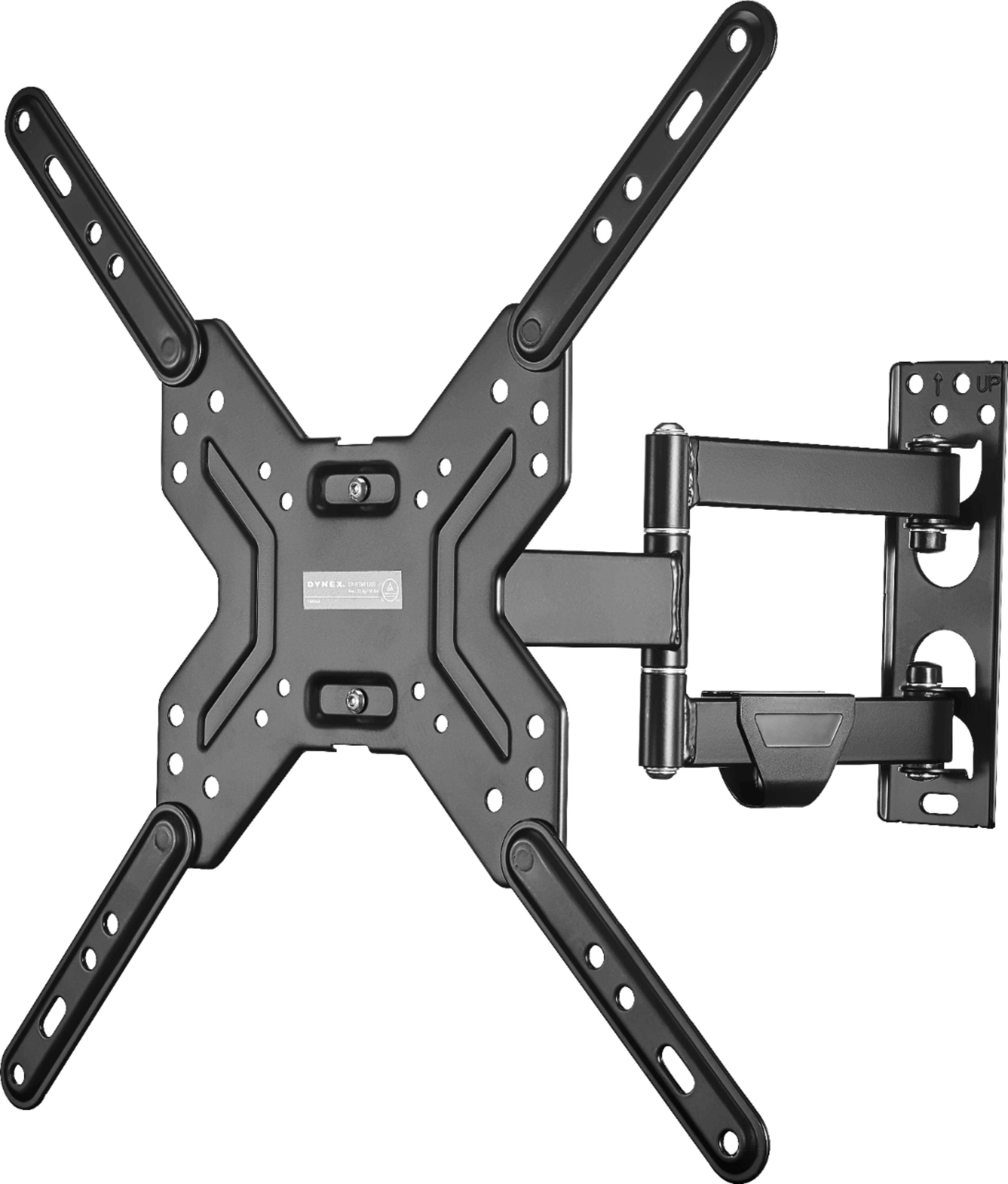

Dynex™ - Full-Motion TV Wall Mount for Most 19" - 50" TVs - Black
- General
- Brand: Dynex™
- Model Number: DX-HTMF1620
- Product Name: Full-Motion TV Wall Mount for Most 19" - 50" TVs
- Color: Black
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Full Motion
- Compatibility
- Maximum Weight Capacity: 55 pounds (The maximum load that can be supported by the product.)
- Compatibility: 19"-50"
- Mount Location: Wall
- Maximum Television Size: 50 inches
- Minimum Television Size: 19 inches
- VESA Wall Mount Standard: 75mm x 75mm, 400mm x 400mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Material
- Mount Material: Metal
- Other
- UPC: 600603258473
Save floor space by elevating your screen with this Dynex full-motion TV mount. The sturdy steel frame offers years of dependable use, while micro-adjustments let you achieve your desired viewing angle easily. This Dynex full-motion TV mount features an assortment of mounting hardware to quickly set up a wide range of TVs.
- Compatible with most 19" - 50" TVs: Up to 55.1 lbs. for sturdy support.
- Steel material: Delivers a durable design and provides a sleek appearance that works well with a variety of décor styles.
- VESA compliant: 75 x 75 to 400 x 400
- Compatible with most 19" - 50" TVs: Up to 55.1 lbs. for sturdy support.
- Steel material: Delivers a durable design and provides a sleek appearance that works well with a variety of décor styles.
- VESA compliant: 75 x 75 to 400 x 400
Whats Included
- Dynex Full-Motion TV Wall Mount for Most 19" - 50" TVs
- Dynex Full-Motion TV Wall Mount for Most 19" - 50" TVs
Q: Will this work on a 43 inch Samsung tv?
A: Yes, works very well
Q: Will this mount work with a VESA pattern of 100 x 150?
A: The supported VESA patterns are: 75*75; 100*100; 200*100; 200*200; 300*200; 300*300; 400*200; 400*300; 400*400.
A: The max extension is 15.67" from wall to TV back.
Q: Can it be mounted on a (single stud?)
A: Yes, this wall mount can be mounted on a single wood stud.
Q: Does this mount swivel left and right?
A: Yes. It pulls out and can be turned either direction.
Q: Does the center of the wall plate align with the center of the mounting plate on the back of the tv?
A: The center of your TV will be offset .8 in. (2 cm) lower than the center of the wall plate on the wall-mount.
Q: When the mount arm is fully extended how far is the tv from the wall?
A: When the wall mount is fully extended, the distance from the wall is 15.6".
Q: What is the max vertical tilt?
A: To tilt of the TV up or down, hold the top and bottom of the TV, then tilt the TV forward or backward. The angles are 2° up and 12° down.
