Emporia - EV Charger / NEMA 14-50 / J1772 - Black

Name: Emporia - EV Charger / NEMA 14-50 / J1772 - Black
Brand: Emporia
SKU: 6578761
Rating: 4.7 (14 reviews)

Model: EMEVSE1-B-N-J

SKU: 6578761

This item is no longer available in new condition. See similar items below

General
- Brand: Emporia
- Model Number: EMEVSE1-B-N-J
- Product Name: EV Charger / NEMA 14-50 / J1772
- Color: Black
Power
- Electric Vehicle Charging Level: Level 2 (Level 1 chargers connect to a standard 120V outlet but may take nearly a day to charge a vehicle. Level 2 chargers connect to a dedicated 240V outlet and charge most vehicles within a few hours. Level 3 chargers require a specialized charger and are typically found in public, fast charging stations. Charging requirements vary by vehicle.)
- Input Wiring Type: NEMA 14-50
- Charging Cable Length: 24 feet
- Surge Protection: True
Connectivity
- Connector Type(s): SAE J1722 (Type 1) (Type of interface connection found on the device.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Google Assistant, Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
Features
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Number of Vehicles Charged Simultaneously: 1
- Display Type: LED
- Mount Type: Wall
Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Certifications and Standards: UL-2594
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
Environmental
- Indoor or Outdoor Use: Indoor, Outdoor
- NEMA Enclosure Rating: Type 4
Dimensions
- Product Height: 3.39 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.05 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 18 pounds (The out of box weight of the item.)
Other
- UPC: 850019360042

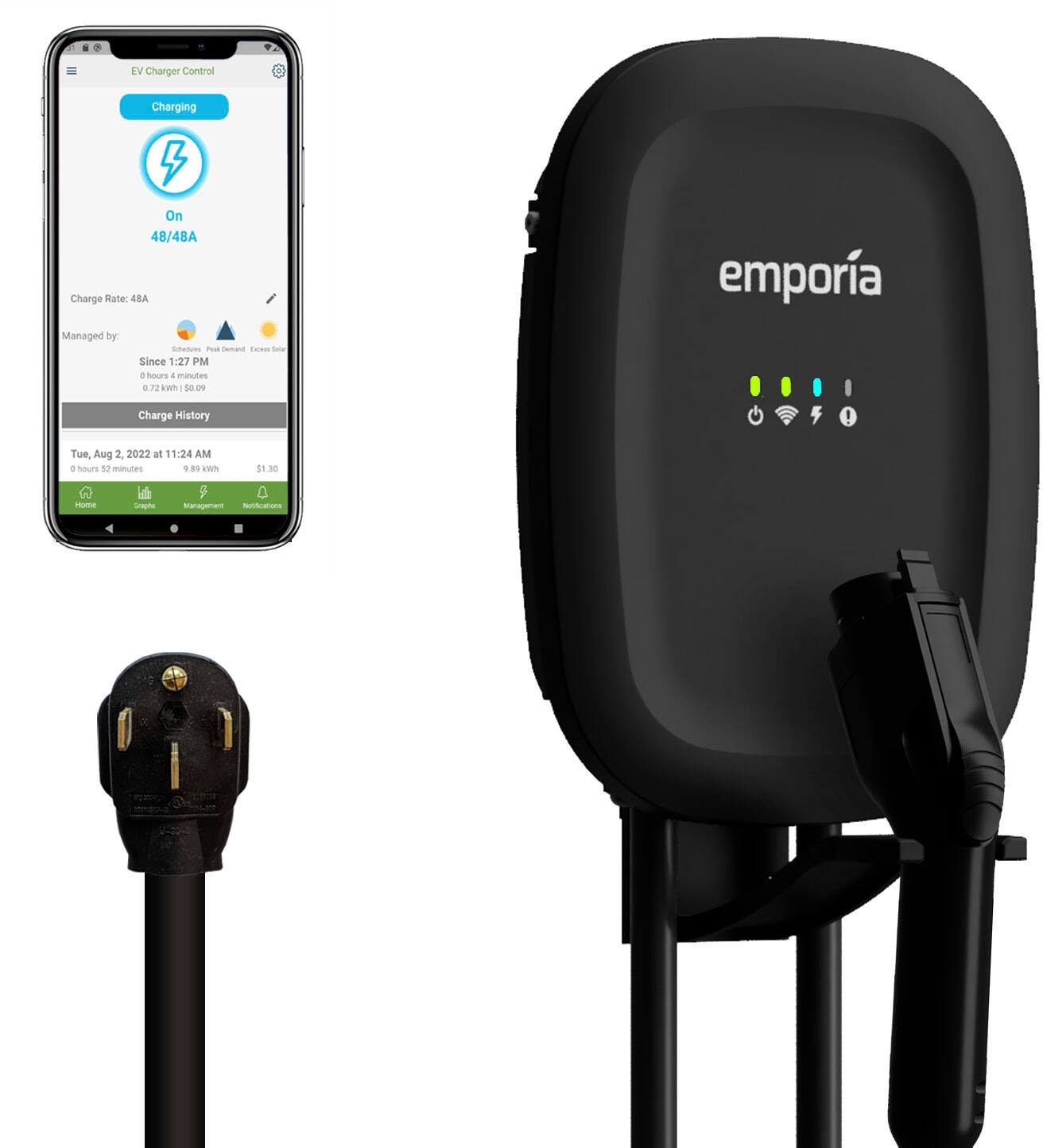

The Emporia EV Charging Station is a Level 2 electric vehicle charger that charges any EV up to 40 amps with NEMA 14-50P (with 11" cable compliant with 2017 NEC Section 625.17(A)(3)) or up to 48 amps with hardwired installation. It comes with a 24’ cable (from charger to tip of gun) with an SAE J1772 connector so it works with all electric cars. Its IP66 enclosure is made to withstand the elements outdoors.

UL AND ENERGY STAR CERTIFIED LEVEL 2 EV CHARGER: DEFAULT CHARGE RATE is 40A. WiFi Internet connection is required to raise or lower charge rate. Pair with an Emporia Vue Smart Home Energy Monitor to automatically charge only with excess solar power and curb charging during peak demand.
UL LISTED WITH YOUR SAFETY IN MIND: Manufactured to meet the safety criteria defined by: NEC 625, SAE J1772 or J3400, UL 817, UL 991, UL 2231, UL 2251, and UL 2594. INSTALLS INDOORS OR OUTDOORS. Your charger will be safe from the elements with a rugged watertight NEMA Type 4 enclosure. Check with your state and local company to see if there are incentives and rebates in your area. PROTECTED BY A 3-YEAR WARRANTY when installed in North America per the instructions in the installation guide.
NEMA 14-50 PLUG READY: 9.6kW (240V/40A) / 10kW (208V/48A) / 8.3kW (208V/40A) up to 40A NEMA Type 14-50P with 22" cable compliant with 2017 NEC Section 625.17(A)(3). Requires a dual-pole, dedicated breaker at 50A+ for a 40A charge. A professional electrician is recommended for installing a NEMA Plug.
COMPATIBLE WITH ANY EV: The charger comes with a SAE J1772 connector (adapter required for Tesla EVs) and a 24' cable with integrated cable management.
REAL-TIME ENERGY DATA: Requires a 2.4GHz Wifi connection with internet to monitor energy use and charging sessions with iPhone / Android / Web Browser app. Schedule charging with app. Easily manage the parameters to handle variable utility rate charges.
UL AND ENERGY STAR CERTIFIED LEVEL 2 EV CHARGER: DEFAULT CHARGE RATE is 40A. WiFi Internet connection is required to raise or lower charge rate. Pair with an Emporia Vue Smart Home Energy Monitor to automatically charge only with excess solar power and curb charging during peak demand.
UL LISTED WITH YOUR SAFETY IN MIND: Manufactured to meet the safety criteria defined by: NEC 625, SAE J1772 or J3400, UL 817, UL 991, UL 2231, UL 2251, and UL 2594. INSTALLS INDOORS OR OUTDOORS. Your charger will be safe from the elements with a rugged watertight NEMA Type 4 enclosure. Check with your state and local company to see if there are incentives and rebates in your area. PROTECTED BY A 3-YEAR WARRANTY when installed in North America per the instructions in the installation guide.
NEMA 14-50 PLUG READY: 9.6kW (240V/40A) / 10kW (208V/48A) / 8.3kW (208V/40A) up to 40A NEMA Type 14-50P with 22" cable compliant with 2017 NEC Section 625.17(A)(3). Requires a dual-pole, dedicated breaker at 50A+ for a 40A charge. A professional electrician is recommended for installing a NEMA Plug.
COMPATIBLE WITH ANY EV: The charger comes with a SAE J1772 connector (adapter required for Tesla EVs) and a 24' cable with integrated cable management.
REAL-TIME ENERGY DATA: Requires a 2.4GHz Wifi connection with internet to monitor energy use and charging sessions with iPhone / Android / Web Browser app. Schedule charging with app. Easily manage the parameters to handle variable utility rate charges.

Q: What type of connector does this EV charger use?

A: This EV charger comes with a SAE J1772 connector. It requires an adapter for Tesla EVs.

Q: Does this charger work with Google Assistant?

A: Yes, the Emporia EV Charger is compatible with Google Assistant.

Q: Is this EV charger UL listed for safety?

A: Yes, this EV charger is UL listed and meets various safety standards.

Q: How long is the charging cable on this unit?

A: This charger comes with a 24-foot cable.

Q: Can I use this EV charger outdoors?

A: Yes, it can be installed both indoors and outdoors. It has a rugged, weathertight enclosure.

Q: What is the default charging rate of this EV charger?

A: The default charge rate is 40A.

Q: Does this EV charger have surge protection?

A: Yes, the Emporia EV Charger includes surge protection.

Q: Does this charger comes equipped with GFCI protection?

A: undefined

Customers are saying

Customers frequently mention the convenience of the app control feature, appreciating its informativeness and the ability to control charging rates and track consumption. They also rave about the fast charging capability, with some reporting charging speeds up to 6 times faster than before and being able to charge their VW iD.4 at around 9.7Kw or 30 miles of range per hour of charge.

This summary was generated by AI based on customer reviews.

Customer Images

The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.

Rated 5 out of 5 stars
Great product
It took me a while to decide which charger to buy and finally settled on this one. So far I am very pleased. It is very simple. The charger hooked to wifi very easily and the app is very informative and easy to use. I had a professional electrician install the wiring and the charger for me. I was using a level one charger prior to this one and I can say this charges roughly 6x faster if not a little more. I definitely recommend.
Posted 1 year ago by JoshJ
Rated 5 out of 5 stars
Better Than I Thought!
I was somewhat skeptical of the Emporia Level 2 Charger but ordered it anyway due to the price point. Others I saw listed with "better reviews" were going for about $100 more. However, I couldn't have been more wrong! After the electrician installed my outlet, it only took me about 10 minutes to install the charger and start my first charging at home. The instructions were crystal clear and even included a link to a video for assistance. But it wasn't really even necessary. I guess I just wanted to make sure I didn't burn the house down LOL. I have ZERO experience with electrical installations of any kind and this is my first EV car. But everything went quite smoothly! Charging is even faster than I had thought. It charged my BMW I4 from 30% to 80% in about 5-6 hours. It even has an app for your phone where you can control charging setting like off-peak times (when it's cheaper), charging limits (for better battery life), and will monitor costs and use for you. You just hook up your car to the charger and the settings will do the rest. It's really been great, and MUCH cheaper than using the Level 3 chargers that cost $20+ per charge! I feel like I'm saving quite a bit compared to a gas vehicle. Better yet, I found out I will qualify for a tax rebate of up to 30% of my cost just by installing it at home. Better for the environment, better cost savings. It's really a win-win. So if you're thinking about getting this charger, all I can say is trust me, it's worth it! One thing to note: the cord from the charger to the wall outlet is only about 2 feet long so make SURE you have the electrician install the outlet very near where you are going to mount the charger!
Posted 1 year ago by Chad
Rated 5 out of 5 stars
Excellent price to performance ratio
Have this wired to a 50A breaker and consistently charge a VW iD.4 at around 9.7Kw or 30 miles of range per hour of charge. The app allows me to control the rate of charge and track consumption on a bar graph. This makes tracking impact to electic bill more predictable. The performance has been rock solid for me. I have no complaints about this unit.
Posted 1 year ago by ResolvedSaucer
