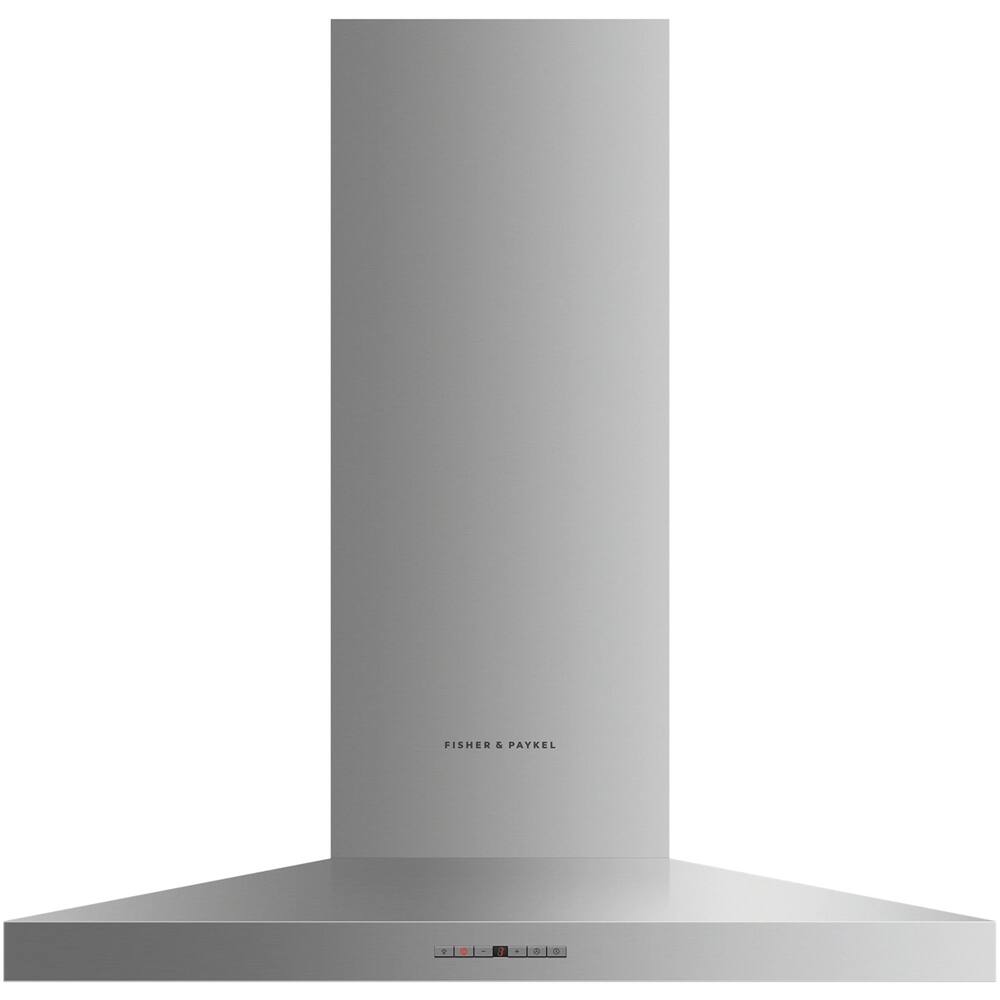

Fisher & Paykel - 35 inches - Convertible - Wall Range Hood - Stainless steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 43 1/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 2/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 7/10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Fisher & Paykel
- Model Number: HC36PHTX1 N
- Product Name: 36" Convertible Range Hood
- Color: Stainless steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 43 1/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 43 1/10 inches
- Product Width: 35 2/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 7/10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 35 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 70 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 4
- Control Type: Touch pad
- Integrated Light(s): true
- Performance
- Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Maximum Operating Sound Level: 15 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Number of Filters: 1
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 2 Years
- Warranty - Labor: 2 Years
- Other
- UPC: 822843501311
Keep your kitchen odor-free with this 36-inch Fisher & Paykel pyramid vent hood. It has four fan speeds to efficiently remove unwanted fumes and steam from the air, and its three filters trap grease particles for easy cleanup. This Fisher & Paykel pyramid vent hood has soft touch controls for easy operation.
- 600 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- Stainless steel finish: Offers a sleek, stylish look.
- Designed to fit standard 6" round ductwork: For ease of installation.
Whats Included
- Fisher & Paykel 35" Convertible Range Hood
Product Manuals
Q: How high above the cooktop should this range hood be installed?
A: The installation height of this range hood above the cooktop can be adjusted between a minimum of 26 inches and a maximum of 30 inches (660 mm to 762 mm), depending on the user's preference. Lower installation heights improve the efficiency of capturing cooking odors, grease, and smoke.
Q: What type of range hood is this?
A: This is a pyramid-shaped range hood. The context mentions "product name: 36\\" Convertible Range Hood" and "product description: F&P - 36\\" PYRAMID VENITALTION". It also mentions "Chimney Pyramid Ventilation Hood" in the title of the user guide.
Q: What voltage does this range hood require?
A: This Fisher & Paykel 36" Convertible Range Hood requires a voltage of 120 volts. This information can be found in the product specifications section, under the "Voltage" category.
Q: Where is the exhaust vent located on this range hood?
A: The exhaust vent for this range hood is located on the top of the hood. The diameter of the vent is 5 29/32 inches (150 mm).
Q: How loud is this range hood at its highest setting?
A: The maximum operating sound level of the Fisher & Paykel 36" Convertible Range Hood is 15 sones.
Q: Does this range hood have a light?
A: Yes, this Fisher & Paykel 36" Convertible Range Hood has an integrated light. The light can be turned on or off using the touch control panel on the range hood.
Q: How many filters does this range hood have?
A: The Fisher & Paykel 36" Convertible Range Hood has three filters: two aluminum filters and one charcoal filter. The aluminum filters trap grease particles, while the charcoal filter removes odors.
Q: What kind of mount does this range hood require?
A: This range hood requires a wall mount. The context mentions "●●Hang the ventilation hood off the upper ventilation hood mounting screws with 3/32” (2 mm) gap. Hang off the keyhole attachment points on the back of the ventilation hood then tighten the screws." and "●●Attach the lower ventilation hood mounting screws to fix the ventilation hood to the wall." which indicates that the range hood is designed to be mounted on a wall.
