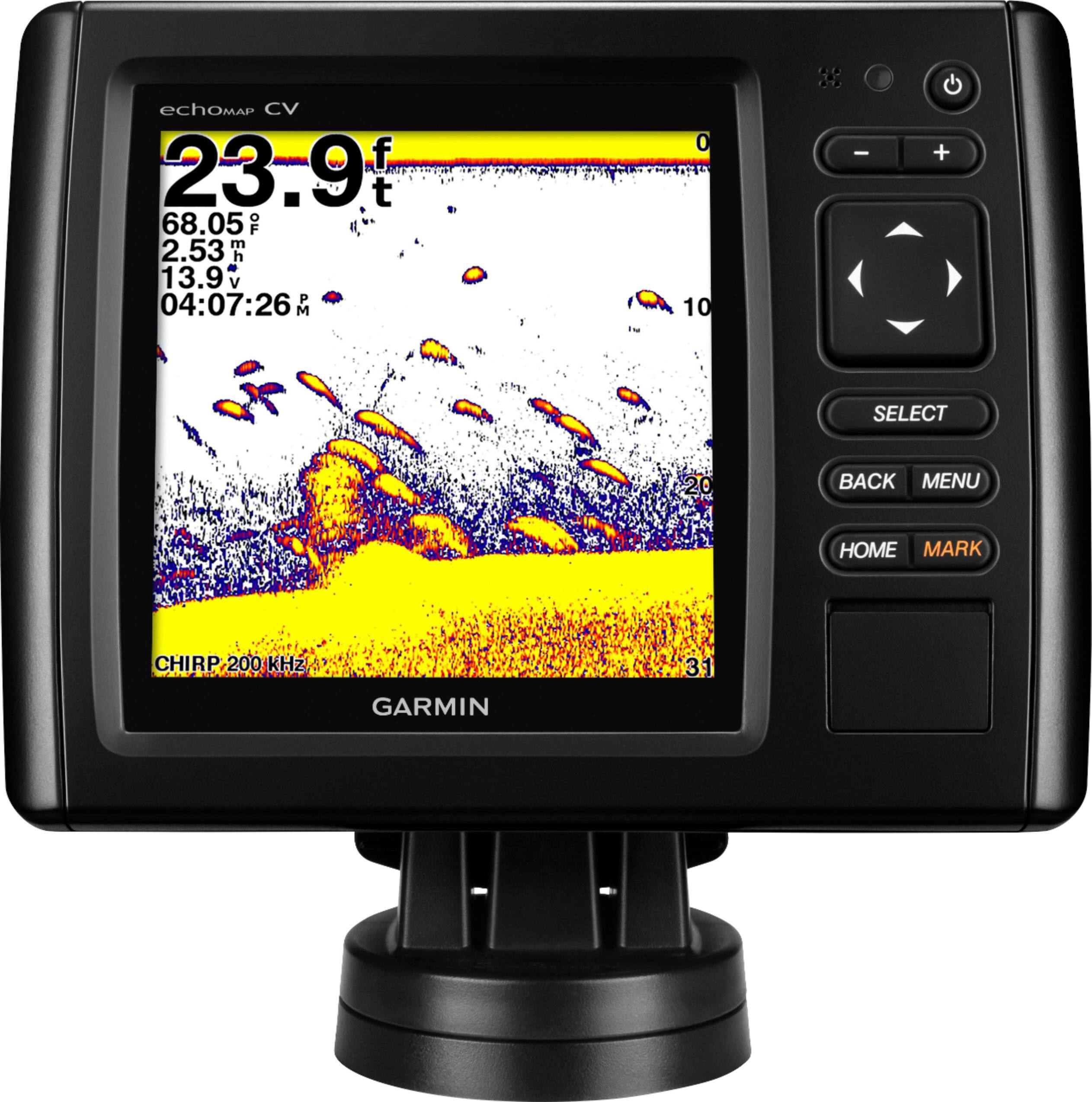

Garmin - echoMAP CHIRP 53cv Fishfinder/Chartplotter GPS - Black
- Key Specs
- Screen Size: 5 inches (Size of the screen, measured diagonally from corner to corner.)
- Touch Screen: false (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- 3D-Map View: true
- Lifetime Map Updates: false
- Chartplotter: true
- Topographic Maps: true
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Depthfinder: true
- Fish Finder: true
- General
- Brand: Garmin
- Model Number: 010-01798-01
- Product Name: echoMAP CHIRP 53cv Fishfinder/Chartplotter GPS
- Color: Black
- Designed Usage: Boating, Fishing
- Case Included: true
- Number Of Languages Supported: 30
- Display
- Screen Size: 5 inches (Size of the screen, measured diagonally from corner to corner.)
- Touch Screen: false (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- Color Display: true
- 3D-Map View: true
- Resolution: 480 x 480 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Backlit Display: true (Integrated lights allow for visibility of the display in low-light conditions.)
- Multi Window Display: true
- Fish Icon Display: true
- Map
- Lifetime Map Updates: false
- Integrated Base Maps: true
- Map Coverage Area: U.S.
- Map Sharing: false
- Number Of Waypoints: 5000
- Chartplotter: true
- Topographic Maps: true
- HD Mapping: true
- Optional Chart Upgrades: true
- Navigation
- Voice Prompts: false
- Emergency Services Locator: false
- Electronic Compass: true
- Environmental
- Water Resistant: true (Resists some degree of water penetration.)
- Maximum Depth Of Water Resistance: 3.28 feet (Measurement of the maximum depth of water in which the product is able to resist some degree of water penetration.)
- Barometric Altimeter: false
- Sun/Moon Information: false
- Hunt/Fish Calendar: true
- Features
- Location Reporting: true
- Portable: false
- Recording: true
- Advanced Signal Processing: false
- Autopilot: Optional
- Hand Strap: false
- Text-To-Speech: false (A system that converts language text into speech.)
- MP3 Playback: false
- Storage
- Expandable Storage: true
- Memory Card Slot: true
- Memory Card Included: false (Indicates whether a memory card is included.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Computer Compatibility: Mac, Windows
- Unit-To-Unit Transfer: true
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Connectivity
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Number Of USB Port(s): 0 (The total number of USB ports including all generations and versions.)
- Depthfinding
- Depthfinder: true
- Downscan Imaging: true
- Side Imaging: false
- Fish Finder: true
- Maximum Readable Freshwater Depth: 2300 feet
- Maximum Readable Saltwater Depth: 1100 feet
- Sonar Compatible: Built-in
- Sonar Coverage: true
- Sonar Frequency: Traditional: 50/77/83/200 kHz, ClearVü: 260/455/800 kHz
- Sonar Transducer Beams: Single
- Dimensions
- Product Height: 5.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 1.6 pounds (The out of box weight of the item.)
- Power
- Power Source: Battery-powered
- Mounting
- GPS Mount Type: In-dash
- Transducer Mount Type: Transom
- Warranty
- Warranty - Parts: 1 Year
- Warranty - Labor: 1 Year
- Other
- UPC: 753759176051
Spot fish in the lake before casting your line with this Garmin echoMAP CHIRP device. CHIRP sonar technology helps you clearly spot swimming bass, and it comes with Quickdraw Contours software for creating your own HD maps, so you can return to particularly bountiful spots. This Garmin echoMAP CHIRP device comes with transom and trolling mounts for hands-free viewing.
- Preloaded LakeVü HD maps cover 17,000+ total lakes: Allow easy navigation in a wide variety of locales.
- 5" color display: Bright and easy-to-read.
- Built-in transducer for Garmin CHIRP traditional sonar plus CHIRP ClearVü scanning sonar: Deliver remarkable target separation for nearly photographic images of what's below the boat.
- Quickdraw Contours mapping software included: Instantly creates personalized fishing maps on-screen with 1' contours as you fish.
- User data sharing: Lets you easily share your waypoints, tracks, routes and geocaches with users of other echoMAP or STRIKER units.
- Single microSD card slot: Provides expandable memory for accessory map purchases.
- Preloaded LakeVü HD maps cover 17,000+ total lakes: Allow easy navigation in a wide variety of locales.
- 5" color display: Bright and easy-to-read.
- Built-in transducer for Garmin CHIRP traditional sonar plus CHIRP ClearVü scanning sonar: Deliver remarkable target separation for nearly photographic images of what's below the boat.
- Quickdraw Contours mapping software included: Instantly creates personalized fishing maps on-screen with 1' contours as you fish.
- User data sharing: Lets you easily share your waypoints, tracks, routes and geocaches with users of other echoMAP or STRIKER units.
- Single microSD card slot: Provides expandable memory for accessory map purchases.
Whats Included
- Garmin echoMAP CHIRP 53cv with U.S. LakeVü HD
- Transducer
- Power/data cable
- Quick-release mount
- Flush mount
- Protective cover
- Hardware
- Documentation
- Transom mount, trolling motor mount
- 4-pin to 5-pin NMEA 2000 adapter
- Garmin echoMAP CHIRP 53cv with U.S. LakeVü HD
- Transducer
- Power/data cable
- Quick-release mount
- Flush mount
- Protective cover
- Hardware
- Documentation
- Transom mount, trolling motor mount
- 4-pin to 5-pin NMEA 2000 adapter
Product Manuals
Q: What is the difference in a garmin echomap chirp 54cv 01001799-01 and 01001798-01.
A: The 54cv is preloaded with U.S Coastal charts, Bluechart g2 HD. The 53cv is preloaded with U.S Inland charts, LakeuVu HD.
Q: Can this unit be used with a through hull transducer and what are the dimentions please .
A: Yes, you can use this unit with a thru-hull transducer. The weight capacity of this item is 5.4 x 6.8 x 1.7 inches.
Q: Does it have maps of the gulf coast and Delta rivers.I live in mobile Alabama
A: The echoMAP CHIRP 53cv has LakeVu HD, which is preloaded U.S lake data. Coastal data can be added with the purchase of BlueChart g3 HD which provided coastal detail. The echoMAP CHIRP 54cv would come pre-loaded with coastal data, but lack the LakeVu HD content. The LakeVu HD charts could also be purchases separately.
Q: What is the overall size of this unit. I am looking to replace a 430s. Will I need a new transducer?
A: It has a 5 inch display. As far as the transducer goes,one came with mine.Don't know if they are interchangeable.
Q: Can this unit replace mu garmin 128 gps unit
A: Yes, you can use this to replace a mu garmin 128 gps unit.
Q: What transducer is supplied with this package?
A: CV22HW-TM
