GIGABYTE - B650 EAGLE AX (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard - Black
Thermaltake - Toughpower GF A3 1200W 80 PLUS Gold PCIe Gen 5 ATX 3.0 Ready Fully Modular Power Supply - Black$145.99$199.99
More Buying Options
Specifications
- ChipsetAMD B650Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots4Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4
- Key Specs
- Chipset: AMD B650
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 4 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: GIGABYTE
- Model Number: B650 EAGLE AX
- Product Name: GIGABYTE - B650 EAGLE AX (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard
- Color: Black
- Year of Release: 2023
- Compatibility
- Chipset: AMD B650
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 5 7000 Series, AMD Ryzen 5 8000 Series
- Operating System Compatibility: Windows 10, Windows 11 Home
- Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 4 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 4
- Number Of PCI-E x8 Slots: 0
- Number Of PCI-E x4 Slots: 0
- Number Of PCI-E x2 Slots: 0
- Number Of PCI-E x1 Slots: 0
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1 x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connectors (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 1 x CPU fan header,1 x water cooling CPU fan header,3 x system fan headers (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 3 x USB-A 3.2, 1 x USB-C 3.2, 4 x USB-A 2.0, None, None (The number and type of USB ports the product has.)
- Thunderbolt Ports: 0 (The number and type of Thunderbolt ports the product has.)
- Audio Ports: 3 x audio jacks
- Number of Audio Channels: 1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 281.94 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 241.3 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 27.2 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: DIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Other
- UPC: 889523041703
A new era is here. The B650 EAGLE AX supports AM5 Processors and features unparalleled performance. GIGABYTE B650 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
- Processor Compatibility: Supports AMD Ryzen 7000 Series Processors
- DDR5 Compatible: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- Next Gen Connectivity: 1*PCIe 5.0 + 2*PCIe 4.0 M.2, USB 3.2 Gen 2x2 Type-C
- Sturdy Power Design: 12+2+2 Phases Digital VRM Solution
- Comprehensive Thermal Design: Advanced Thermal Design, M.2 Thermal Guard
- Fast Networking: GbE LAN
- Fine Tuning Features: Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
- Processor Compatibility: Supports AMD Ryzen 7000 Series Processors
- DDR5 Compatible: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- Next Gen Connectivity: 1*PCIe 5.0 + 2*PCIe 4.0 M.2, USB 3.2 Gen 2x2 Type-C
- Sturdy Power Design: 12+2+2 Phases Digital VRM Solution
- Comprehensive Thermal Design: Advanced Thermal Design, M.2 Thermal Guard
- Fast Networking: GbE LAN
- Fine Tuning Features: Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
Q: What kind of processor is this motherboard compatible with?
A: This motherboard is compatible with AMD Ryzen 7000 Series Processors.
Q: Does this motherboard have built-in Wi-Fi?
A: Yes, this motherboard comes with built-in Wi-Fi 6E.
Q: What is the maximum amount of memory supported by this motherboard?
A: The maximum memory supported is 192 gigabytes.
Q: Can I use this motherboard with an AMD Ryzen 5 7000 series processor?
A: Yes, this motherboard supports AMD Ryzen 5 7000 Series processors.
Q: How many SATA connectors does this motherboard have?
A: This motherboard has four SATA 6G connectors.
Q: What type of memory does this motherboard support?
A: This motherboard supports DDR5 type memory.
Q: What power supply should be used with this
A: That depends entirely on your other parts such as cpu and mainly the gpu. There is no baseline power supply or specific power supply you need to get for this motherboard
Q: Is this motherboard compatible with ryzen 9800x3d cpu
A: undefined
Compare similar products
A new era is here. The B650 EAGLE AX supports AM5 Processors and features unparalleled performance. GIGABYTE B650 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
The B850M GAMING X WIFI6E supports AM5 Processors and features unparalleled performance. GIGABYTE B850 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers. MAG B550 TOMAHAWK WIFI features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
A new era is here. The B650 AORUS ELITE AX supports AM5 Processors and features and unparalleled performance. GIGABYTE B650 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
| Pros for GIGABYTE - B650 EAGLE AX (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard - Black | |||
|---|---|---|---|
| Overall Performance, Wi-Fi, Ease of use, Price, M.2 Slots | There were no pros for this product— | Overall Performance, Ease of use, Wi-Fi, Price, Motherboard | Overall Performance, Ease of use, Price, Wi-Fi, BIOS |
| Cons for GIGABYTE - B650 EAGLE AX (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard - Black | |||
| USB 2.0 | There were no cons for this product— | Size, RAM | Firmware, Manual |
Specs
Reviews
Customers are saying
Customers highly value the B650 Eagle AX motherboard's overall performance and its built-in Wi-Fi 6E for a lag-free wireless experience. The multiple M.2 slots and ease of use are also frequently praised, along with its competitive price point. While some users noted a preference for fewer USB 2.0 ports, the positive feedback on performance and features outweighs this minor concern.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars

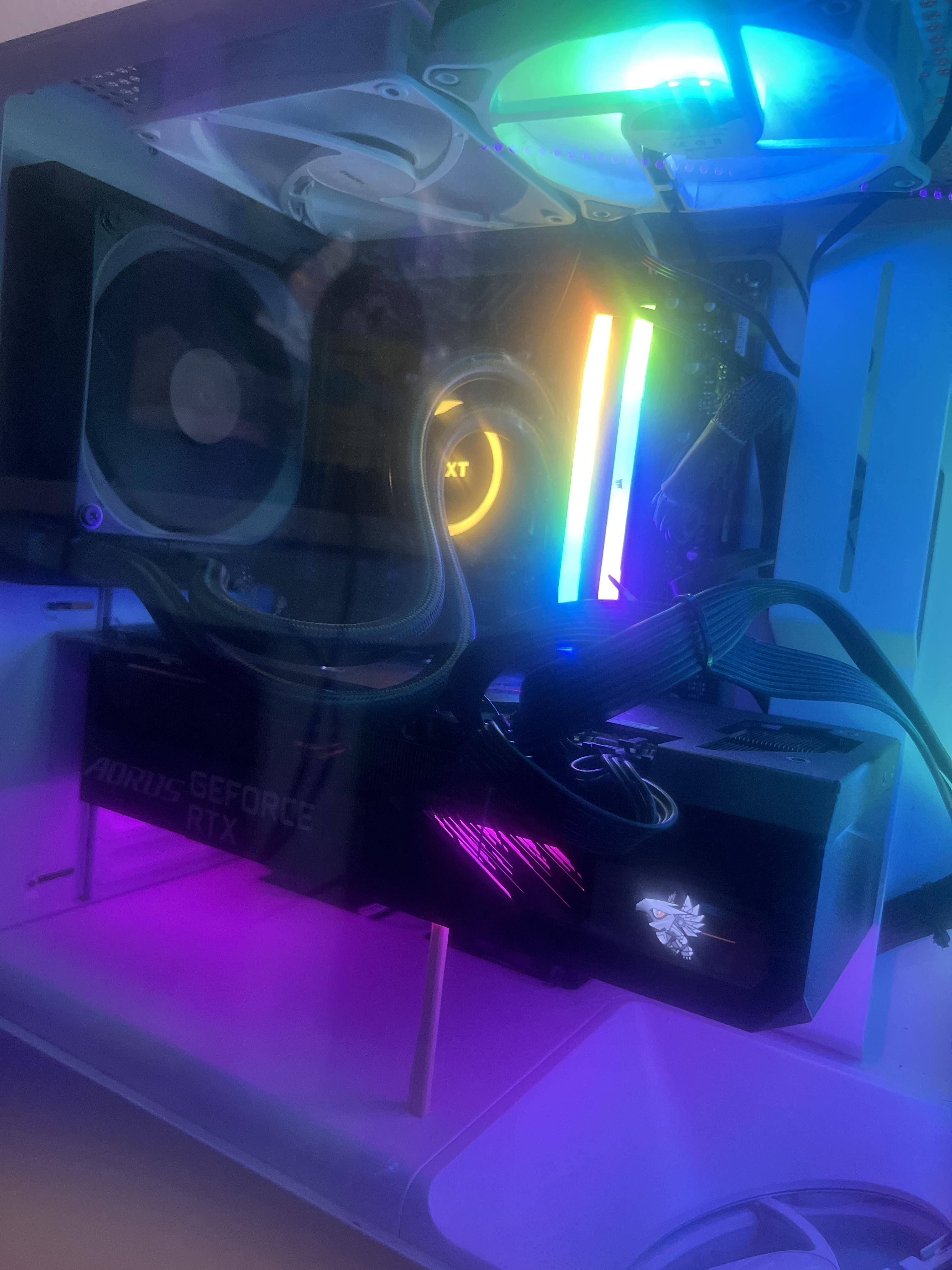

amazing for my first pc build
The GIGABYTE B650 EAGLE AX motherboard stands out as a compelling choice for builders seeking a balance of performance, modern features, and affordability. Designed to support AMD's latest Ryzen 7000, 8000, and 9000 series processors, this ATX motherboard offers a robust platform for both gaming and productivity tasks. Design & Build Quality Sporting a sleek black PCB with subtle gray accents, the B650 EAGLE AX exudes a modern aesthetic that complements a wide range of build themes. The ATX form factor provides ample space for components, and the layout is thoughtfully organized to facilitate clean cable management and airflow. Performance & Features Power Delivery: Equipped with a 12+2+2 phase digital VRM solution, the motherboard ensures stable power delivery, which is crucial for maintaining performance during intensive tasks. Memory Support: With four DDR5 DIMM slots, it supports dual-channel memory configurations, accommodating up to 192GB of RAM with speeds up to 7600 MHz (OC). This provides flexibility for various workloads and future upgrades. Storage Options: The board features three M.2 slots—one PCIe 5.0 and two PCIe 4.0—allowing for high-speed NVMe SSDs. Additionally, six SATA ports are available for traditional storage devices. Connectivity: Integrated Wi-Fi 6E and Gigabit Ethernet offer fast and reliable network connections, catering to both wired and wireless preferences. GIGABYTE Global Expansion & I/O: The motherboard includes a PCIe 4.0 x16 slot for graphics cards, multiple USB 3.2 Gen 2 ports, and HDMI and DisplayPort outputs, providing versatility for various peripherals and display setups. User Experience Installation is straightforward, thanks to features like the EZ-Latch PCIe slot, which simplifies GPU installation and removal. The BIOS interface is user-friendly, offering intuitive navigation for system tuning and updates. The inclusion of Q-Flash Plus allows for BIOS updates without the need for a CPU, RAM, or GPU, enhancing convenience for users. Conclusion The GIGABYTE B650 EAGLE AX motherboard delivers a comprehensive set of features that cater to both gamers and professionals. Its support for the latest AMD processors, DDR5 memory, and high-speed storage options, combined with robust connectivity and user-friendly design, make it a standout choice in its price segment. Whether you're building a new system or upgrading an existing one, this motherboard offers a solid foundation for a high-performance PC.
Posted by Bgaming
- Rated 5 out of 5 stars
B650 eagle ax motherboard
Good motherboard. Perfect for my specs with multiple options
Posted by AmizB
- Rated 4 out of 5 stars
Needed upgrade
Pretty good MOBO, easy to work in and has AM5 compatibility, though a little pricey for the generation jump, it just what you need. Though it does leave me wanting due to it not having any error leds, makes me have to figure out what’s wrong myself which is not a big issue but it is super helpful when you have them and have to troubleshoot.
Posted by JoshuaM
