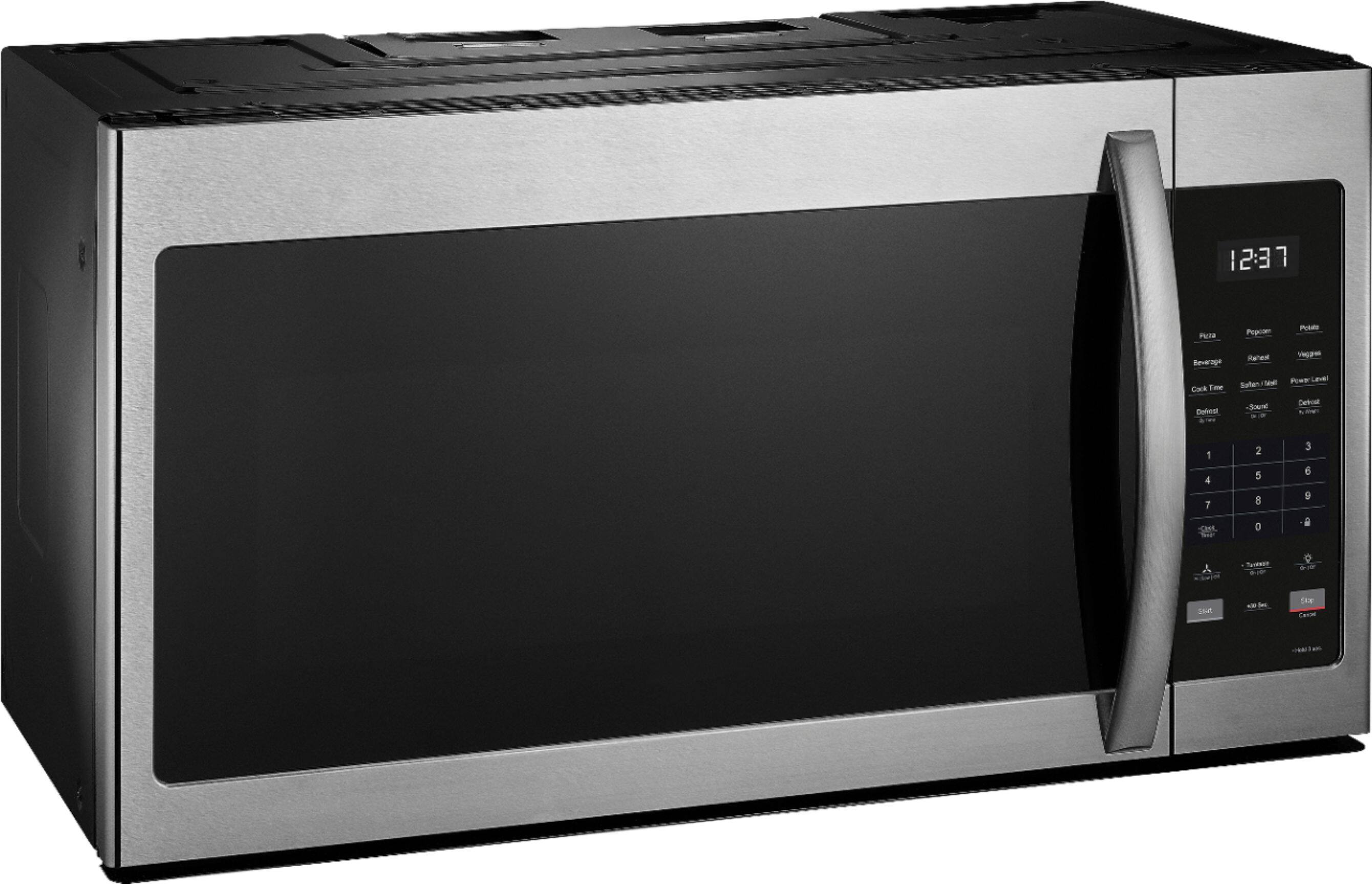

Insignia™ - 1.6 Cu. Ft. Over-the-Range Microwave - Stainless Steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 16 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Turntable Diameter: 12 7/16 inches
- Control Type: Button
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Wattage: 1000 watts (Measurement of electrical power.)
- General
- Brand: Insignia™
- Model Number: NS-OTR16SS9
- Product Name: 1.6 Cu. Ft. Over-the-Range Microwave
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 16 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 52.5 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 16 1/2 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Capacity: 1.6 cubic feet
- Microwave Size: Full-size
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Features
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Timer: true
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Removable Turntable: true
- Turntable Diameter: 12 7/16 inches
- Interior Light(s): true
- Cooktop Lighting: true (A light that illuminates the cooktop below.)
- Nightlight: true
- Controls
- Control Type: Button
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Number of Preset Programs: 21
- Number of Fan Speeds: 2
- Number of Power Levels: 10
- Turntable On/Off Option: true
- Functions
- Oven Cooking Modes: Defrost
- Oven Preset Settings: Beverage, popcorn, pizza, vegetables
- Filter Info
- Filter Type: Charcoal
- Removable Filter: true
- Ventilation
- Maximum Air Flow Capacity: 300 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Electrical Specification
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1000 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: Not Provided (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 600603229800
Only at Best Buy
Expand your cooking options with this 1.6 cu. ft. Insignia over-the-range microwave. The removable exhaust filter captures cooking smoke, and it has 10 power levels and one-touch presets for optimal cooking and heating of different dishes. This 29.9-inch Insignia over-the-range microwave has interior and exterior LED lighting for ample, energy-efficient illumination.
- 1000W for standard microwave cooking: Cook frozen meals in a snap, or heat coffee, soup and leftovers in no time.
- Defrost settings offer versatility: Quickly thaw frozen items, choosing from weight and time defrost.
- A variety of cooking programs to fit your needs: 9 automatic cooking functions, reheat, beverage, popcorn, pizza, vegetables, potato, kids meal, meat, cheese, butter, and more.
- Large 12.4" turntable keeps food rotating: By turning food items as they are prepared, the turntable ensures even, thorough cooking.
- 300 cfm fan helps remove cooking odors from your kitchen: Charcoal filter aids in keeping your kitchen clean.
- LED cooktop light illuminates the cooking surface below: So you can see what you're cooking on the stove.
- Electronic controls simplify cooking selection: With blue LED digital display
- 1000W for standard microwave cooking: Cook frozen meals in a snap, or heat coffee, soup and leftovers in no time.
- Defrost settings offer versatility: Quickly thaw frozen items, choosing from weight and time defrost.
- A variety of cooking programs to fit your needs: 9 automatic cooking functions, reheat, beverage, popcorn, pizza, vegetables, potato, kids meal, meat, cheese, butter, and more.
- Large 12.4" turntable keeps food rotating: By turning food items as they are prepared, the turntable ensures even, thorough cooking.
- 300 cfm fan helps remove cooking odors from your kitchen: Charcoal filter aids in keeping your kitchen clean.
- LED cooktop light illuminates the cooking surface below: So you can see what you're cooking on the stove.
- Electronic controls simplify cooking selection: With blue LED digital display
Whats Included
- Insignia 1.6 Cu. Ft. Over-the-Range Microwave
- Installation kit
- Insignia 1.6 Cu. Ft. Over-the-Range Microwave
- Installation kit
Q: Does this need to be vented outside or can it be installed on an interior wall?
A: You have 3 options for venting. The internal vent up from the cook top thru Charcoal activated screens venting back into the room out of the top, front vents of the unit. This would be your internal wall installation without any ducting. This can take care of some smells but will not filter a lot of smoke. Option 2 is through the top of the cabinet, this is the preferable option removing all smells and smoke to the outside approved vent. Option 3 is the least popular as it requires a wall channel to be installed and it vents all smells and smoke out the back of the unit again to an approved vent to the outside.
A: Don’t buy this oven. Is very noisy
Q: Does this microwave include a method for mounting? brackets or hardware?
A: Yes, this unit comes with mounting hardware.
A: Could you pls check the status of door handle first, like screw came out fully? If yes, you have to change a new door. If door handle came out without screw, you could take out inerframe (black plastick part between outer frame and door glass), then tighten the screw.
Q: I tried setting a time I can’t figure it out
A: Hi Tim. I may be late answering this..hopefully you haven't removed this microwave out of frustration as i was about to do. Hit cancel to put in standby mode. Then hit clock and time for exactly 3 seconds. And "12 hour" will come up instead of "timer" i had been having trouble getting anything but the timer to show. This is such a pain in the a%s everytime daylight savings time ends or begins. This microwave is difficult. You tube videos are for easy microwaves where the clock and timer are separate. I was about to go shopping for a new one!!!!
Q: What replacement bulbs does this take?
A: Use a screw base E26 bulb with the A15 glass shape. The type of bulb that is recommended for these types of appliances are halogen or incandescent bulbs. Rudson S.| Insignia Support. https://www.insigniaproducts.com/contact-us
Q: The door latch was broken, is a repair part available somewhere?
A: so if its the same issue regarding it clicking at first near the hinge then after a couple of times the clips come off near thence for the cover, I used a butter knife to flare it out just a hair. as for replacements your best bet is to contact bestbuy if you just bought it, if you've had it for a while try contacting insignia.
Q: If this microwave insulated so it will not emit EMF radiation outside the oven while cooking?
A: This microwave is insulated.
