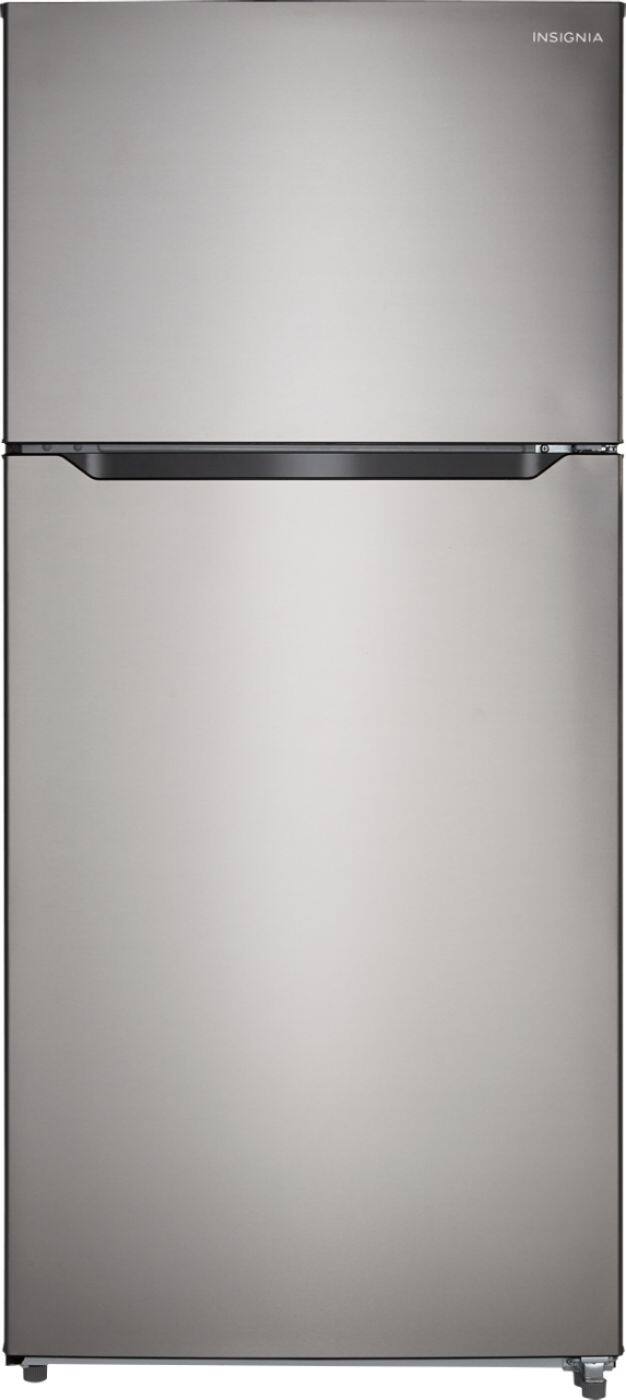

Insignia™ - 18 Cu. Ft. Top-Freezer Refrigerator - Stainless steel
Model: NS-RTM18SS7
SKU: 5161200
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 66 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 65 3/4 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 66 5/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 30 1/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 30 1/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 18.1 cubic feet
- Refrigerator Style: Top Freezer, Top Freezer
- Lighting Type: LED
- Ice Maker: Optional
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Insignia™
- Model Number: NS-RTM18SS7
- Product Name: 18 Cu. Ft. Top-Freezer Refrigerator
- Color: Stainless steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 66 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 30 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 65 3/4 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 66 5/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: false (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 30 1/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 30 1/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 27 3/4 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 60 1/16 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 172 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 78 7/16 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 33 1/16 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 34 15/16 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 18.1 cubic feet
- Refrigerator Capacity: 14 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 4.1 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Top Freezer, Top Freezer
- Fingerprint Resistant: false
- Convertible Temperature Zone: false (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Dual Evaporation: false (A cooling system that works to create a stable climate for the refrigerator and freezer separately. This ensures that each compartment is able to maintain a separate humidity and temperature level ideal for the respective stored items. Freezers tend to require lower humidity while refrigerators require higher humidity to keep foods fresher for longer.)
- Door-Open Alarm: false
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Defrost Type: Frost free (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: true
- Hinge Setting: Reversible left/right
- Lighting Type: LED
- Ice & Water
- Ice Maker: Optional
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: None
- Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 2
- Refrigerator Shelf Style: Adjustable
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true
- Deli Meat Drawer: false (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Spill-proof glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Top
- Freezer Door Type: Swing Door
- Freezer Shelf Material: Glass
- Freezer Interior Light: false
- Quick Freeze: false (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
- Filter Info
- Water Filtration: false
- Air Filter: false (A filter that works to remove odors and contaminants from the air within the appliance.)
- Electrical Specification
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 362 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 43 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 Year
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 600603203466
Add the look of luxe stainless steel to your kitchen with this Insignia NS-RTM18SS7 18 Cu. Ft. Top Mount Refrigerator. Its 18 cubic foot capacity makes it an ideal option for apartments and smaller kitchens. Adjustable shelves let you customize your food storage to suit your needs. The top mount freezer puts frozen food within easy reach and reversable fridge door lets you position your new refrigerator to fit your kitchen layout or personal preference. Adjustable, spill-safe glass shelving in the fridge keeps your items neatly organized, and convenient door storage offers extra space for butter, eggs, bottled drinks and more. Crisper drawers prevent moisture loss to help keep fruits and vegetables fresh longer. Keep everything at proper temps with controls in both refrigerator and freezer. Add an optional ice maker (sold separately) to keep ice on hand for parties and get-togethers.
- 18 cu. ft. capacity: Store all your delectable entrees, desserts, snacks and beverages in one easy-to-reach place.
- Customizable fridge storage: 2 spill-safe glass shelves and 4 door racks create plenty of space to organize everything from canned and bottled drinks to meat, vegetables, fruit and more.
- Ample freezer storage: 1 wire shelf and 2 door racks give you space to store your favorite frozen entrees and sweet treats.
- Electronic control panel: Easily lets you view or adjust refrigerator temperature to fit personal preference.
- Freezer temperature control: Easy-to-use dial lets you set the temperature range you prefer.
- Humidity-controlled crispers: Glass-covered crisper drawers help extend the freshness of your fruits and vegetables.
- Frost-free: Offers exceptional frost maintenance with no need for manual defrosting.
- Ice-maker ready: Accessorize with an optional automatic ice maker in the freezer compartment (ice maker model NS-IMK20WH7 is sold separately).
- LED lighting: Bright light illuminates the interior, making contents easy to see, even in dim lighting conditions.
- Free-standing design with reversible door: Gives you the freedom to place this fridge wherever it best suits you.
- Stainless steel: Sleek, stainless steel finish looks upscale and fits any kitchen décor.
- 18 cu. ft. capacity: Store all your delectable entrees, desserts, snacks and beverages in one easy-to-reach place.
- Customizable fridge storage: 2 spill-safe glass shelves and 4 door racks create plenty of space to organize everything from canned and bottled drinks to meat, vegetables, fruit and more.
- Ample freezer storage: 1 wire shelf and 2 door racks give you space to store your favorite frozen entrees and sweet treats.
- Electronic control panel: Easily lets you view or adjust refrigerator temperature to fit personal preference.
- Freezer temperature control: Easy-to-use dial lets you set the temperature range you prefer.
- Humidity-controlled crispers: Glass-covered crisper drawers help extend the freshness of your fruits and vegetables.
- Frost-free: Offers exceptional frost maintenance with no need for manual defrosting.
- Ice-maker ready: Accessorize with an optional automatic ice maker in the freezer compartment (ice maker model NS-IMK20WH7 is sold separately).
- LED lighting: Bright light illuminates the interior, making contents easy to see, even in dim lighting conditions.
- Free-standing design with reversible door: Gives you the freedom to place this fridge wherever it best suits you.
- Stainless steel: Sleek, stainless steel finish looks upscale and fits any kitchen décor.
Whats Included
- Insignia 18 Cu. Ft. Top-Freezer Refrigerator
- Hinge kit
- User Guide
- Insignia 18 Cu. Ft. Top-Freezer Refrigerator
- Hinge kit
- User Guide
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
A: Have the same issue, our Insigna new fridge is making many diffrent sounds like "animals screaming". CAN the manufacturer explain why???
A: I am experiencing very hot sides as well. I think because there is no fan moving the heat about the back near the coil. I am starting to notice the ice on bags turns to water very quickly too.
A: I've had my insignia 18 cubic feet freezer refrigerator for about 9 months now and I read in the reviews before I bought it about a noise the refrigerator and was hopefully not going to have the problem with the new one I bought but yesterday I was at my mother's who I bought it for and the refrigerator kicked on and started making this moaning noise so I went in inspected it looked it over and sound like it was coming from the fan in the freezer so I went to the freezer refrigerator setting and turned it down one setting to number two it was on three and when it kicked back on it didn't make the moaning noise and so I turned it back up to number three setting and today all day it ran and didn't make any noises hope this helps anybody out just try, maybe it'll work good luck.
A: Mine is also making a groaning or rumbling noise when the motor is running. I've had the refrigerator nearly a month now and had hoped that the noises would "go away", but they haven't.
Q: can I change the door openings
A: Yes, you can have the door open from either the right side or the left. The installation package comes with the tools necessary to make the change.
Q: Can this be installed in an unheated garage?
A: Not a good idea. It says right in the booklet provided not to use in an area below 50 degrees....
A: It's pretty quiet. No issues with it being loud.
Q: Where can I find a replacement door rack shelf for the insignia refrigerator
A: I stopped by your store and was told by the salesperson that I had to. contact Insignia in order to replace some plastic shelves on the refrigerator I purchased from you in May of 2017. Model NS RTM18SS7. Please help. The Insignia website is very confusing.
