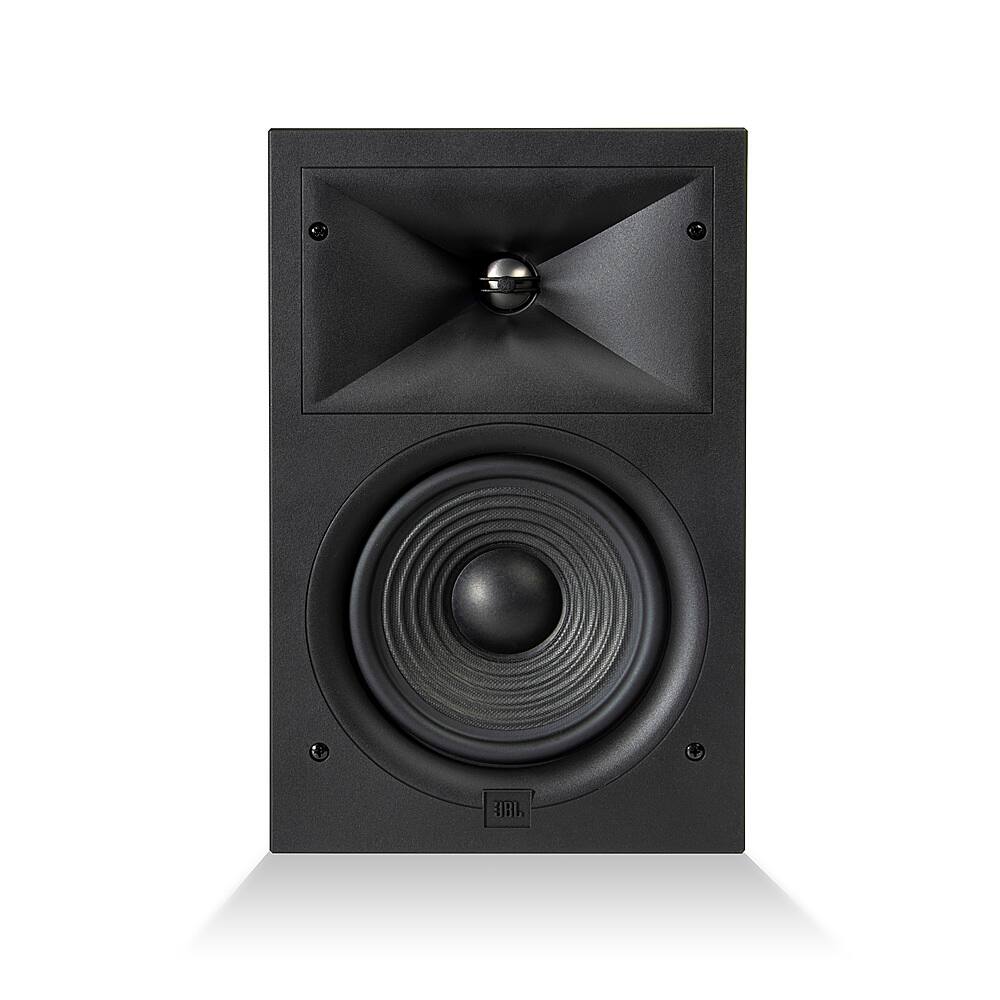

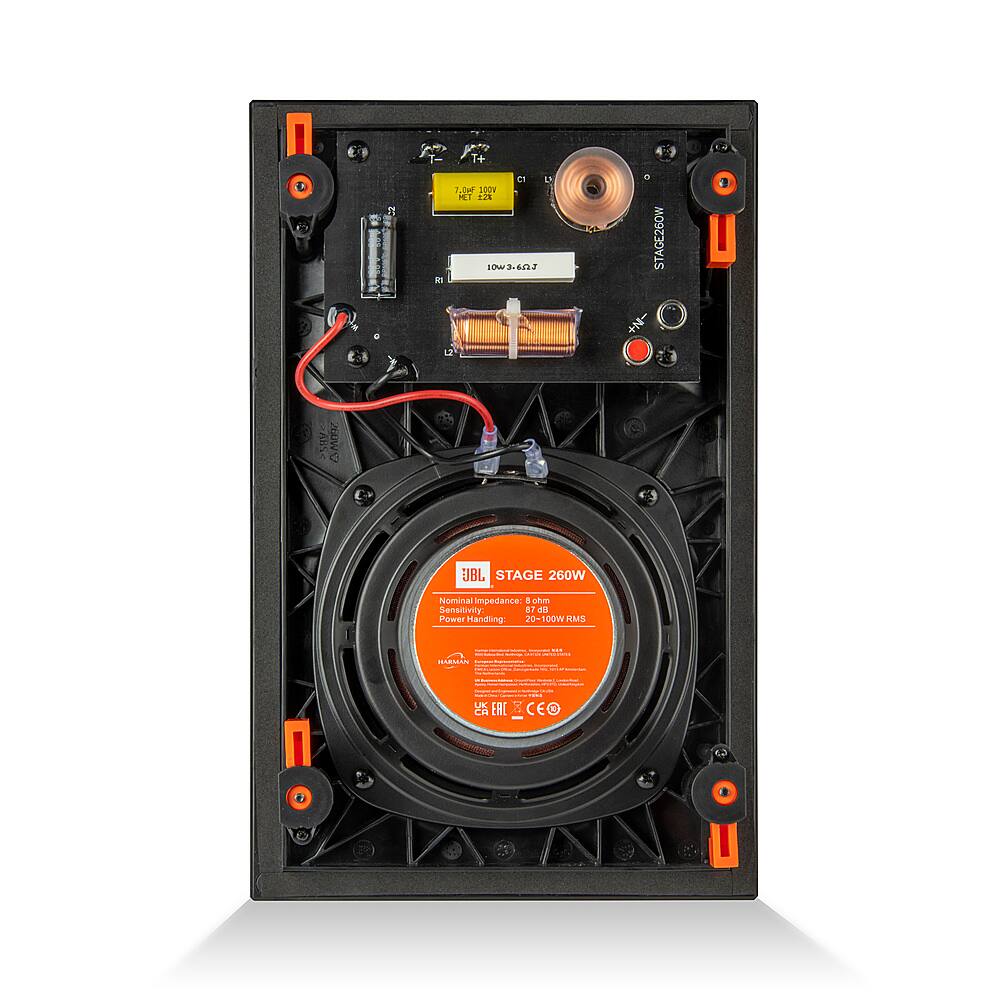

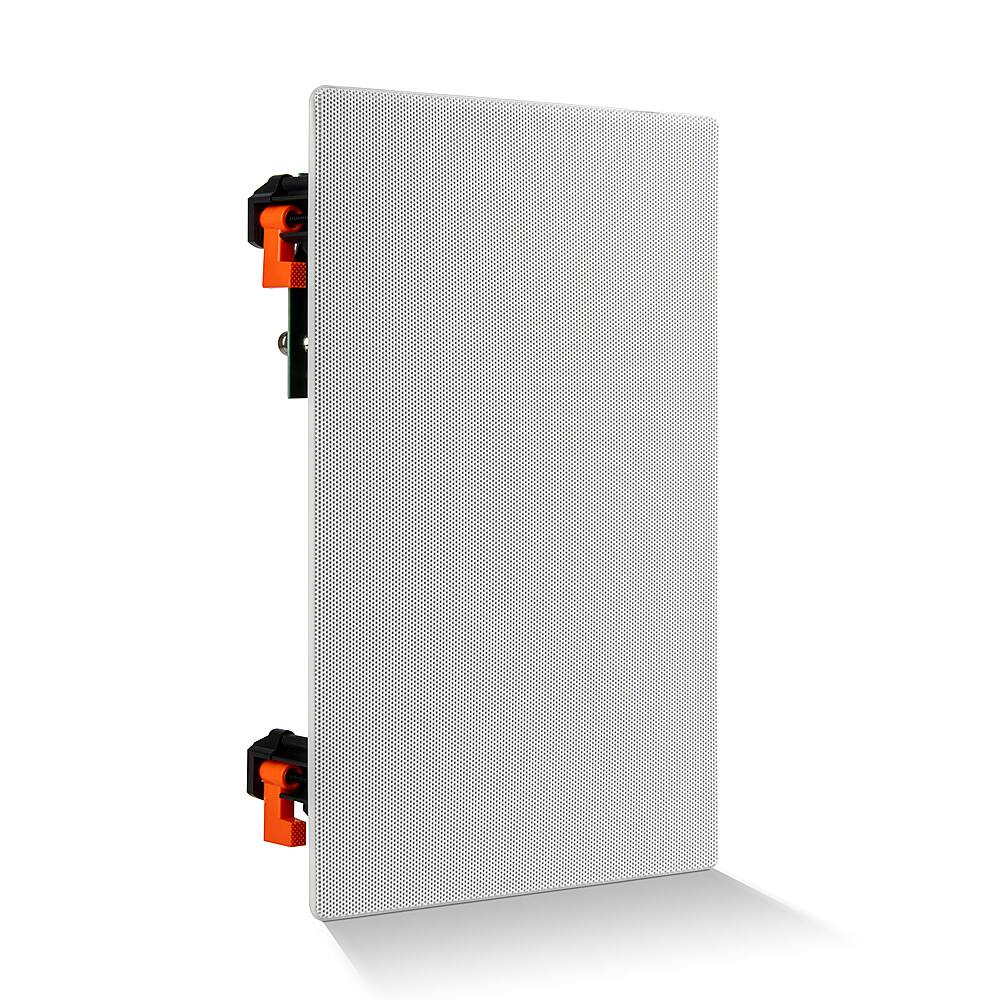

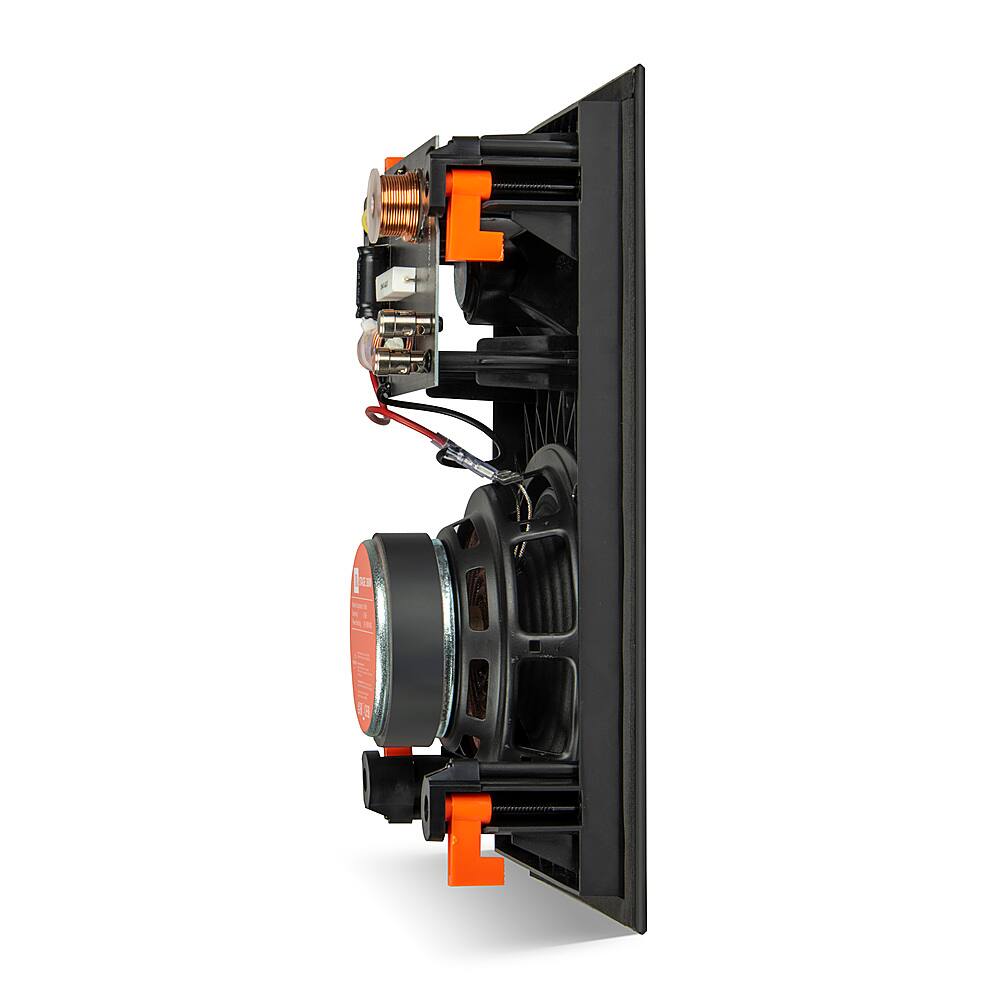

JBL - Stage In-Wall Loudspeaker With 1" Aluminum Dome Tweeter and 6.5" Polycellulose Cone Woofer - Black
Related Item
Specifications
- Speaker TypeIn-Wall
- Key Specs
- Speaker Type: In-Wall
- General
- Brand: JBL
- Model Number: JBL260W
- Product Name: Stage In-Wall Loudspeaker With 1" Aluminum Dome Tweeter and 6.5" Polycellulose Cone Woofer
- Color: Black
- Audio
- Speaker Type: In-Wall
- Peak Power Handling: 100 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 50 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 25 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 87 decibels
- Number of Tweeters: 1
- Tweeter Size: 1 inches
- Number of Woofers: 1
- Woofer Size: 6.5 inches
- Connectivity
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Network Connector(s): No network connectors
- Speaker Wire Connection Type: Binding posts
- Features
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 13.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 4.85 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Other
- UPC: 050036389501
The Stage Architectural Series was designed to deliver iconic JBL sound that blends into the environment so that the music stands out. All models are crafted to be visually discrete with zero bezel grilles and easy installation allowing these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDI) horns have been incorporated into the design to ensure that the sound is clear and accurate. A range of eight models are available in various configurations for In-Wall and In-Ceiling installation.
- HDI Waveguide Horn: High-Definition Imaging (HDI) horns with optimized geometry for smooth dispersion and low distortion
- Tweeter with Acoustic Lens: Aluminum Dome Tweeters with Acoustic Lens for smooth on and off axis frequency response
- Rigid Baffle: Rigid Baffle design with acoustic smoothing for improved transducer integration
- Zero bezel metal grille: Zero bezel metal grille installs flush to wall or ceiling for clean inconspicuous appearance
- XL-2 Mounting System: Compatible with up to 2” (50mm) thick wall/ceiling material
- HDI Waveguide Horn: High-Definition Imaging (HDI) horns with optimized geometry for smooth dispersion and low distortion
- Tweeter with Acoustic Lens: Aluminum Dome Tweeters with Acoustic Lens for smooth on and off axis frequency response
- Rigid Baffle: Rigid Baffle design with acoustic smoothing for improved transducer integration
- Zero bezel metal grille: Zero bezel metal grille installs flush to wall or ceiling for clean inconspicuous appearance
- XL-2 Mounting System: Compatible with up to 2” (50mm) thick wall/ceiling material
Whats Included
- loudspeaker
- grille
- loudspeaker
- grille
Q: What is the peak power handling of the loudspeaker?
A: The peak power handling of the loudspeaker is 100 watts.
Q: What is the size of the woofer in the loudspeaker?
A: The woofer size of the loudspeaker is 6.5 inches.
Q: Are there any other models available in the Stage Architectural Series?
A: The Stage Architectural Series offers a variety of eight different models for both in-wall and in-ceiling installation.
Q: What is the frequency range of the loudspeaker?
A: The frequency range of the loudspeaker is 50 hertz to 25 kilohertz.
Compare similar products
The Stage Architectural Series was designed to deliver iconic JBL sound that blends into the environment so that the music stands out. All models are crafted to be visually discrete with zero bezel grilles and easy installation allowing these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDI) horns have been incorporated into the design to ensure that the sound is clear and accurate. A range of eight models are available in various configurations for In-Wall and In-Ceiling installation.
The Klipsch R-5502-W II maintains the core technology use of a premium 1” Titanium compression driver (tweeter) mated to an exclusive Tractrix Horn combined with dual 5.25” Cerametallic woofers in a 2-way design. The R-5502-W II is perfect as a very powerful front right, left or center channel speaker and can fill the largest rooms with sound. Now with a new low profile, more elegant grille and refinements to both high frequency and low frequency reproduction, it continues as the perfect choice for everything from 2-channel music playback to full, large room surround sound use.
Fill your home with rich, detailed sound using these Sonance MAG8R in-ceiling speakers. Designed for whole house audio, multi room audio, and distributed audio system use, these 8" 2-way speakers combine exceptional acoustic performance with a low-profile appearance that disappears into the ceiling. A pivoting silk dome tweeter lets you direct high frequencies where you need them most, while the glass fiber woofer delivers clean, natural midrange and bass. These speakers are also compatible with Dolby Atmos and home theater setups when used as overhead channels, adding dimension and immersion to your entertainment setup. Ideal for retrofit or new construction projects, these speakers install quickly and securely with Sonance’s Roto-Lock mounting system and come with paintable magnetic grilles to match any room’s design.
Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California, the Stage 250B is largest bookshelf loudspeaker of the JBL Stage Series. It provides impressive performance from a small footprint. The 250B's are versatile enough to be used as main speakers or surrounds. This loudspeaker features a 2-way design with Next Generation patented High-Definition Imaging (HDI) waveguide geometry, 1-inch (25mm) Anodized Aluminum dome tweeter, and a 5.25-inch (130mm) Polycellulose ribbed cone woofer that provides deep, signature JBL bass.
| Pros for JBL - Stage In-Wall Loudspeaker With 1" Aluminum Dome Tweeter and 6.5" Polycellulose Cone Woofer - Black | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | Sound Quality, Installation, Price, Ease of use, Appearance | Sound Quality, Tweeter, Design, Size, Frequency Response |
| Cons for JBL - Stage In-Wall Loudspeaker With 1" Aluminum Dome Tweeter and 6.5" Polycellulose Cone Woofer - Black | |||
| There were no cons for this product— | There were no cons for this product— | Weight | Bass |
Specs
Reviews
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
The Best Speaker in this price range
This JBL Stage in wall loudspeaker is loud at 8 OHMS it will hang in there with 6 OHM JBL loudspeakers giving a nice dynamic range that can be heard. The Tweeter sound is strong for higher end frequencies and the 6.5" woofer is best at higher end mid range. All of my speakers are JBL and my set up before is a 5.1 with very deep base so these speakers real add to the sound full range. I am testing these as surround sound speakers but plan on moving them to the ceiling for atmos speakers for a upgrade making the setup 5.1.2 These speakers will handle 100 watts RMS and have a metal grill that can be painted to your color choice. The metal grill has a strong magnetic edge so you know it is not going to fall off. I would describe the sound of these speakers as crisp and clean adding to the high end frequency.
Posted by GregoryW
- Rated 5 out of 5 stars
Speakers
The speaker sound great! Tommy the installer did a very good job.
Posted by Jerry
