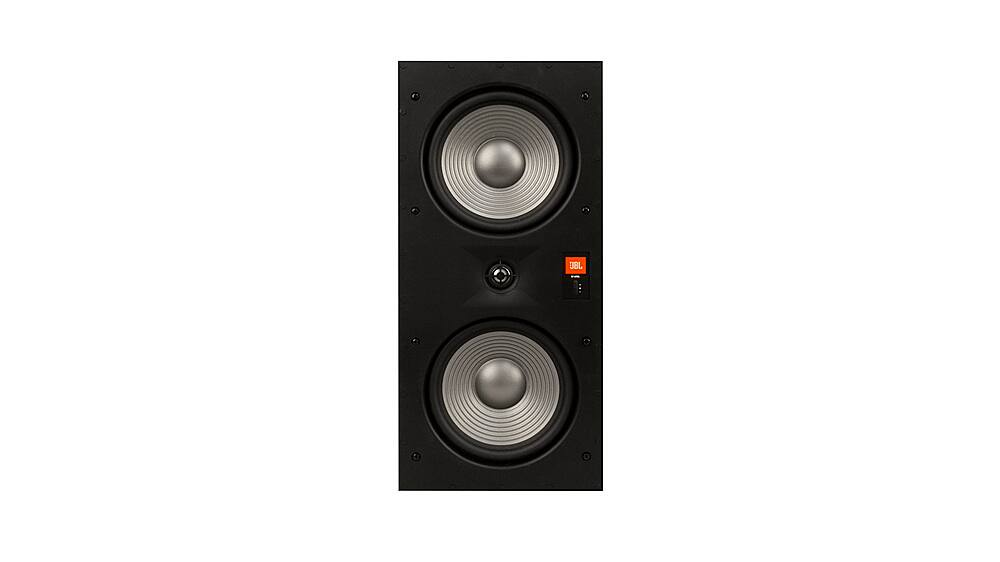

product image

JBL - Studio 2 Dual 8" 2-Way In-Wall Speaker - Black

Model: STUDIO288IWAM
SKU: 6528851
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Speaker Type: In-Wall
    • RMS Power: 120 watts (The maximum amount of continuous power the device is able to handle.)
  • General
    • Brand: JBL
    • Model Number: STUDIO288IWAM
    • Product Name: Studio 2 Dual 8" 2-Way In-Wall Speaker
    • Color: Black
  • Audio
    • Speaker Type: In-Wall
    • RMS Power: 120 watts (The maximum amount of continuous power the device is able to handle.)
    • Peak Power Handling: 150 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
    • Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
    • Minimum Frequency Response: 30 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
    • Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
    • Sensitivity: 88 decibels
    • Tweeter Type: Dome
    • Number of Tweeters: 1
    • Tweeter Size: 1 inches
    • Number of  Woofers: 2
    • Woofer Size: 8 inches
  • Connectivity
    • Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
    • Network Connector(s): No network connectors
    • Speaker Wire Connection Type: Binding posts
  • Features
    • Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
  • Dimensions
    • Product Height: 20.85 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 9.65 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 4.01 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Product Weight: 7.65 pounds (The out of box weight of the item.)
    • Mounting Dimensions: 12.64 x 9.65 x 3.98 inches
  • Other
    • UPC: 050036365376

The Studio 2 Architectural series premium loudspeakers represent extaordinary and affordable sound in architectural audio. A PolyPlas woofer cone, CMMD lite tweeter and advanced crossover network ensure low distortion and accurate sound reproduction, and the pivoting, adjustable- level tweeter can compensate for any acoustical room conditions. The proprietary High Definition Imaging (HDI) waveguide ensures that the loudspeaker fills the room with cinema- quality sound from any location – even high elevations or off-axis listening locations. The Studio 2 Architectural series features a nearly invisible, paintable, zero-bezel profile that blends into any environment. The sturdy, reliable design features the XL-2 bracket, suitable for installation in any wall or ceiling up to 2" thick. The series is engineered to match the award-winning Studio 2 component loudspeakers, and is perfect for a complete custom home theater or whole-house audio applications.

  • Legendary JBL Sound: High Definition Imaging (HDI) waveguide technology takes its cues from the legendary M2 Master Reference Monitor. Computer-optimized driver position and network integration result in ideal performance and lifelike soundstage imaging throughout the room, regardless of positioning.
  • Zero-bezel grille: Speakers blend into wall or ceilings with paintable magnetic grilles. Both pleasing to audiophiles and interior designers as these speakers can fit into any room setup. Engineered for the custom installer with a whole-room, seamless audio and visual design in mind.
  • Pivoting Tweeters: Pivoting tweeters let you target audio directly to your desired listening location. Install anywhere it suits you – even in high walls or ceilings – and adjust as needed. The apex of intelligent sound design and imaging.
  • XL-2 installation bracket: Sturdy, reliable design fit for easy installation in walls up to a full 2" thick. Specialty mechanical grip designed to minimize vibration regardless of installation format. Handles custom installation better than typical 1-1/2" bracket designs.
  • Tweeter Audio Level Adjustment: Fine-tune high-frequency highs and lows up to 3dB to suit room conditions and personal taste. Take full room audio immersion one step further by perfecting the details. Compensate for any acoustical configuration.
  • Legendary JBL Sound: High Definition Imaging (HDI) waveguide technology takes its cues from the legendary M2 Master Reference Monitor. Computer-optimized driver position and network integration result in ideal performance and lifelike soundstage imaging throughout the room, regardless of positioning.
  • Zero-bezel grille: Speakers blend into wall or ceilings with paintable magnetic grilles. Both pleasing to audiophiles and interior designers as these speakers can fit into any room setup. Engineered for the custom installer with a whole-room, seamless audio and visual design in mind.
  • Pivoting Tweeters: Pivoting tweeters let you target audio directly to your desired listening location. Install anywhere it suits you – even in high walls or ceilings – and adjust as needed. The apex of intelligent sound design and imaging.
  • XL-2 installation bracket: Sturdy, reliable design fit for easy installation in walls up to a full 2" thick. Specialty mechanical grip designed to minimize vibration regardless of installation format. Handles custom installation better than typical 1-1/2" bracket designs.
  • Tweeter Audio Level Adjustment: Fine-tune high-frequency highs and lows up to 3dB to suit room conditions and personal taste. Take full room audio immersion one step further by perfecting the details. Compensate for any acoustical configuration.
Whats Included
  • dual 8" in-wall speaker
  • manual
  • magnetic grille
  • cutout template
  • warranty card
  • dual 8" in-wall speaker
  • manual
  • magnetic grille
  • cutout template
  • warranty card

Q: What is the maximum thickness of a wall or ceiling that the speaker can be installed in?

A: The sturdy, reliable design of the Studio 2 Architectural series features the XL-2 bracket, suitable for installation in any wall or ceiling up to 2" thick.

Q: What is the minimum frequency response of the speaker?

A: The minimum frequency response of the speaker is 30 hertz.

Q: Does the speaker have wireless multi-room audio capabilities?

A: This speaker does not have wireless multi-room audio capabilities.

Q: Are the Studio 2 component loudspeakers compatible with this in-wall speaker?

A: The Studio 2 Architectural series is engineered to match the award-winning Studio 2 component loudspeakers.
