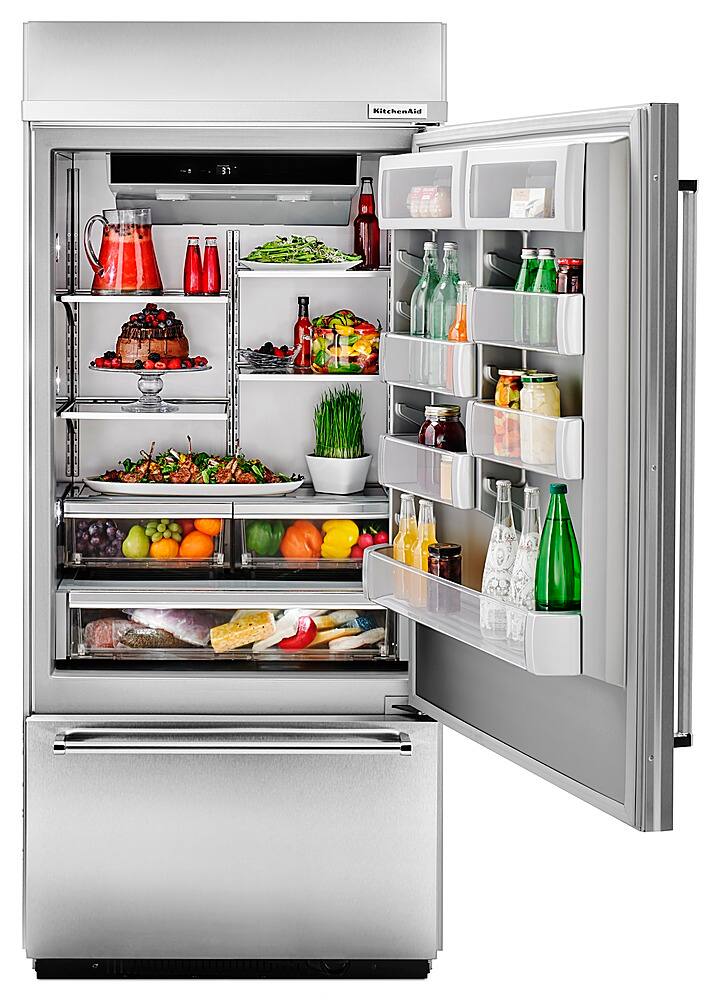

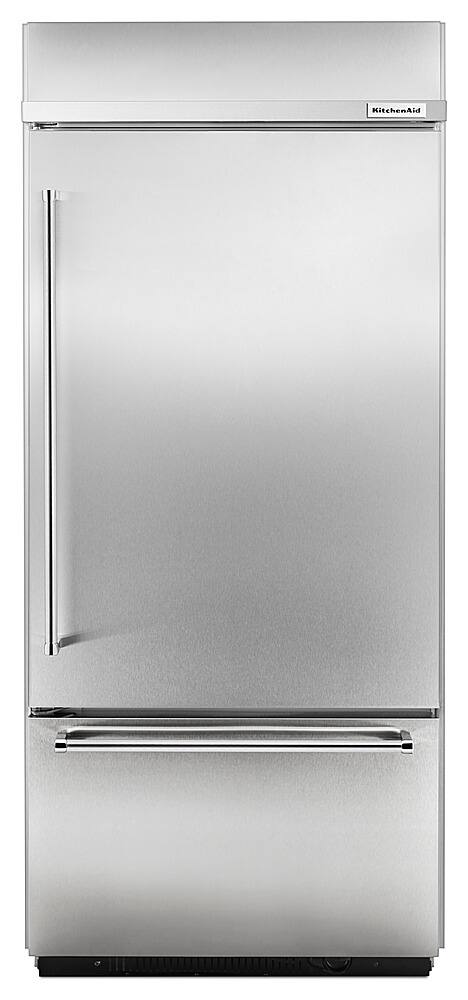

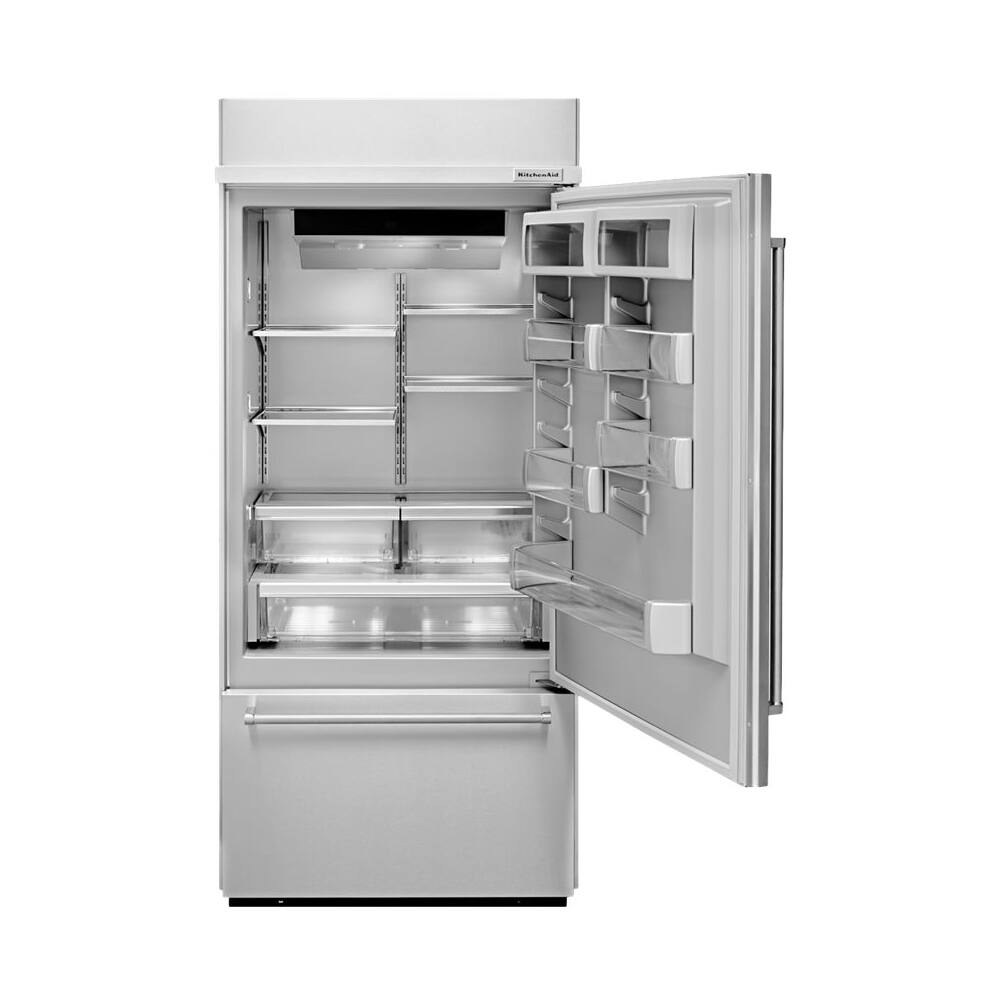

KitchenAid - 20.9 Cu. Ft. Bottom-Freezer Built-In Refrigerator - Stainless Steel
Related Item
Specifications
- Color FinishStainless steelProduct Height83 3/8 inchesProduct Width36 1/4 inchesHeight To Top Of Refrigerator (Without Hinges)83 3/8 inchesHeight To Top Of Door Hinge83 3/8 inchesDepth Without Handle25 1/8 inches
- Key Specs
- Color Finish: Stainless steel
- Product Height: 83 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 1/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 83 3/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 83 3/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 25 1/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 27 3/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 20.81 cubic feet
- Refrigerator Style: Bottom Freezer
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: KitchenAid
- Model Number: KBBR306ESS
- Product Name: 20.9 Cu. Ft. Bottom-Freezer Built-In Refrigerator
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 83 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 1/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 83 3/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 83 3/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: false (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 25 1/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 27 3/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 23 11/16 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 59 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 525 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 83 1/2 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 35 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 20.81 cubic feet
- Refrigerator Capacity: 15.25 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 5.56 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Performance
- Minimum Operating Temperature: 55 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 110 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Refrigerator Style: Bottom Freezer
- Convertible Temperature Zone: false (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Door-Open Alarm: true
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)

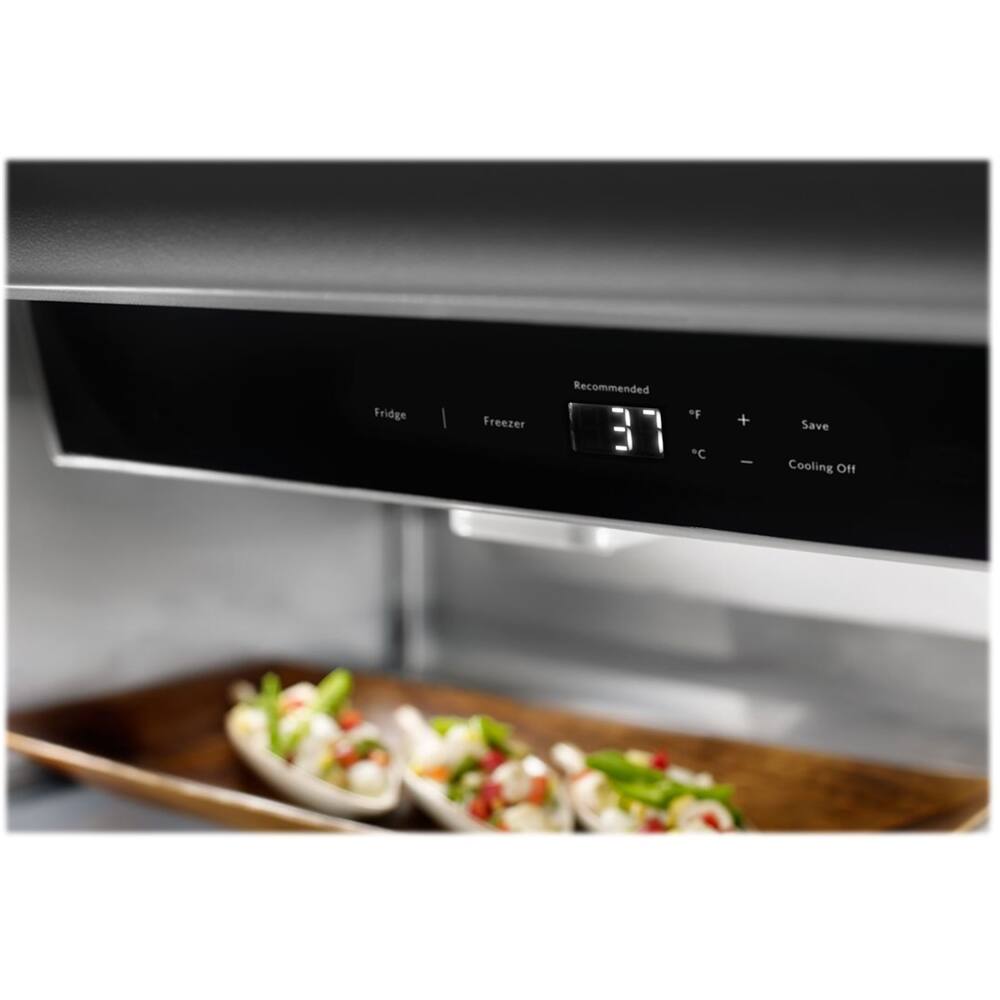

- Temperature Control Type: Touchpad
- Display Type: None
- Defrost Type: Manual (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: false
- Hinge Setting: Not Applicable
- Lighting Type: LED
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ice & Water
- Ice Maker: Yes
- Secondary Ice Maker: No (This feature, often located within a pull-out freezer drawer, produces and stores ice in addition to the primary ice maker.)
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: None
- Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 4
- Refrigerator Shelf Style: Adjustable, Spill proof
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true
- Refrigerator Shelf Material: Spill-proof glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Door Type: Pull Out Drawer
- Freezer Shelf Material: Other
- Freezer Interior Light: true
- Quick Freeze: true (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
- Filter Info
- Water Filtration: false
- Electrical Specification
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 599 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 72 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. For more information about chemicals in this product, visit www.kitchenaid.com/regulatory.html. Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. Para obtener más información sobre los químicos en este producto, visite www.kitchenaid.com/regulatory.html. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 883049336855
Give your gourmet ingredients luxury treatment with this KitchenAid built-in bottom-mount refrigerator. The platinum interior and LED lighting create a showcase for your foods, and the Preserva Food Care System extends the life of fresh and frozen items while eliminating odors. Featuring adjustable glass shelves and multiple drawers, this KitchenAid built-in bottom-mount refrigerator makes it easy to organize your ingredients.
- Stainless-steel finish: Aligns perfectly with any stylish kitchen design.
- Generous storage: Includes a half-width drawer and a slide-out basket to create plenty of space to organize frozen food.

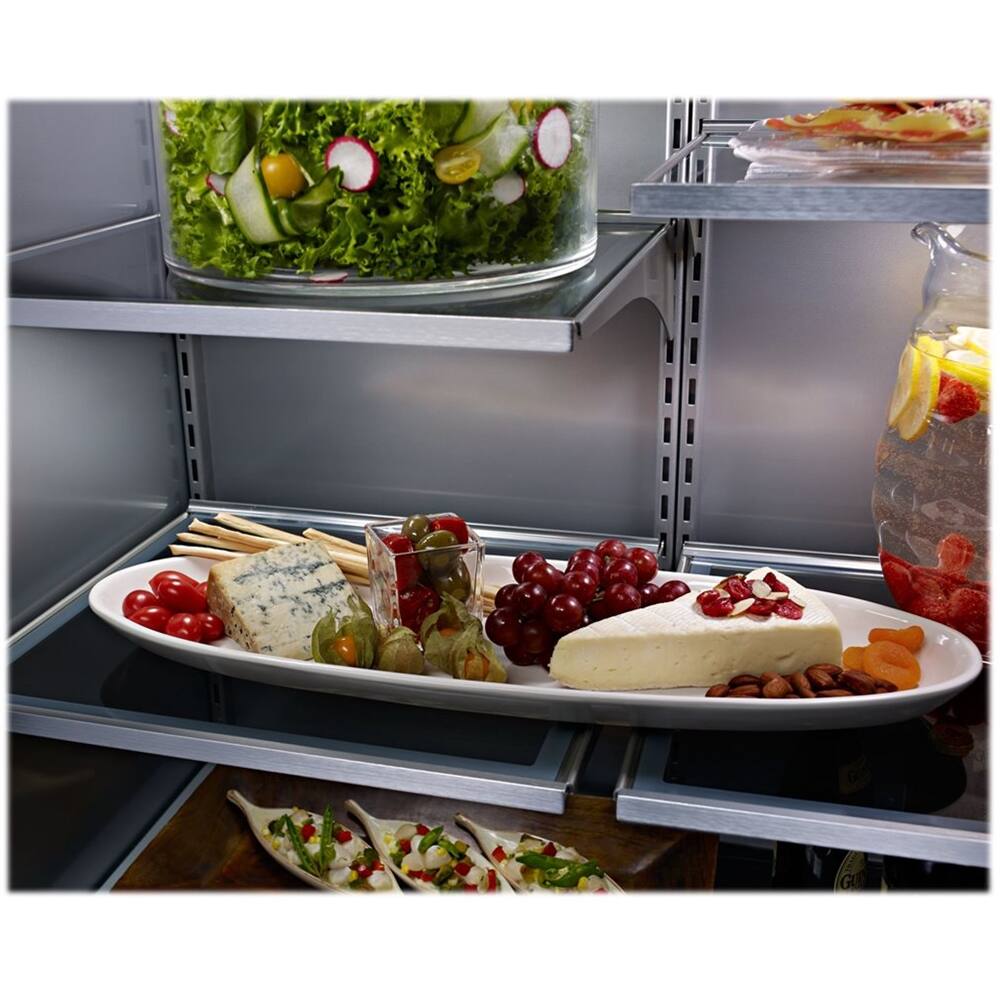

- Organize contents with ease: Includes 4 adjustable half-width shelves, 3 humidity controlled drawers, 2 half-width drawers and more to provide ample space for storing items.

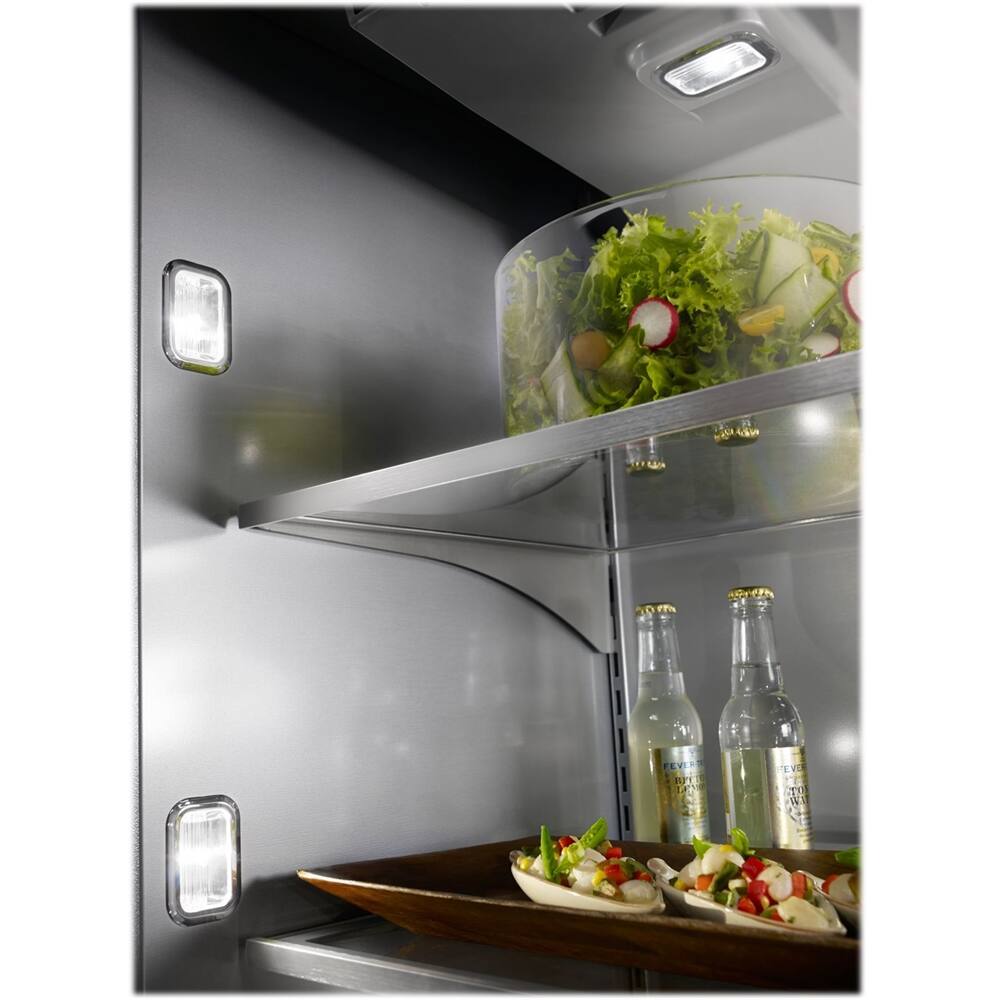

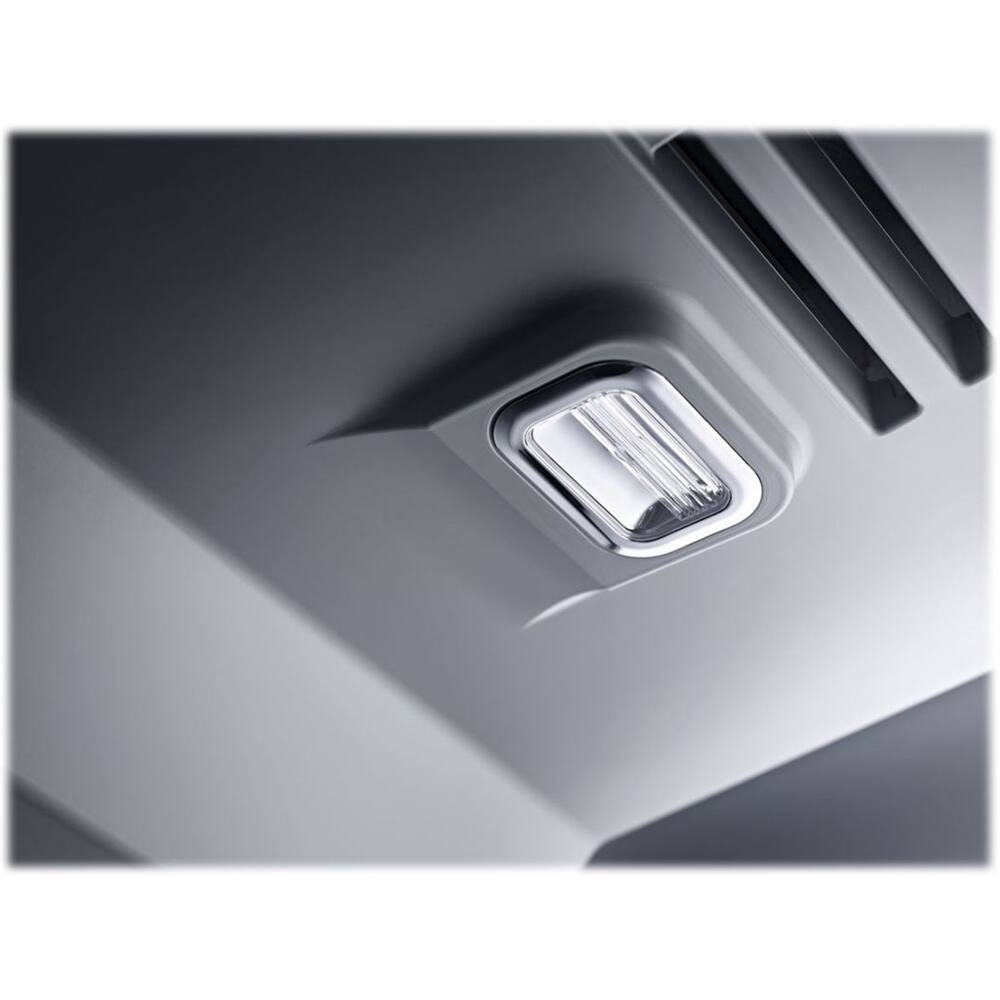

- LED interior lighting: Bright lights to illuminate interior.
- Automatic ice maker: Provides a steady supply of ice without the mess of having to refill ice trays.
- Free delivery on appliance orders $399 and up: For new water line connections, special installation is required which is not included with delivery. Call 1-888-BEST BUY (1-888-237-8289) to find out more and to purchase installation.
- Required parts sold separately: Find essential parts for installation in the accessories section on this page.
- Need more information?: See what's included with home delivery and installation.
- Stainless-steel finish: Aligns perfectly with any stylish kitchen design.
- Generous storage: Includes a half-width drawer and a slide-out basket to create plenty of space to organize frozen food.
- Organize contents with ease: Includes 4 adjustable half-width shelves, 3 humidity controlled drawers, 2 half-width drawers and more to provide ample space for storing items.
- LED interior lighting: Bright lights to illuminate interior.
- Automatic ice maker: Provides a steady supply of ice without the mess of having to refill ice trays.
- Free delivery on appliance orders $399 and up: For new water line connections, special installation is required which is not included with delivery. Call 1-888-BEST BUY (1-888-237-8289) to find out more and to purchase installation.
- Required parts sold separately: Find essential parts for installation in the accessories section on this page.
- Need more information?: See what's included with home delivery and installation.
Whats Included
- KitchenAid 20.9 Cu. Ft. Bottom-Freezer Built-In Refrigerator
- KitchenAid 20.9 Cu. Ft. Bottom-Freezer Built-In Refrigerator
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
A: Hello TK, please see page 2 of the Installation Instructions for the Dimensions of your model. bit.ly/3YphjMw. The dimensions of model KBBR306ESS are Cutout Depth (in) 24, Cutout Height (in) 83 1/2, Cutout Width (in) 35 1/2, Depth 27 3/4", Height 83 3/8", Width 36 1/4", Depth Closed Excluding Handles 25 1/8", Depth Closed Including Handles 27 3/4", Depth Excluding Doors 23 11/16", Depth With Door Open 90 Degree 59", and Height To Top Of Cabinet 83 3/8". We hope this helps.
Q: I can’t seem to find a way to buy it or even to find out which stores have it (it says online only).
A: Please reach out to Best Buy Customer Care at 1-888-237-8289 for further assistance with special orders. We hope this helps.
A: Hi! Here is the link to the "installation guide" for this model Built-In Refrigerator. https://bit.ly/3tkvVQ5 You will find the dimension guide and the space requirements, which is the area you have available, for this model. It isn't available as a "panel ready" however. If you have any further questions please don't hesitate to reach out to us directly at KitchenAid (800) 422-1230 Monday-Friday 8 AM to 6 PM ET. We hope this helps!
A: Hello! We would need the model number in order to verify the dimensions. Thank you.
A: Just talked to the KitchenAid tech support. This model requires the door to be at least 45 degrees for the lights to be on. The lights will only turn on when the door is wider than 45 degrees open and it will turn off when the door is less than 45 degrees open.
