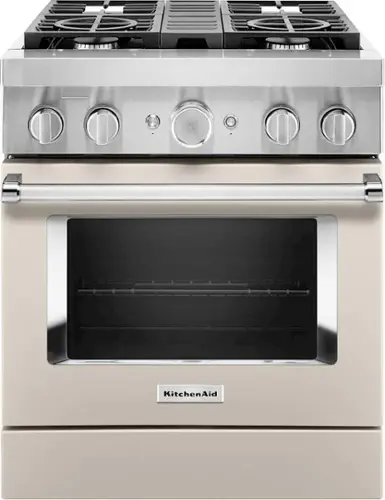

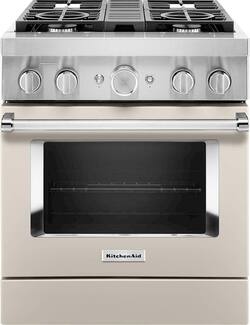

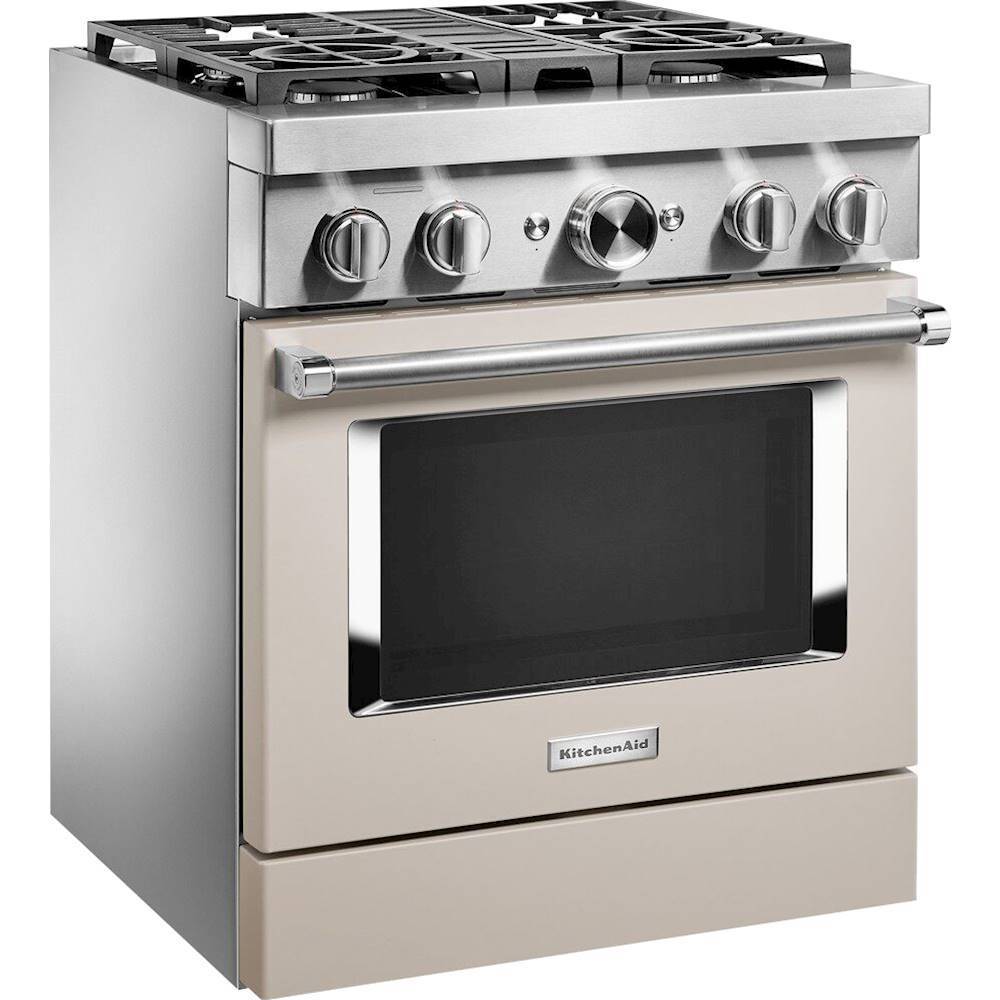

KitchenAid - 4.1 Cu. Ft. Freestanding Dual-Fuel True Convection Range with Self-Cleaning - Milkshake
Model: KFDC500JMH
SKU: 6383096
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Gray
- Product Height: 37 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 30 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 27 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 30 1/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 4
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: KitchenAid
- Model Number: KFDC500JMH
- Product Name: 4.1 Cu. Ft. Freestanding Dual-Fuel True Convection Range with Self-Cleaning
- Color: Milkshake
- Color Finish: Gray
- Dimensions

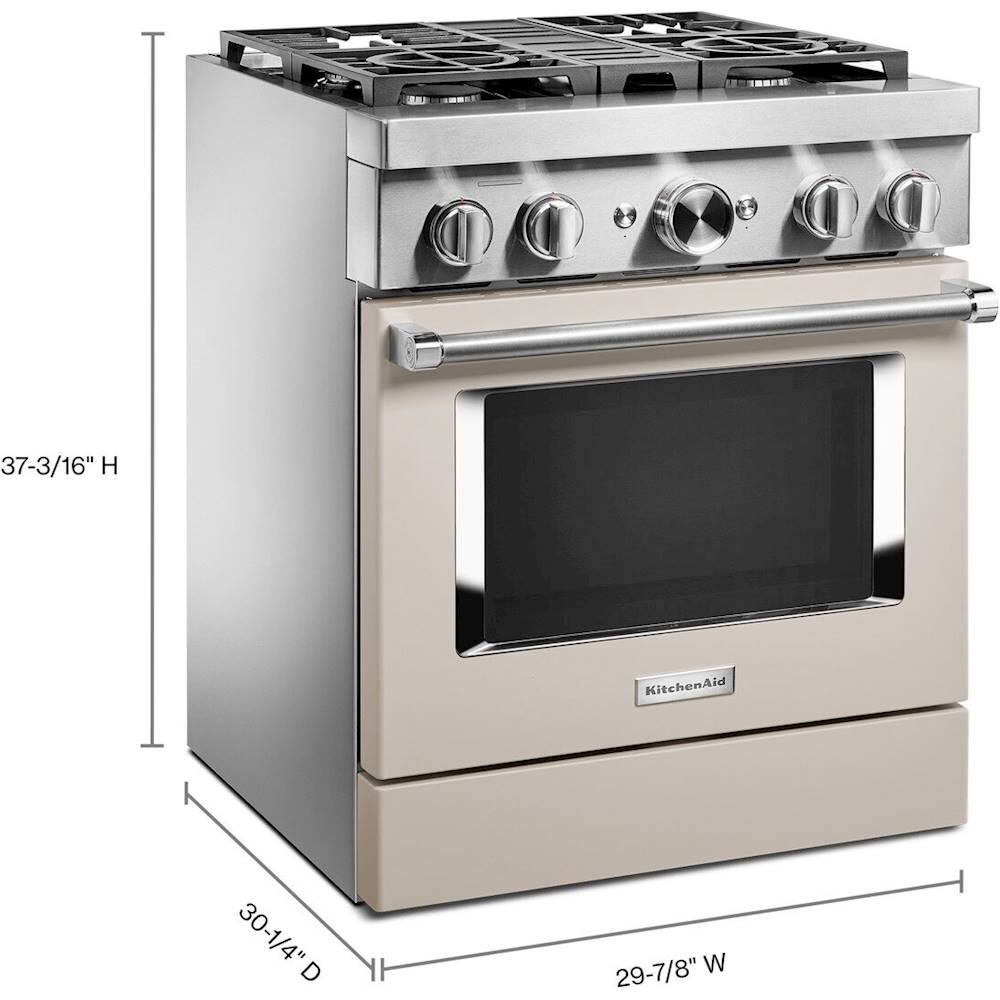

- Product Height: 37 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 30 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 27 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 30 1/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 358 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 4.1 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Gas Type: Natural gas
- Range Power Source: Dual fuel
- Fingerprint Resistant: false
- Ignition Type: Electric
- Control Type: Knob
- Oven Control Location: Front panel
- Clock Display: false
- Oven Light: true
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Propane (LP) Convertible: true
- Propane Kit Model Compatibility: W11502161
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Design
- Display Type: None
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Convection, Bake, Broil, Roast
- Oven Settings: Keep Warm Setting
- Oven Features
- Convection Type: Single-fan with heating element (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Single/Double Oven: Single Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Number of Oven Racks: 3
- Number of Oven Rack Positions: 6
- Oven Window: true
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Stainless steel, Stainless steel
- Number of Burners: 4
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Dual Stacked burner, Power burner, simmer burner (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Porcelain, Porcelain
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 20000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 15000 british thermal units
- Burner 3 Rating: 20000 british thermal units
- Burner 4 Rating: 5000 british thermal units
- Total Maximum BTU Rating: 60000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Electrical Specification
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Propane Conversion Kit Included: true
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.kitchenaid.com/regulatory. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.kitchenaid.com/regulatory.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 Year Limited
- Warranty - Labor: 1 Year Limited
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 883049528229
Empower your creativity with a 30-inch KitchenAid commercial-style range with 4 burners. This dual-fuel range combines a gas cooktop with the even baking of an electric oven. Two versatile 20,000 BTU Ultra Power dual-flame burners offer the power and precision to sear, simmer, stir-fry, and sauté. Even-Heat true convection helps you achieve more consistent baking and roasting.
- Dual-fuel range: Satisfies the needs of demanding cooks by combining the precise control of a gas cooking surface with the even baking, roasting, and broiling of an electric oven.
- Even-Heat true convection: Features a unique bow-tie design with a heating element and fan that provide even airflow and consistent temperatures throughout the entire oven for crisp, flaky baked goods, juicy, evenly browned roasts, and flavorful, caramelized vegetables.

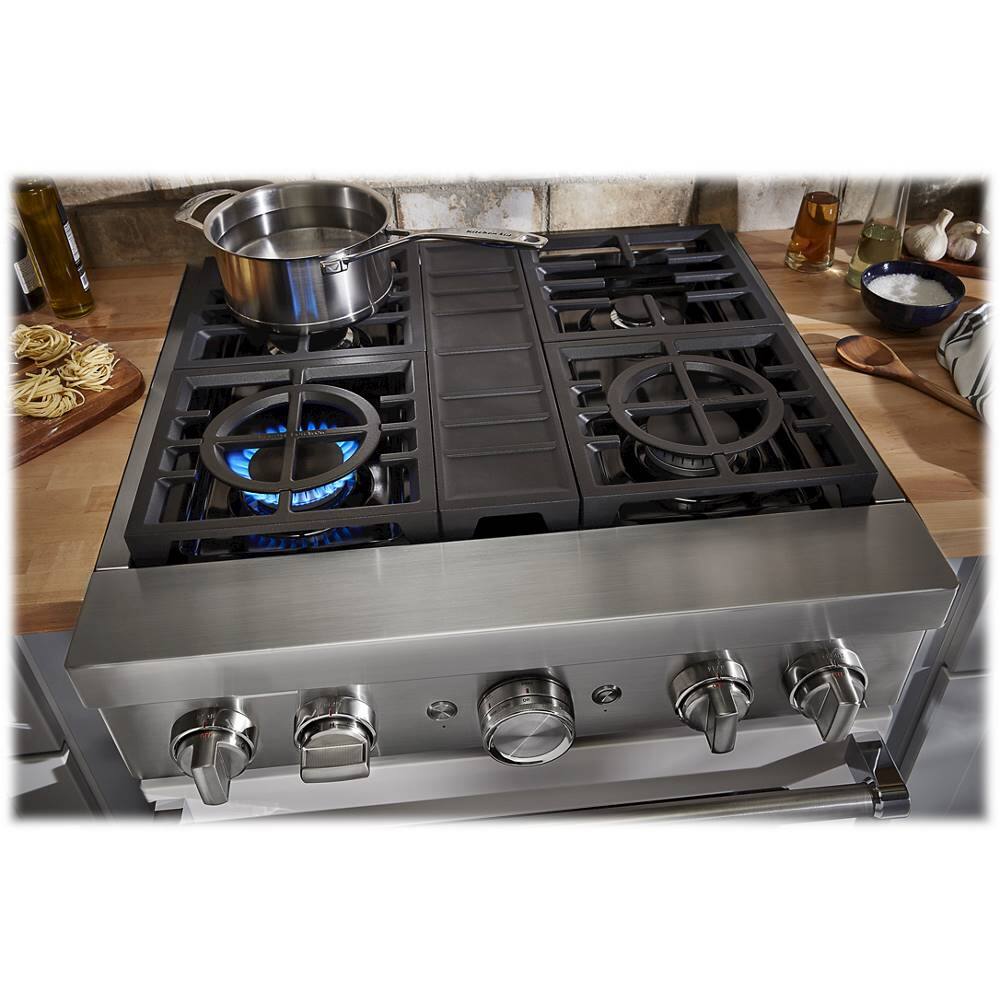

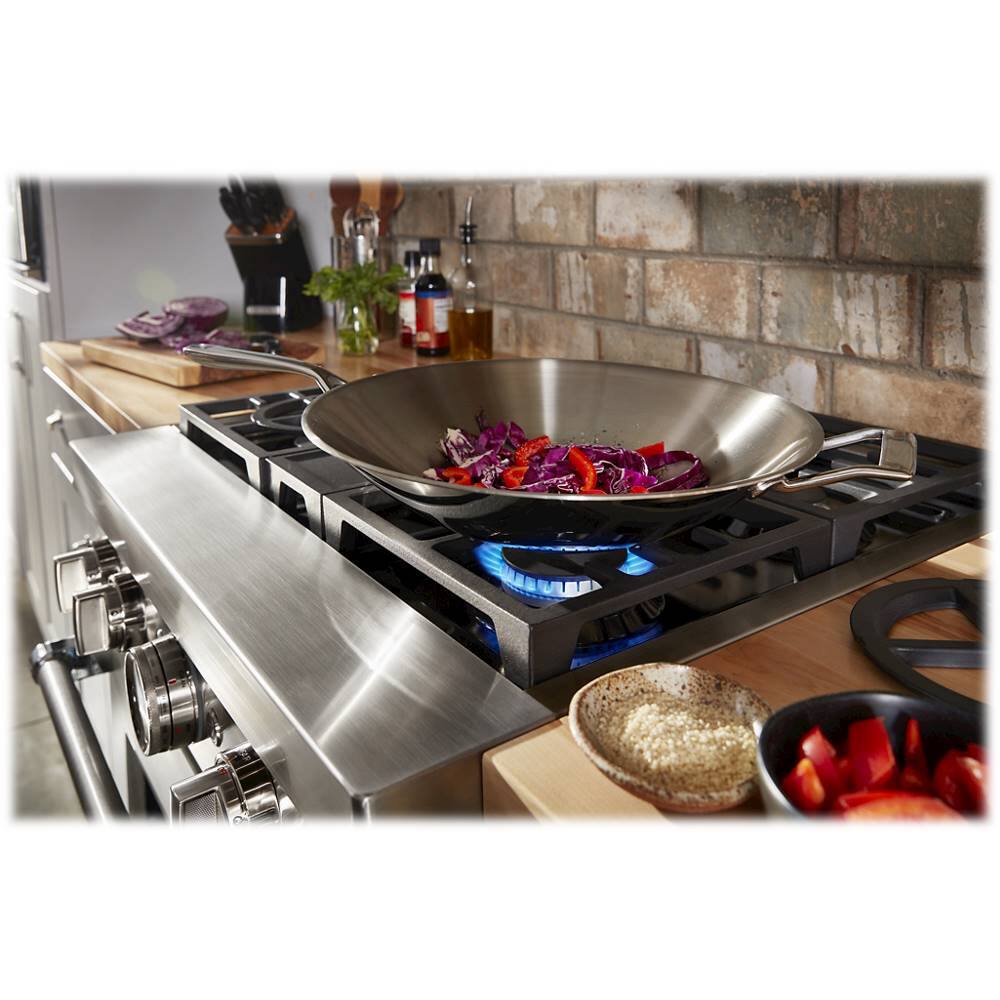

- Two 20,000 BTU Ultra Power dual-flame burners: Give you precise control of powerful highs, steady lows, and a wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer, and sizzle, all on the same burner.
- 5,000 BTU simmer and melt burner: With a low flame sized for small saucepans, lets you reach and maintain low temperatures. Simmer sauces until they look, feel, and taste just right, and melt even delicate ingredients.
- Three-level convertible grates: With removable inserts, match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt, or remove it to nestle a round-bottom wok in the flame for stir-fry.
- Smart appliance: lets you control the oven with your Google Assistant or an Alexa-enabled device to stay hands on or hands off. Use the KitchenAid App to preheat, proof, bake and roast, save custom cooking instructions for favorite recipes and more.
- One 15,000 BTU burner: Delivers the high heat you need for successful searing, sautéing, stir-frying, and quickly bringing large stock pots to a rolling boil.
- Dual-concentric oven knob: Provides one-handed control of both oven mode and temperature. Two knobs in one let you first choose Bake, Broil, or Convection, then select the temperature. Responsive backlighting confirms settings are correct or alerts you to needed adjustments.
- SatinGlide rollout extension rack: Makes it easier to cook with large or heavy bakeware. The sure-grip handle and smooth roll-out simplify loading and unloading.
- 4.1 cu. ft. capacity: Offers ample room to cook large dishes, such as a whole turkey or roast.
- EasyConvect conversion system: Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid app, making it effortless to use convection with recipes of all kinds.
- KitchenAid handle medallion kit (sold separately): Accent the range handle with colored medallions.
- Dual-fuel range: Satisfies the needs of demanding cooks by combining the precise control of a gas cooking surface with the even baking, roasting, and broiling of an electric oven.
- Even-Heat true convection: Features a unique bow-tie design with a heating element and fan that provide even airflow and consistent temperatures throughout the entire oven for crisp, flaky baked goods, juicy, evenly browned roasts, and flavorful, caramelized vegetables.
- Two 20,000 BTU Ultra Power dual-flame burners: Give you precise control of powerful highs, steady lows, and a wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer, and sizzle, all on the same burner.
- 5,000 BTU simmer and melt burner: With a low flame sized for small saucepans, lets you reach and maintain low temperatures. Simmer sauces until they look, feel, and taste just right, and melt even delicate ingredients.
- Three-level convertible grates: With removable inserts, match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt, or remove it to nestle a round-bottom wok in the flame for stir-fry.
- Smart appliance: lets you control the oven with your Google Assistant or an Alexa-enabled device to stay hands on or hands off. Use the KitchenAid App to preheat, proof, bake and roast, save custom cooking instructions for favorite recipes and more.
- One 15,000 BTU burner: Delivers the high heat you need for successful searing, sautéing, stir-frying, and quickly bringing large stock pots to a rolling boil.
- Dual-concentric oven knob: Provides one-handed control of both oven mode and temperature. Two knobs in one let you first choose Bake, Broil, or Convection, then select the temperature. Responsive backlighting confirms settings are correct or alerts you to needed adjustments.
- SatinGlide rollout extension rack: Makes it easier to cook with large or heavy bakeware. The sure-grip handle and smooth roll-out simplify loading and unloading.
- 4.1 cu. ft. capacity: Offers ample room to cook large dishes, such as a whole turkey or roast.
- EasyConvect conversion system: Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid app, making it effortless to use convection with recipes of all kinds.
- KitchenAid handle medallion kit (sold separately): Accent the range handle with colored medallions.
Whats Included
- KitchenAid 4.1 Cu. Ft. Freestanding Dual Fuel True Convection Range with Self-Cleaning
- Gas connector is not included
- Owner's manual
- KitchenAid 4.1 Cu. Ft. Freestanding Dual Fuel True Convection Range with Self-Cleaning
- Gas connector is not included
- Owner's manual
Product Manuals
Disclaimers
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
A: The dual-flame design on the 20,000 BTU Ultra Power™ burners provides precise control of powerful highs, steady lows, and a wide range of temperatures in between. This versatility allows users to sear, sauté, simmer, and sizzle all on the same burner, enhancing cooking versatility and making it suitable for various cooking techniques.
A: The KitchenAid range stands out with its dual-fuel capability, combining the precision of a gas cooktop with the even baking of an electric oven. It features Even-Heat™ True Convection for consistent cooking results, along with versatile burners for precise temperature control. The range also offers user-friendly features like the EasyConvect™ conversion system and SatinGlide™ rollout extension rack, enhancing cooking convenience. Overall, it provides excellent cooking performance, advanced features, and great value compared to other models.
A: The dual-concentric oven knob provides one-handed control of both oven mode and temperature. With two knobs in one, you can first choose the desired mode, such as bake, broil, or convection, and then select the temperature. This simplified design allows for easy and precise adjustment of oven settings.
A: The 15,000 BTU burner on the KitchenAid 4.1 Cu. Ft. Freestanding Dual Fuel True Convection Range provides high heat for successful searing, sautéing, and stir-frying. The versatile, dual-flame design allows you to adjust the heat intensity by leaving the insert level for high-heat searing and sautéing, flipping it over to elevate the pan for simmering and melting, or removing it to accommodate a round-bottom wok for stir-frying.
Q: How does the 4.1 cu. ft. capacity of the oven accommodate cooking larger dishes?
A: The 4.1 cu. ft. capacity of the oven provides ample space to cook large dishes, such as a whole turkey or roast. The SatinGlide™ rollout extension rack makes it easier to cook with large or heavy bakeware, simplifying loading and unloading. The three-level convertible grates with removable inserts allow users to adjust the heat to their cooking technique, making it versatile for various cooking needs.
Q: What makes the SatinGlide™ rollout extension rack convenient for handling large or heavy bakeware?
A: The SatinGlide™ rollout extension rack features a sure-grip handle and smooth roll-out mechanism, making it easier to load and unload large or heavy bakeware. It simplifies the handling of bulky or weighty baking pans, reducing the risk of spills or accidents during the cooking process.
Q: How does the EasyConvect™ conversion system simplify the use of convection cooking?
A: The EasyConvect™ conversion system simplifies convection cooking by automatically adjusting conventional baking temperatures to their convection equivalents. This adjustment is done through the KitchenAid™ app, making it effortless to use convection with various recipes. With this feature, users can achieve consistent and delicious baking results without manually calculating temperature conversions.
A: The 5,000 BTU simmer and melt burner is designed for precise temperature control when cooking with small saucepans. It provides a low flame that is ideal for simmering sauces and melting delicate ingredients, ensuring that they reach and maintain the desired temperature without overcooking or burning.
