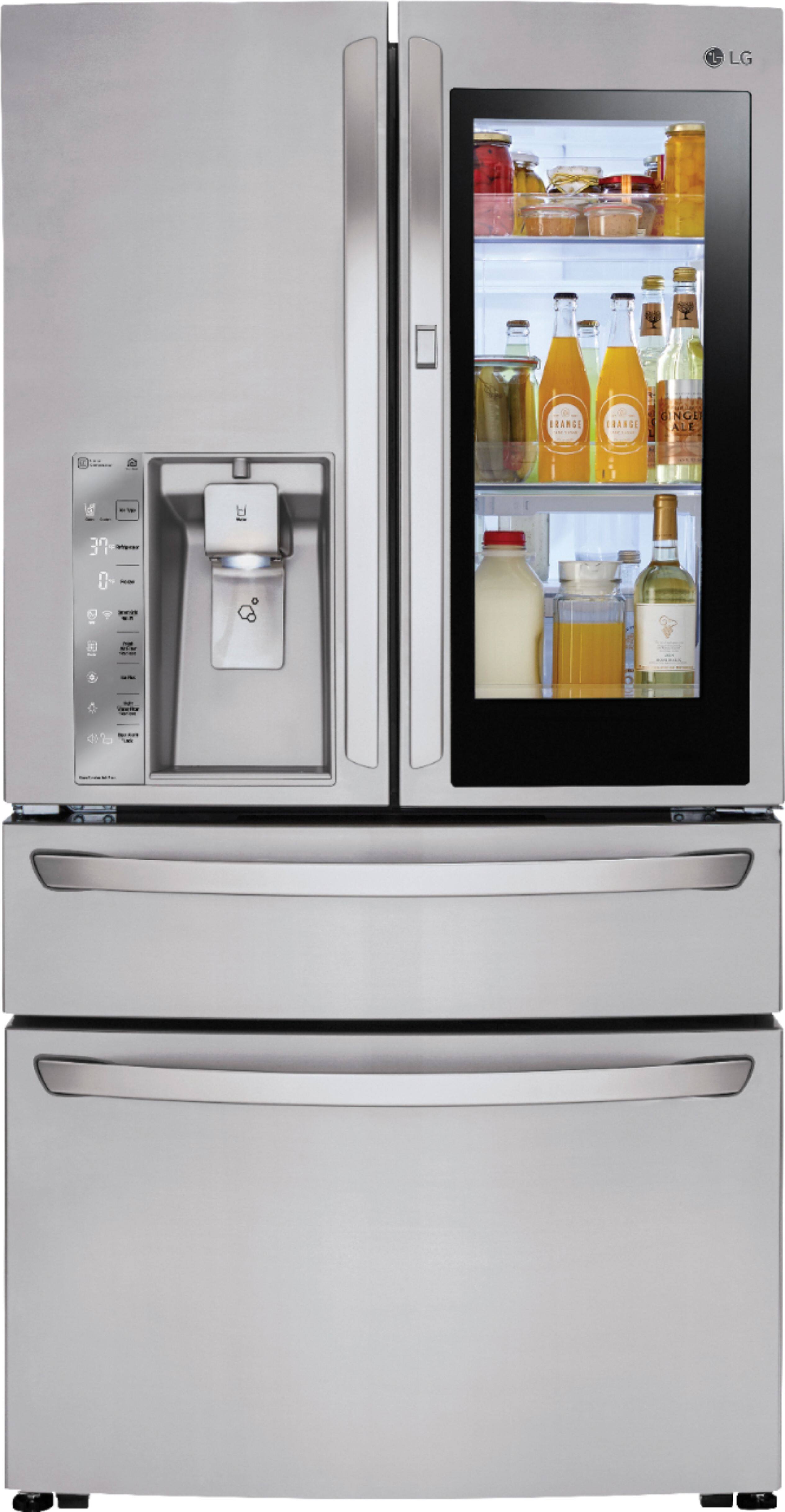

LG - 22.5 Cu. Ft. French InstaView Door-in-Door Counter-Depth 4-Door Refrigerator with WiFi - Stainless Steel
Model: LMXC23796S
SKU: 5736204
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 70 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 7/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 1/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 29 5/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 32 1/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 22.5 cubic feet
- Refrigerator Style: French Door
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No, No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: LG
- Model Number: LMXC23796S
- Product Name: 22.5 Cu. Ft. French InstaView Door-in-Door Counter-Depth 4-Door Refrigerator with WiFi
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 70 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 32 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 7/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 1/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 29 5/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 32 1/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 24 3/4 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 44 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 371 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 71 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 36 1/4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 34 1/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 22.5 cubic feet
- Refrigerator Capacity: 13.3 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 6.4 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Convertible Temperature Zone Capacity: 2.8 cubic feet (Total amount of space within the convertible temperature compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: French Door
- Fingerprint Resistant: false
- Convertible Temperature Zone: true (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Convertible Temperature Zone Location: Middle
- Convertible Temperature Zone Range: 29° - 42° F
- Dual Evaporation: true (A cooling system that works to create a stable climate for the refrigerator and freezer separately. This ensures that each compartment is able to maintain a separate humidity and temperature level ideal for the respective stored items. Freezers tend to require lower humidity while refrigerators require higher humidity to keep foods fresher for longer.)
- Door-Open Alarm: true
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Hinge Setting: Fixed left, Fixed right
- Lighting Type: LED
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Refrigerator
- Daily Ice Production: 3.8 pounds (Maximum quantity of ice that can be produced within 24 hours.)
- Ice and Water Dispenser: Ice and water
- Ice and Water Dispenser Location: External
- Dispensed Water Type: Cold Water
- Dispenser Features: Dispenser light, Filtration replacement light
- Storage
- Number of External Doors/Drawers: 4
- Number of Refrigerator Shelves: 4
- Refrigerator Shelf Style: Adjustable, Fixed, Folding, Removable, Spill proof
- Quick Access Door: true (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true
- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Tempered Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Door Type: Pull Out Drawer
- Freezer Shelf Material: Other
- Freezer Interior Light: true
- Filter Info
- Water Filtration: true
- Water Filter Model Number: LT1000P (The water filter model(s) recommended for use with the product.)
- Air Filter: true (A filter that works to remove odors and contaminants from the air within the appliance.)
- Air Filter Model Number: LT120F (The air filter model(s) recommended for use with the product.)
- Electrical Specification
- Amperage: 20 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 697 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 84 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No, No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 048231788861
Store chilled and frozen foods with this LG refrigerator. Its InstaView Door-in-Door panel lets you see inside without letting cold air escape, and its Slim SpacePlus ice system provides more shelf space. This 23 cu. ft. LG refrigerator uses Smart Cooling technology to keep temperatures consistent, so food stays fresh longer.
- Large Capacity, 23 cu ft.: Great size in a feature-packed refrigerator.
- InstaView Door-in-Door: InstaView Door-in-Door refrigerators have a sleek glass panel that allows you to see inside the easy access door without letting the cold air out. Simply knock twice on the glass to illuminate the contents within.
- ColdSaver Panel: Door-in-Door with ColdSaver Panel reduces cold air loss to extend the freshness of food.
- LG ThinQ App Compatible: From making extra ice for tonight’s dinner party to getting smartphone notifications when the door is left open, use the LG ThinQ app to control key features and get important notifications from anywhere.
- Counter Depth: Create seamless, built-in look with this counter-depth refrigerator.
- CustomChill Drawer: Adapts to your needs by giving you additional refrigerator or soft freezer space when you most need it.
- Slim SpacePlus Ice System: The LG Slim SpacePlus Ice System provides the most shelf space.
- Smart Cooling Plus System: Smart Cooling Plus is designed to monitor and maintain conditions to help keep food fresh.
- 10-Year Manufacturer's Limited Warranty on Linear Compressor: The Linear Compressor uses fewer moving parts and operates more efficiently. LG confidently backs the Linear Compressor with a 10-year limited warranty.
- Glide N'Access Shelf: Effortlessly access hard to see and reach food items.
- Smart Pull Handle: Get in and out of the freezer easily with the Smart Pull Handle.
- Fresh Air Filter: Cleaner, fresher air thanks to the Fresh Air Filter.
- Tall Ice & Water Dispenser: Finally, an ice & water dispenser that can accommodate just about any container.
- ENERGY STAR Qualified: Save money and energy with this ENERGY STAR qualified LG refrigerator that exceeds energy standards.
- SmartDiagnosis: Troubleshoot quickly and efficiently with SmartDiagnosis.
- Large Capacity, 23 cu ft.: Great size in a feature-packed refrigerator.
- InstaView Door-in-Door: InstaView Door-in-Door refrigerators have a sleek glass panel that allows you to see inside the easy access door without letting the cold air out. Simply knock twice on the glass to illuminate the contents within.
- ColdSaver Panel: Door-in-Door with ColdSaver Panel reduces cold air loss to extend the freshness of food.
- LG ThinQ App Compatible: From making extra ice for tonight’s dinner party to getting smartphone notifications when the door is left open, use the LG ThinQ app to control key features and get important notifications from anywhere.
- Counter Depth: Create seamless, built-in look with this counter-depth refrigerator.
- CustomChill Drawer: Adapts to your needs by giving you additional refrigerator or soft freezer space when you most need it.
- Slim SpacePlus Ice System: The LG Slim SpacePlus Ice System provides the most shelf space.
- Smart Cooling Plus System: Smart Cooling Plus is designed to monitor and maintain conditions to help keep food fresh.
- 10-Year Manufacturer's Limited Warranty on Linear Compressor: The Linear Compressor uses fewer moving parts and operates more efficiently. LG confidently backs the Linear Compressor with a 10-year limited warranty.
- Glide N'Access Shelf: Effortlessly access hard to see and reach food items.
- Smart Pull Handle: Get in and out of the freezer easily with the Smart Pull Handle.
- Fresh Air Filter: Cleaner, fresher air thanks to the Fresh Air Filter.
- Tall Ice & Water Dispenser: Finally, an ice & water dispenser that can accommodate just about any container.
- ENERGY STAR Qualified: Save money and energy with this ENERGY STAR qualified LG refrigerator that exceeds energy standards.
- SmartDiagnosis: Troubleshoot quickly and efficiently with SmartDiagnosis.
Whats Included
- LG InstaView Door-in-Door 22.5 Cu. Ft. French Door Counter-Depth Refrigerator
- Water filter
- Air filter
- LG InstaView Door-in-Door 22.5 Cu. Ft. French Door Counter-Depth Refrigerator
- Water filter
- Air filter
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: does it come wihtout water dispenser ? not interested in water dispenser.
A: The only one I could see that was LG, french door, counter depth, without water is this one but it does not have the separate chill drawer or the InstaView. https://www.bestbuy.com/site/lg-22-8-cu-ft-french-door-counter-depth-refrigerator-stainless-steel/6292046.p?skuId=6292046
A: The following are the dimensions for the LMXC23796S: Depth 32 1/8", Height to Top of Door Hinge 70 1/4", Width (Door Open 90˚ with Handle) 45". It requires the following clearance: Sides 1/8", Top 1", Back 2". You will be able to access the drawers with the door open 90 degrees however to remove the drawers for cleaning, the doors would need to open greater than 90 degrees. ^CP
A: Per page 51 of the Owner's Manual, it is recommended that you replace the air filter approximately every 6 months or when the "Change Filter" light turns on. ^Daphane
Q: Is this fridge magnetic on the front for magnets?
A: No, it is not magnetic on the front.
A: Hello Robbie. The Key Specs on the Best Buy product page for the ENERGY STAR® Qualified LG 22.5 Cu. Ft. French InstaView Door-in-Door Counter-Depth Smart Wi-Fi Refrigerator, Model # LMXC23796S list the "Height to Top of Refrigerator Without Hinges) as 68 7/8 inches. That is what the height will be at the back...^IFV
Q: Does the Stainless Steel show fingerprints and hand smudges?
A: Yes it definitely shows! I have to wipe it everyday to remove my toddlers finger/handprints.
A: The ENERGY STAR® Qualified LG 23 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Counter-Depth Refrigerator, Model # LMXC23796D does not require a filter bypass plug when the filter is not in place. It will function without the filter. ^CP
A: When looking at the back of the refrigerator, the waterline is located on the right side. If you ever have any questions please don't hesitate to reach out to our support team on Twitter via @LGUSSupport, on Facebook at https://www.facebook.com/LGUSA/ ^CP
