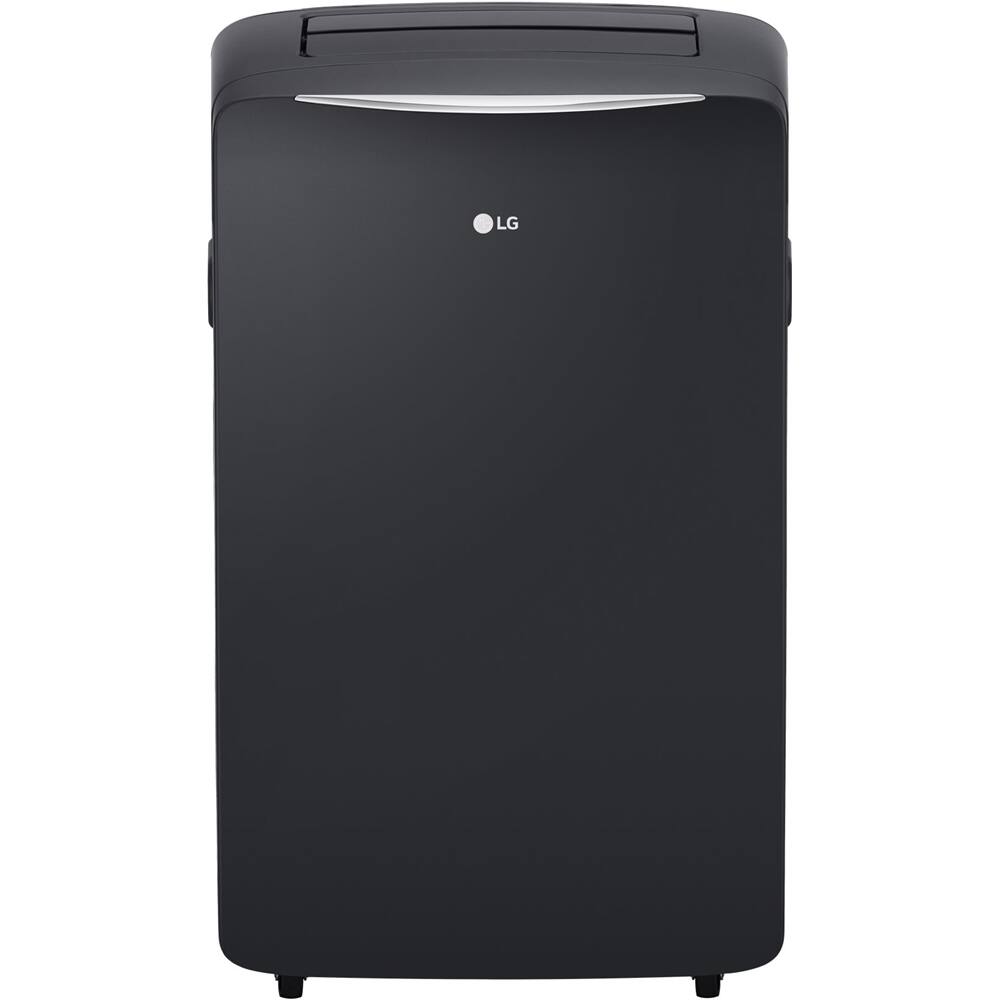

LG - 500 Sq. Ft. Portable Air Conditioner - Graphite gray
- Key Specs
- Recommended Room Size: 500.5 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- DOE SACC Cooling Power: 8000 british thermal units (The Seasonally Adjusted Cooling Capacity (SACC), implemented by the Department of Energy (DOE) after 2017, is a rating of a portable AC unit's cooling power. This rating is based on revised testing that more accurately measures a portable unit's performance, taking into account that these units do not vent heat in the same way as wall or window units and therefore were not cooling as effectively as the previous BTU ratings indicated (based on the ASHRAE-128 standard prior to 2017). Generally, the new cooling power ratings are lower than previous BTU ratings and can more reasonably be compared to the cooling capacities of other types of AC units.)
- ASHRAE Cooling Power: 14000 british thermal units (The American Society of Heating, Refrigerating, and Air-Conditioning Engineers (ASHRAE) rates the cooling power, or capacity, of portable AC units based on their effectiveness in cooling a single room as intended. Prior to 2017, this was the accepted standard used for comparison with other types of AC units. However, it did not accurately reflect the cooling power as it did not account for the heat emitted from the unit that would circulate back into the space. The Department of Energy (DOE) Seasonally Adjusted Cooling Capacity (SACC) standard is now used to determine appropriate BTU ratings of portable AC units.)
- Number of Cool Settings: 2
- Number of Fan Speeds: 2
- Airflow Rate: 278.0 cubic feet per minute
- Remote Control: true
- Integrated Heater: false
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Window Venting Kit: true (Indicates whether supplies for venting the unit through a window are included.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Air Conditioner Type: Portable
- Hose Configuration: Single (Generally, dual hose configurations are more efficient and better suited for cooling larger areas. Single hose configurations typically consume less energy and are best for cooling smaller spaces.)
- General
- Brand: LG
- Model Number: LP1417GSR
- Product Name: 500 Sq. Ft. Portable Air Conditioner
- Color: Graphite gray
- Air Conditioner Type: Portable
- Hose Configuration: Single (Generally, dual hose configurations are more efficient and better suited for cooling larger areas. Single hose configurations typically consume less energy and are best for cooling smaller spaces.)
- Dimensions
- Product Height: 29.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 74.96 pounds (The out of box weight of the item.)
- Cord Length: 60 inches
- BTU Rating
- Recommended Room Size: 500.5 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- DOE SACC Cooling Power: 8000 british thermal units (The Seasonally Adjusted Cooling Capacity (SACC), implemented by the Department of Energy (DOE) after 2017, is a rating of a portable AC unit's cooling power. This rating is based on revised testing that more accurately measures a portable unit's performance, taking into account that these units do not vent heat in the same way as wall or window units and therefore were not cooling as effectively as the previous BTU ratings indicated (based on the ASHRAE-128 standard prior to 2017). Generally, the new cooling power ratings are lower than previous BTU ratings and can more reasonably be compared to the cooling capacities of other types of AC units.)
- ASHRAE Cooling Power: 14000 british thermal units (The American Society of Heating, Refrigerating, and Air-Conditioning Engineers (ASHRAE) rates the cooling power, or capacity, of portable AC units based on their effectiveness in cooling a single room as intended. Prior to 2017, this was the accepted standard used for comparison with other types of AC units. However, it did not accurately reflect the cooling power as it did not account for the heat emitted from the unit that would circulate back into the space. The Department of Energy (DOE) Seasonally Adjusted Cooling Capacity (SACC) standard is now used to determine appropriate BTU ratings of portable AC units.)
- Features
- Number of Cool Settings: 2
- Number of Fan Speeds: 2
- Airflow Rate: 278.0 cubic feet per minute
- Air Discharge: Top
- Air Direction/Circulation: Other
- Remote Control: true
- Integrated Heater: false
- Filter Indicator Light(s): true
- Filter Type: Washable
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Window Venting Kit: true (Indicates whether supplies for venting the unit through a window are included.)
- Power
- Voltage Requirement: 115
- Amperage: 12 amperes (Strength of electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Compatibility
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Other
- UPC: 048231382175
Cool up to 500 sq. ft. with this 14,000 BTU LG portable air conditioner. Two speed settings let you adjust airflow to your preference, and the 24-hour timer lets you shut the machine down when you're away. This LG portable air conditioner includes an LCD remote for making adjustments across the room.
- Up to 501 sq. ft. cooling capacity: Allows you to keep a medium-sized room cool.
- 14,000 BTUs of cooling power: Help keep your space at a comfortable temperature.
- Full-function remote: Allows you to control your unit's settings from across the room.
- 24-hour timer: For preset operation and reduced energy consumption.
- 2 fan-only speeds: Help you ensure air circulation.
- LED lights: Illuminate the current settings for added visibility.
- Mobile design: Offers easy portability.
- Up to 501 sq. ft. cooling capacity: Allows you to keep a medium-sized room cool.
- 14,000 BTUs of cooling power: Help keep your space at a comfortable temperature.
- Full-function remote: Allows you to control your unit's settings from across the room.
- 24-hour timer: For preset operation and reduced energy consumption.
- 2 fan-only speeds: Help you ensure air circulation.
- LED lights: Illuminate the current settings for added visibility.
- Mobile design: Offers easy portability.
Whats Included
- LG LP1417GSR
- Remote control
- LG LP1417GSR
- Remote control
Product Manuals
Q: What is the size of the window panel? How large of a window can I attach this unit to?
A: The Window Installation Kit for the LG 500 Sq. Ft. 14,000 BTU Portable Air Conditioner, Model # LP1417GSR consists of an 18" Window Vent Panel that the flexible exhaust hose attaches to, 2 x 17" Extension Panels and a 9" Extension Panel. You can use just the 18" window vent panel alone or use it with a combination of the extension panels to install in in most vertical-sliding windows from 18" to 50" wide or in casement-style windows from 18" to 50" high...^IFV
Q: Does this portable AC require draining or does it have a auto ( or self)evaporation system?
A: The LG 500 Sq. Ft. 14,000 BTU Portable Air Conditioner, Model # LP1417GSR has a self-evaporative system, but whether it will need to be drained or how frequently it needs to be drained will depend on whether you are in an area of low humidity or in an area of high humidity or on what the humidity level or dew point index is on any given day. When the internal water collection tank gets full, "E5" appears on the display and the air conditioner will turn off until the internal water collection tank is emptied. IF you are inland in an area of low humidity, you may not have to empty the tank as frequently if at all as you would in a coastal are where humidity levels are high and the frequency of having to empty the internal water tank may be more more...^IFV
A: Jules, Having a window is not required. HOWEVER, ventilation is required. The unit must have ventilation to operate properly. Good News: You can narrow your search to "Ventless" or "Ductless" Air conditioners. They are not as prevalent, but do exist. Remember, Research is much cheaper than buying something only to find out it will not work Brand Loyalty is a good thing, but research multiple units by multiple manufacturers and search for reviews until you narrow it down to the top three. Comparison shop between the three factoring in cost, longevity, warranty, functionality, and most importantly... will it suit your SPECIFIC needs? Happy shopping, Jeff
Q: Where can i order another window vent kit piece?
A: Hi Zach. The Window Vent Panel (Part # COV33315901), Extension Panels (Part # COV33315701, Part # COV33315601 & Part # COV33315801) for the LG 500 Sq. Ft. 14,000 BTU Portable Air Conditioner, Model # LP1417GSR can be ordered from: Encompass Parts Distribution 775 Tipton Industrial Dr. Suite F Lawrenceville, GA 30046 Sales: 866-779-7906 Fax: 800-552-1431 https://lg.encompass.com/ ,,,^IFV
Q: Do I need a water drain lines for this unit
A: When the internal water collection tank for the LG 14,000 BTU Portable Air Conditioner and Dehumidifier Function with LCD Remote, Model # LP1417GSR gets full, 'E5' is shown on the display and the air conditioner will shut off and you will need to empty the tank then. The air conditioner has a self-evaporative system and will recycle the condensing water to cool the condenser. This helps to make the unit more energy efficient for you, but if you're not in an area of high humidity, it will reduce the frequency of having to empty the unit. ^CP
A: The LG 500 Sq. Ft. 115-Volt Portable AC w/ Dehumidifier Function, Model # LP1417GSR has a Timer function that can only be activated from the remote. You cannot program it to turn on/off on a continuous schedule and you can only set it to come on after your desired number of hours while the unit is off or to turn off after your desired number of hours while the unit is on. You can use the ▲/▼buttons to adjust the delay time from o to 24 hours in one-hour increments or decrements. You will find these instructions on page 11 of your owner's manual...^IFV
