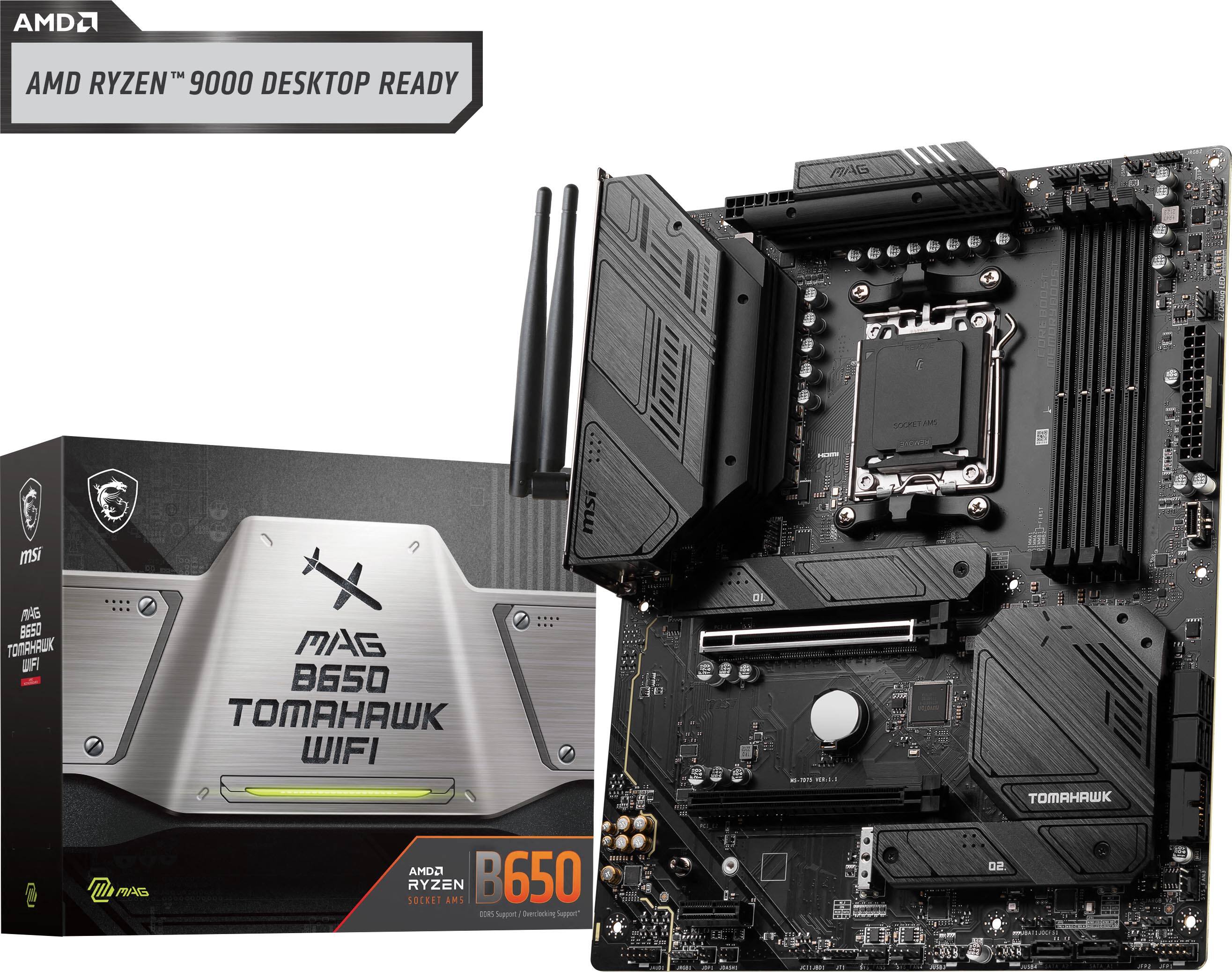

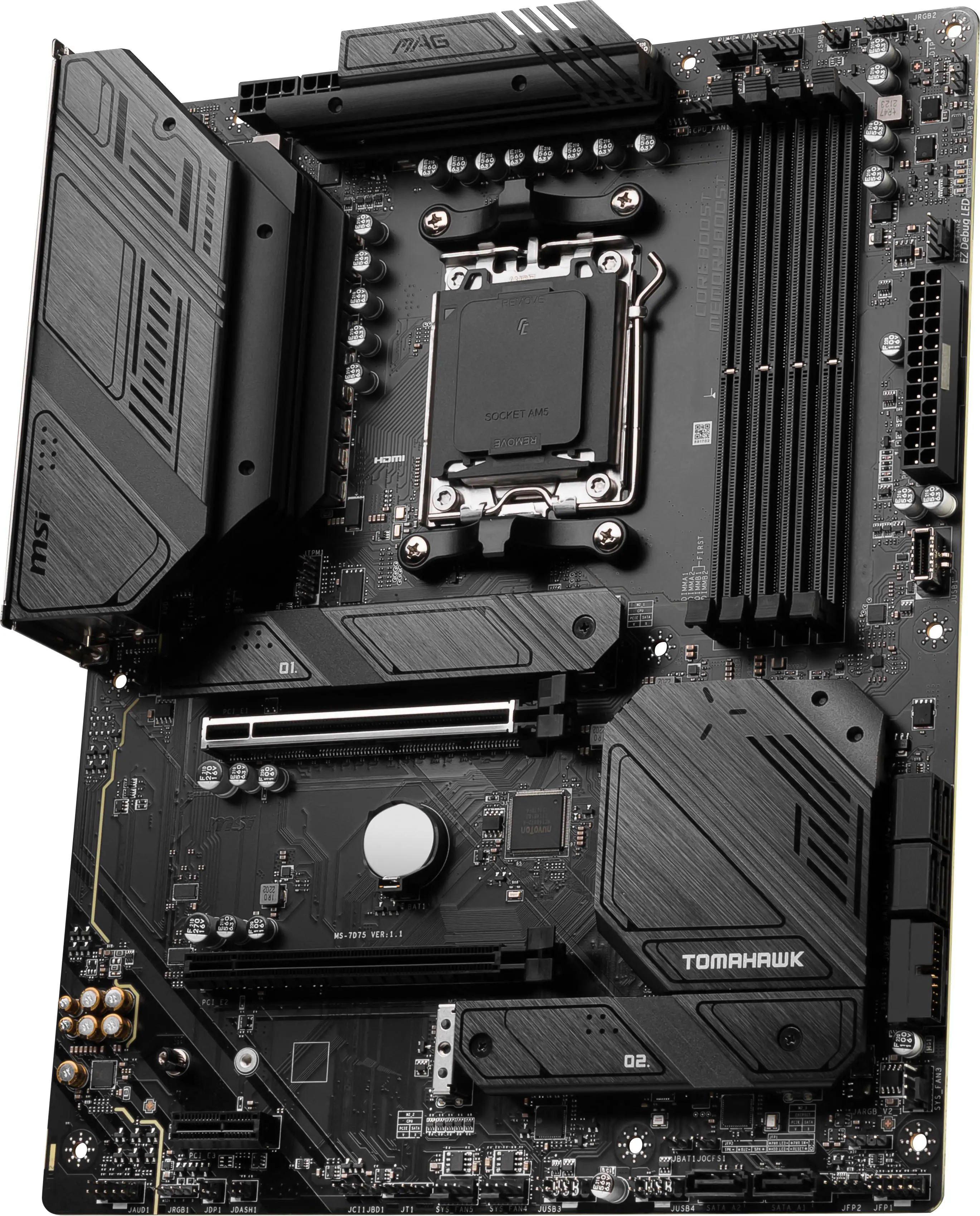

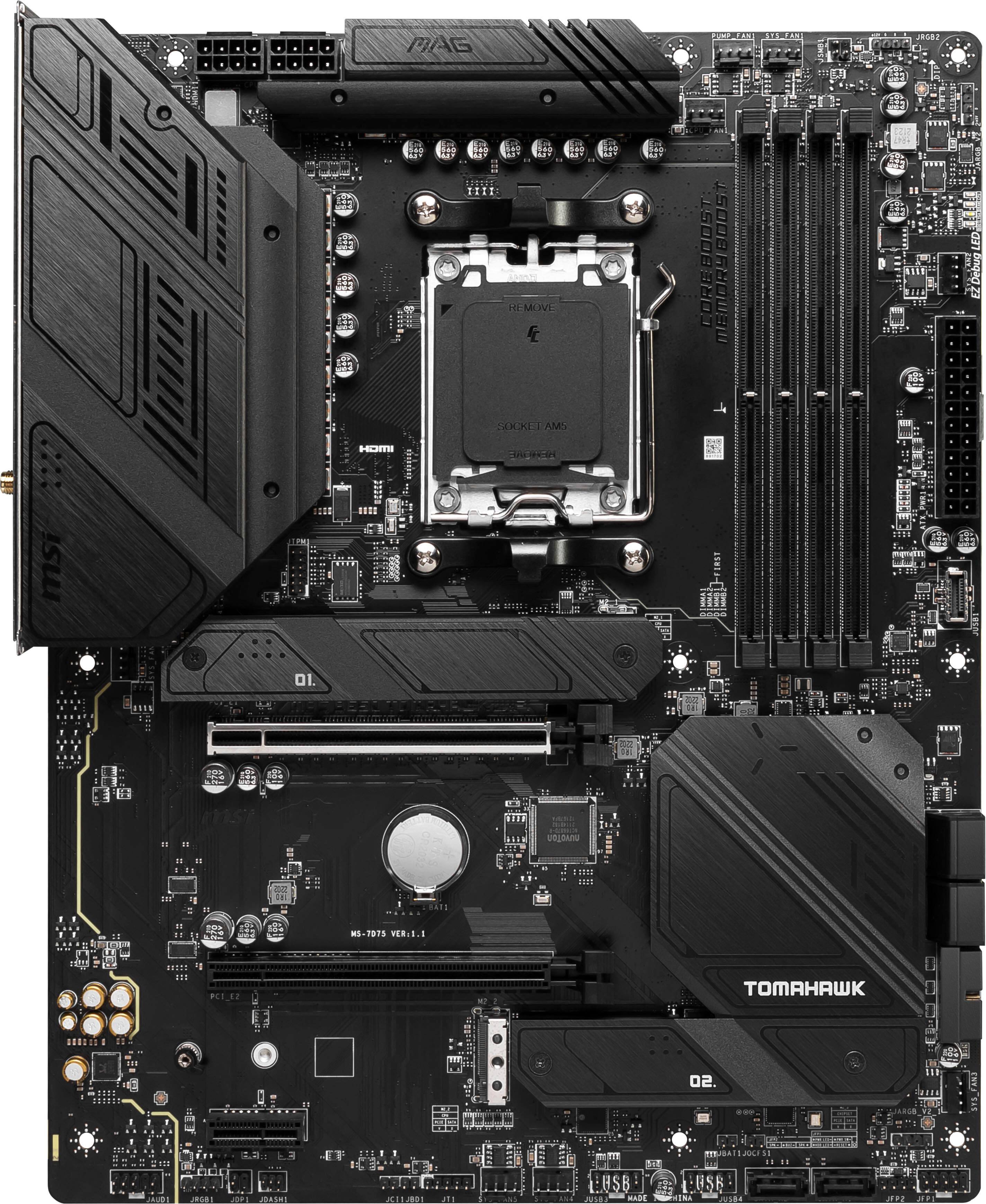

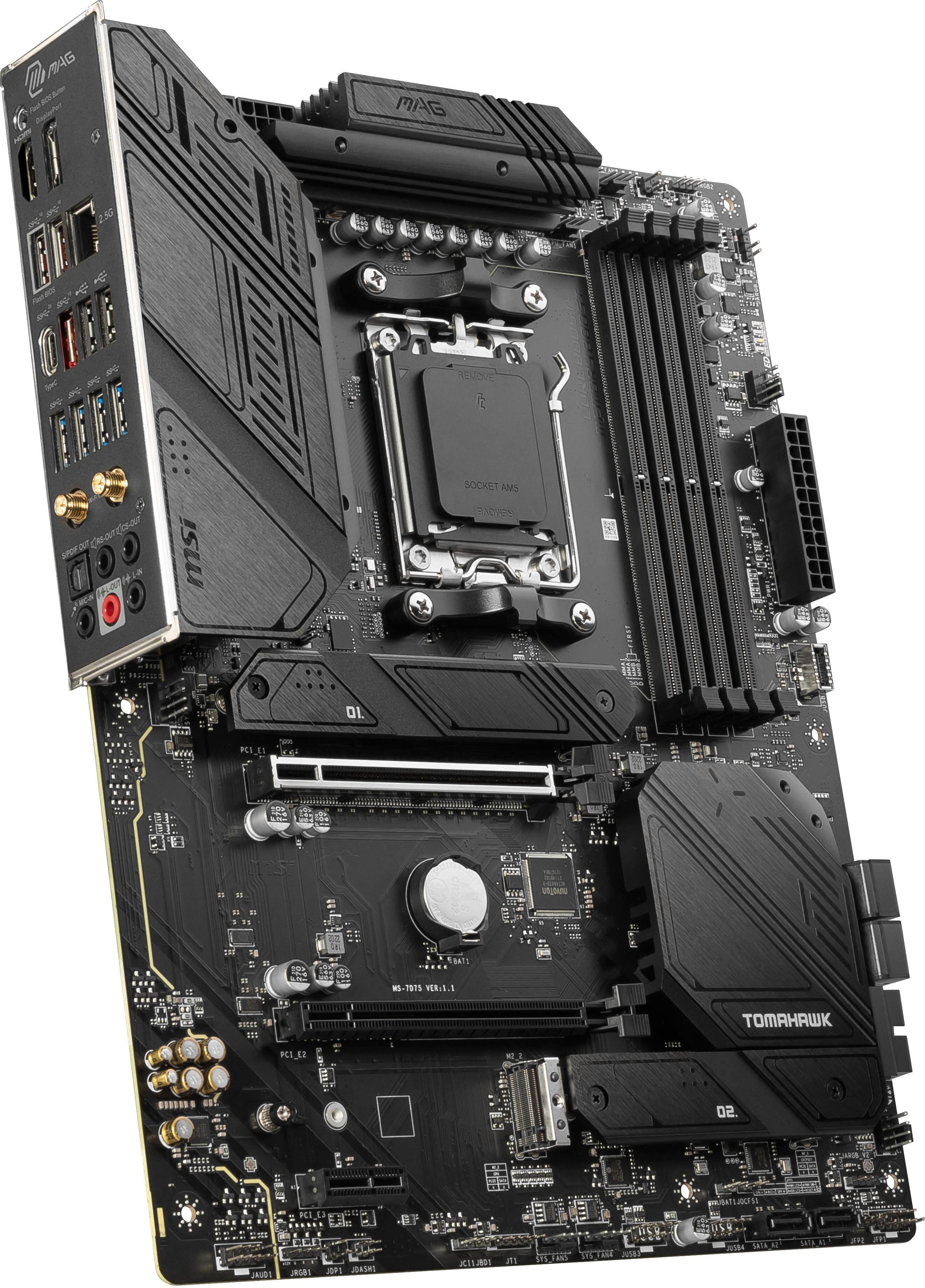

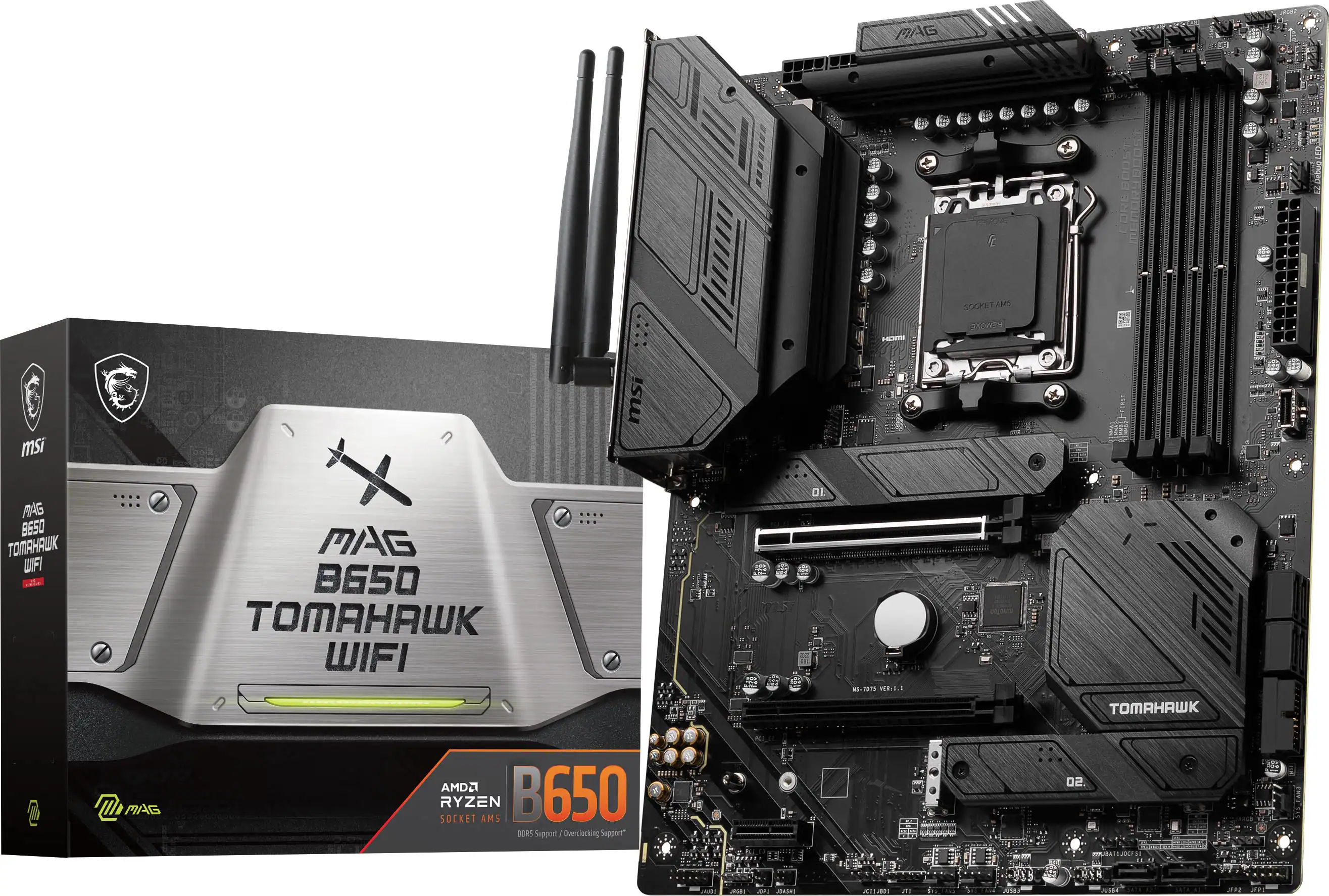

MSI - MAG B650 Tomahawk WIFI (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard - Black
MSI - B550 GAMING PLUS (Socket AM4) AMD B550 ATX DDR4 Motherboard - Black$99.99$195.99
More Buying Options
Specifications
- ChipsetAMD B650Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots3Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4
- Key Specs
- Chipset: AMD B650
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5, DDR5
- General
- Brand: MSI
- Model Number: MAG B650 Tomahawk WIFI
- Product Name: MAG B650 Tomahawk WIFI (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard
- Color: Black
- Year of Release: 2022
- Compatibility
- Chipset: AMD B650
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 9000 Series, AMD Ryzen 5 8000 Series, AMD Ryzen 5 7000 Series
- Operating System Compatibility: Windows 10, Windows 11 Home, Windows 11 Pro
- Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 2
- Number Of PCI-E x1 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- SATA Connector: 6x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports

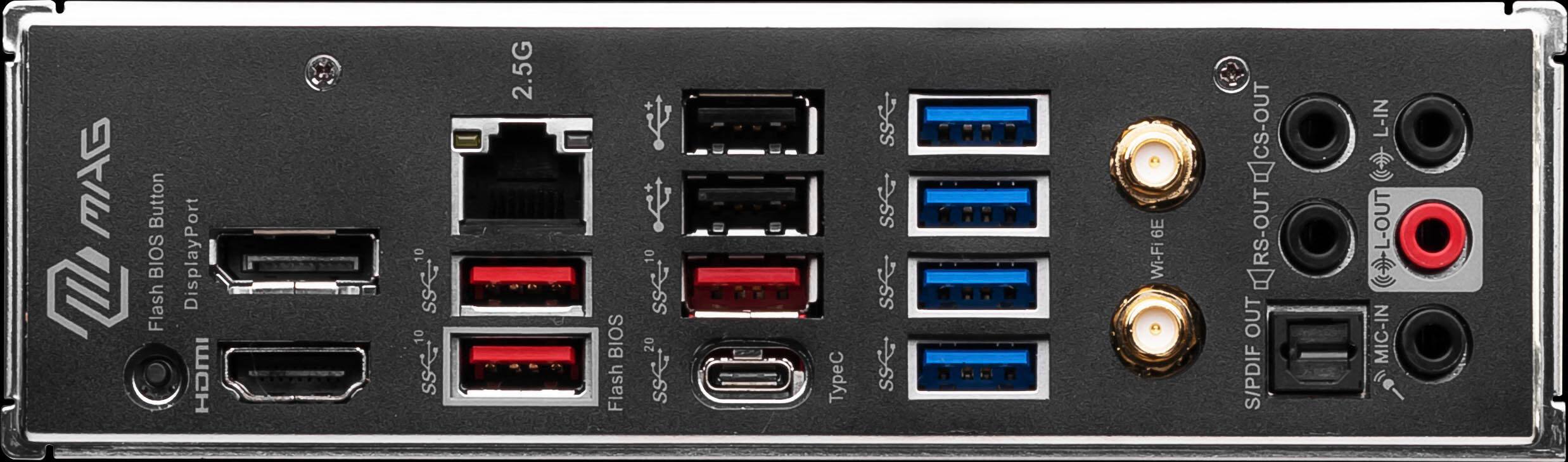

- USB Ports: 6 x USB-A 2.0, 8 x USB-A 3.2, 2 x USB-C 3.2 (The number and type of USB ports the product has.)
- Audio Ports: 1x Front Audio (JAUD)
- Number of Audio Channels: 8 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 304.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 243.84 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 24 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5, DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 6000 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Other
- UPC: 824142301036
The MAG series fights aloneside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
- Processor Compatibility: Supports AMD(AM5 socket) Ryzen 7000 Series Processors
- DDR5 memory: 288DIMMs X 4 with AMD EXPO & Intel XMP Memory Module Support
- Graphics: Integrated Graphics Processor
- Audio: Realtek ALC 4080
- Wifi 6E: The lastest wireless solution support 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
- Processor Compatibility: Supports AMD(AM5 socket) Ryzen 7000 Series Processors
- DDR5 memory: 288DIMMs X 4 with AMD EXPO & Intel XMP Memory Module Support
- Graphics: Integrated Graphics Processor
- Audio: Realtek ALC 4080
- Wifi 6E: The lastest wireless solution support 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Q: What is the form factor of this motherboard?
A: The form factor of this motherboard is ATX.
Q: Does this motherboard have a built-in wireless connectivity?
A: Yes, this motherboard comes with Wi-Fi 6E.
Q: What type of memory does this motherboard support?
A: This motherboard supports DDR5 memory.
Q: How many M.2 slots are available on this motherboard?
A: This motherboard has 3 M.2 slots.
Q: How can I find out more information about installing the RAM on this motherboard?
A: You can find out how to install the RAM for this motherboard by checking the downloadable manual, mentioned in the video.
Q: What is the maximum memory supported by this motherboard?
A: The maximum memory supported is 192 gigabytes.
Q: Will this board work with a Ryzen 5 3600x CPU?
A: no, this is an AM5 socket
Q: is this mother compatible with AMD - Ryzen 7 8700G ?
A: The Tomahawk is compatible with AMD Ryzen 8000/7000 processors with socket AM5. Yes, it is compatible.
Compare similar products
The MAG series fights aloneside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
MAG B850 TOMAHAWK MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.
The ASUS ROG Strix B850-A Gaming WiFi pairs powerful performance with sleek design. Featuring 14+2+2 power stages and thick metal heatsinks, it’s ready for AMD Ryzen 9000 Series processors. Enjoy DDR5 with AEMP, PCIe 5.0 M.2, WiFi 7 with Q-Antenna, four M.2 slots, advanced USB connectivity, and Aura Sync RGB.
A new era is here. The B650 AORUS ELITE AX supports AM5 Processors and features and unparalleled performance. GIGABYTE B650 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
| Pros for MSI - MAG B650 Tomahawk WIFI (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard - Black | |||
|---|---|---|---|
| BIOS, Ease of use, Price, Performance, USB Ports | Overall Performance, BIOS, Features, Ease of Use, Connectivity | Overall Performance, Features, BIOS, Installation Ease | Overall Performance, BIOS, Ease of use, Price, Wi-Fi |
| Cons for MSI - MAG B650 Tomahawk WIFI (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard - Black | |||
| Boot Time, RGB, RAM | There were no cons for this product— | There were no cons for this product— | Firmware, Manual |
Specs
Reviews
Customers are saying
Customers appreciate the MAG B650 Tomahawk WIFI motherboard's strong performance, user-friendly BIOS, and ease of use. Many also highlight its plentiful USB ports and the value for its price. While some users noted slightly longer boot times, others praised the lack of RGB lighting, making it suitable for minimalist builds. The board's compatibility with various components and its Wi-Fi capabilities were also frequently mentioned as positive aspects.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Perfect Balance of Price and Performance
This motherboard has been perfect for my pc! I wanted to find the balance between price to performance and this motherboard is it! It pairs well with my MSI 4080 graphics card and it offers all the features I wanted at a great price! The only problem I had was a slow bootup time but the solution was to go into the BIOS and put "Memory Context Restore" to enabled. This helped the slow boot up time and I haven't had any problems since!
Posted by Reece
- Rated 5 out of 5 stars
Great board among B650 for AMD AM5
Built a new system with the AMD Ryzen 7800 X3D (socket AM5). I was looking for a solid motherboard at the top of the B650 category. MSI's Tomahawk came highly rated and this board did not disappoint. Easy set up and great bios. The aesthetic is a no frills simple black everywhere. Plenty of ports around especially if you want to add LEDs or such, I opted for three Corsair LED fans on the front of the system. Only drawback is PCIe 4.0 instead of PCIe 5.0. However, currently all graphics cards are 4.0 and even the M2 PCIe 5.0 hardrives give that more of a performance boost based on day-to-day usage--so I opted for more storage (4TB) at the lower 4.0 speed which was a good trade off. All around, very happy with this board and the new PC build.
Posted by bobjunior
- Rated 5 out of 5 stars
Tomahawk Fires it up again.
This is my second Tomahawk board for me. The very first one was the b350, the b550 and that lasted me up intil 3 weeks ago when I sold it in perfect working condition. I neede to upgrade to AM5 and at first I had purchased the x870 tomahawk for more $$. Upon opening the socket cover was loose and there some bent pins (thats for another review). After not being able to get x870 because it was out of stock, I went with this one. I was able to get the latest bios from Dec 11th 2024 and update. I have this paired with 9800x3d bought on Best Buys app. Yes plenty of of usb ports and the 3 m.2 slots are alright even though one is gen 3. The board feels solid and hasn't given me any problems so far. For $100 less than x870 as of this writing, it is still a good price. I wasn't looking for a fancy rgb motherboard, just one that does the job very well for my needs. The vrms are also very good at 14+2 phase Duet Rail VRM with 80A Power Stage for the AMD B650 chipset. Happy Gaming and work with the B650 from MSI
Posted by GAMETIMEPLAYER
