MSI - MPG B850I EDGE TI WIFI (Socket AM5) AMD B850 IATX DDR5 Wi-Fi 7 Motherboard - Gray White/Matt
CORSAIR - iCUE LINK LX120-R RGB 120mm PWM Reverse Blade Computer Case Fan Starter Kit (3-pack) - White$114.99$139.99
Related Item
Specifications
- ChipsetAMD B850Form FactorMini-ITXProcessor SocketSocket AM5 (LGA 1718)Wireless Networking StandardWi-Fi 7Number Of Memory Slots2Maximum Memory Supported128 gigabytes
- Key Specs
- Chipset: AMD B850
- Form Factor: Mini-ITX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 2
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: MSI
- Model Number: MPG B850I EDGE TI WIFI
- Product Name: MPG B850I EDGE TI WIFI (Socket AM5) AMD B850 IATX DDR5 Wi-Fi 7 Motherboard
- Color: Gray White/Matt
- Year of Release: 2025
- Compatibility
- Chipset: AMD B850
- Chipset Compatibility: AMD
- Form Factor: Mini-ITX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 7 7000 Series
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 2
- Connectivity
- SATA Connector: 2x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: BE (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports

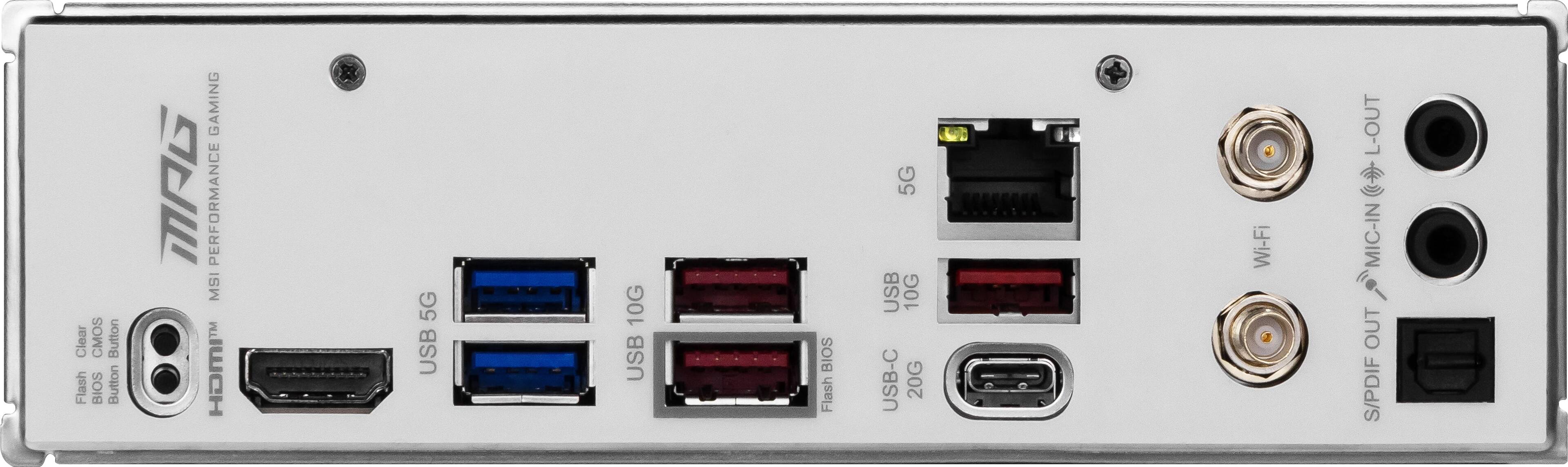

- USB Ports: 2 x USB-A 2.0, 3 x USB-A 3.2, 2 x USB-C 3.2, 4 x USB-A 3.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 170 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 170 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 33.12 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 2x DDR5 UDIMM, Maximum Memory Capacity 128GB (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 824142431061

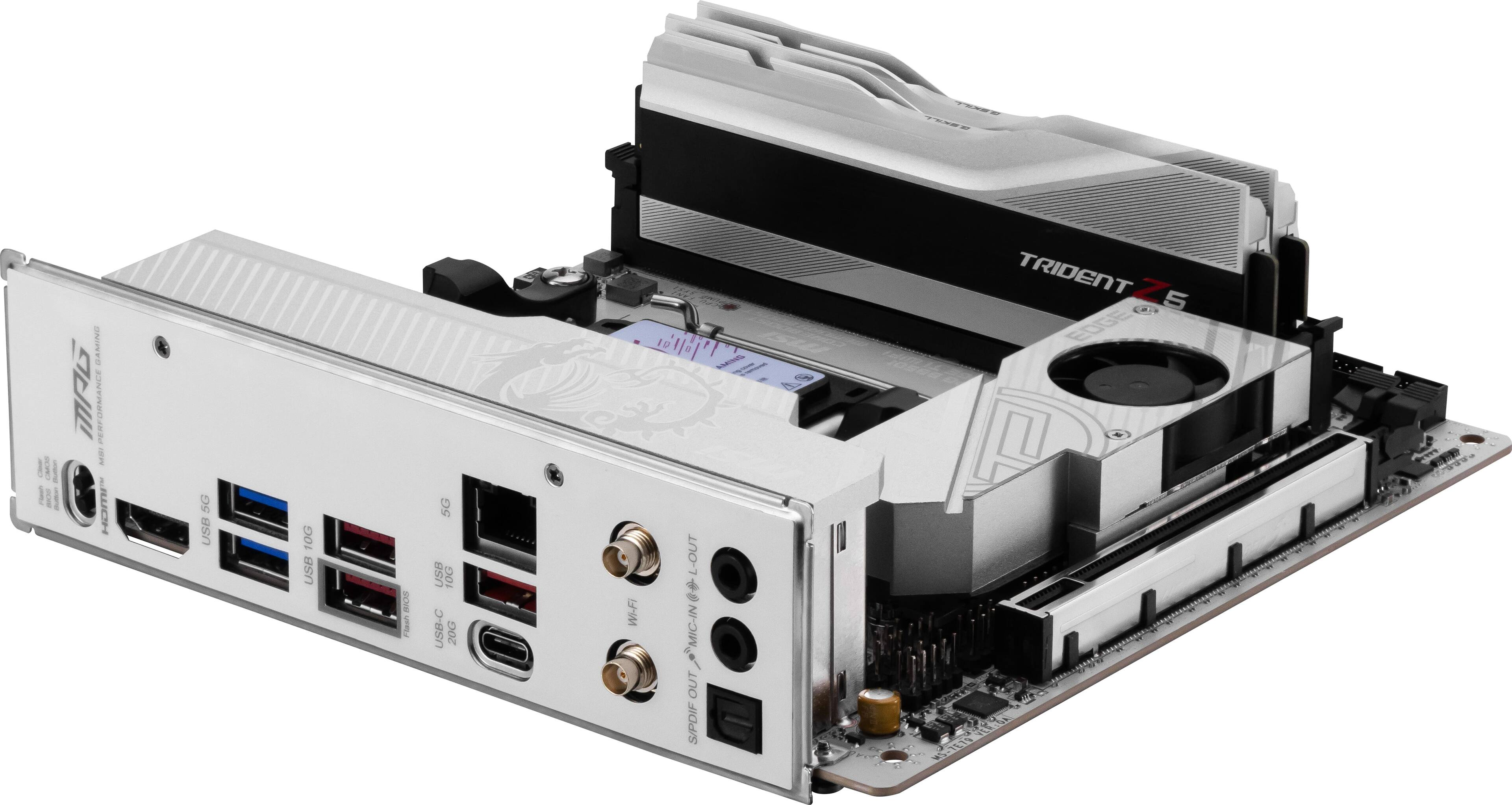

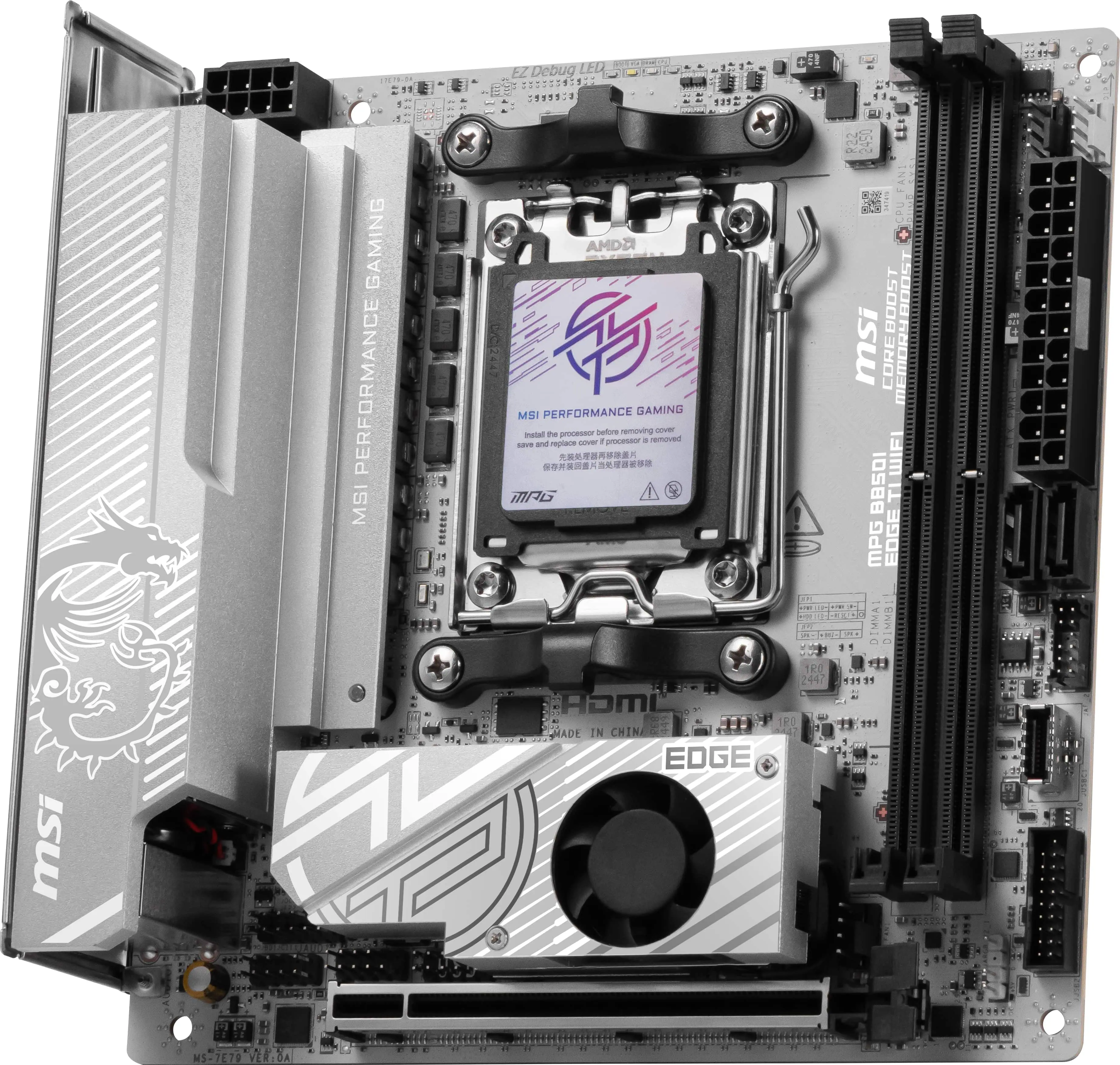

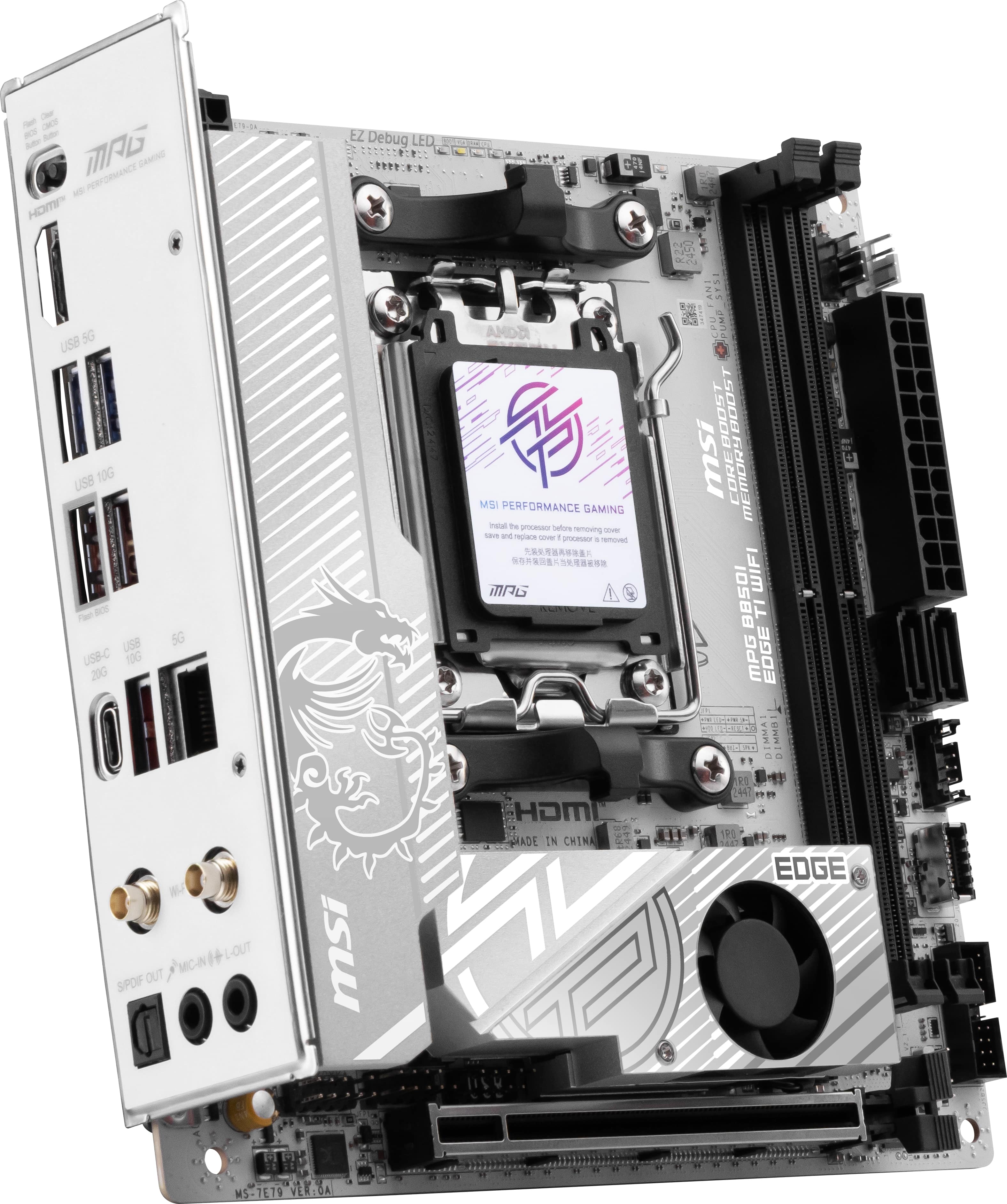

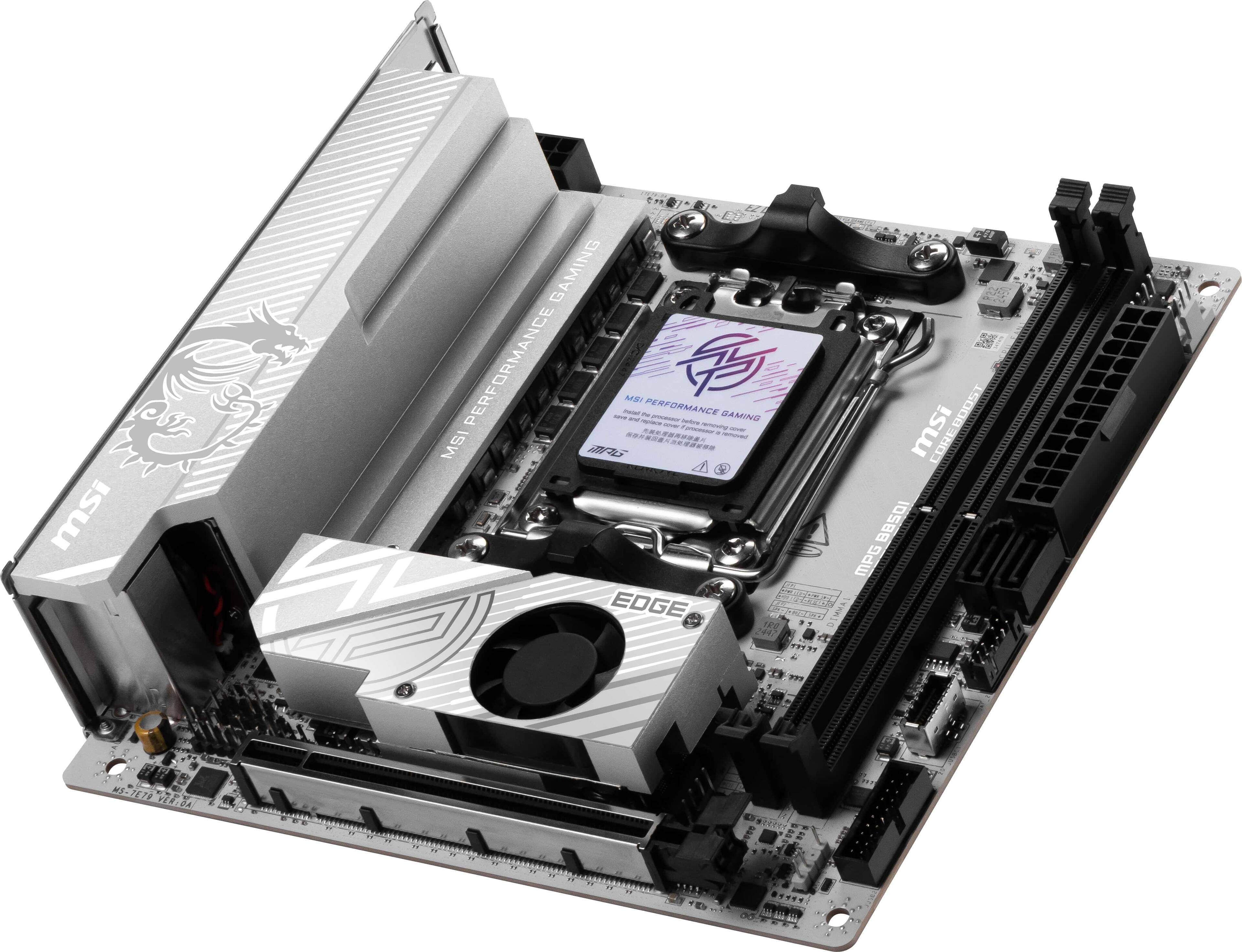

MPG B850I EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme X870 ITX motherboard for AMD Ryzen 9000 series processors.
- Processor compatibility: Supports AMD Ryzen 9000/7000 Series Desktop Processor
- Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Wi-Fi 7: The latest wireless solution with a new 160MHz channel,achieving a maximum transmission speed of 2.9Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
- Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
- Dual M.2 Connectors: Onboard 2x M.2 Connectors with one PCIe 5.0 solution,strengthened by M.2 Shield Frozr.
Product Manuals
Q: What series of AMD Ryzen processors does this motherboard support?
A: This motherboard supports AMD Ryzen 9000/7000 Series Desktop Processors.
Q: Does this motherboard have onboard M.2 connectors?
A: Yes, this motherboard has two onboard M.2 connectors.
Q: What kind of wireless connectivity does this motherboard offer?
A: This motherboard offers both Wi-Fi 7 and Bluetooth wireless connectivity.
Q: How many memory slots does this motherboard have?
A: This motherboard has two memory slots.
Q: Does this motherboard support RAID?
A: Yes, this motherboard supports RAID 0.
Q: How many SATA connectors are available on this motherboard?
A: There are two SATA connectors available on this motherboard.
Q: What is the maximum memory capacity supported by this motherboard?
A: The maximum memory capacity supported by this motherboard is 128 gigabytes.
Compare similar products
MPG B850I EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme X870 ITX motherboard for AMD Ryzen 9000 series processors.
The MPG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
The ROG Strix B850-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor. It features PCIe5.0 slots for graphics and storage; dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads. Meanwhile; advanced cooling solutions maintain peak performance; and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.
The B850I AORUS PRO WIFI7 supports AM5 Processors and features unparalleled performance. GIGABYTE B850 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 3 out of 5 stars
Incredible but flawed
Great specs but has serious driver issues. drivers listed on MSI’s website for the Ethernet controller was from 2024. Aesthetics are very good really like what they're doing with their board. I also experienced hardware issue with the Realtek Ethernet controller. Whenever I’d hit anywhere close to the five gigabit limit on the LAN port I’d experience heavy speed drops until it entirely cut out. Something else I liked was the fan on the NVME did keep my SSD cool and running at its limit. Overall MSI put together a good board with shortcomings. I hope in the future that they chose to go with intel for their networking needs.
Posted by Kristopher
