Nextbase - OBD Power Cable (320XR, 622GW) - Black
About This Item
- General
- Brand: Nextbase
- Model Number: NBDVRS2OBD
- Product Name: OBD Power Cable (320XR, 622GW)
- Color: Black
- Compatibility
- Vehicle Compatibility: Universal
- Product Compatibility: Audio/Video
- Product Type: Harness
- Features
- Harness Type: Other
- Dimensions
- Product Height: 1.57 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 1.57 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 0.39 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.05 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 5060910805244
The Nextbase OBD Power Cable offers a simple plug & play solution directly into your OBD-II port for a direct power feed to your Dash Cam. When fitted to the OBD-II port, your Dash Cam will be on a permanent live connection to your vehicle's battery. This ensures enough powered is provided for the parking mode feature. The OBD port eliminates the need to use the 12V outlet. It includes a 90° connector for an easier connection, as well as an LED indicator light to show when the Dash Cam is connected, and power is available.
- Easy Fitting: Simple plug & play solution directly into your OBD-II port for a direct power feed.
- Fully Compatible: Compatible with Nextbase Dash Cams (320XR and 622GW)
- Free Up Space: No need to use the 12/24V outlet in your vehicle, freeing up space.

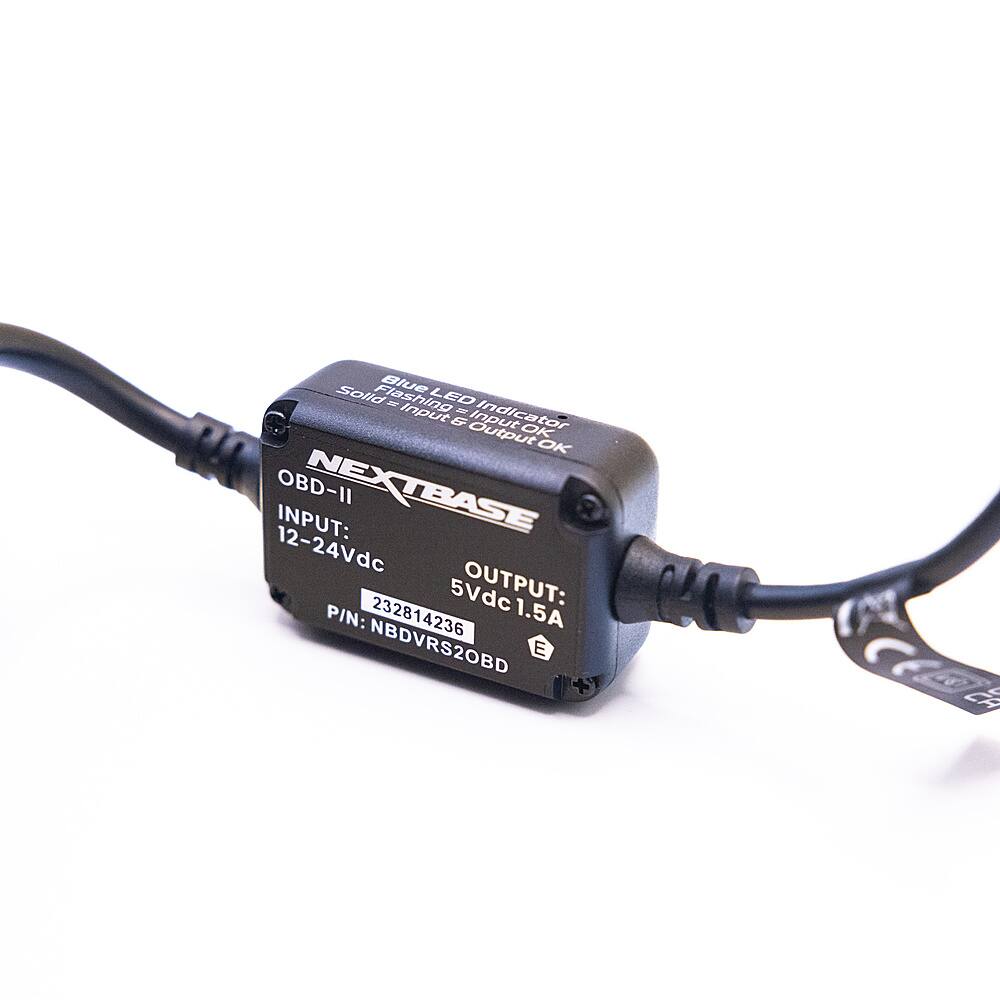

- LED Indicator: A blue LED indicator will show there is power available and your Dash Cam is connected.
- Parking Mode: When fitted to the OBD-II port, your Dash Cam will be on a permanent live connection to your vehicle’s battery. This ensures enough powered is provided for the parking mode feature.
- Easy Fitting: Simple plug & play solution directly into your OBD-II port for a direct power feed.
- Fully Compatible: Compatible with Nextbase Dash Cams (320XR and 622GW)
- Free Up Space: No need to use the 12/24V outlet in your vehicle, freeing up space.
- LED Indicator: A blue LED indicator will show there is power available and your Dash Cam is connected.
- Parking Mode: When fitted to the OBD-II port, your Dash Cam will be on a permanent live connection to your vehicle’s battery. This ensures enough powered is provided for the parking mode feature.
Disclaimers
- Suitable for Series 2 Dash Cams (320XR and 622GW)
- Suitable for Series 2 Dash Cams (320XR and 622GW)
Q: Is the 90° connector designed for easier access to the OBD-II port?
A: The 90° connector is designed for an easier connection to the OBD-II port.
Q: What is the purpose of the LED indicator light on the cable?
A: The LED indicator light on the Nextbase OBD Power Cable shows when the dash cam is connected and power is available.
Q: Does the cable provide a permanent power connection to the dash cam?
A: Yes, the cable will provide a permanent power connection to your dash cam. When plugged into the OBD-II port, the dash cam will be directly connected to the vehicle's battery. This allows the dash cam to utilize features like parking mode, which requires continuous power.
Q: How does the cable connect to the vehicle?
A: The cable offers a simple plug & play solution directly into your vehicle's OBD-II port. This provides a direct power feed to your dash cam.
Q: What is the warranty period for the cable?
A: The manufacturer's warranty for parts on the Nextbase OBD Power Cable is 1 year.
Q: Is this compatible with the 4k IQ
A: Hello Scott, Thank you for your question! Unfortunately this cable is not compatible with the iQ. You will only be able to use it with the powering cables included in the box. Let us know if you have any further questions! -The Nextbase Reviews team
Q: Can this work with nextbase 522 or 322? If not, is there a compatible harness these two?
A: Hello Mario, Thank you for your question! Yes, the OBD Power Cable is also compatible with the 522GW & the 322GW models. Let us know if you have any more questions and we'll be happy to answer them. -The Nextbase Reviews Team
Q: Will it drain my battery if not driven for a few days?
A: Hello Junior, Thank you for your question! On average, our Series 2 Dash Cams use approximately 300mAh (Milliamp Hours) of power while turned on, recording and charging, 200mAh while in standby mode (charging) and around 100mAh in standby mode (fully charged). The average modern car uses between 50 and 85 mAh on its own with nothing plugged in, but of course, plugging in additional electronic devices will increase the overall power consumption. The Nextbase Hardwire Kit, The OBD Hardwire Kit, and the 12V Power Cable (supplied in the box) have been designed to cut power to the Dash Cam if the car battery drops below 11.2V. If the automatic cut-off kicks in (to protect the car battery), but you don’t drive the car for some time after this occurs, your car may still naturally keep consuming power, which in a worst case-scenario could leave you with a flat battery. The same thing can occur if your car hasn’t been driven for an extremely long time, with no Dash Cam, or other electronic devices plugged in. If your vehicle is in frequent use, this shouldn’t present a problem, as your car battery is being topped up every time the vehicle is driven, meaning your vehicle can be left for days on end with no issue. It is impossible for us to give any definitive statements on how long the battery will take to run itself down, as the Automotive Battery Management Systems (BMS) varies so widely and some manufacturers have far more sophisticated BMS than others. Please consult your vehicle manufacturer if you would like to know more specifics regarding the BMS and average power consumption of your vehicle. Let us know if you have any further questions! -The Nextbase Reviews Team
