Specifications
- ChipsetAMD B650Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots3Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4
- Key Specs
- Chipset: AMD B650
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5, DDR5
- General
- Brand: NZXT
- Model Number: N7-B65XT-W1

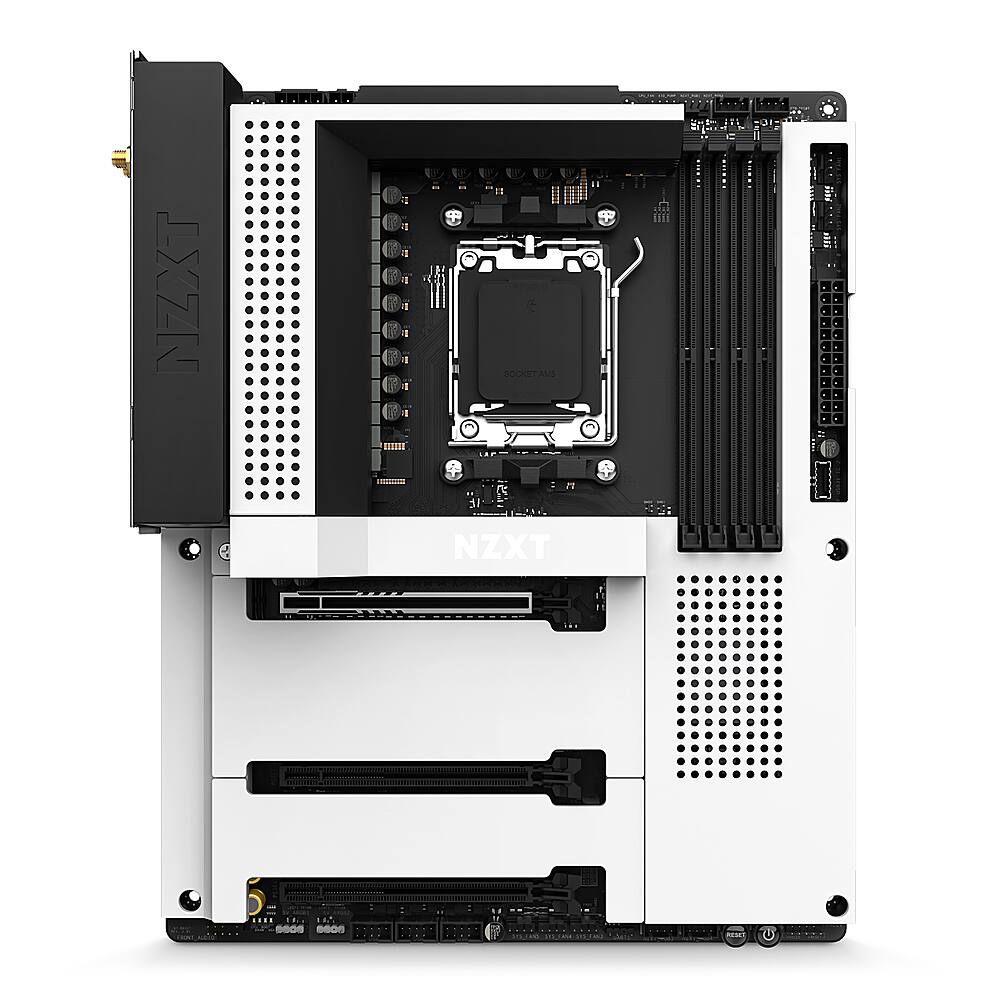

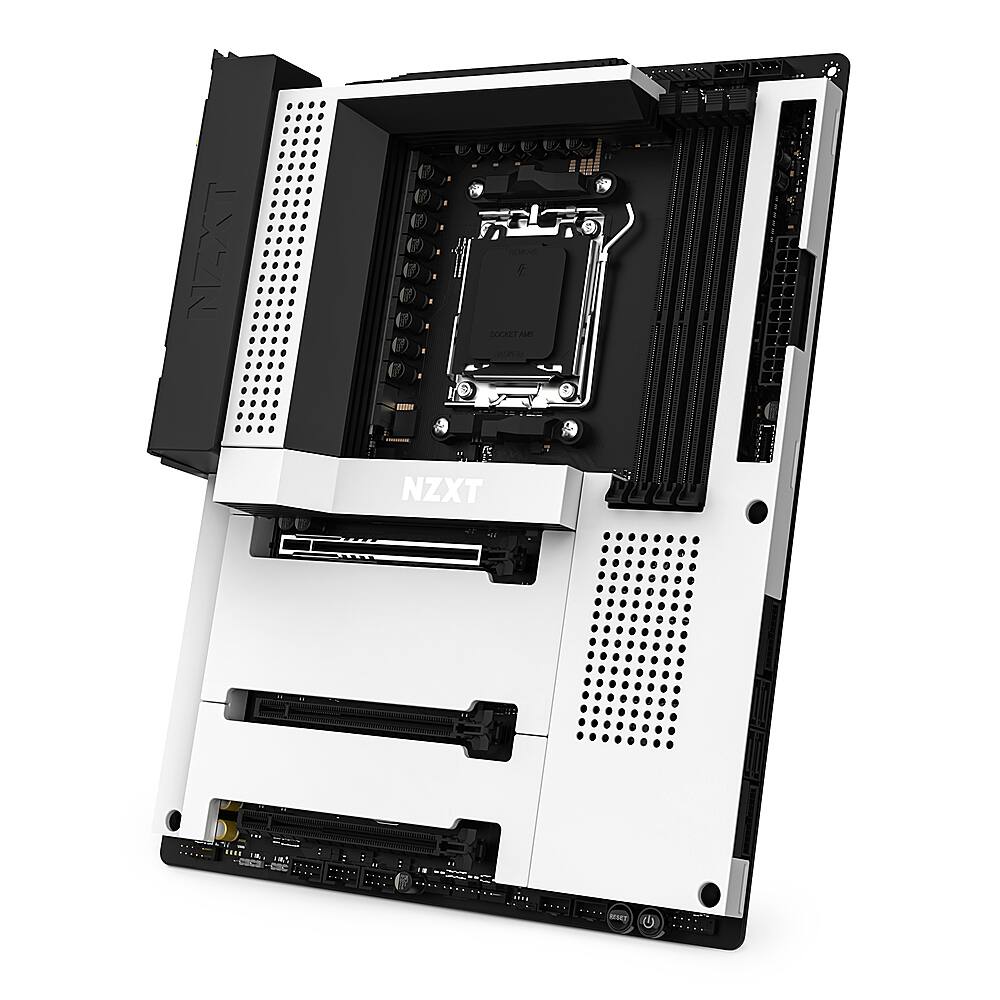

- Product Name: B650E (Socket AM5) USB 3.2 AMD Motherboard
- Color: White
- Compatibility
- Chipset: AMD B650
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 7000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 7000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 9 8000 Series, AMD Ryzen 9 9000 Series
- Operating System Compatibility: Windows 10, Windows 11 Home, Windows 11 Home in S Mode, Windows 11 Pro
- Slot
- Number of M.2 Slots: 1 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 3
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1 x24 pin, 1x 8+4 pin ATX 12V (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Fan/Cooling System Connector: 1 x 4-pin CPU_FAN connector(1) (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 2 x USB-A 2.0, 1 x USB-C 3.2, 2 x USB-A 3.2, 4 x USB-A 3.1 (The number and type of USB ports the product has.)
- Audio Ports: 5x rear, 1x optical S/PDIF, 1x front panel audio connector
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 319 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 381 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 5.72 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5, DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 6000 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 168-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 810074842877
Leverage the full value of your AMD Ryzen 7000, 8000 and 9000 series CPU with the AMD B650 chipset. The N7 B650E features upgraded compatibility as well as N7 favorites, such as digital RGB and fan control, Wi-Fi 6e, and more.

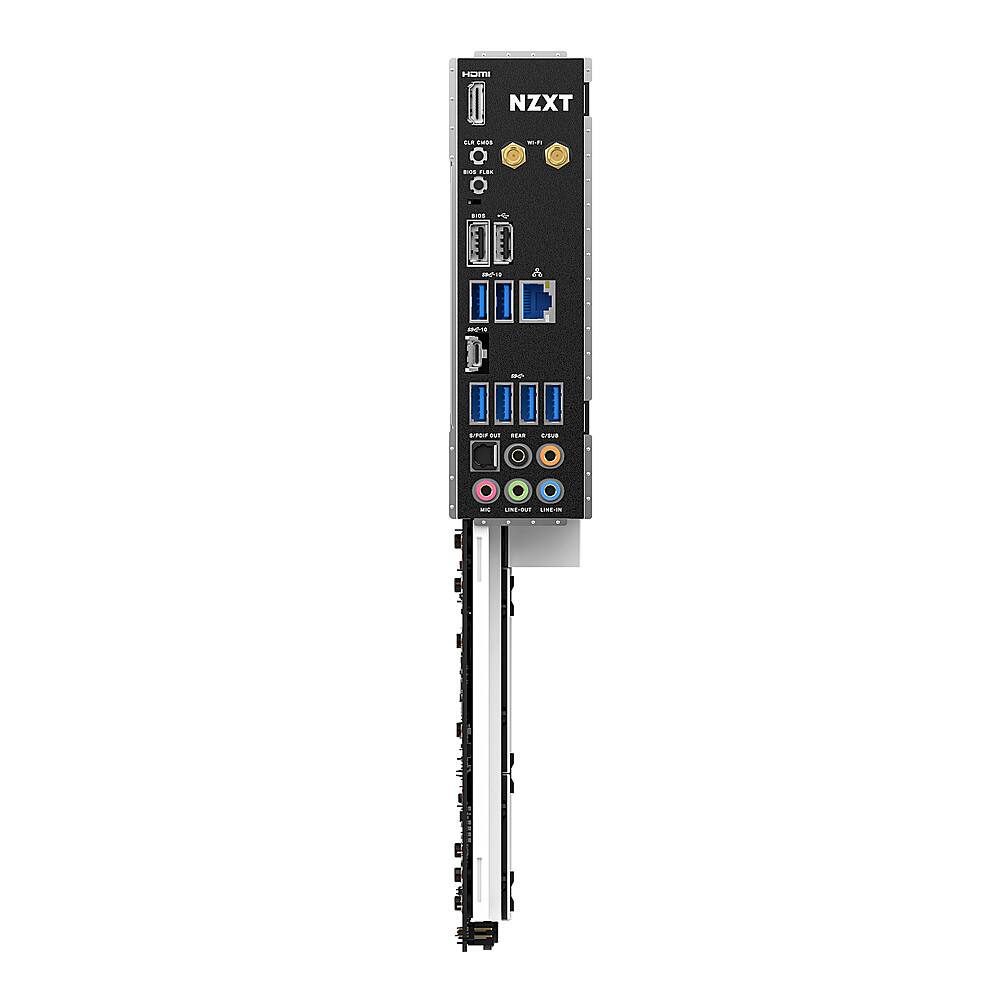

- Ready to Rock: Integrated Wi-Fi 6E, a rear I/O shield, and clever port placement make the build process easy. There is also plenty of room on board for upgrades down the line.
- Maximum Control: Easily customize lighting and cooling modes via NZXT CAM, with access to six RGB lighting channels. Configure lights and fans from any manufacturer.

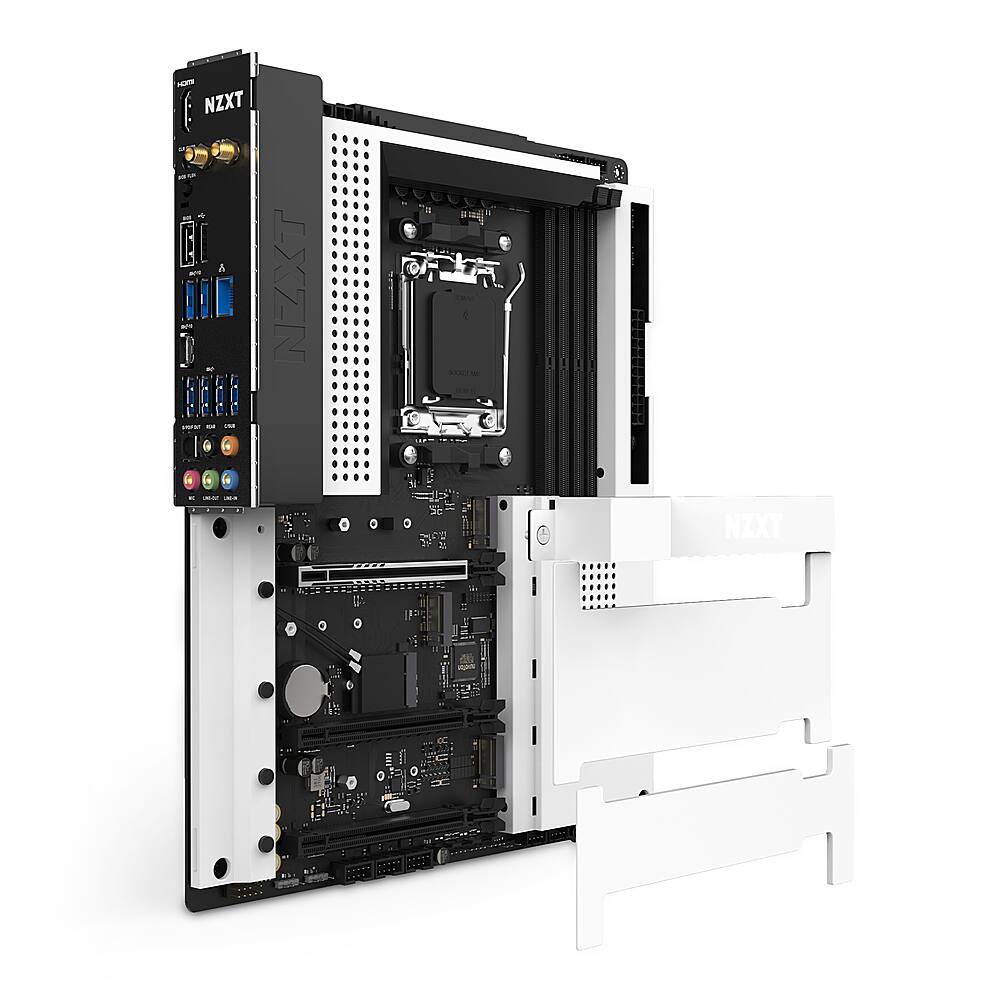

- Finishing Touch: A white metal cover conceals the inner workings, blending seamlessly with your case. The heat fins have been expanded to cool the PCIe Gen 5-enabled NVMe drive slot.
- Supported RAM: DDR5
- Graphics: Integrated AMD RDNA 2 graphics
- Memory: 4 xDIMM Max, 128GB DDR5, Dual-channel DDR5 memory technology
- Audio: Realtek ALC1220 Codec
Whats Included
- 1x N7 B650E Motherboard
- 4x SATA cables (2 x 90°, 2 x 180°)
- 2x M.2 screws
- 2x Wireless antenna
- 1x manual
Disclaimers
- 1. CPU_FAN, AIO_PUMP, and all SYS_FAN connectors support a maximum of 2A (24W) per fan header and automatically detect whether a 3-pin or 4-pin fan is connected.
- It supports up to 40 individually addressable LEDs per channel, for a total of 80 LEDs. Lighting channels support up to six addressable RGB LED Strips or five Aer RGB Fans.
- 3. Supports in total up to 5V/3A, 15W LED Strip. Supports up to 40 individually addressable LEDs.
- Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11 and availability may vary by country and region. A 6GHz compatible router is required for 6E functionality.
Q: What is the maximum amount of memory supported by the motherboard?
A: The maximum memory supported is 128 gigabytes.
Q: What type of RAM is this motherboard compatible with?
A: This motherboard supports DDR5 RAM.
Q: What is the form factor of this motherboard?
A: The form factor of this motherboard is ATX.
Q: Does this motherboard have built-in Wi-Fi?
A: Yes, the motherboard has integrated Wi-Fi 6E.
Q: Can I control the RGB lighting on this motherboard?
A: Yes, you can customize the lighting using NZXT CAM software, which provides access to six RGB lighting channels.
Q: How many memory slots does the motherboard have?
A: The motherboard has 4 memory slots.
Q: Am 4 socket ? is that right ?
A: No. It’s not an AM4 !! It’s an AM5. Best Buy if you’re listening, you have the description for this motherboard wrong. Check the specs for this board on the manufacturer’s website. AM5
Compare similar products
Leverage the full value of your AMD Ryzen 7000, 8000 and 9000 series CPU with the AMD B650 chipset. The N7 B650E features upgraded compatibility as well as N7 favorites, such as digital RGB and fan control, Wi-Fi 6e, and more.
The ASUS ROG Strix B850-A Gaming WiFi pairs powerful performance with sleek design. Featuring 14+2+2 power stages and thick metal heatsinks, it’s ready for AMD Ryzen 9000 Series processors. Enjoy DDR5 with AEMP, PCIe 5.0 M.2, WiFi 7 with Q-Antenna, four M.2 slots, advanced USB connectivity, and Aura Sync RGB.
ASRock B850 STEEL LEGEND WIFI AM5 AMD B850 ATX Motherboard
The ASUS ROG STRIX X870E-H GAMING WIFI7 delivers a robust power solution with 16+2+1 power stages, DDR5 support with AEMP, Dynamic OC Switcher, Core Flex, Wi-Fi 7 with ASUS Q-Antenna, four M.2 slots with Q-Release, PCIe 5.0 x16 SafeSlots, dual USB4 ports, and a USB-C 10Gbps port with up to 30W fast charging.
| Pros for NZXT - B650E (Socket AM5) USB 3.2 AMD Motherboard - White | |||
|---|---|---|---|
| There were no pros for this product— | Overall Performance, Installation Ease, Features, BIOS, Connectivity | There were no pros for this product— | There were no pros for this product— |
| Cons for NZXT - B650E (Socket AM5) USB 3.2 AMD Motherboard - White | |||
| There were no cons for this product— | Driver Support | There were no cons for this product— | There were no cons for this product— |
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 3 out of 5 stars
Good board, RAM setup is flawed though
You've heard of the pink tax? Meet the white tax. The sheer amount of white looks cool, but definitely drives the price up due to aesthetics. A bit high priced, but overall a great board. Most likely a lot of the price is also from the very generous thermal management that's inherent in the board's construction. Power distribution is set up well, and I haven't seen anything struggle when put under stress. Not that it really matters, but the amount of metal that goes into this beast make it a heavy board. To me, that heaviness speaks of great and solid construction, but to someone that goes to LANs a lot or for some reason values light desktop PCs, it will feel like a Sherman tank. Desktops usually move about three feet during their lives, so only a small percentage of gamers should care. There are plenty of internal USB ports, along with a ton of proprietary headers for NZXT RGB and generic aRGB. Having the ability to reset CMOS with the press of an easy to reach button helps a lot, paired with very convenient BIOS update options. Speaking of BIOS. This one is well set up, but the board is VERY finicky when trying to attain the 6000hz RAM speed that it is rated for. That's not unusual, but I'd have hoped the board would be able to set itself up better (especially since nothing was being overclocked and all parts were rated for higher speeds).
Posted by LilMutombo
- Rated 4 out of 5 stars
Nzxt
I bought this product it took a while to come in but when i got it and installed it it hasn’t gave me any trouble and is a great motherboard would recommend
Posted by DawsonC
- Rated 5 out of 5 stars
Motherboard
Love everything about the design of this motherboard! This is the second motherboard I've used to build a new pc with and I can say without a doubt it's a very straightforward one.
Posted by Martinez
