NZXT - C 850W ATX 3.1 80 Plus Gold Fully Modular Power Supply - Black
NZXT - C 850W ATX 3.1 80 Plus Gold Fully Modular Power Supply - Black
Wattage
850 wattsColor
Black- CORSAIR - RMe Series RM1000e 80 PLUS Gold Fully Modular Low-Noise ATX 3.1 and PCIE 5.1 Power Supply - White$199.99
More Buying Options
Specifications
- Wattage850 wattsModularFully modularEnergy Efficiency80 PLUS Gold, Cybenetics GoldATX ConnectorYesPCIe ConnectorYesPeripheral ConnectorYes
- Key Specs
- Wattage: 850 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold, Cybenetics Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: Yes (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 160 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: NZXT
- Model Number: PA-8G2BB-US
- Product Name: C 850W ATX 3.1 80 Plus Gold Fully Modular Power Supply
- Color: Black
- Power
- Wattage: 850 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold, Cybenetics Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 4.92 feet
- Connectivity
- ATX Connector: Yes (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: No (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 86 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 150 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 160 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 122.75338776 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: 135mm Fluid Dynamic Bearing
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: 10 years
- Other
- UPC: 810074844857
The new NZXT Gold PSUs offer improved performance, adhering to Intel ATX 3.1 standards for modern GPUs and power stability. Redesigned with superior components, increased fan airflow, and a longer chassis, they deliver higher efficiency, enhanced reliability, and reduced noise.
- The Future is here: NZXT ATX 3.1 Gold PSUs deliver up to 600 watts of power to NVIDIA RTX 40 GPUs with a 12V-2x6 cable.
- Premium Performance: 100% high-quality Japanese capacitors offer reliable power, extended hold-up time, and minimal ripple noise. Tight voltage regulation keeps things stable.

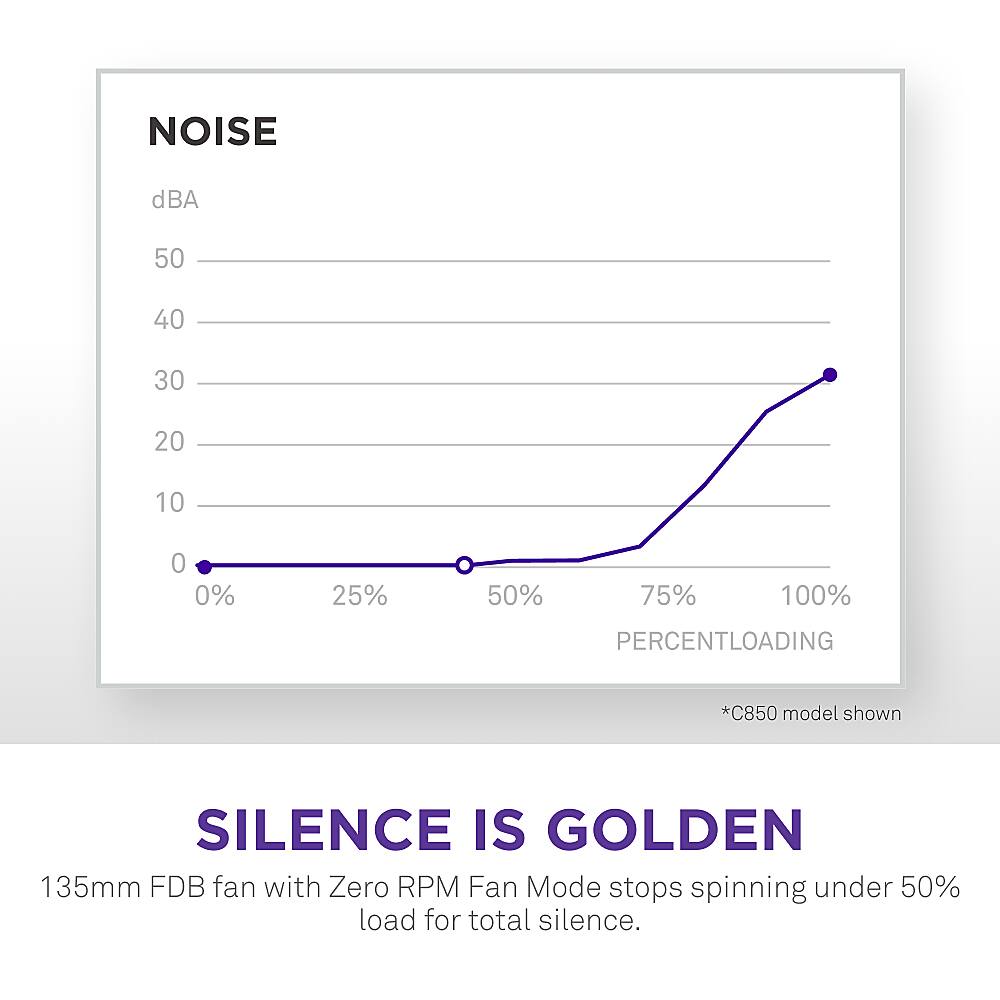

- Silence is Golden: The 135mm FDB fan stays silent under 50% loads, and a fine-tuned switching frequency reduces coil whine.

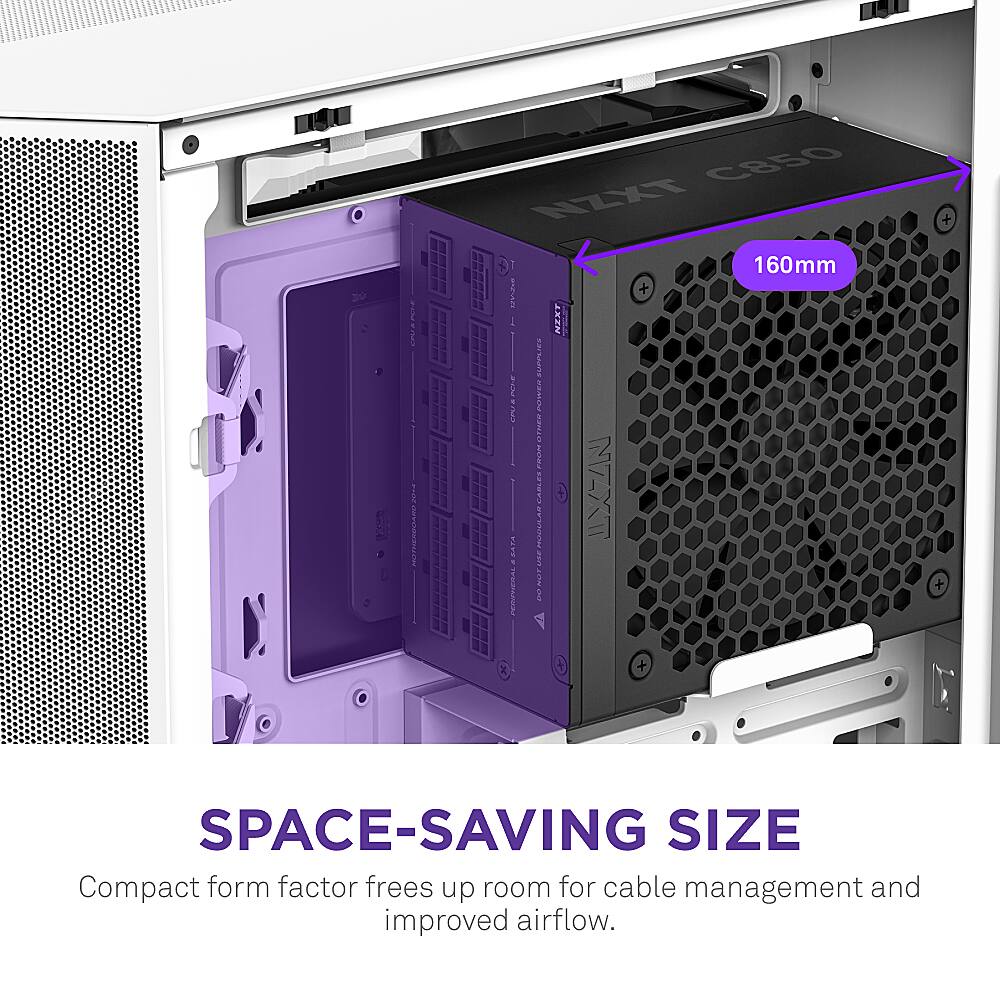

- Made for any build: Fully modular, compact design maximizes space and airflow. Includes cables for both NVIDIA and AMD GPUs. Supports modern standby for quick wake-ups.

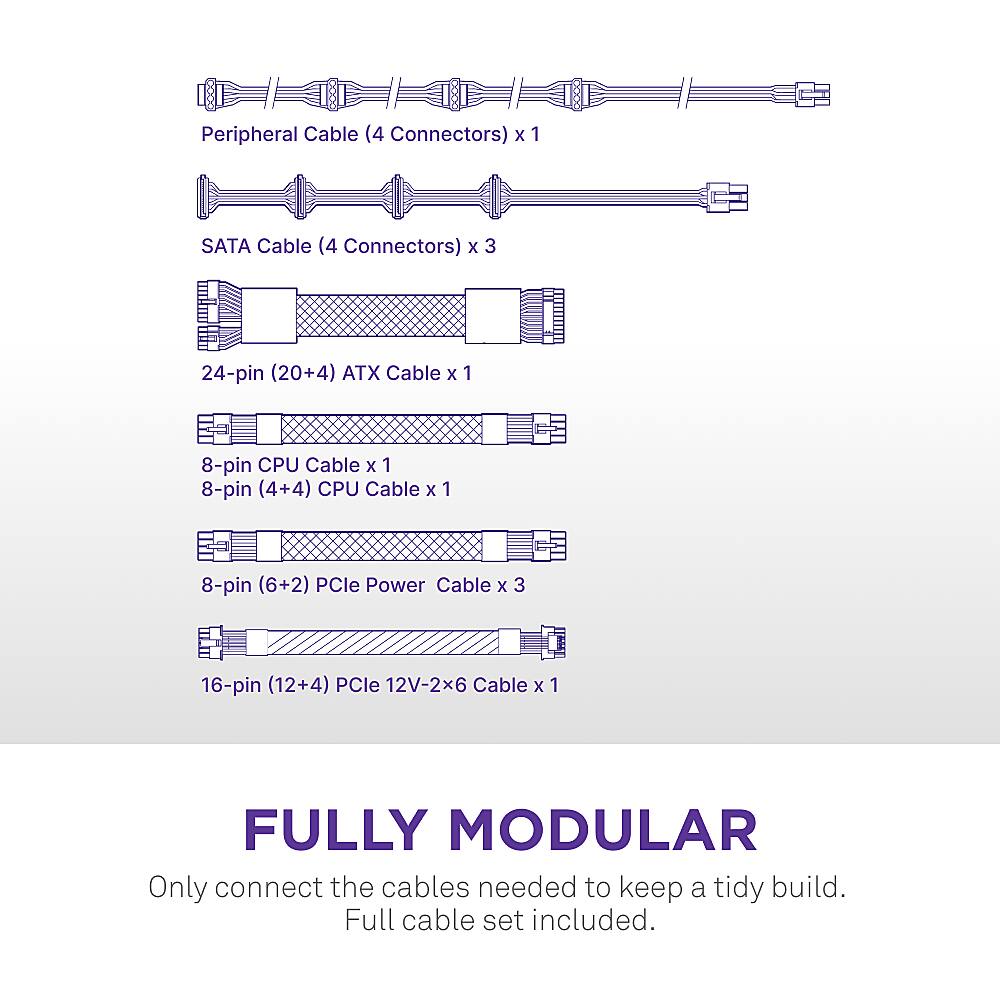

Whats Included
- C850 Gold White
- 1 x 24-Pin ATX Power Cable
- 1 x CPU 8-pin (4+4)
- 3 x 6+2-pin PCIe Power Cable
- 2 x 16-pin (12+4) 12V-2x6 PCIe Cable
Q: Are there any additional connectors besides the ATX connector?
A: This power supply has Peripheral connectors, SATA connectors, and PCIe connectors in addition to the ATX connector.
Q: What are the dimensions of the power supply?
A: The power supply has a height of 86 millimeters, a width of 150 millimeters, and a length of 160 millimeters.
Q: Does the power supply have overload protection?
A: This power supply does have overload protection.
Q: Can the power supply support PCI Express 5.0?
A: This power supply does support PCI Express 5.0.
Q: What is the warranty on the power supply?
A: The manufacturer's warranty for parts and labor on this power supply is 10 years.
Q: What is the maximum wattage output of the power supply?
A: The maximum wattage output of the power supply is 850 watts.
Q: does it include all cables?
A: It included all the cables I needed and then some.
Compare similar products
The new NZXT Gold PSUs offer improved performance, adhering to Intel ATX 3.1 standards for modern GPUs and power stability. Redesigned with superior components, increased fan airflow, and a longer chassis, they deliver higher efficiency, enhanced reliability, and reduced noise.
CORSAIR RMx Series Fully Modular Low-Noise Power Supplies deliver quiet, dependable power with Cybenetics Gold efficiency to your PC. Fully modular, ultra-flexible embossed cables make PC builds easy, as you connect only the cables your system requires. Compliant with the ATX 3.1 power standard from Intel, RMx PSUs have the connections needed to power today’s demanding PC hardware including a native 12V-2x6 connector. 100% Japanese 105°C-rated electrolytic capacitors deliver fantastic electrical performance, while a 140mm FDB fan provides low noise cooling. Backed by a ten-year warranty, RMx PSUs are the gold standard for many years to come.
The MAG A850GL PCIE 5 power supply overflows with potency, a hallmark of the MAG series that aligns with gamers' pursuit of excellence. Infused with military-inspired elements, these gaming products have evolved into symbols of resilience. Efficiency matters, impacting performance and power use. The 80 PLUS Gold certification pledges lower energy consumption and higher efficiency. Compact and efficient, the A850GL PCIE 5 optimizes space and cable organization. Unneeded connectors are eliminated, reducing clutter and simplifying builds. Unused cables find refuge in the included cable pack. Cable organization, a common woe, finds a solution. Flat cables streamline management, enhancing airflow and orderliness. The power supply's fan employs fluid dynamic bearing, balancing cooling and noise. DC to DC and Full Bridge merge for higher efficiency and stable voltage, adapting swiftly to different needs. Sufficient power reigns, as the single rail supply caters to high-performance GPUs and CPUs with 5 CPU & PCI-E slots. Safety is paramount. Protective mechanisms ensure stability, empowering worry-free operation. In essence, the A850GL PCIE 5 L epitomizes power, space-efficiency, cable harmony, and safety. A pinnacle of technology in the MAG series, empowering triumphant gaming while embodying its spirit.
Toughpower GF A3 series is 80 PLUS Gold certified and compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable.
| Pros for NZXT - C 850W ATX 3.1 80 Plus Gold Fully Modular Power Supply - Black | |||
|---|---|---|---|
| Overall Performance, Installation Ease, Noise Level, Power Capacity, Modularity | Overall Performance, Noise Level, Installation Ease, Cable Management, Power Supply Capacity | Overall Performance, Power Capacity, Noise Level, Modularity, Ease of Installation | Overall Performance, Noise Level, Power Capacity, Modularity, Installation Ease |
| Cons for NZXT - C 850W ATX 3.1 80 Plus Gold Fully Modular Power Supply - Black | |||
| There were no cons for this product— | There were no cons for this product— | Fan Quality | There were no cons for this product— |
Specs
Reviews
Customers are saying
Customers consistently note the overall performance and power capacity of the C 850W ATX 3.1 80 Plus Gold Fully Modular Power Supply. Users appreciate the ease of installation, modularity, and quiet operation. Many have stated that it has been working well and the installation was extremely simple.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Best bang for your buck
Bought this because I upgraded to a 5070ti and my factory 650w psu was not gonna cut it. Came with every cable i needed (in cool case too)and the install was extremely simple even if you're not a pc builder. Took maybe 15 minutes to swap it out and since its fully modular, you only hook up the cables you need. Its so convenient. Came with a 12vhpwr cable too so you don't need an adapter for newer gpus. Makes no noise from my experience and had a zero fan button to keep noise down even more. Love it and will highly recommend it for someone whos upgrading to a current gen gpu and needs the power.
Anthony1516 Posted
- Rated 5 out of 5 stars
If you have a mid-high tier setup get this PSU
I recommend this PSU to anyone who needs a good value, good quality, easy to install PSU. not only is it fully modular, it looks good and has functionality that will keep your build running safer than using a different PSU. If you have an expensive setup DO NOT cheap out on a 80+ Bronze cheap PSU that barely keeps your build safe. If you have a RTX 5070 Ti like me I recommend a 80+ Gold.
Marco Posted
- Rated 5 out of 5 stars
High quality and easy to run the cables
High quality PSU, stays quiet, cool and delivers steady voltage. Fully modular cables were easy to work with!
BrianO Posted
