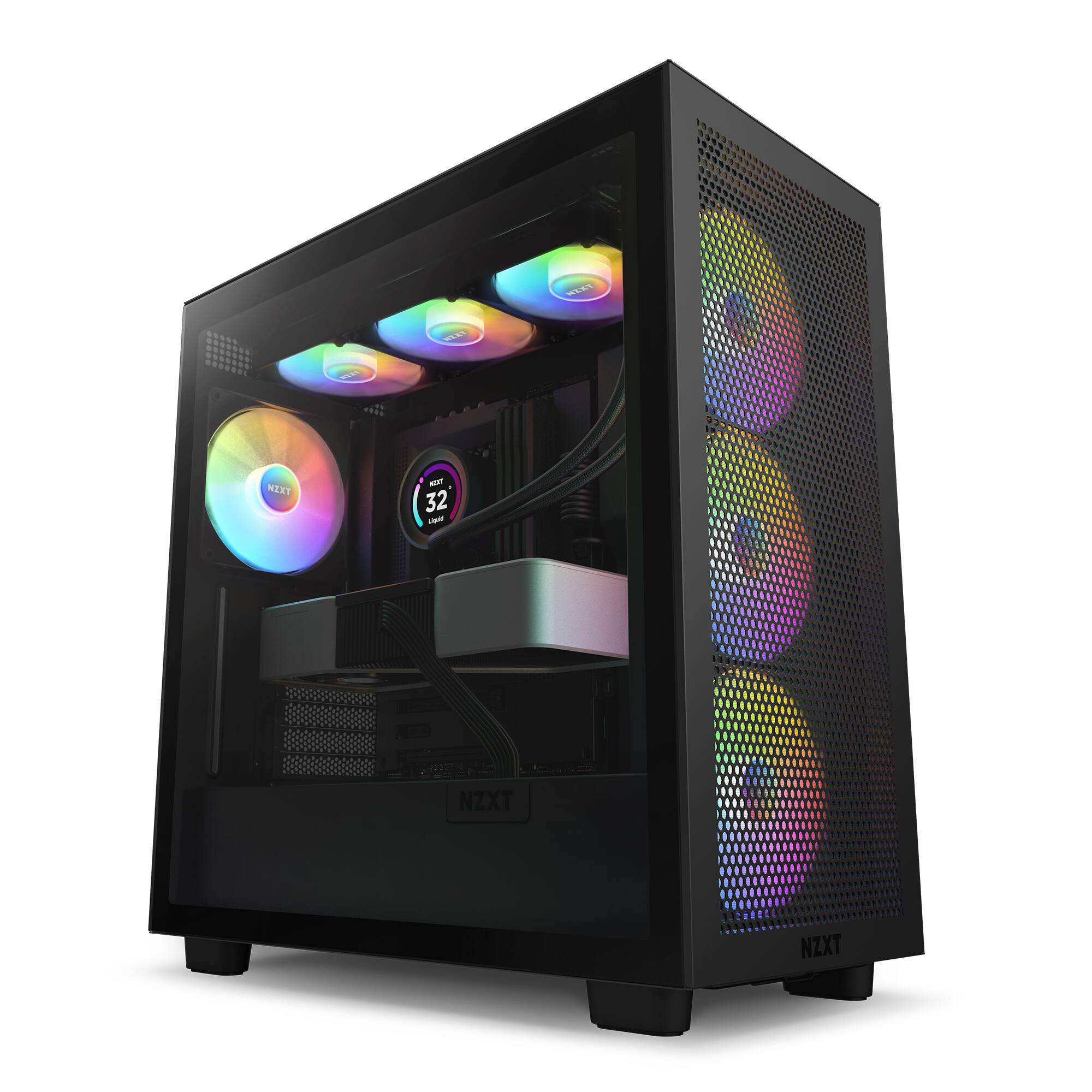

NZXT - H7 Flow RGB ATX Mid-Tower Case with RGB Fans - Black
- Key Specs
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 400 millimeters
- Product Height: 18.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.05 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Left side
- Case Material: Steel
- General
- Brand: NZXT
- Model Number: CM-H71FB-R1
- Product Name: H7 Flow RGB ATX Mid-Tower Case with RGB Fans
- Color: Black
- Case Material: Steel
- Assembly Required: No
- Compatibility
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 200 millimeters
- Maximum GPU Length: 400 millimeters
- Number of Expansion Slots: 7
- Ports
- USB Port Location: Top
- Number of USB Ports (Total): 2
- USB Ports: 2 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 2
- Number Of Internal 3.5" Bays: 2
- Number Of External 2.5" Expansion Bays: 6
- Number Of External 3.5" Expansion Bays: 2
- Dimensions
- Product Height: 18.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.05 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 372.85 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Left side
- Customizable Case Lighting: true
- Lighting Type: RGB
- Screwless Rail Design: true
- Cooling
- Maximum CPU Cooler Height: 185 millimeters
- Number of Fans Supported: 7
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Support: Water cooling ready
- Number of Fans Included: 4
- Radiator Support: Yes
- Liquid Cooling Ready: true
- Other
- UPC: 810074843614
The H7 Flow is an excellent chassis for any ambitious builder looking for optimized thermal performance. With superior airflow, a streamlined build experience and a perforated front panel with RGB fans, the H7 Flow RGB is a modern and beautiful addition to the H Series.
- Extremely cool: The H7 Flow achieves maximized thermal performance with a perforated top and front panel. These airflow-optimized panels improve ventilation, giving users even better temperatures for marathon gaming sessions. The top and front of the case support radiators up to 360mm.
- Building simplified: Streamline the build process with an improved cable management system. Wider cable channels provide more room to easily route cables, while the addition of hooks add stability to hold everything in place.
- A modern look: The H7 combines the modern look of the H series with new color options and RGB fans that fit in seamlessly with any aesthetic. Each color is paired with glass tinting that complements the respective chassis.
A: Its a case...
A: I have a 240mm water cooler with 3 fans. After the water cooler I don't think you will need or be able to fit anymore fans
Q: How many fans come with this case? (If any)
A: It comes with 3 140mm rgb fan for intake and one normal 120mm exhaust fan
Q: Is it a pc?
A: It's just a case. You have to build your own computer to the specs you would like.
A: It’s important to check the compatibility of the HP Omen 30L components, especially the motherboard size and overall dimensions, with the NZXT case. Here are a few considerations: 1. Motherboard Form Factor: Ensure that the NZXT case supports the form factor of the HP Omen 30L’s motherboard (e.g., ATX, microATX). 2. GPU Clearance: Check the maximum GPU length supported by the NZXT case to ensure it accommodates the HP Omen 30L’s graphics card. 3. Cooling and Component Placement: Verify that the NZXT case has sufficient cooling options and space for any specific components in the HP Omen 30L. 4. Power Supply Compatibility: Confirm that the power supply unit (PSU) from the HP Omen 30L can be accommodated or replaced by a compatible PSU for the NZXT case. Before making any modifications, it’s advisable to check the specifications of both the HP Omen 30L and the NZXT case before purchasing.
Q: can a 4090 gaming trio fit in this thang?
A: I just build a new pc in this case and I have a 3070 and it fits perfectly. I'm sure the 4090 would it as well
A: the case itself does not have any additional hdmi ports that arent a part of your graphics card or motherboard.
