NZXT

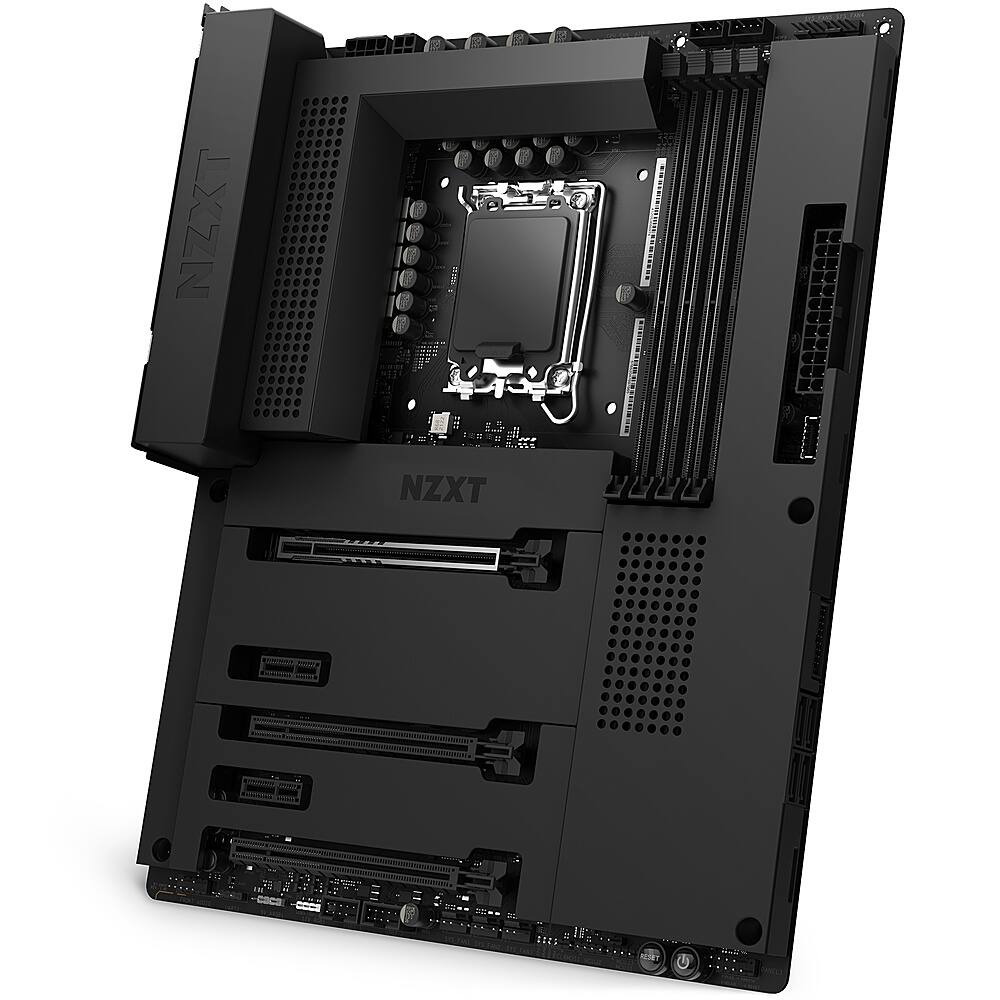

NZXT - Z690 (Socket LGA 1700) Intel Z690 ATX DDR4 Wi-Fi 6E Motherboard - Black

Model: N7-Z69XT-B1
SKU: 6511984
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Chipset: Intel Z690
    • Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
    • Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
    • Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
    • Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
    • Number Of Memory Slots: 4
    • Maximum Memory Supported: 128 gigabytes
    • Memory Type Supported: DDR4, DDR4
  • General
    • Brand: NZXT
    • Model Number: N7-Z69XT-B1
    • Product Name: Z690 (Socket LGA 1700) Intel Z690 ATX DDR4 Wi-Fi 6E Motherboard
    • Color: Black
    • Year of Release: 2022
  • Compatibility
    • Chipset: Intel Z690
    • Chipset Compatibility: Intel
    • Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
    • Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
    • Processor Compatibility: Intel Core i9, Intel Core i7, Intel Core i5
    • Operating System Compatibility: Windows 10, Windows 11 Home, Windows 11 Home in S Mode, Windows 11 Pro
  • Slot
    • Number of M.2 Slots: 1 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
    • Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
    • Number Of PCI-E x16 Slots: 3
    • Number Of PCI-E x8 Slots: 0
    • Number Of PCI-E x4 Slots: 0
    • Number Of PCI-E x2 Slots: 0
    • Number Of Memory Slots: 4
  • Connectivity
    • Power Connector: 1 x24 pin, 1x 8+4 pin ATX 12V (The configuration of the connector as it connects the motherboard to a power supply unit.)
    • SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
    • Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
    • Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
    • Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
  • Ports
    • USB Ports: 1 x USB-C 3.2, 2 x USB-A 3.2, 2 x USB-A 3.2, 3 x USB-A 3.0 (The number and type of USB ports the product has.)
    • Thunderbolt Ports: None (The number and type of Thunderbolt ports the product has.)
    • Audio Ports: 1 x 5.1-Channel audio jacks, 1x Optical/S/PDIF port, 1x front panel audio connector
    • Number of Audio Channels: 5.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
  • Dimensions
    • Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
    • Product Width: 43 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Weight: 67 ounces (The out of box weight of the item.)
  • Memory
    • Maximum Memory Supported: 128 gigabytes
    • Memory Type Supported: DDR4, DDR4
    • Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
    • Memory Speeds Supported: 4800+ (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
    • Memory Slot Type: 184-pin SoDIMM
  • Features
    • Multi-GPU Support: CrossFire
    • RAID Support: RAID 0, RAID 1, RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
  • Warranty
    • Warranty - Parts: 3 years
    • Warranty - Labor: 3 years
  • Other
    • UPC: 810074840194

Designed around Intel’s Z690 chipset, the N7 Z690 lays the groundwork for a stunning gaming PC build. The N7 Z690 is a powerful platform for your components, and provides a visually seamless backdrop for your build.

  • Building made easier: The N7 Z690 includes Wi-Fi 6E connectivity, front panel USB-C, and an integrated rear I/O shield, with optimally placed headers for an easier setup process.
  • Stunning Craftmanship: The N7’s black cover options provide a clean design that compliments your case. An integrated heat spreader is included for the top-most NVMe drive.
  • Smart Controls: The N7 Z690 allows intuitive control of four RGB lighting channels and seven fan channels through NZXT CAM. Lighting accessories from all manufacturers are supported.
  • Processor compatibility: Socket LGA 1700 for Intel 12th Gen Core i9, i7 and i5 processors
  • Integrated Graphics Processor - Intel UHD Graphics Support: Supported RAM
  • DDR4: Graphics
  • Integrated Graphics Processor - Intel UHD Graphics Support: Memory
  • 4 xDIMM Max, 128GB DDR44 xDIMM Max, 128GB DDR4: Audio
  • Building made easier: The N7 Z690 includes Wi-Fi 6E connectivity, front panel USB-C, and an integrated rear I/O shield, with optimally placed headers for an easier setup process.
  • Stunning Craftmanship: The N7’s black cover options provide a clean design that compliments your case. An integrated heat spreader is included for the top-most NVMe drive.
  • Smart Controls: The N7 Z690 allows intuitive control of four RGB lighting channels and seven fan channels through NZXT CAM. Lighting accessories from all manufacturers are supported.
  • Processor compatibility: Socket LGA 1700 for Intel 12th Gen Core i9, i7 and i5 processors
  • Integrated Graphics Processor - Intel UHD Graphics Support: Supported RAM
  • DDR4: Graphics
  • Integrated Graphics Processor - Intel UHD Graphics Support: Memory
  • 4 xDIMM Max, 128GB DDR44 xDIMM Max, 128GB DDR4: Audio
Whats Included
  • 1xN7 Z690 Motherboard
  • 2x SATA Cables (90 degree)
  • 2x SATA Cables (180 degree)
  • 2x Wireless Antenna
  • 2x M.2 Screws
  • 1x manual
  • 1xN7 Z690 Motherboard
  • 2x SATA Cables (90 degree)
  • 2x SATA Cables (180 degree)
  • 2x Wireless Antenna
  • 2x M.2 Screws
  • 1x manual
Disclaimers
  • Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11 and availability may vary by country and region. A 6GHz compatible router is required for 6E functionality.
  • Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11 and availability may vary by country and region. A 6GHz compatible router is required for 6E functionality.

Q: Will this board support i7 gen 8 and what is this DDR5?

A: this is socket LGA1700 which will not support 8th gen cpus. you need to find out what kind of socket the cpu uses, and what motherboards have that socket. ddr5 is a type of RAM, however with your cpu, you will most likely fine only motherboards that support ddr4 (previous generation) which is still good
