OSD Audio - SMP500 DSP Mono Class D Subwoofer Amplifier, 800W Peak at 4 Ohms, 1U Rack Mountable - Black
Reviews coming soon
About this product

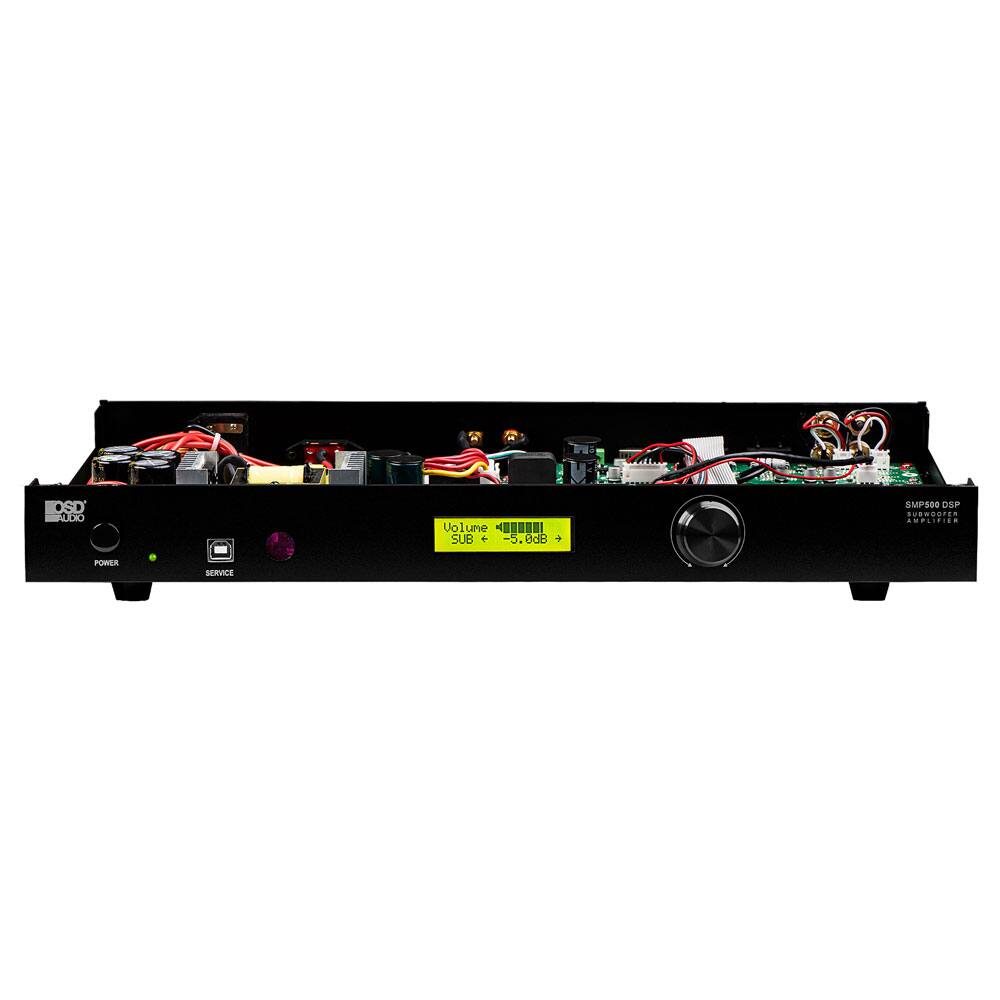

The SMP500DSP is a Class D mono subwoofer amplifier built for higher-wattage passive subwoofers such as in-wall models that require external power. It delivers 400W RMS and 800W peak at 4 ohms, or 250W RMS and 500W peak at 8 ohms, in a rack-mountable 1U chassis. A front-panel variable high-cut filter adjusts from 30Hz to 150Hz, routing higher frequencies to the main speakers so the subwoofer concentrates on low-frequency content. Additional front-panel controls cover phase and volume, and the amplifier includes an adjustable gain and volume limiter to protect woofers from overdrive. Turn-on options include music sensing, manual on or 12V trigger. Input choices cover signal-level and speaker-level connections plus LFE, with speaker pass-through outputs for older and newer systems alike. Frequency response spans 10Hz to 150Hz with a 95dB signal-to-noise ratio and air cooling. The power supply is switchable between 115V and 230V. ETL and CE rated with a 2-year warranty.
800W Peak, 400W RMS at 4 Ohms
A switch-mode power supply feeds Class D amplification rated at 400W RMS and 800W peak into 4 ohms, or 250W RMS and 500W peak into 8 ohms. This is enough authority for large in-wall subwoofers and demanding home theater rooms where smaller sub amps run out of headroom during action sequences.
Variable High-Cut Filter, 30Hz to 150Hz
A front-panel variable high-cut filter routes higher frequencies to the main speakers so the subwoofer handles only the low-frequency content it reproduces best. Crossover adjustment spans 40Hz to 160Hz with phase control across 0 to 315 degrees for precise alignment in difficult rooms.
Gain Limiter Protects Your Woofers
An adjustable gain and volume control limiter caps output before the subwoofer is driven past its mechanical limits. Combined with a front-mounted power meter showing real-time output, this gives a clear picture of how hard the system is working and reduces the risk of damaging expensive in-wall drivers.
Three Turn-On Modes and Flexible Inputs
Choose music sensing, manual on or 12V trigger to match the installation. Signal-level and speaker-level inputs plus an LFE option cover modern and legacy sources, and speaker pass-through outputs simplify wiring in systems where the amplifier sits between the receiver and main speakers.
1U Rack Chassis with Remote Control
At 17.13 by 9.45 by 1.75 inches and 7.6 pounds, the amplifier takes a single rack space with mounts included. Remote control, auto-on sensing and 12V triggers are all supported. Air cooled with a switchable AC 115/230V supply. 10Hz to 150Hz response, 95dB signal-to-noise. ETL and CE rated, 2-year warranty.
- Continuous Watts x Channel @ Ohms400W x 1 @ 4 Ohms; 250W x 1 @ 8 OhmsNumber of Channels1Number of Audio Zones1Network Connector(s)No network connectors
Reviews
This product doesn't have any reviews yet.
Compare similar products
The SMP500DSP is a Class D mono subwoofer amplifier built for higher-wattage passive subwoofers such as in-wall models that require external power. It delivers 400W RMS and 800W peak at 4 ohms, or 250W RMS and 500W peak at 8 ohms, in a rack-mountable 1U chassis. A front-panel variable high-cut filter adjusts from 30Hz to 150Hz, routing higher frequencies to the main speakers so the subwoofer concentrates on low-frequency content. Additional front-panel controls cover phase and volume, and the amplifier includes an adjustable gain and volume limiter to protect woofers from overdrive. Turn-on options include music sensing, manual on or 12V trigger. Input choices cover signal-level and speaker-level connections plus LFE, with speaker pass-through outputs for older and newer systems alike. Frequency response spans 10Hz to 150Hz with a 95dB signal-to-noise ratio and air cooling. The power supply is switchable between 115V and 230V. ETL and CE rated with a 2-year warranty.
The SMP300 is a Class D mono subwoofer amplifier delivering up to 500W peak power at 4 ohms and 250W continuous RMS, built for passive subwoofers such as in-wall models that require external power. At only 3 inches high it fits inside any equipment rack or cabinet and includes 1U rack mounting hardware. A front-panel variable low-pass filter adjusts from 35Hz to 180Hz to control the overlap between the subwoofer and main speakers, while variable phase control from 0 to 180 degrees fine-tunes alignment so bass reinforces rather than cancels. Front-panel volume completes the setup controls. Multiple connection options include LFE input plus line-level and speaker-level inputs, covering both newer receivers and older source equipment. Auto-sensing shuts the amplifier down when no signal is detected, and the power supply is switchable between 120V and 230V. Frequency response spans 20Hz to 160Hz within 1dB with a 95dB signal-to-noise ratio. ETL and CE certified with a 2-year warranty.
The SMP200 is a compact Class D mono subwoofer amplifier built to power passive subwoofers in home theater and whole-house audio systems. It supplies 120W RMS at 8 ohms with 240W peak, or 200W RMS at 4 ohms with 400W peak, giving in-wall and stand-alone passive subs the power they need for low-frequency impact on movie and music soundtracks. An advanced crossover circuit adjusts from 35Hz to 160Hz using the front-panel control knob, with additional front-panel phase and volume controls to dial in the right amount of low-frequency effect for the room. Inputs accept either speaker-level or line-level RCA connections, so the amplifier works with both modern receivers and older source equipment. Auto-sensing turns the amplifier on when a signal is detected and off when it is not, and a 12V trigger mode supports integration with automated systems. The chassis measures 8.5 by 1.75 by 9.8 inches and weighs 6.7 pounds, fitting easily into a rack or cabinet.
The MX880 is a 4-zone, 8-channel Class D amplifier for residential and commercial distributed audio systems that need reliable power across multiple rooms. Each channel is rated at 80W into 4 ohms and 50W into 8 ohms, and every zone includes a bridge switch that combines both channels into a single 160W output at 8 ohms for larger spaces or 70V-style long runs. Independent zone control with global and per-zone triggering lets each area run its own source through the zone line input, or follow a shared bus feed through Bus In 1 and Bus In 2. Signal auto-sensing powers the amplifier up when audio is detected and down when it stops, reducing standby consumption in always-on installations. Protection circuitry guards against thermal overload and short circuits. The slim 2U chassis is rack mountable with hardware included, runs cool thanks to Class D efficiency, and provides individual output level controls plus detachable speaker terminals accepting up to 14AWG.
