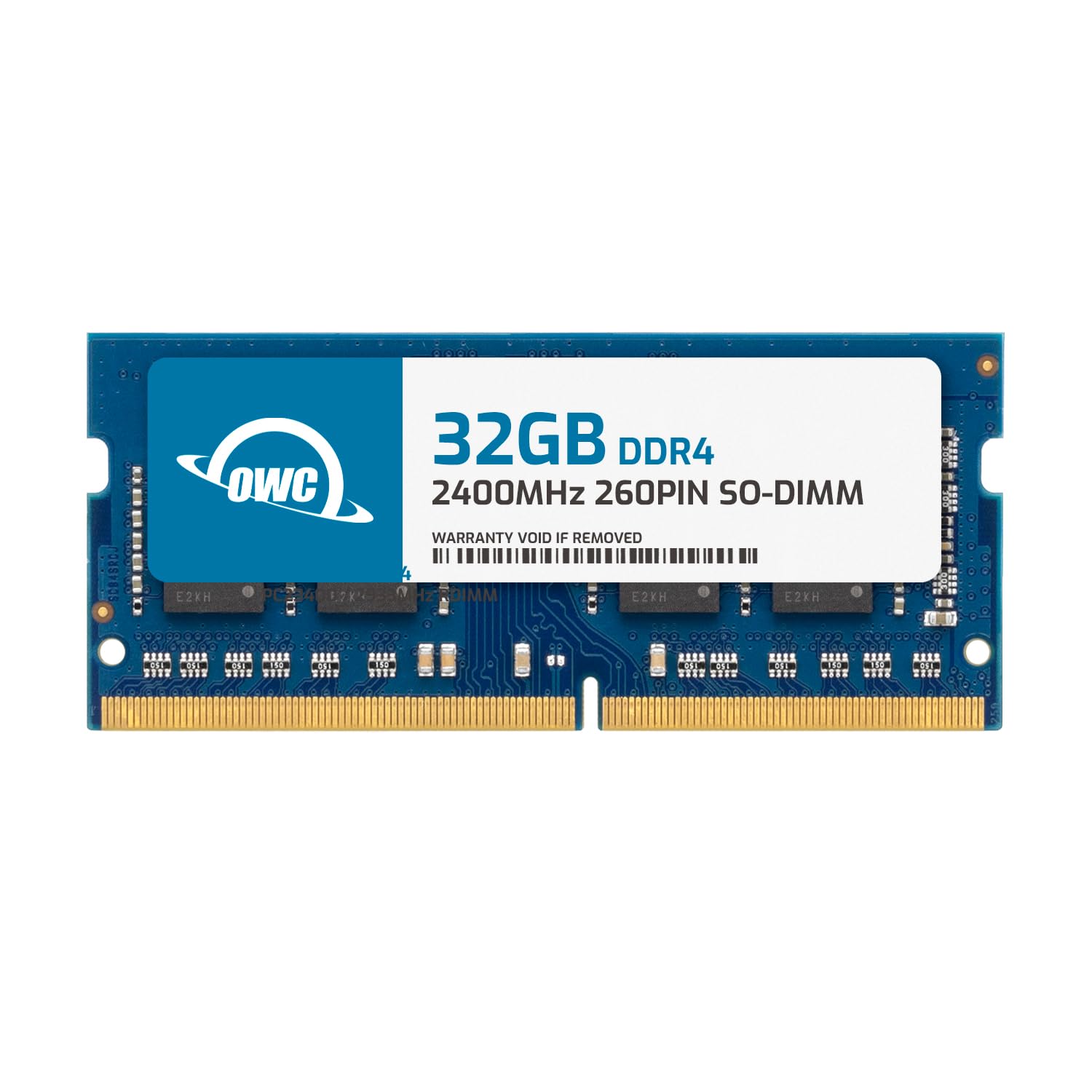

OWC - 32GB PC4-19200 DDR4 2400MHz 260pin SO-DIMM Memory Ram Upgrade Compatible with Select Mac Models
Memory Capacity (Total)
32GBRelated Item
Specifications
- Type of Memory (RAM)DDR4Form FactorLaptopSpeed2400 megahertzLatency17CAS Latency17Lighting TypeNone
- Key Specs
- Type of Memory (RAM): DDR4
- Form Factor: Laptop (The type of computer the memory is configured to fit in.)
- Speed: 2400 megahertz
- Latency: 17 (Refers to the amount of time between the moment a memory request is initiated and the moment the request is retrieved by a processor, commonly written as a series of 4 numbers, or timings. Each timing measures the performance of the module according to a specific parameter. Generally, the lower the numbers, the faster the RAM can respond to requests.)
- CAS Latency: 17 (Column Address Strobe (CAS) Latency refers to the number of clock cycles (for synchronous DRAM) or nanoseconds (for asynchronous DRAM) between the moment an instruction or command is initiated and the moment the data result is available. Generally, the lower the numbers, the better.)
- Lighting Type: None
- Performance Profile(s): Not Applicable
- Memory Capacity (per Module): 32 gigabytes (Refers to the maximum amount of data that can be stored on the memory module.)
- Memory Capacity (Total): 32 gigabytes (Refers to the maximum total amount of data that can be stored on all included memory modules.)
- General
- Brand: OWC
- Product Name: OWC 32GB PC4-19200 DDR4 2400MHz 260pin SO-DIMM Memory Ram Upgrade Compatible with Select Mac Models
- Memory Capacity (per Module): 32 gigabytes (Refers to the maximum amount of data that can be stored on the memory module.)
- Number Of Modules: 1
- Memory Capacity (Total): 32 gigabytes (Refers to the maximum total amount of data that can be stored on all included memory modules.)
- Compatibility
- Type of Memory (RAM): DDR4
- Pin Configuration: 260
- Memory Format: SODIMM (Memory module size that determines what size device the memory stick will fit.)
- Form Factor: Laptop (The type of computer the memory is configured to fit in.)
- Speed
- Memory Speed Rating: PC4-19200 (The RAM's bandwidth rating. The numbers refer to generation and transfer speed and are typically separated with a hyphen. For example, PC3-12800 would indicate that the module is 3rd generation and has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the second number, the faster the speed.)
- Speed: 2400 megahertz
- Latency: 17 (Refers to the amount of time between the moment a memory request is initiated and the moment the request is retrieved by a processor, commonly written as a series of 4 numbers, or timings. Each timing measures the performance of the module according to a specific parameter. Generally, the lower the numbers, the faster the RAM can respond to requests.)
- CAS Latency: 17 (Column Address Strobe (CAS) Latency refers to the number of clock cycles (for synchronous DRAM) or nanoseconds (for asynchronous DRAM) between the moment an instruction or command is initiated and the moment the data result is available. Generally, the lower the numbers, the better.)
- Features
- Buffered or Registered: Unbuffered (Registered (buffered) memory modules are classified by the addition of a register between the memory controller and DRAM modules. When compared to conventional unbuffered (unregistered) memory, this type provides more stability with less electrical load on the controller, making it a common choice for use in robust applications, such as servers.)
- Data Integrity Check: Non-ECC (Error-correcting code (ECC) memory helps to maintain data integrity within a computer system, protecting it from potential crashes as well as losses or changes to data due to undetected errors. Systems that use ECC have an additional chip on the RAM that acts as the error check.)
- Memory Channels: Single (Multi-channel memory increases the rate of data transfer between the DRAM memory and memory controller by adding more channels of communication. The more channels, the more memory bandwidth.)
- Lighting Type: None
- Fan Included: false
- Performance Profile(s): Not Applicable
- Power
- Voltage: 1.2 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: OWC Limited Lifetime Replacement Warranty with Advance Replacement
- Other
- UPC: 810586031141
1 x 32 GB (32 GB) PC19200 DDR4 2400MHz SO-DIMM Memory, 260-Pin, 1.2 Volts, Non-registered, Non-ECC, Fully compliant with JEDEC specifications, ROHS compliant, warranty safe upgrade, CYCLE TIME: 0.83 ns, TIMING: CAS = 17.0, Full Parameters: 17-17-17-14, BANDWIDTH: 19.2GB/s, Low noise 8-layer PCB Program, Compatible with 2017 iMac: iMac w/Retina 5K display (27 inch mid 2017) Model ID: iMac18,3 (3.4GHz & 3.5GHz & 3.8GHz Core i5 & 4.2GHz Core i7); Memory Upgrade Compatible with 2017 iMac 21.5-inch: Model ID: iMac18,2 iMac w/Retina 4K display, 21.5-inch Mid 2017, (3.0GHz & 3.4GHz Core i5 & 3.6GHz Core i7);Memory Upgrade Compatible with 2018 Mac mini: Mac mini (Late 2018) (November, 2018) Model ID: Macmini8,1 (3.6GHz i3, 3.0GHz i5, 3.2GHz i7) Models: MRTR2LL/A, MRTT2LL/A, Compatible with select PC Laptop, PC Notebook, & All in One Computers
- WHAT YOU NEED TO KNOW: OWC 32GB UPGRADE: Consists of a 32G BPC19200 DDR4 2400MHz SO-DIMM Memory, 260-Pin, 1.2 Volts, Non-registered, Non-ECC, Fully compliant with JEDEC specifications, ROHS compliant, warranty safe upgrade; Backed by OWC Memory Lifetime Limited Warranty including the OWC Lifetime Advanced Replacement Program
Compare similar products
1 x 32 GB (32 GB) PC19200 DDR4 2400MHz SO-DIMM Memory, 260-Pin, 1.2 Volts, Non-registered, Non-ECC, Fully compliant with JEDEC specifications, ROHS compliant, warranty safe upgrade, CYCLE TIME: 0.83 ns, TIMING: CAS = 17.0, Full Parameters: 17-17-17-14, BANDWIDTH: 19.2GB/s, Low noise 8-layer PCB Program, Compatible with 2017 iMac: iMac w/Retina 5K display (27 inch mid 2017) Model ID: iMac18,3 (3.4GHz & 3.5GHz & 3.8GHz Core i5 & 4.2GHz Core i7); Memory Upgrade Compatible with 2017 iMac 21.5-inch: Model ID: iMac18,2 iMac w/Retina 4K display, 21.5-inch Mid 2017, (3.0GHz & 3.4GHz Core i5 & 3.6GHz Core i7);Memory Upgrade Compatible with 2018 Mac mini: Mac mini (Late 2018) (November, 2018) Model ID: Macmini8,1 (3.6GHz i3, 3.0GHz i5, 3.2GHz i7) Models: MRTR2LL/A, MRTT2LL/A, Compatible with select PC Laptop, PC Notebook, & All in One Computers
CORSAIR high performance VENGEANCE SODIMM memory kit, 3200MHz CL22 1.2V, allows you to automatically boost performance of your without BIOS reconfiguration. Slim and attractive design to ensure physical compatibility with all 11th Generation Intel Core Processors equipped DDR4 notebooks and NUCs. Each module is built using carefully selected DRAM to allow excellent stability and is backed by Corsair’s limited lifetime warranty.
CT2K16G4SFRA32A is the Crucial 32GB kit consisting of (2) 16GB laptop modules that operate at the speed of 3200MT/s and has a CAS Latency of 22. It is a SODIMM and conforms to the industry standard DDR4 SODIMM layout of 260 pins. It is compatible with systems that can take DDR4-3200 SODIMM memory.
Vengeance LPX memory is designed for high-performance overclocking. The heatspreader is made of pure aluminum for faster heat dissipation, and the custom performance PCB helps manage heat and provides superior overclocking headroom. Each IC is individually screened for performance potential. The DDR4 form factor is optimized for the latest Intel DDR4 motherboards and offers higher frequencies, greater bandwidth, and lower power consumption than DDR3 modules. Vengeance LPX DDR4 modules are compatibility-tested across Intel DDR4 motherboards for reliably fast performance.
| Pros for OWC - 32GB PC4-19200 DDR4 2400MHz 260pin SO-DIMM Memory Ram Upgrade Compatible with Select Mac Models | |||
|---|---|---|---|
| There were no pros for this product— | Performance, RAM, Speed, Ease of use, Installation | There were no pros for this product— | Performance, RAM, Speed, Ease of use, Price |
| Cons for OWC - 32GB PC4-19200 DDR4 2400MHz 260pin SO-DIMM Memory Ram Upgrade Compatible with Select Mac Models | |||
| There were no cons for this product— | There were no cons for this product— | There were no cons for this product— | RGB, Heat, Voltage, XMP |
