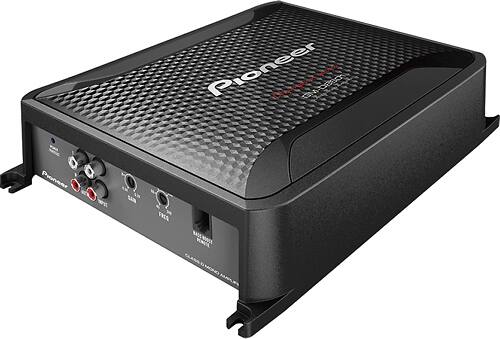

Pioneer - 1600W Class D Digital Mono MOSFET Amplifier with Wired Bass Boost Remote - Black
- Key Specs
- Continuous Watts x Channel @ Ohms: 500 x 1
- Maximum Watts x Channel @ Ohms: 1600w. 800w x 1 @1ohm. 1% THD (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: None (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: Pioneer
- Model Number: GM-D8601
- Product Name: 1600W Class D Digital Mono MOSFET Amplifier with Wired Bass Boost Remote
- Color: Black
- Mounting Hardware Included: true
- Audio Power
- Continuous Watts x Channel @ Ohms: 500 x 1
- Watts Per Channel RMS: 500 watts
- Maximum Watts x Channel @ Ohms: 1600w. 800w x 1 @1ohm. 1% THD (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling Maximum: 800 watts
- Watts Per Channel Maximum: 1600 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 240 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.5 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 100 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: None (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: true (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Remote Control Included: No
- Marine: false
- Fan Cooled: false
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Output
- Preamp Outputs: true
- Dimensions
- Product Height: 5.000 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10.38 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 6 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 884938193085
Improve your vehicle's sound system with this Pioneer GM-D8601 amplifier that features a bass boost remote that allows you to adjust the bass from 0dB to 18dB for simple customization. Protection Control System circuitry helps ensure reliable operation.
- Geek Squad® installation: is strongly recommended for this product. Please visit your local Best Buy store for details.
- Handles up to 1600W maximum power @ 1 ohm: For powerful sound. Up to 800W RMS (continuous) power @ 1 ohm, up to 500W RMS power @ 2 ohms and up to 300W RMS power @ 4 ohms.
- Variable LPF (low-pass filter) crossover: Lets you easily adjust the audio frequency from 40Hz to 240Hz for flexible sonic customization.
- 1 to 8 ohms impedance: Conducts power evenly to keep the speaker at an appropriate level.
- Protection Control System circuitry: Senses the internal temperature and automatically moderates the input level accordingly to help prevent circuit shutdown and enable connection of multiple subwoofers.
- Wired bass boost remote: Along with a variable bass control lets you easily adjust the bass level from 0dB to 18dB to suit your listening preferences or accommodate your music's characteristics.
- Speaker level input: Enables connection of an OEM unit or other unit without RCA inputs. Two-channel RCA inputs and RCA pass-through outputs offer flexible connectivity.
- Compact design: Allows versatile installation options.
- 10-240Hz frequency response: Ensures faithful audio reproduction.
- Geek Squad® installation: is strongly recommended for this product. Please visit your local Best Buy store for details.
- Handles up to 1600W maximum power @ 1 ohm: For powerful sound. Up to 800W RMS (continuous) power @ 1 ohm, up to 500W RMS power @ 2 ohms and up to 300W RMS power @ 4 ohms.
- Variable LPF (low-pass filter) crossover: Lets you easily adjust the audio frequency from 40Hz to 240Hz for flexible sonic customization.
- 1 to 8 ohms impedance: Conducts power evenly to keep the speaker at an appropriate level.
- Protection Control System circuitry: Senses the internal temperature and automatically moderates the input level accordingly to help prevent circuit shutdown and enable connection of multiple subwoofers.
- Wired bass boost remote: Along with a variable bass control lets you easily adjust the bass level from 0dB to 18dB to suit your listening preferences or accommodate your music's characteristics.
- Speaker level input: Enables connection of an OEM unit or other unit without RCA inputs. Two-channel RCA inputs and RCA pass-through outputs offer flexible connectivity.
- Compact design: Allows versatile installation options.
- 10-240Hz frequency response: Ensures faithful audio reproduction.
Whats Included
- Pioneer 1600W Class D Digital Mono MOSFET Amplifier with Wired Bass Boost Remote
- Owner's manual
- Pioneer 1600W Class D Digital Mono MOSFET Amplifier with Wired Bass Boost Remote
- Owner's manual
Q: Is b this amp strong enough to push 2 12 in alpine type e subwoofers?
A: I have mine pushing 2 -15" wired at 1ohm stable. sound great
A: Turn up the gain on your amp all the way down then start playing a heavy bass song with your head unit )Equalizer flat) turned up about 3/4 all the way Then go to the amp and slowly turn up the gain while playing that song loudly and you will be able to tell when your kicker 500 starts to distort..usually when the amp is turned up 3/4 of the way you will get distortion. The second you start to hear the distortion stop turning the gain up on the amp and turn it down just barely. Then, leave it at that point and it should prevent clipping and maximize your enjoyment of the products for the lifespan of them.Also, it all depends on the impedance of your kicker 500 to how many watts the pioneer amp is putting out to it. I assume you are talking about a kicker comp c sub which is probably 500 watts max? ? This amp is not 1600 real watts, the 16 00 is max wattage which is irrelevant and a marketing scheme. SO if your Kicker 500 is a single coil 4 ohm sub then the pioneer amp is seeing a 4 ohm load and is pushing out around 300 watts RMS.. If your kIf its a dual voice coil sub at 4 ohms each wired in parallel then the Pioneer would be seeing a 2 ohm load and sending around 500 watts RMS out.. Always remember you can look up tutorials on how to wire your subs properly and match an appropriate amp with one . People end up blowing their subwoofers or complaining that their amplifier is poorly made or garbage because it is always in protection mod. It's in protection mode people for a reason. Most likely you wired the sub incorrectly and are trying to present a 1 ohm load on a 2 ohm stable amplifier and thus protection mode ensues.
Q: What is the true wattage of this amp
A: RMS : 300 at 4 ohms, 500 at 2 ohms and 800 watts at 1 ohm. This amp is excellent for the money I own one and would highly recommend.
Q: Does this amp has a remote level control
A: Yes, this has a remote control for the volume.
A: These amps do their rated RMS power at each respective ohm rating without issue even with what would be considered fairly heavy usage. I have the 8701 d class mono block wired at 1ohm pushing a Sundown Audio E Series 15 v.3 D2 that’s very conservatively rated at 500w rms. Gain is set at 3/4 with no clipping indicated and no audible distortion for my particular subwoofer. These pioneer amps and slept on powerhouses dude. Well laid out dual sided boards with quality parts. They’re still distinctly Japanese so quality is high for very little money.
Q: Will this amp push 2 kicker comp rt 2 ohm dvc 12 inch subs 1000 watt max 500 rms
A: It will but not as good as it would if you could wire them to one ohm but i dont think you can. I think you could wire them in series and get to two ohms, which the amp will give 500 watts rms to If you wired them in parrallel tho it would bring the subs to .5 ohms and the amp is only stable down to one ohm To get the most from this amp you want your setup at one ohm which the amp would give 800 watts rms to
Q: I can’t find the bass boost remote, what is a good replacement remote for the bass?
A: Trying to find one also. Did you have any luck?
