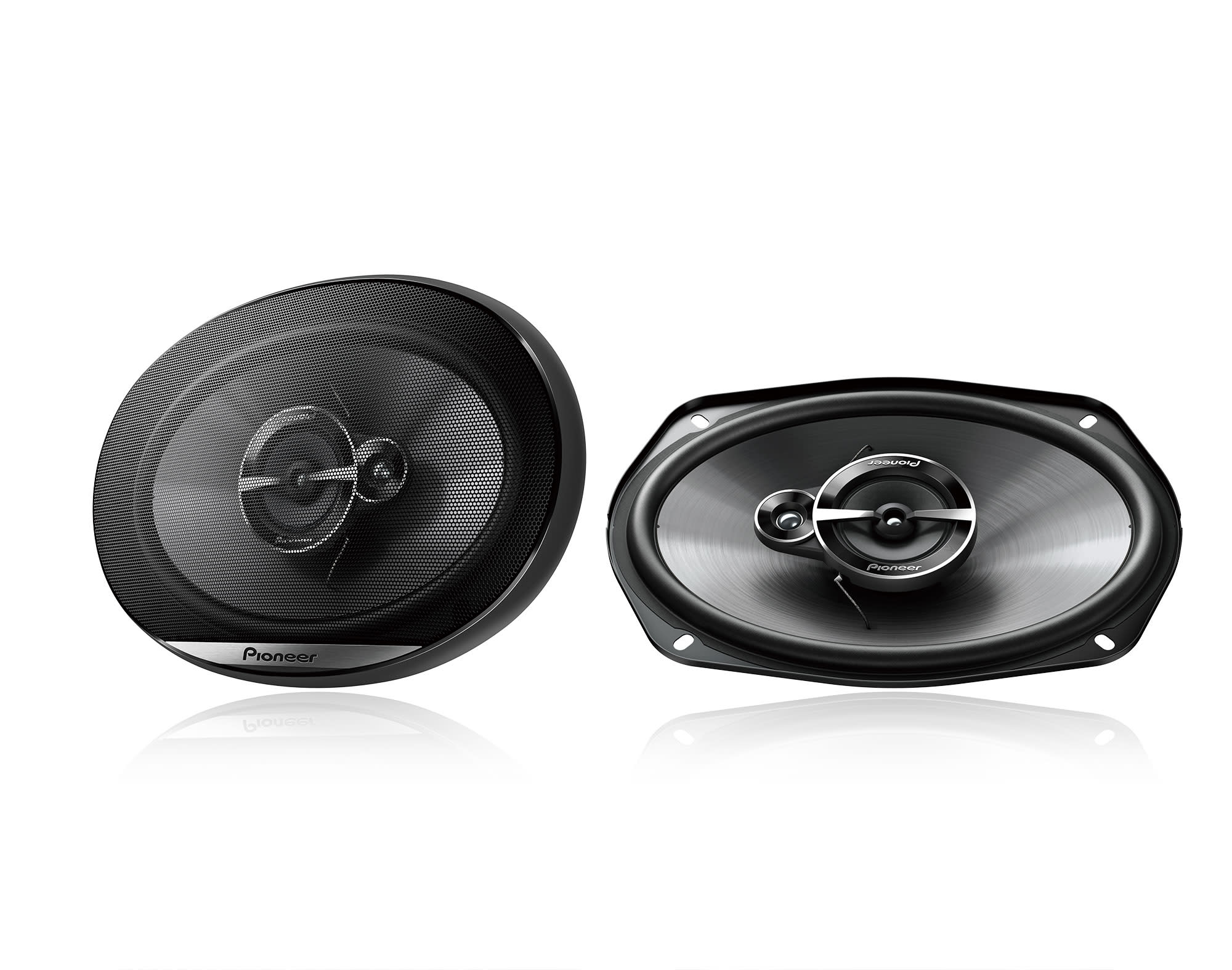

Pioneer - 6" x 9" 3-way Coaxial Speakers (Pair) - Black
Model: TS-G690
SKU: 6065204
This item is no longer available in new condition. See similar items below
- Key Specs
- RMS Power: 45 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 400 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Minimum Frequency Response: 32 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 32 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 90 decibels
- Speaker Size: 6" x 9"
- Speaker Type: Coaxial, 3-way
- Tweeter Composition: Cellulose fiber
- Woofer Composition: IMPP - with MICA
- Woofer Surround Material: Rubber
- General
- Brand: Pioneer
- Model Number: TS-G690
- Product Name: 6" x 9" 3-way Coaxial Speakers (Pair)
- Color: Black
- Number Of Speakers: 2
- Series: TS-G Series (Part of a group of the same product type with similar features.)
- Audio
- RMS Power: 45 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 400 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Minimum Frequency Response: 32 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 32 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Sensitivity: 90 decibels
- Features
- Integrated Crossover: true
- Marine: false
- Grille Included: false
- Design
- Speaker Size: 6" x 9"
- Speaker Type: Coaxial, 3-way
- Tweeter Composition: Cellulose fiber
- Woofer Composition: IMPP - with MICA
- Woofer Surround Material: Rubber
- Dimensions
- Cutout Diameter: 6 inches
- Mount Depth: 2.75 inches
- Flush Mount: false
- Product Height: 11.124 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.496 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 4.233 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Limited Warranty from date of delivery. See Limited Warranty terms and conditions for further details.
- Warranty - Labor: 1-year Limited Warranty from date of delivery. See Limited Warranty terms and conditions for further details.
- Other
- UPC: 884938373555
The Pioneer TS-G690 6" x 9" is a 3-way speaker system with 400 W maximum power handling/45 W continuous power handling. In addition, it has a 30mm Tweeter and a 2" Cone to enrich high-range reproduction. The speaker cone comprises of polypropylene IMPP cone and a rubber-coated cloth surround giving your music more impact and presence.
- G-Series Speakers: This G-series speaker cone has a blend of Mica minerals interlaced with Polypropylene during the injection molding process for sensitivity, low distortion, rigidity, and strength.
- P.F.S.S. spider: P.F.S.S Spider supports the voice coil by dampening the large cone vibration enhancing linearity of sound reproduction. Its soft part makes movement smooth to reporoduce clear sound and at excessive input; its hard part controls excessive vibration and prevents movement error.
- Install and sound to suit any car: These Pioneer speakers are an excellent choice to replace factory speakers. Its two-way design features Pioneer’s strong and lightweight IMPP with MICA composite cone woofer for improved sensitivity and reduced distortion.
- G-Series Speakers: This G-series speaker cone has a blend of Mica minerals interlaced with Polypropylene during the injection molding process for sensitivity, low distortion, rigidity, and strength.
- P.F.S.S. spider: P.F.S.S Spider supports the voice coil by dampening the large cone vibration enhancing linearity of sound reproduction. Its soft part makes movement smooth to reporoduce clear sound and at excessive input; its hard part controls excessive vibration and prevents movement error.
- Install and sound to suit any car: These Pioneer speakers are an excellent choice to replace factory speakers. Its two-way design features Pioneer’s strong and lightweight IMPP with MICA composite cone woofer for improved sensitivity and reduced distortion.
Whats Included
- Two 3-way speakers
- 2 Steel grilles
- 2 Plastic grille frames
- Two 12" Lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
- Eight 1-1/8" Screws
- Warranty information
- Specifications printed on box
- Template is on the box
- Two 3-way speakers
- 2 Steel grilles
- 2 Plastic grille frames
- Two 12" Lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
- Eight 1-1/8" Screws
- Warranty information
- Specifications printed on box
- Template is on the box
Q: What is the minimum frequency response for these speakers?
A: The minimum frequency response for these speakers is 32 hertz.
Q: Are these speakers designed for marine use?
A: No, these speakers are not designed for marine use.
Q: How many speakers are included in the package?
A: This is a pair of speakers, so 2 speakers are included.
Q: What is the impedance of these speakers?
A: These speakers have an impedance of 4 ohms.
Q: What is the peak power handling of these Pioneer speakers?
A: These Pioneer speakers have a peak power handling of 400 watts.
Q: Does this speaker system have a built-in crossover?
A: Yes, this speaker system has an integrated crossover.
Q: Will these fit a 2000 Toyota Camry?
A: Yes, this will fit a 2000 Toyota Camry.
