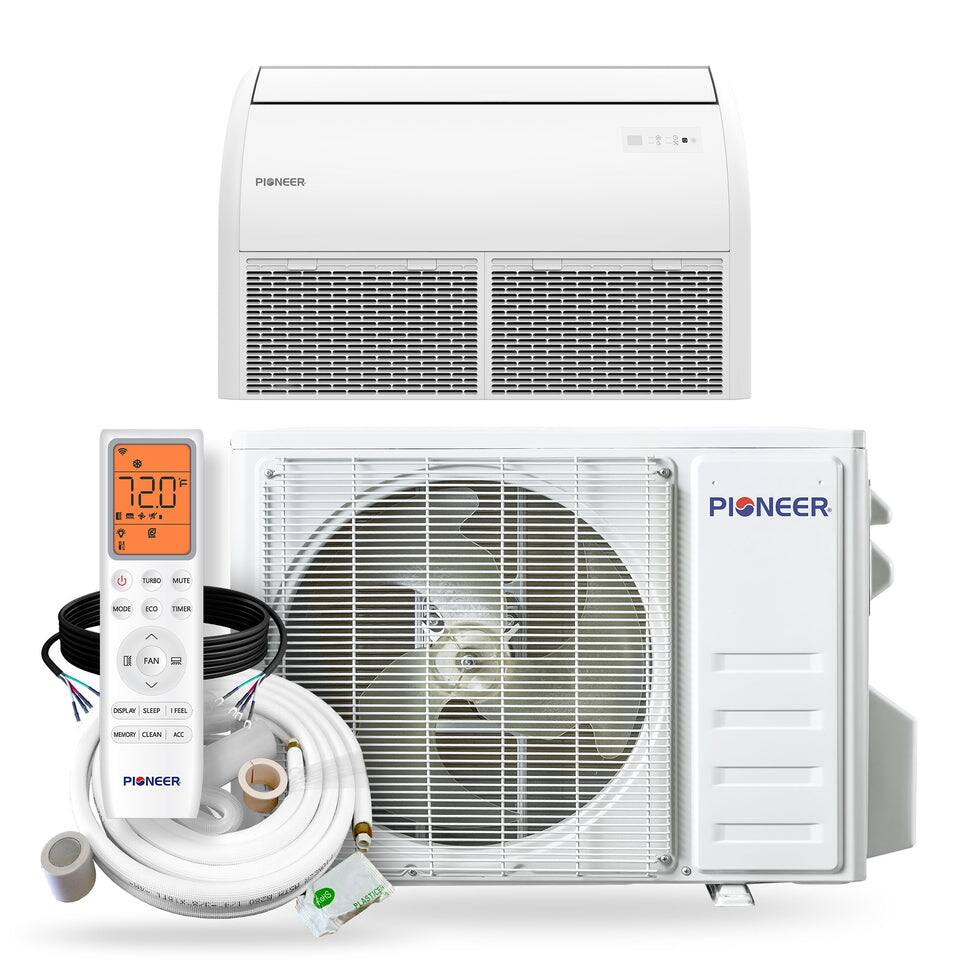

Pioneer - Quantum Ultra 18,000 BTU 1.5 Ton 20.5 SEER Floor/Ceiling Mini-Split Air Conditioner Heat Pump System Full Set
Specifications
- Recommended Room Size750 square feetBTU Cooling Rating18000 british thermal unitsNumber of Cool Settings5Number of Fan Speeds5Airflow Rate265 cubic feet per minuteRemote ControlYes
- Key Specs
- Recommended Room Size: 750 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 18000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- Number of Cool Settings: 5
- Number of Fan Speeds: 5
- Airflow Rate: 265 cubic feet per minute
- Remote Control: true
- Integrated Heater: true
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Air Conditioner Type: Wall
- General
- Brand: Pioneer
- Model Number: UYT018GLSI24RL-16S
- Product Name: Quantum Ultra 18,000 BTU 1.5 Ton 20.5 SEER Floor/Ceiling Mini-Split Air Conditioner Heat Pump System Full Set
- Air Conditioner Type: Wall
- Dimensions
- Indoor Unit Dimensions: 41.5 x 26.5 x 9.25
- Outdoor Unit Dimensions: 36.5 x 15 x 27.5
- Cord Length: 192 inches
- BTU Rating
- Recommended Room Size: 750 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 18000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- BTU Heat Rating: 18000 british thermal units (The number of BTUs (British Thermal Units) per hour the unit produces to heat the air, also known as heating capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to heat. The recommended capacity depends on several factors such as climate and level of insulation, but generally ranges from 30-60 BTUs per square foot.)
- Features
- Number of Cool Settings: 5
- Number of Fan Speeds: 5
- Airflow Rate: 265 cubic feet per minute
- Maximum Noise Level: 36 decibels adjusted
- Remote Control: true
- Control Type: Button
- Integrated Heater: true
- Filter Indicator Light(s): true
- Filter Type: Washable
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Number of Indoor Units: 1
- Number of Outdoor Units: 1
- Power
- Voltage Requirement: 230
- Amperage: 7.7 amperes (Strength of electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Included
- Number of Remotes Included: 1
- Unit Placement
- Indoor Unit1 Placement: Wall mount
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: Not applicable
- Other
- UPC: 810102184047
Upgrade your comfort with the Pioneer Quantum Ultra 18,000 BTU Ductless Mini-Split Heat Pump, designed for flexible floor, ceiling, or low-wall mounting. This high-performance system delivers year-round heating and cooling with ultra-efficient inverter technology and a SEER2 rating of 20.5. Ideal for medium to large rooms (500-750 sq. ft.), it offers precise climate control with a wide range of operating temperatures, from -13°F in heating to 131°F in cooling. The advanced DC inverter ensures quiet, energy-saving operation, while dual-axis louvers distribute air evenly throughout the space. With smart features like ECO and SLEEP modes, a self-cleaning cycle, and the intuitive IFEEL remote sensor, this system adapts to your needs for maximum comfort and efficiency. Pre-charged with R454b refrigerant, it's environmentally responsible and ready to install. Whether mounted on the floor, ceiling, or low wall, its sleek design fits seamlessly into any room. The system includes a 20A outdoor unit and a high-airflow indoor unit with washable filters and dual-drainage ports. Perfect for home or light commercial use, this complete set delivers reliability, quiet performance, and cutting-edge climate control.
- High-Efficiency Cooling & Heating: 18,000 BTU/hour cooling (20.5 SEER2, 11.7 EER2) and 18,000 BTU/hour heating (9.0 HSPF2, 2.8 COP2) for year-round comfort in rooms 500-750 sq. ft.
- Complete System Included: Indoor fan coil, outdoor condenser, wireless remote with holder, 16 ft. line set, installation accessories, and vibration absorber feet.
- Advanced Inverter Technology: Pulse width modulation DC inverter compressor and variable-speed DC inverter fan motors for high performance, low power consumption, and reliable operation.
- User-Friendly Controls & Versatile Operation: Dual-axis airflow, ECO and SLEEP modes, self-clean cycle, memory function, TURBO mode, IFEEL temperature sensing, timer on/off control, and standard ambient range operation (-13°F heating / 131°F cooling).
- Certified & Energy-Safe: ETL, AHRI, and DOE certified; operates on 208/230V, 60Hz, 1Ph, and uses R454b refrigerant; backed by support hotline for installation, troubleshooting, and warranty.
Product Manuals
Documents
- Energy_Guide_PDF
Disclaimers
- Read all instructions before use. Only use approved parts. Failure to follow instructions may cause damage or void warranty.
