Pioneer - Quantum Ultra 24,000 BTU 2 Ton Ductless Mini Split 22.5 SEER 8-Way Cassette Air Conditioner with Heat Pump 230-Volt - White
Pioneer - Quantum Ultra 24,000 BTU 2 Ton Ductless Mini Split 22.5 SEER 8-Way Cassette Air Conditioner with Heat Pump 230-Volt - White
FREE shipping to
Specifications
- Recommended Room Size750 square feetBTU Cooling Rating23000 british thermal unitsNumber of Cool Settings5Number of Fan Speeds5Airflow Rate394 cubic feet per minuteRemote ControlYes
- Key Specs
- Recommended Room Size: 750 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 23000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- Number of Cool Settings: 5
- Number of Fan Speeds: 5
- Airflow Rate: 394 cubic feet per minute
- Remote Control: true
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Energy Efficiency Ratio: 11.7 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Seasonal Energy Efficiency Ratio (SEER): 22.5 (This rating is generally used to measure a central air conditioner's and mini-split air conditioner's energy efficiency and will not be found on window or room air conditioners. SEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) over the course of an entire cooling season. Generally, the higher the SEER rating, the more energy efficient the equipment is.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Air Conditioner Type: Wall
- General
- Brand: Pioneer
- Model Number: CYT024GLSI24RL-16S
- Product Name: Quantum Ultra 24,000 BTU 2 Ton Ductless Mini Split 22.5 SEER 8-Way Cassette Air Conditioner with Heat Pump 230-Volt
- Color: White
- Air Conditioner Type: Wall
- Dimensions
- Indoor Unit Dimensions: 33.13 x 33.75 x 10.75
- Outdoor Unit Dimensions: 38.5 x 16.63 x 31.63
- Cord Length: 192 inches
- BTU Rating
- Recommended Room Size: 750 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 23000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- Features
- Number of Cool Settings: 5
- Number of Fan Speeds: 5
- Airflow Rate: 394 cubic feet per minute
- Maximum Noise Level: 34 decibels adjusted
- Remote Control: true
- Control Type: Button
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Number of Indoor Units: 1
- Number of Outdoor Units: 1
- Power
- Energy Efficiency Ratio: 11.7 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Voltage Requirement: 230
- Seasonal Energy Efficiency Ratio (SEER): 22.5 (This rating is generally used to measure a central air conditioner's and mini-split air conditioner's energy efficiency and will not be found on window or room air conditioners. SEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) over the course of an entire cooling season. Generally, the higher the SEER rating, the more energy efficient the equipment is.)
- Amperage: 8.7 amperes (Strength of electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Included
- Number of Remotes Included: 1
- Unit Placement
- Indoor Unit1 Placement: Ceiling mount
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: Not applicable
- Other
- UPC: 810102184030
Experience exceptional year-round comfort with the Pioneer Quantum Ultra 24,000 BTU Ceiling Cassette Ductless Mini-Split Inverter Heat Pump. This high-efficiency system delivers powerful cooling and heating with SEER2 ratings up to 22.5 and HSPF2 up to 10.4, making it ideal for large spaces from 750 to 1,000 sq. ft. The low-profile ceiling cassette design evenly distributes air in all directions using motorized up-down and left-right louvers. Equipped with variable-speed inverter technology, it operates quietly and efficiently even in extreme conditions-from -13°F in heating to 131°F in cooling. Features include multiple operating modes (Cooling, Heating, Dry, Ventilation), self-cleaning, reusable filters, and dual-drainage ports for easy maintenance. The intuitive remote control offers ECO, SLEEP, TURBO, TIMER, MEMORY, and IFEEL functions for customizable comfort. Factory pre-charged with R454b refrigerant, this full set includes indoor and outdoor units, decorative panel, and all core components required for installation.
- High-Efficiency Cooling & Heating: 23,000 BTU/hour cooling (22.5 SEER2, 11.7 EER2) and 25,000 BTU/hour heating (10.4 HSPF2, 3.5 COP2) for year-round comfort in rooms 750-1,000 sq. ft.

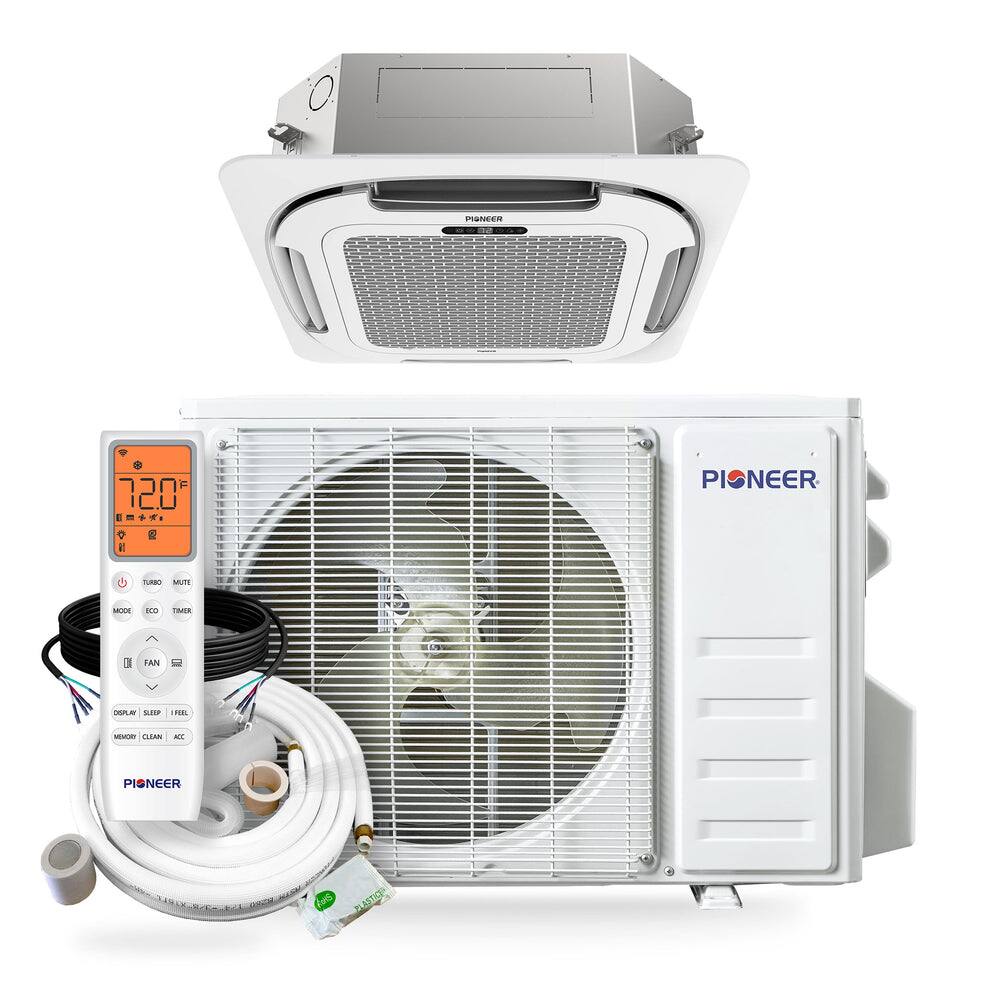

- Complete System Included: Indoor fan coil, outdoor condenser, wireless remote with holder, 16 ft. line set, installation accessories, and vibration absorber feet.
- Advanced Inverter Technology: Pulse width modulation DC inverter compressor and variable-speed DC inverter fan motors for high performance, low power consumption, and reliable operation.
- User-Friendly Controls & Versatile Operation: Dual-axis airflow, ECO and SLEEP modes, self-clean cycle, memory function, TURBO mode, IFEEL temperature sensing, timer on/off control, and standard ambient range operation (-13°F heating / 131°F cooling).
- Certified & Energy-Safe: ETL, AHRI, and DOE certified; operates on 208/230V, 60Hz, 1Ph, and uses R454b refrigerant; backed by support hotline for installation, troubleshooting, and warranty.
- High-Efficiency Cooling & Heating: 23,000 BTU/hour cooling (22.5 SEER2, 11.7 EER2) and 25,000 BTU/hour heating (10.4 HSPF2, 3.5 COP2) for year-round comfort in rooms 750-1,000 sq. ft.
- Complete System Included: Indoor fan coil, outdoor condenser, wireless remote with holder, 16 ft. line set, installation accessories, and vibration absorber feet.
- Advanced Inverter Technology: Pulse width modulation DC inverter compressor and variable-speed DC inverter fan motors for high performance, low power consumption, and reliable operation.
- User-Friendly Controls & Versatile Operation: Dual-axis airflow, ECO and SLEEP modes, self-clean cycle, memory function, TURBO mode, IFEEL temperature sensing, timer on/off control, and standard ambient range operation (-13°F heating / 131°F cooling).
- Certified & Energy-Safe: ETL, AHRI, and DOE certified; operates on 208/230V, 60Hz, 1Ph, and uses R454b refrigerant; backed by support hotline for installation, troubleshooting, and warranty.
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Disclaimers
- Read all instructions before use. Only use approved parts. Failure to follow instructions may cause damage or void warranty.
- Read all instructions before use. Only use approved parts. Failure to follow instructions may cause damage or void warranty.
