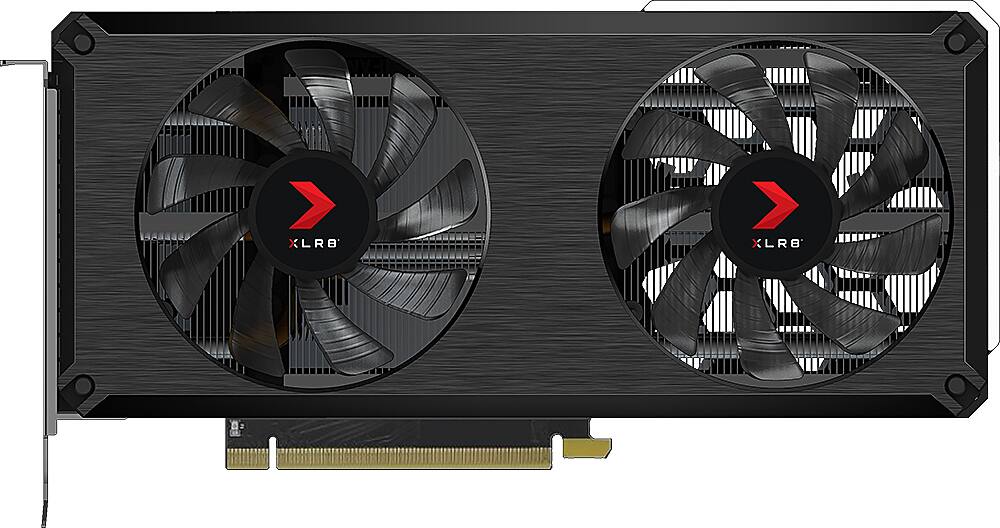

PNY - NVIDIA GeForce RTX 3060 12GB XLR8 Gaming REVEL EPIC-X RGB Dual Fan Graphics Card - Black
Model: VCG306012DFXPPB
SKU: 6454319
This item is no longer available in new condition. See similar items below
- Key Specs
- GPU Base Clock Frequency: 1.32 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 1.777 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort 1.4 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 12 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- Product Height: 40 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 119 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 245 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 3060 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: PNY
- Model Number: VCG306012DFXPPB
- Product Name: NVIDIA GeForce RTX 3060 12GB XLR8 Gaming REVEL EPIC-X RGB Dual Fan Graphics Card
- Color: Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 3060 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2020
- Performance
- GPU Base Clock Frequency: 1.32 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 1.777 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort 1.4 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Power Connector: One 8-Pin (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 12 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 15 gigahertz
- Compatibility
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- System Requirements: PCI Express-compliant motherboard with one dual-width x16 graphics slot, One 8-pin supplementary power connector, 550 W system power supply, Microsoft Windows 10 (November 2018 or later), Windows 7 64-bit, Linux 64-bit, Internet connection (The software that a product must have for it to be able to integrate with another product.)
- Operating System Compatibility: Windows, Linux
- Features
- Included Software: GeForce Experience
- Power
- Total Graphics Power: 170 watts
- Recommended Power Supply: 550 watts
- Dimensions
- Product Height: 40 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 119 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 245 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 1.6 pounds (The out of box weight of the item.)
- Other
- UPC: 751492643113
The NVIDIA GeForce RTX 3060 lets you take on the latest games using the power of Ampere—NVIDIA’s 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory. The all-new NVIDIA Ampere architecture features new 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput. The NVIDIA Ampere streaming multiprocessors are the building blocks for the world’s fastest, most efficient GPU for gamers and creators. GeForce RTX 30 Series GPUs are powered by NVIDIA’s 2nd gen RTX architecture, delivering the ultimate performance, ray-traced graphics, and AI acceleration for gamers and creators. EPIC-X RGB Offers brilliant RGB design combined with ultimate performance, taking your PC to the next level. Not only can you destroy the competition, but your system can look good while doing so.
- Graphics processing unit GPU/clock speed: NVIDIA Ampere architecture, with 1320MHz core clock and 1777MHz boost clock speeds to help meet the needs of demanding games.
- On-board memory/processors/bandwidth: 12GB GDDR6 (192-bit) on-board memory, plus 3584 CUDA processing cores and up to 360GB/sec of memory bandwidth provide the memory needed to create striking visual realism.
- RGB design: EPIC-X RGB offers brilliant RGB design combined with ultimate performance, taking your PC to the next level
- Interface: PCI Express 4.0 interface - Offers compatibility with a range of systems. Also includes DisplayPort 1.4a and HDMI 2.1 outputs for expanded connectivity
- NVIDIA GeForce Experience: NVIDIA GeForce Experience - Capture and share videos, screenshots, and livestreams with friends. Keep your drivers up to date and optimize your game settings. It's the essential companion to your GeForce graphics card.
Whats Included
- 1x PNY GeForce RTX 3060 12GB XLR8 Gaming REVEL EPIC-X RGB Dual Fan Graphics Card
- No Additional Accessories
A: Coming soon means it can be released at any moment. They don’t want to give you a date so they can beat bots. But the bots still win. I say sell them in stores and limit one per person that way gamers can get their hands on these beautiful GPU’s.
A: that'd be pretty pog.
Q: will this fit my omen 25l prebuild?
A: Yup, it fits
A: Contact the manufacturer and they will fix the problem
Q: What’s the TDP on this graphics card
A: 170 watts
Q: What condition does the Graphics card Come in?
A: Mine came in a great condition, and it works really well too! Easy to install as well!
Q: Will this fit in Alienware R7
A: Yes i have this exact card in mine. I had to install an aio after the graphics card. The stock intel cooler just couldnt keep up. Now my temps are in the mid 60's.
Q: What is the minimum power supply
A: 550W is what NVIDIA recommends but you may still see occasional shutdowns so I would say anything above 600W
