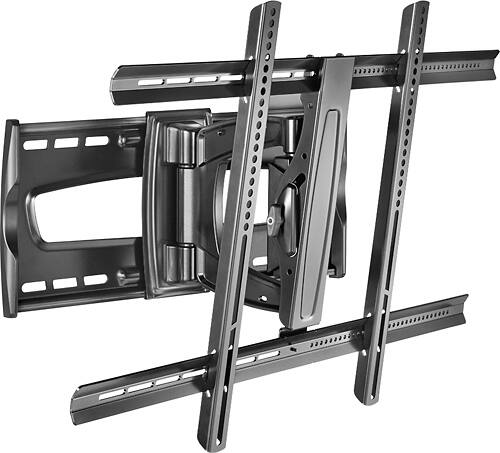

Rocketfish™ - Full-Motion TV Wall Mount for Most 40" - 65" Flat-Panel TVs - Extends 10.2" - Black
- General
- Brand: Rocketfish™
- Model Number: RF-TVMFM03
- Product Name: Full-Motion TV Wall Mount for Most 40" - 65" Flat-Panel TVs - Extends 10.2"
- Color: Black
- Assembly Required: Yes
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Tilting, Swiveling, Full Motion
- Cord Storage: false
- Compatibility
- Maximum Weight Capacity: 130 pounds (The maximum load that can be supported by the product.)
- Compatibility: Most 40" - 65" flat-panel TVs weighing up to 130 lbs.
- Mount Location: Wall
- Maximum Television Size: 65 inches
- Minimum Television Size: 40 inches
- Dimensions
- Product Height: 19.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29.13 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 10.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Maximum Extension: 10.2 inches
- Included
- Hardware Included: false
- Material
- Mount Material: Metal
- Other
- UPC: 600603132223
This full-motion wall mount makes almost any seat in the room ideal for watching your 40" - 65" flat-panel TV. The fingertip tilt makes it easy to change the viewing angle.
- Compatible with most 40" - 65" flat-panel TVs: Up to 130 lbs. for sturdy support.
- Fingertip tilting: Provides smooth viewing angle adjustments.
- Full-motion mount: Allows TV to tilt, swivel and extend off the wall.
- Powdercoat finish: Provides durability.
- Supports a variety of VESA patterns: Including 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 300, 400 x 400 and 600 x 400.
Whats Included
- Owner's manual
- Rocketfish Full-Motion TV Wall Mount for Most 40" - 65" Flat-Panel TVs
Q: When not extended, how deep is this mount?
A: in the FAQ section i found this answer: The wall plate holds the TV 2.7” from the wall when in the home position.
Q: adjustability to left or right on wall bracket
A: The swing arm mounts to a slide section, you can move it about 5-6" left or right from center.
Q: Will this mount work for 18 inch on center studs?
A: Yes, the maximum stud distance width is 18''.
Q: sideways swivel seems to loosen up to easy...
A: You can apply a little plumbers tape to the screw, or buy loctite for the screw from a hardware store. This should keep it from coming loose.
A: As long as your Samsung TV weighs less than 130 lbs, it should be compatible with this TV mount.
Q: Can mount be used on wall that has steel studs. If not, any ideas?
A: I would mount it in the open wall using 1/4" Toggle bolts that you can get from Lowe's.
Q: I have a Vizio 70" will this mount hold it? TV weighs under the recommended weight requirements.
A: This mount is holding up my 75"Samsung 4k flat screen.Hope that helps..
Q: Compatible with an LG 55LA9650?
A: Yes, this mount supports VESA standard 400mm x 400mm.
