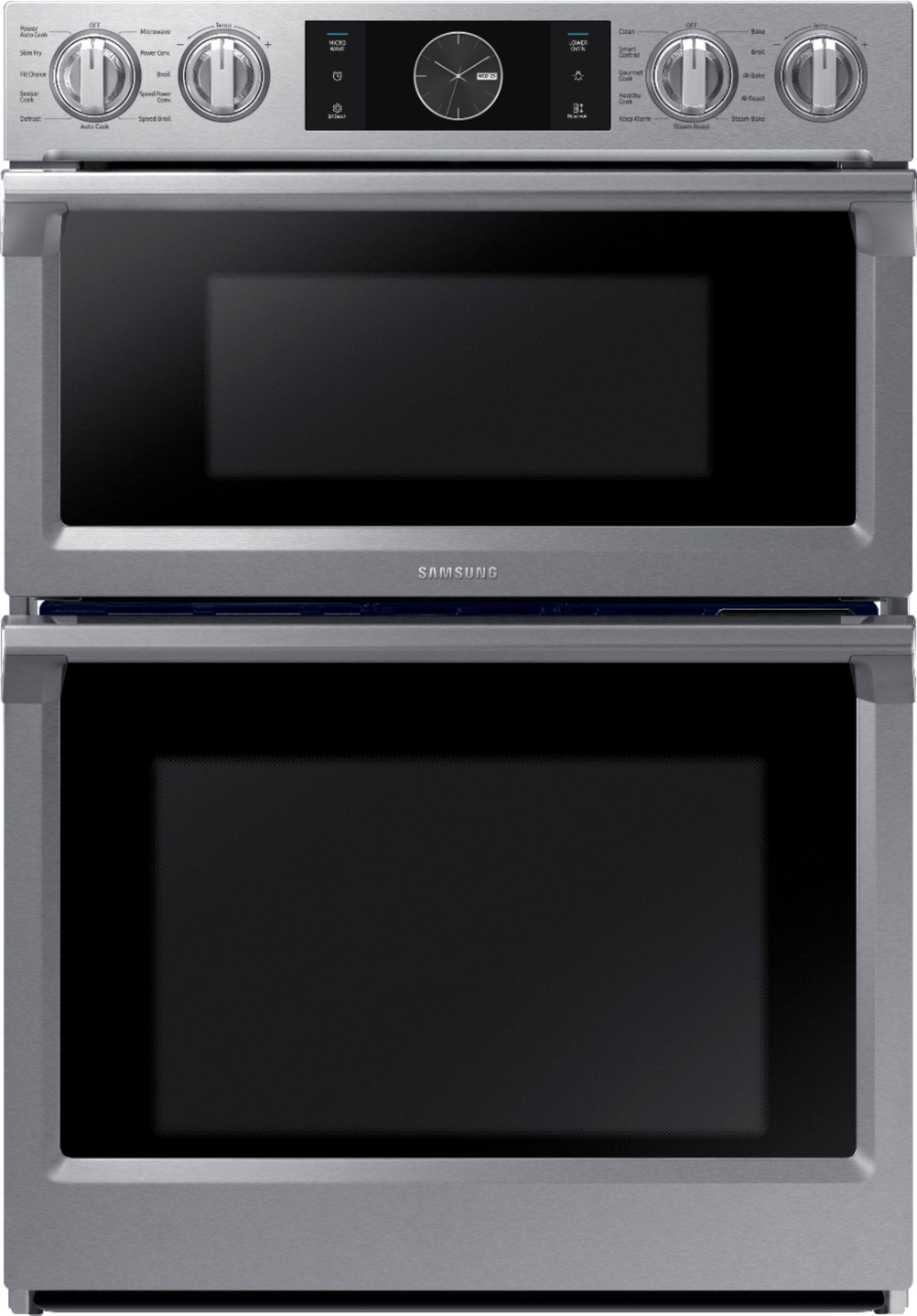

Samsung - 30" Microwave Combination Wall Oven with Flex Duo, Steam Cook and WiFi - Stainless Steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 43 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 23 1/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 25 11/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Samsung
- Model Number: NQ70M7770DS
- Product Name: 30" Microwave Combination Wall Oven with Flex Duo, Steam Cook and WiFi
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 43 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 23 1/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 25 11/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 119 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 42 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 23 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 1.9 cubic feet
- Oven 2 Capacity: 5.1 cubic feet
- Features
- Oven Type: Microwave and wall oven combination
- Oven Power Source: Electric
- Auto Shut-Off: false (Feature automatically turns off the product.)
- Clock Display: true
- Oven Light: true
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Delay Clean Option: false
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Keep Warm Setting: true
- Variable Broil: true (This feature allows you to change the temperature of the broil function, which provides more versatility and control when preparing your favorite foods.)
- Timer: true
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: true
- Dehydration Settings: false (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
- Oven 1 Specification
- Oven 1 Location: Upper
- Oven 1 Interior Height: 9 1/8 inches
- Oven 1 Interior Width: 20 7/8 inches
- Oven 1 Interior Depth: 17 inches
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Rack Positions: 0
- Number of Oven 1 Racks: 0
- Oven 1 Bake Element: 550 watts
- Oven 1 Broil Element: 1800 watts
- Oven 2 Specification
- Oven 2 Location: Lower
- Oven 2 Interior Height: 18 3/8 inches
- Oven 2 Interior Width: 24 15/16 inches
- Oven 2 Interior Depth: 19 1/8 inches
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Rack Positions: 6
- Number of Oven 2 Racks: 3
- Oven 2 Bake Element: 950 watts
- Oven 2 Broil Element: 1800 watts
- Electrical Specification
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Wattage: 3230 watts (Measurement of electrical power.)
- Amperage At 208 Volts: true
- Amperage At 240 Volts: true
- Kilowatt Rating At 208 Volts: true
- Kilowatt Rating At 240 Volts: true
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. Libre de PFAS, PFOA, plomo, y cadmio (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 887276195186
The Samsung Microwave Combination Wall Oven has steam cooking, so you can bake and roast with professional results. Steam Cook delivers moisture at precise times for a crisp, browned outside, and tender inside. In the microwave oven, Speed Power Convection technology reduces cooking time. Enjoy the comfort of Analog-Knobs combined with the advanced technology of a touch controlled digital display.
- Steam Cook (Oven): Delivers moisture at precise times for a crisp, browned outside and tender inside.
- Speed Cook (Microwave): Cook food faster and more evenly by using power convection.
- Flex Duo (Oven): Cook three dishes at different temperatures simultaneously with the Smart Divider.
- Digital-Analog Controls: The ultimate interface, a combination of analog-knobs and a digital touch screen.
- 1.9/5.1 cu. ft. Capacity: Two different types of oven offer greater cooking flexibility.
- Hybrid Clean: Easy to clean grease and residue at low temperatures with less odor (Oven).
- Steam Cook (Oven): Delivers moisture at precise times for a crisp, browned outside and tender inside.
- Speed Cook (Microwave): Cook food faster and more evenly by using power convection.
- Flex Duo (Oven): Cook three dishes at different temperatures simultaneously with the Smart Divider.
- Digital-Analog Controls: The ultimate interface, a combination of analog-knobs and a digital touch screen.
- 1.9/5.1 cu. ft. Capacity: Two different types of oven offer greater cooking flexibility.
- Hybrid Clean: Easy to clean grease and residue at low temperatures with less odor (Oven).
Whats Included
- Owner's manual
- Samsung 30" Microwave Combination Wall Oven with Flex Duo
- Owner's manual
- Samsung 30" Microwave Combination Wall Oven with Flex Duo
Product Manuals
A: trim did not come with mine although the box and paperwork said it did - there is a big gap
Q: Can you set the clock on the main panel to show digital numbers versus clock hands?
A: No, and the clock does not show the correct time. If you enable the "automatically set" option, the oven will reboot, but not remember the setting. If you manually set the time, it will gradually have the incorrect time.
Q: For the 1st usage,is there a burn off process? If so ,how long and what temperature?
A: Yes there is. According to the user manual, which I don't have access to at this minute, I believe the instructions are 400 degrees for 1 hour.
A: Yes, it has 3 wires plus a ground.
A: Oven and microwave are one "electrical" unit. There is only one cable coming from the combination and it is hardwired into the junction box. Download the install manual so your electrician knows where to place the box and the type of connection required.
A: From the moment we had installation, it could not keep time. It would also freeze and need to reboot constantly. The geek squad guys came two weeks later and did some diagnostics and then arranged to replace the entire oven...and then scratched our brand new floors so we were happy, but kind of sad.
Q: What 240 prong does this use? 3 or 4 ?
A: It doesn’t come with a plug, it has to be hardwired to a box
Q: Microwave turns on and counts down but doesn’t heat the food.
A: Hi there, We aim to ensure your microwave always functions at its best. Let's help you. We recommend following the resources below to rectify your microwave's heating concerns. Please browse the hyperlinks for tips. Samsung microwave is not heating or has stopped working: https://www.samsung.com/us/support/troubleshooting/TSG01207757/#samsung-microwave-is-not-heating-or-has-stopped-working Should you ever need more assistance, please feel free to get back to us via the following options: 1. Facebook Messenger: http://m.me/samsungsupport 2. Twitter: https://twitter.com/messages/compose?recipient_id=18768513 3. Samsung Community: https://us.community.samsung.com/t5/Samsung-Community/ct-p/us Please provide us with this reference number, 1148553960, to help our team pull up your information when you message us. Have a great day. -John
