Satechi - Thunderbolt 4 Slim Hub - 5-in-1 Dock- USB-C 60W, Single 8k or Dual 4K Display, 4 Thunderbolt 4 Ports, USB 3.2 Gen2 - Space Gray

Name: Satechi - Thunderbolt 4 Slim Hub - 5-in-1 Dock- USB-C 60W, Single 8k or Dual 4K Display, 4 Thunderbolt 4 Ports, USB 3.2 Gen2 - Space Gray
Brand: Satechi
SKU: 6544211
Rating: 4.7 (64 reviews)

Model: ST-T4SHM

SKU: 6544211

This item is no longer available in new condition. See similar items below

Key Specs
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 8K (4320p), 4K (2160p)
- Number of DisplayPort Outputs (Total): 0
- Number of Thunderbolt Ports (Total): 4
- Passthrough Power: false (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
General
- Brand: Satechi
- Model Number: ST-T4SHM
- Product Name: Thunderbolt 4 Slim Hub - 5-in-1 Dock- USB-C 60W, Single 8k or Dual 4K Display, 4 Thunderbolt 4 Ports, USB 3.2 Gen2
- Color: Space Gray
Display
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 8K (4320p), 4K (2160p)
- Maximum Supported Refresh Rate: 60Hz (The number of frames per second the device can support, expressed as a frequency. Higher rates help produce smooth, seamless pictures.)
Ports
- Display Connector(s): 3 x Thunderbolt 4 (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 0
- Number of HDMI Ports (Total): 0
- Number of Thunderbolt Ports (Total): 4
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number Of Ethernet Ports: 0
- Number of USB Ports (Total): 1
- USB Ports: 1 x USB-A 3.2 (The number and type of USB ports the product has.)
- Headphone Jack: false (The device features an interface that allows for the connection of headphones.)
- Microphone Input: false (The device features an input for connecting an external microphone.)
- Memory Card Slot: false
Power
- Powered: true
- Power Supply Included: true
- Cable Length: 4 feet
- Power Supply Input: DC jack (5.5mm)
- Maximum Input Power: 100 watts (The maximum amount of power allowed to come into the device.)
- Maximum Input Voltage: 240 volts
- Maximum Input Amperage: 2 amperes (The maximum amount of amperage allowed to come into the device.)
- Passthrough Power: false (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
Compatibility
- Maximum Data Speed: 40000 megabits per second
- Brand Compatibility: Universal
- Model Compatibility: Universal
Features
- Cable Lock Slot: None
- Material: Aluminum
- Indicator Light(s): false
Dimensions
- Product Height: 0.56 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 4.87 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 2.91 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 7.17 ounces (The out of box weight of the item.)
Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
Other
- UPC: 810086360529

Ideal for creative professionals, the sleek Thunderbolt 4 Slim Hub can provide 40Gbps bandwidth for connecting external displays and high-speed peripherals while simultaneously delivering 60W of charging to the host device. It features three Thunderbolt 4 downstream ports that support daisy chaining up to six Thunderbolt devices to maximize your creative space.

Thunderbolt 4: Latest Thunderbolt 4 technology that provides upgraded bandwidth for video and data, fast transfer rates of up to 40Gbps, and backwards compatibility with USB 4, USB-C Gen. 1 & 2.
Ports expansion: 3 x Thunderbolt 4 ports support speeds up to 40Gbps and 15W charging for phones and tablets. Also, 1x USB-A port up to 10Gbps and 1x upstream Thunderbolt 4 port up to 60W charging to the host device so you do not have to connect a power cable to your laptop.
Daisy chain: Allows for up to 6 levels of Daisy-Chaining from the downstream Thunderbolt 4 ports, giving users more accessibility with what they can connect to the hub.
Sleek & modern: Thunderbolt 4 Slim Hub’s sleek and modern aesthetic aligns with the simplicity and minimalism of the Apple Ecosystem. Made from aircraft grade aluminum, the Thunderbolt 4 Slim Hub not only looks stylish, but is also built for durability and efficiency.
Compatibility: Designed for Thunderbolt 4 based PCs and Thunderbolt 4/3 based Macs utilizing MacOS 11 and later versions, Thunderbolt 4 Slim Hub supports 2x 4K screens at 60Hz, one 8K screen at 30Hz or 1x 6K on M1 Macs. Thunderbolt 3 Windows systems not recommended.

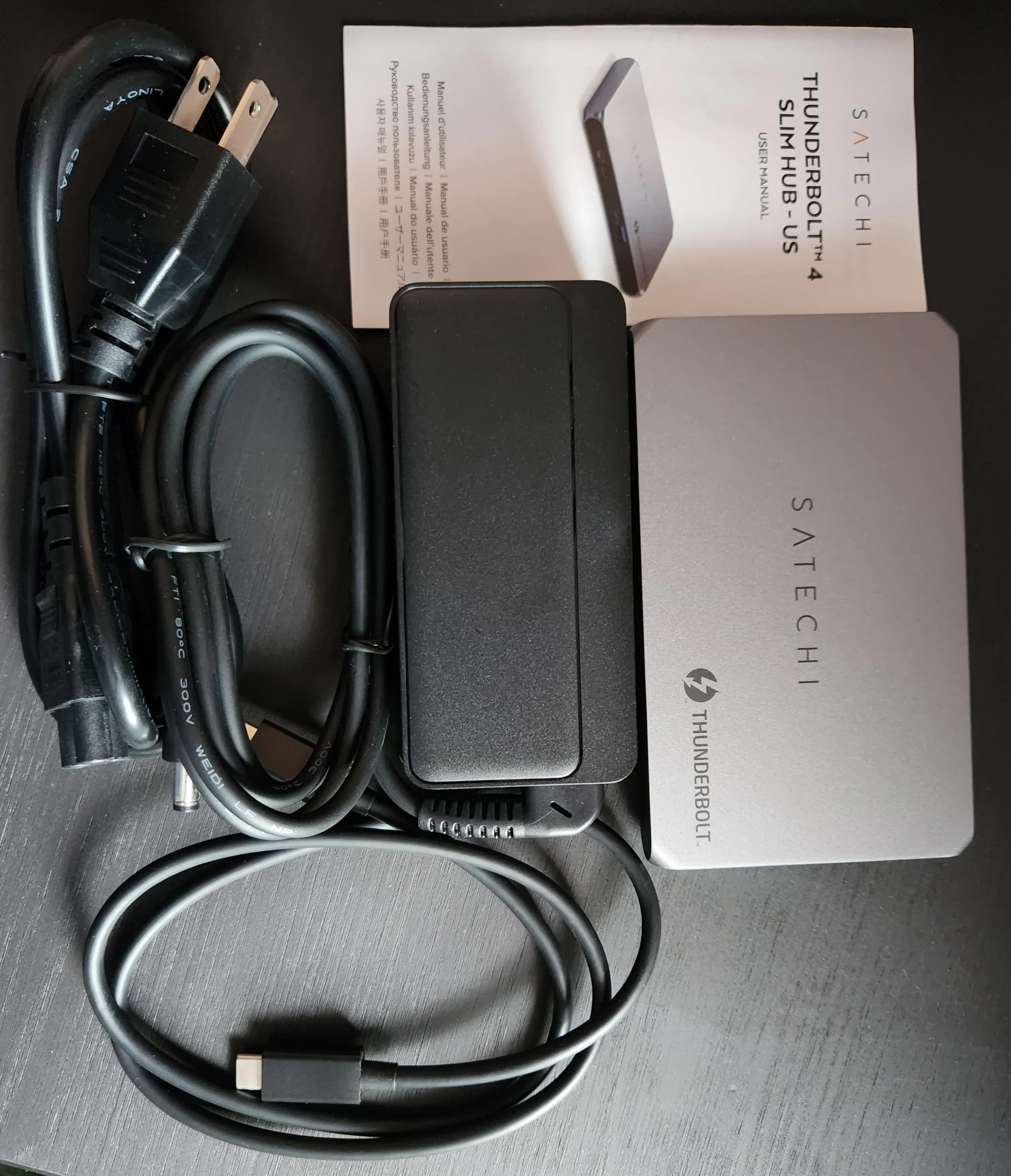

Whats Included

Thunderbolt 4 Slim Hub
AC Adapter
User Manual
Thunderbolt 4 Cable (0.8M)

Q: What is the material used for the construction of this hub?

A: The Thunderbolt 4 Slim Hub is made from aircraft-grade aluminum for durability and a sleek aesthetic.

Q: What is the maximum data transfer speed this hub supports?

A: The Thunderbolt 4 Slim Hub supports speeds up to 40Gbps.

Q: How many Thunderbolt 4 ports are available on this hub?

A: This hub features three Thunderbolt 4 downstream ports.

Q: What is the maximum charging power this hub can provide to a connected laptop?

A: The Thunderbolt 4 Slim Hub can provide up to 60W of charging power to the host device.

Q: Does this hub support daisy-chaining of devices?

A: Yes, it allows for up to 6 levels of daisy-chaining from the downstream Thunderbolt 4 ports.

Q: Can this hub charge my laptop through the USB-C port while also being used to send power and signal to two extra monitors? Or will I still need to use my laptop's power supply?

A: Hello Sam, Yes, the Thunderbolt 4 Slim Hub will provide up to 60W power delivery to the host device and can support up to two external monitors. Note that this would greatly depend on your computer if 60W is enough to power the computer especially under heavy load, as well as if it can support two external monitors natively. For any additional questions or concerns you may email us at [email protected] or call us at +1(858)268-1800 (US). We look forward to hearing from you!

Q: Would this dock work well with a 14 inch macbook pro?

A: Yes it is thunderbolt 4 ready. I don't own any Mac devices to test it with.

Q: I want my WD Passport External Hard Drive and my "Archgon" DVD player (which still works with the old 2007 Mac) to communicate (read & write) with my 24" M3 "chip" iMac (2 TB4 ports) running Sequoia 15.3. Will this do the job?

A: Hello! For product compatibility and recommendations, please reach us at [email protected] or call us at +1(858)268-1800 (US). We look forward to hearing from you!

Customers are saying

Customers have good things to say about the Thunderbolt 4 Slim Hub's elegant design, multiple Thunderbolt 4 ports enabling fast data transfer, and its ability to support high-resolution displays. Many appreciate its compact size and powerful performance, making it suitable for various setups. However, some users find the power supply to be large and inconvenient, impacting portability. The lack of additional ports, such as HDMI, is also a point of criticism for some customers.

This summary was generated by AI based on customer reviews.

Customer Images

The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.

Rated 5 out of 5 stars
Perfect add-on to my Mac Mini!
I bought 2 of these to add onto my Mac Mini M1. This offers the expanded Thunderbolts that I need. Took it from 2 to 6 Thunderbolts and adds a USB 3.2 option also. I have 51TB worth of storage that runs amazing. Well done Satechi!
Posted 2 years ago by TheJacksonsInVegas
Rated 5 out of 5 stars
Great hub
It works like a charm for my mac mini2 and also works great with windows laptop, streaming to 3 of 4K monitors
Posted 1 year ago by Avik
Rated 5 out of 5 stars
Fast performance in a slim body!!
Pretty much all the new laptops suffer with the problem of not having enough ports to connect peripherals. As a result, these kind of hubs have become a necessity. But finding the right one is no easy task. I have tried many and have been disappointed due to one issue or another. Here comes the new hub from Satechi and boy, it works!! This so far has been the easiest hub setup that I have worked with and the performance, oh my (more on that later)! The hub is made of aluminium and has a slim, sleek design with matte grey finish. It doesn't take much desk space. One slight disappointment is the power adapter that comes with it. It is bulky and makes the hub not all that portable. There are 3 thunderbolt 4 (TB4) ports on the back and one TB4 port on the front along with a USB-A port (10 Gbps). The front TB4 port can be used only for receiving power and data. It has a bandwidth of up to 40 Gbps. The TB4 ports on the back allow daisy chaining and you can connect up to 6 devices in total. As TB4 provides bandwidth of up to 40 Gbps, the performance of this small hub is super fast. I have been able to connect 2 4K monitors and an external SSD drive. The real fun part is when you can move large files (~10 GB in my case) in few seconds! So overall, if you are looking for a hub to make up for the lack of ports in your laptop, you should definitely consider this one. The price is right and it works really well.
Posted 2 years ago by Shail
