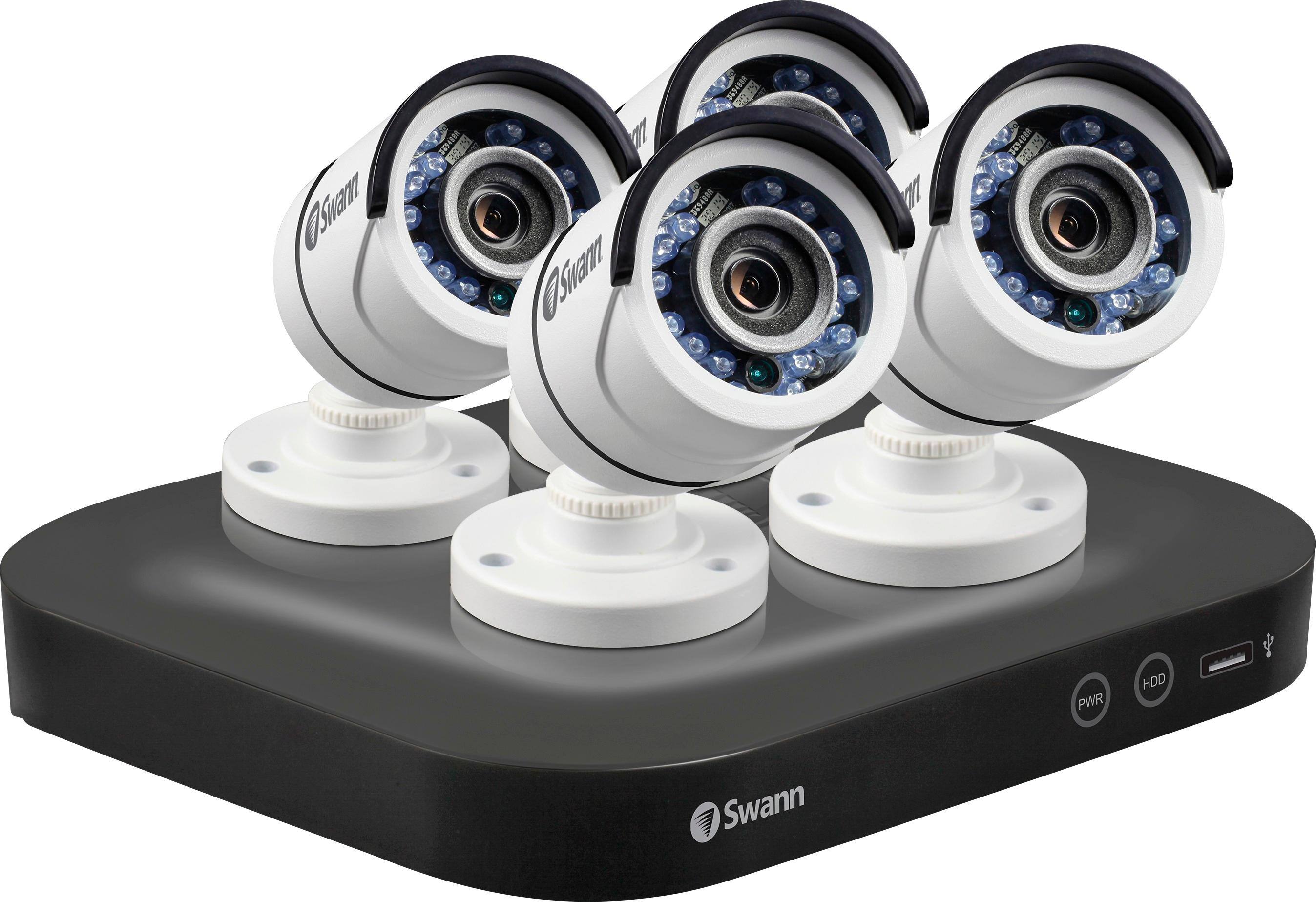

Swann - PRO SERIES HD 8-Channel, 4-Camera Indoor/Outdoor Wired 2TB DVR Surveillance System - Black/White
- Key Specs
- Field Of View: 70 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 4
- Number Of Channels: 8
- Indoor Or Outdoor Use: Indoor, Outdoor (Indicates the appropriate environment product was designed to be used in.)
- Minimum Operating Temperature: -22 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- General
- Brand: Swann
- Model Number: SWDVK-8HD5MP4-US
- Product Name: PRO SERIES HD 8-Channel, 4-Camera Indoor/Outdoor Wired 2TB DVR Surveillance System
- Color: Black/White
- Camera
- Field Of View: 70 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 98 feet
- Number Of Cameras Included: 4
- Camera Infrared Distance: 98 feet (The distance over which the camera's infrared, or night vision, capabilities can detect objects.)
- Image Sensor Type: Specialty (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Camera Mount Type: Other
- Compatibility
- Camera Compatibility: Not Available
- Operating System Compatibility: Not Applicable
- Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Network Connectivity: Ethernet (The manner in which a device sends data to another device over a long distance using a cellular network.)
- Recording & Playback
- Number Of Channels: 8
- Video Compression Type: Not available
- Storage
- DVR Storage Capacity: 2000 gigabytes
- Performance
- Indoor Or Outdoor Use: Indoor, Outdoor (Indicates the appropriate environment product was designed to be used in.)
- Minimum Operating Temperature: -22 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Mobile Notifications: true
- Auto-On Detection: Motion
- Dimensions
- Camera Height: 2.6 inches
- Camera Width: 2.6 inches
- Camera Depth: 5.9 inches
- DVR Height: 2 inches
- DVR Width: 9.1 inches
- DVR Depth: 12.2 inches
- Sensor
- Sensors: Motion sensor (Detects stimuli such as heat, light, sound, motion, or pressure and responds accordingly by operating a control or initiating a function of the device.)
- Output
- DVR Output(s): HDMI, VGA, RCA audio, USB 2.0, Serial, USB 3.0
- Included
- Camera(s) Included: true
- DVR Included: true
- Included Software: SwannView Plus
- Cable(s) Included: true
- Other
- UPC: 840236119660
Keep your loved ones and possessions safe with this Swann Super HD security system for your home or office. The four-camera setup gives you a range of views, and you can monitor the premises using your cellphone and the compatible app. This Swann Super HD security system uses 1080p HD for clear viewing.
- Monitor your property with 4 cameras: Also includes DVR, mouse, power adapter, power splitter, security stickers, mounting hardware and screws.
- Set and forget with hard drive storage: Record continuously from 8 channels with a 2TB hard drive.
- High-resolution technology captures superior footage: 5 megapixel cameras use advanced image sensors to record clear full-screen video.
- Infrared night vision lets you see in the dark: Keep an eye on things up to 98' away when there's little to no light.
- Viewing angle up to 70°: Expertly captures a wide angle of your property for exceptional security at all times.
- HDMI and VGA outputs: Connect to a wide range of compatible displays for versatile viewing, including your HDTV, LCD or plasma TV. USB connectivity makes it easy to transfer stored footage.
- Monitor your property with 4 cameras: Also includes DVR, mouse, power adapter, power splitter, security stickers, mounting hardware and screws.
- Set and forget with hard drive storage: Record continuously from 8 channels with a 2TB hard drive.
- High-resolution technology captures superior footage: 5 megapixel cameras use advanced image sensors to record clear full-screen video.
- Infrared night vision lets you see in the dark: Keep an eye on things up to 98' away when there's little to no light.
- Viewing angle up to 70°: Expertly captures a wide angle of your property for exceptional security at all times.
- HDMI and VGA outputs: Connect to a wide range of compatible displays for versatile viewing, including your HDTV, LCD or plasma TV. USB connectivity makes it easy to transfer stored footage.
Whats Included
- Swann PRO SERIES HD 8-Channel, 4-Camera Indoor/Outdoor Wired 2TB DVR Surveillance System
- Swann PRO SERIES HD 8-Channel, 4-Camera Indoor/Outdoor Wired 2TB DVR Surveillance System
Product Manuals
Q: Do these cameras show the images in color or black and white only? Thamks
A: It’s color and at night it switches to night mode, which is B&W. On the mobile device though, viewing is horrible and in iOS11 the app is not even supported and no update from Swann. If you won’t be doing mobile viewing - no problem then.
Q: How long are the included video cables?
A: The video cables are 60 feet for each camera.
A: It doesn't make a lot of noise but I have to sleep in a silent room so I put it elsewhere but it's quieter than a quiet fan so you should be good
Q: Which add on camera is compatible with this system?
A: I got this link from Swann when I had the same question before purchasing http://www.swann.com/media/wysiwyg/docs/swann-camera-compatibility.pdf If you can't download the pdf, the customer service at Swann is awesome at answering back, they answered me in under 24 hours on a weekend.
A: Yes you can, it's not that hard to do if you have experience figuring out a vcr, you can program the record times. There is an option right on the main menu to set recording time of day, days of the week, etc. This is a really user friendly system, well worth it.
Q: Is the power adaptor good for 230Vac
A: I don't believe so, 120 only
A: Yes. But its an add on I bought and I love it (HD bullet) if I turn it up all the way I can hear my neighbors tv. In there bed room 200 feet away .
A: Hello, The compatible cmaeras for the unit are the SWPRO-T890CAM.
