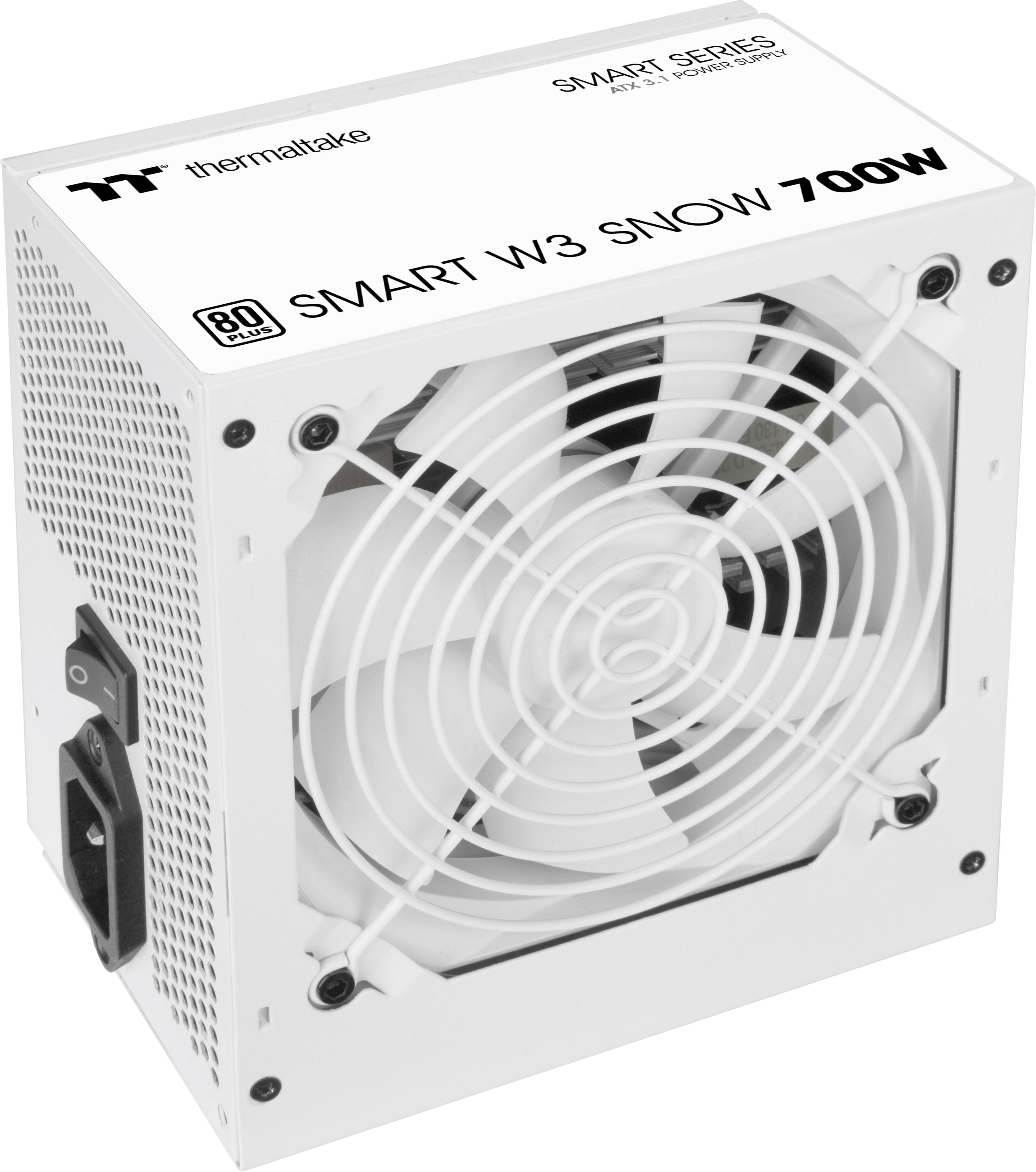

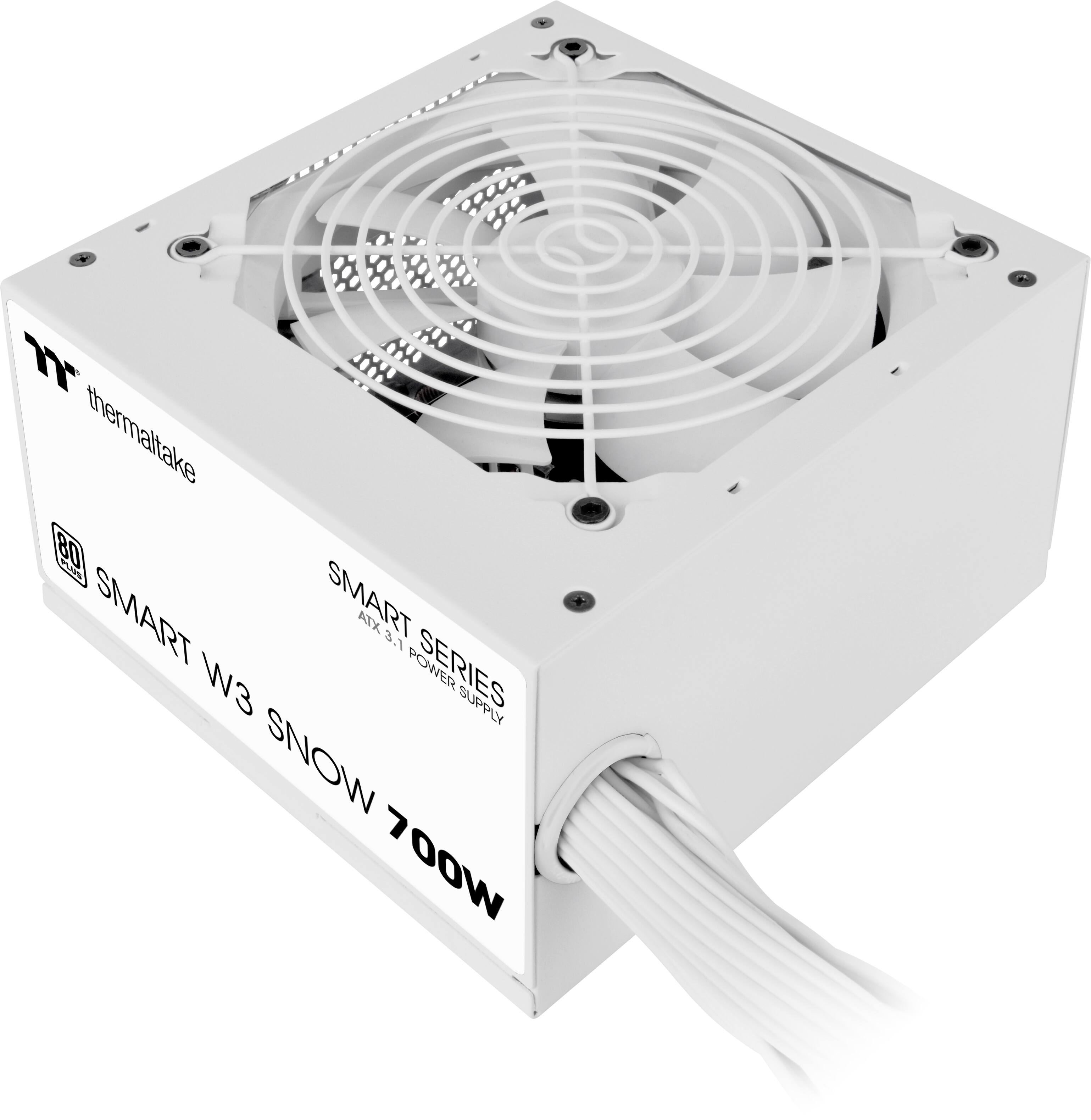

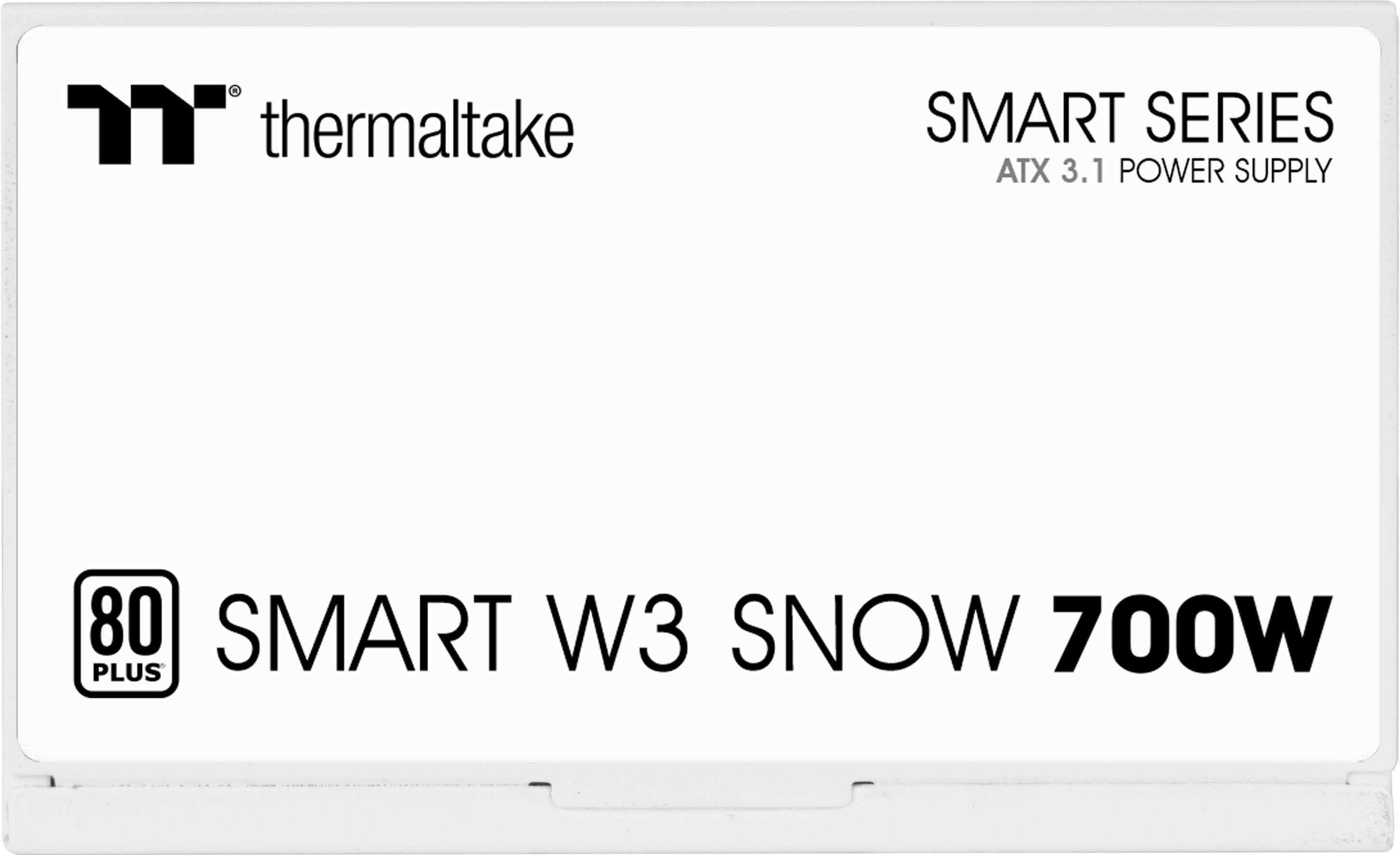

Thermaltake - Smart W3 700W 80Plus Certified ATX v3.1 Spec Power Supply - Snow
- Key Specs
- Wattage: 700 watts (Measurement of electrical power.)
- Modular: Non-modular
- Energy Efficiency: 80 PLUS (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 24pin Main connector (600mm) x 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 2 x PCI-E 6+2Pin connectors (500mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 x Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 4 x SATA connectors (500mm + 150mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 x ATX 12V 4+4Pin (600mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 4.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 5.5 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: Thermaltake
- Model Number: PS-SPW-0700NNFAWU-W
- Product Name: Smart W3 700W 80Plus Certified ATX v3.1 Spec Power Supply
- Color: Snow
- Power
- Wattage: 700 watts (Measurement of electrical power.)
- Modular: Non-modular
- Energy Efficiency: 80 PLUS (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)

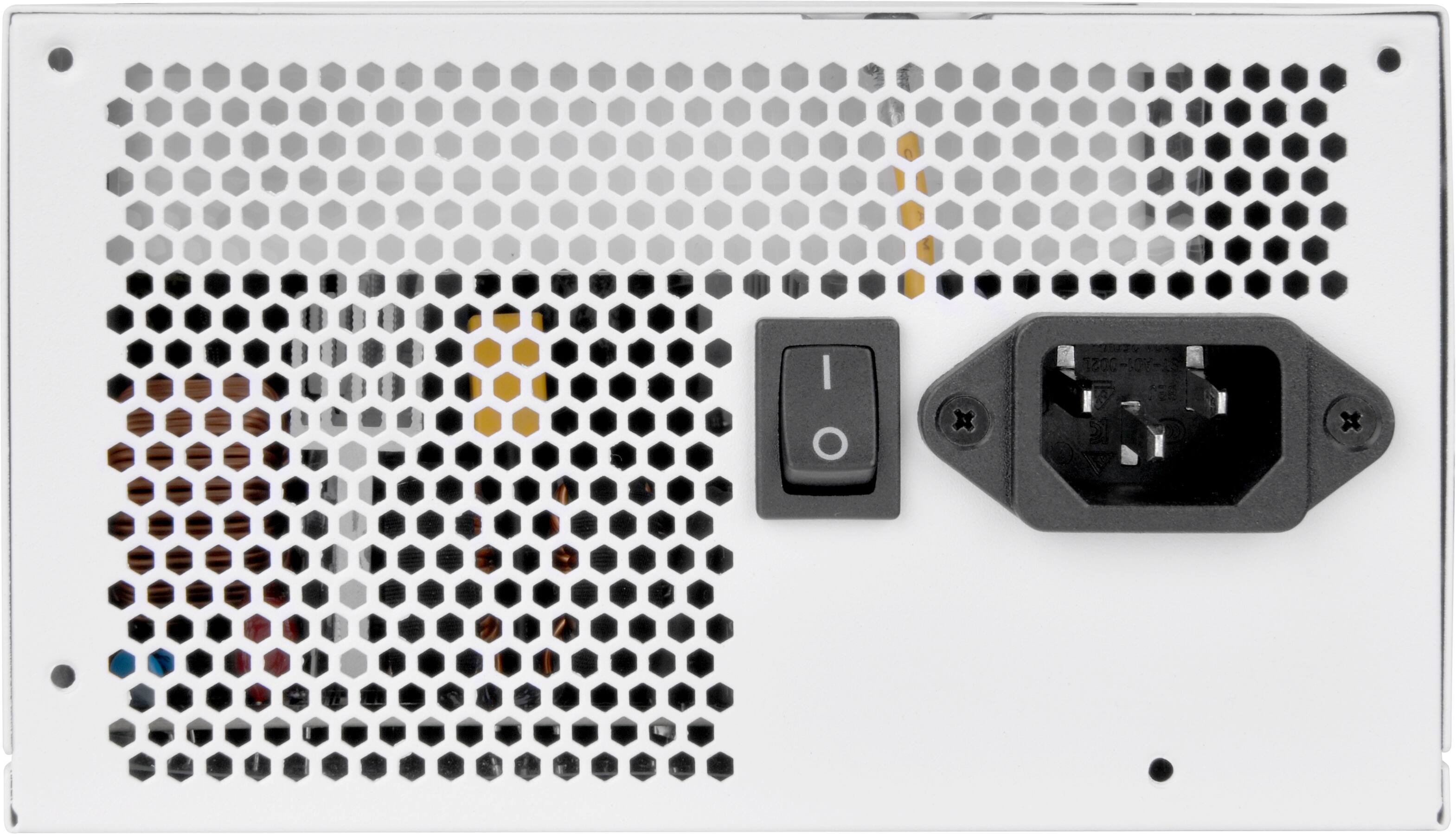

- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 1.97 feet
- Connectivity
- ATX Connector: 24pin Main connector (600mm) x 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 2 x PCI-E 6+2Pin connectors (500mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 x Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 4 x SATA connectors (500mm + 150mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 x ATX 12V 4+4Pin (600mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 4.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 3.4 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5.9 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 5.5 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 3.5 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)

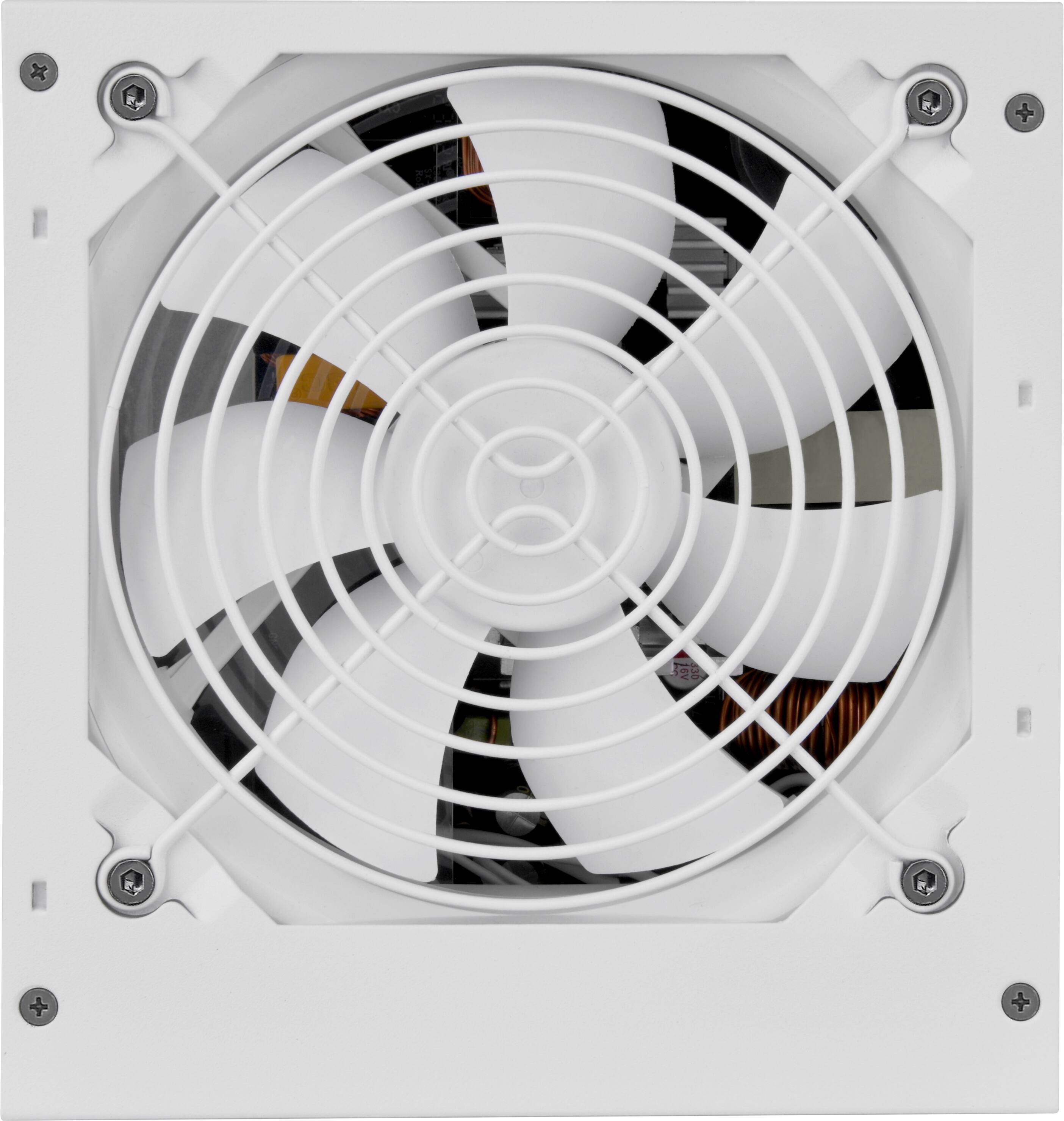

- Cooling Fan Type: 120mm Fluid Dynamic Bearing Fan
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 841163097120
The Thermaltake Smart W3 700W Power Supply is designed to deliver reliable and efficient performance for your system. Built to the latest ATX 3.1 specifications, this non-modular PSU ensures stable power delivery for modern components, making it an excellent choice for both new builds and upgrades. With 80 PLUS certification, it guarantees energy efficiency, helping to lower electricity costs while reducing heat output. The Smart W3 700W is backed by a reassuring 5-year warranty, offering long-term reliability and peace of mind. Whether you're assembling a gaming rig or a workstation, Thermaltake’s trusted quality powers your setup with confidence.
- Intel ATX 3.1 Compatibility:: Fully compatible with Intel ATX 3.1 specifications, supporting 200% power excursion and 60% low load efficiency.
- 80 PLUS Certified: Ensures up to 80% efficiency, reducing energy waste and lowering electricity costs.

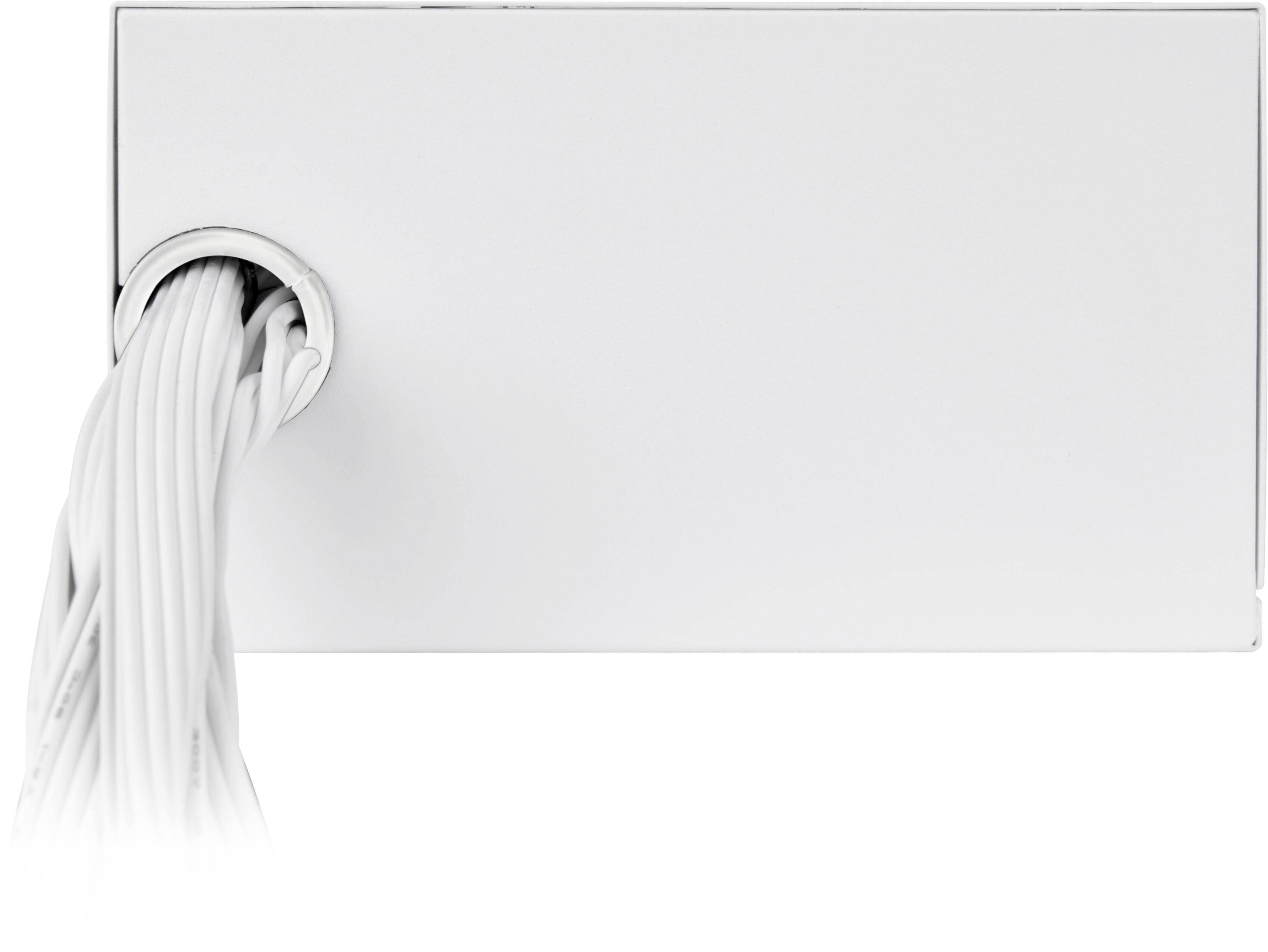

- Low-Profile Flat Cables: Simplifies cable management and improves airflow within the case.

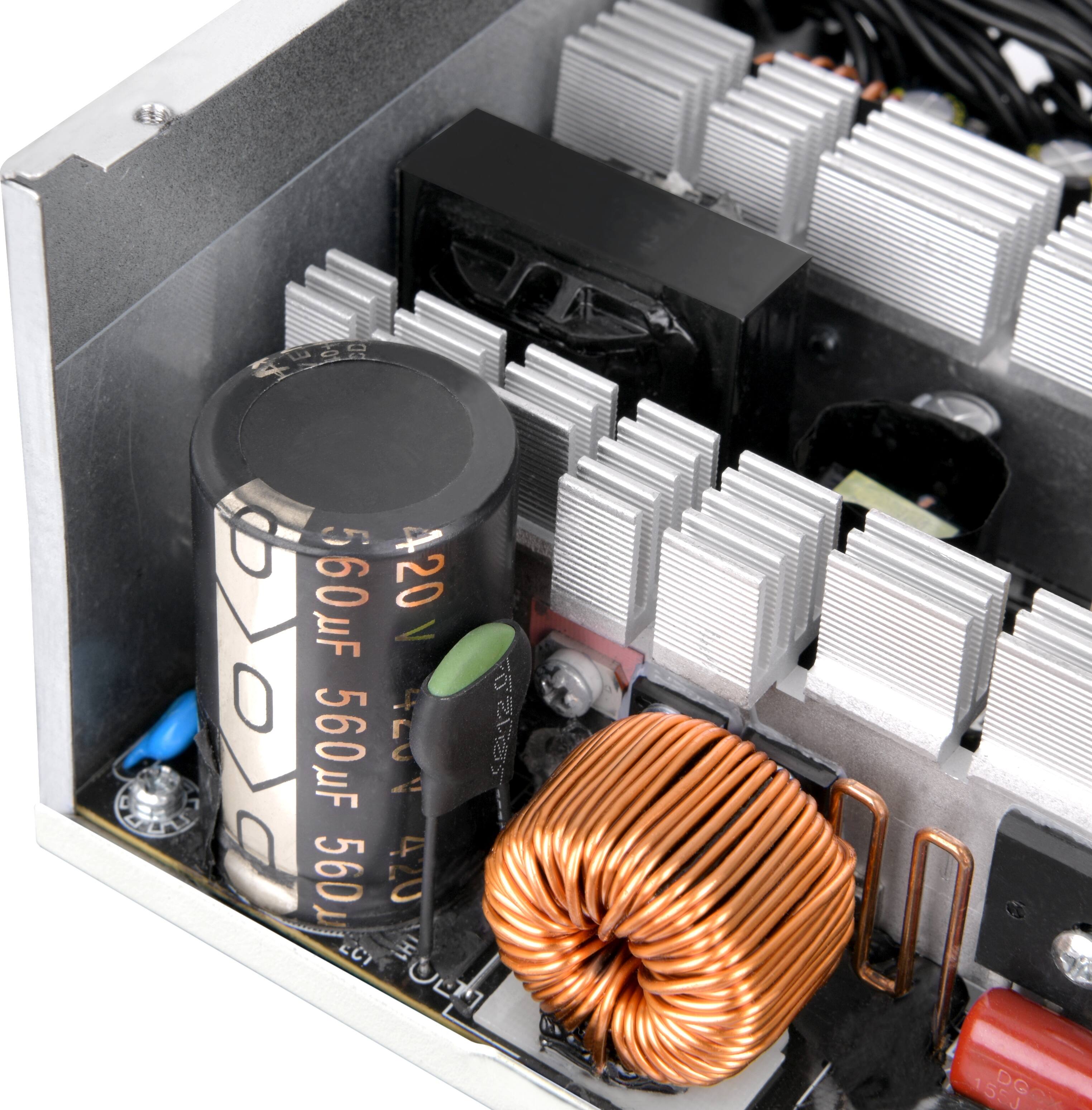

- High-Quality Main Capacitor: The 105°C/221°F capacitor enhances durability, offering stability and reliability.
- 700W Continuous Output: Delivers 700W of continuous power at 40°C/104°F, ensuring reliable performance under everyday conditions.

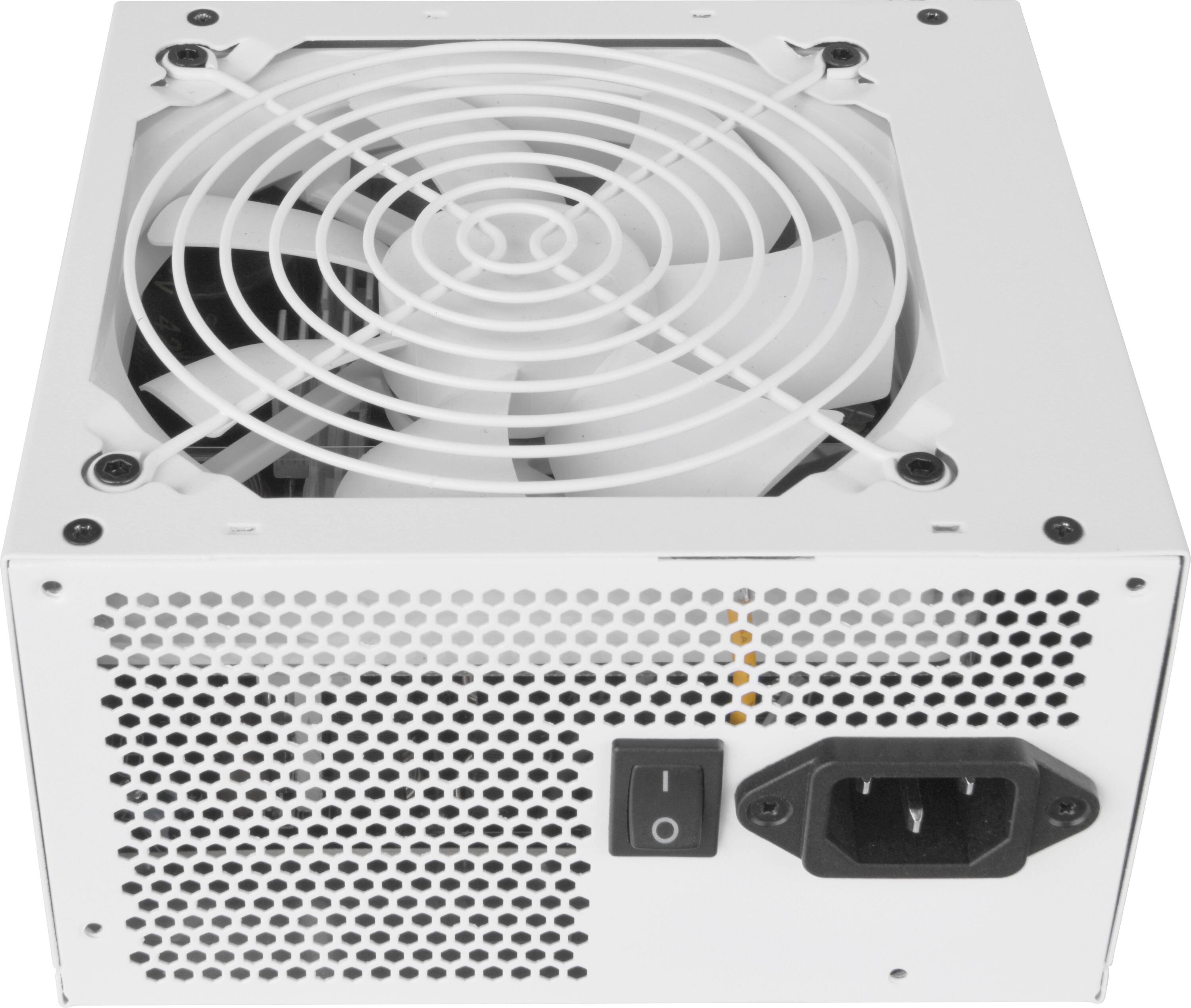

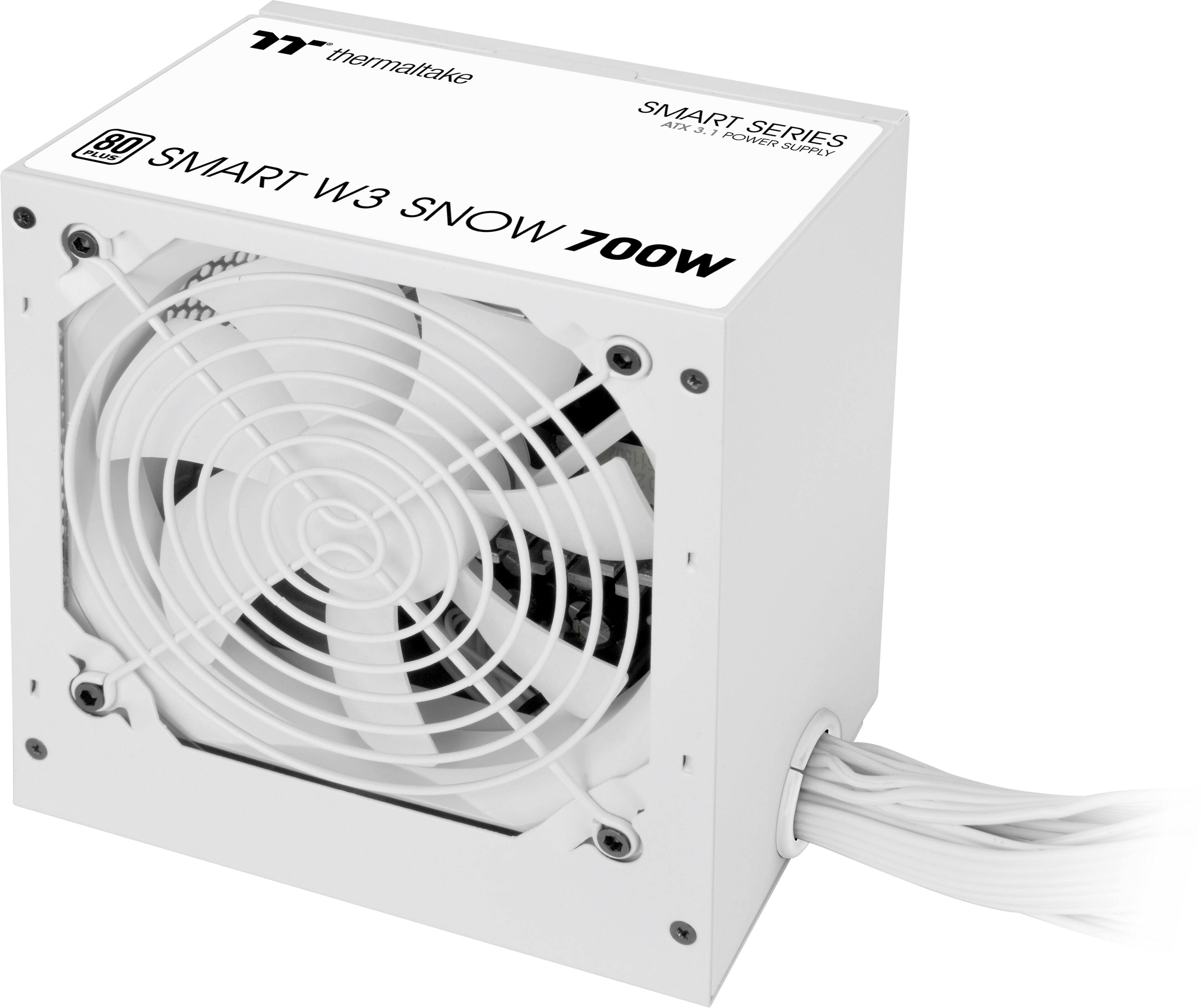

- Ultra-Quiet 120mm Cooling Fan: Provides good airflow at low noise levels, maintaining a quiet environment.
- High Amperage Single +12V Rail Design: Powerful single +12V rail and DC-DC design ensure compatibility and precise electrical output.
- Energy Efficient: Supports Intel C6/C7 states and ErP, helping your PC operate more efficiently.
- Built-In Industry Grade Protections: Includes OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection).
- Compact Sizing: With dimensions of 150mm (W) x 86mm (H) x 140mm (D), it fits easily into most computer cases.
Whats Included
- 1x Smart W3 Snow 700W 80+ Power Supply
Q: Is this power supply energy efficient?
A: Yes, it is 80 PLUS Certified, ensuring up to 80% efficiency.
Q: Is this power supply compatible with Intel ATX 3.1 specifications?
A: Yes, it is fully compatible with Intel ATX 3.1 specifications.
Q: What kind of cables does this power supply use?
A: It uses low-profile flat cables for easier cable management and improved airflow.
Q: What protections are built into this power supply?
A: It includes over current protection (OCP), over voltage protection (OVP), under voltage protection (UVP), over power protection (OPP), short circuit protection (SCP), and over temperature protection (OTP).
Q: What protections are built into this power supply?
A: It includes OCP, OVP, UVP, OPP, SCP, and OTP.
Q: What kind of fan does the power supply use for cooling?
A: It uses a 120mm Fluid Dynamic Bearing Fan.
Q: Does this power supply have a single +12V rail design?
A: Yes, it has a high amperage single +12V rail design.
Q: What is the wattage of this power supply?
A: This power supply has a wattage of 700W.
