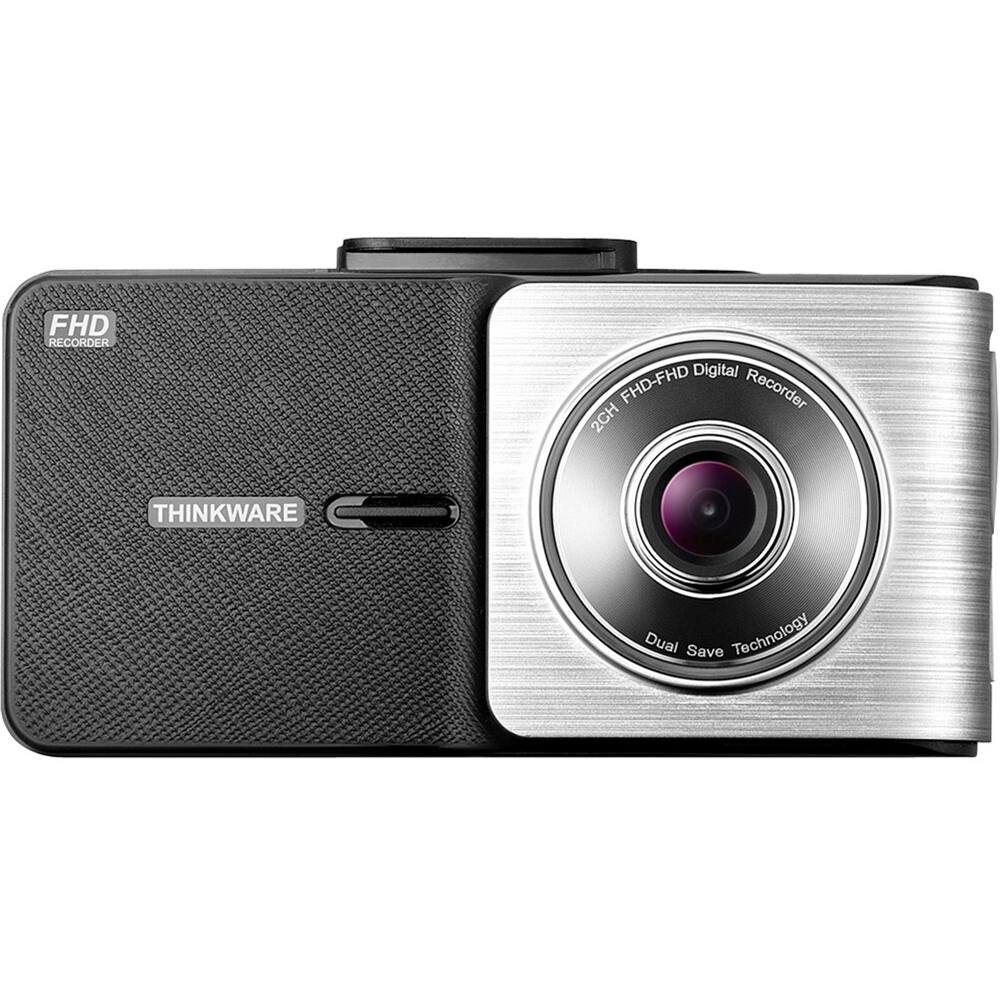

THINKWARE - X500 Dash Cam with Rear View Camera - Black/Silver
- Key Specs
- Field of View: 140 degrees
- Automatic Incident Detection: true
- G-Sensor: true
- Recording Resolution: 1920 x 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Compatibility: Universal
- Camera Mounting Location: Adhesive
- Vehicle Camera Type: Dashboard
- General
- Brand: THINKWARE
- Model Number: TW-X500D
- Product Name: X500 Dash Cam with Rear View Camera
- Color: Black/Silver
- Vehicle Camera Type: Dashboard
- Recording & Playback
- Field of View: 140 degrees
- Automatic Incident Detection: true
- G-Sensor: true
- Recording Resolution: 1920 x 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Frame Rate: 30 frames per second (The frequency at which consecutive images can be captured. The higher the frame rate, the more detail that can be captured.)
- Loop-Cycle Recording: true
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Camera Power Source: Vehicle battery
- Expandable Memory Compatibility: microSD
- Recording Feature: true
- Compatibility
- Compatibility: Universal
- Features
- Integrated Microphone: true
- Night Vision: true
- Display
- Screen Included: false
- Mounting
- Camera Mounting Location: Adhesive
- Mount Included: true
- Mount Type: Other
- Input
- Number Of Auxiliary Inputs: 0
- Number of USB Port(s): 1
- Dimensions
- Product Height: 2.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.33 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year on cameras; 6 months on micro SD card
- Warranty - Labor: 1 year
- Other
- UPC: 888622000802
Continuously record what's going on around you with this ThinkWare front and rear dashcam. It's designed to show exactly what happened in the event of an incident or an accident, yet it does more than this thanks to the ThinkWare front and rear dashcam's safety camera alert feature and its average speed zone warning system to help protect your license.
- Sony Exmor CMOS image sensor: 2.4-megapixel can greatly improve the quality of night time images as well as day time images.
- Full HD: Dash cam and rear view camera records 1080p video with 30fps.
- High performance SD card: Provided 32GB UHS-I Micro SD card with Sudden Power Off Recovery Technology ensures that all files are saved.
- Strong Processor, Ambarella A7: Minimizes power consumption and provides optimal performance.
- 140 Degree Wide Angle: The highly precise optical glass lens records all surrounding images around your car, without missing a movement and provides minimum distortion.
- Road Safety Warning System: Lane departure, front collision, red light and speed camera alerts help increase driver awareness.
- Automatic Temperature Sensitive Shutdown Protection: If the temperature rises and exceeds a certain level, function will automatically switch off the device to protect the stored videos.
- Built-in GPS: Can precisely pinpoint the vehicle's driving speed, location and routes on the map.
- Parking Mode: Motion detection recording is activated and incident recording is maintained. Prevents battery drain during Parking.
- 2.7" color display: Offers crisp visuals.
- Sony Exmor CMOS image sensor: 2.4-megapixel can greatly improve the quality of night time images as well as day time images.
- Full HD: Dash cam and rear view camera records 1080p video with 30fps.
- High performance SD card: Provided 32GB UHS-I Micro SD card with Sudden Power Off Recovery Technology ensures that all files are saved.
- Strong Processor, Ambarella A7: Minimizes power consumption and provides optimal performance.
- 140 Degree Wide Angle: The highly precise optical glass lens records all surrounding images around your car, without missing a movement and provides minimum distortion.
- Road Safety Warning System: Lane departure, front collision, red light and speed camera alerts help increase driver awareness.
- Automatic Temperature Sensitive Shutdown Protection: If the temperature rises and exceeds a certain level, function will automatically switch off the device to protect the stored videos.
- Built-in GPS: Can precisely pinpoint the vehicle's driving speed, location and routes on the map.
- Parking Mode: Motion detection recording is activated and incident recording is maintained. Prevents battery drain during Parking.
- 2.7" color display: Offers crisp visuals.
Whats Included
- Thinkware X500 Dash Cam with Rear View Camera
- MicroSD 32GB UHS-I memory card
- Car power adapter
- Adhesive windshield mount
- Extra 3M tape
- 5 adhesive cable holders
- 20 ft cable for rear view camera
- Owner's manual
- Thinkware X500 Dash Cam with Rear View Camera
- MicroSD 32GB UHS-I memory card
- Car power adapter
- Adhesive windshield mount
- Extra 3M tape
- 5 adhesive cable holders
- 20 ft cable for rear view camera
- Owner's manual
Q: How long will the video record before it starts overwriting?
A: Mine goes about 4 hours before it starts overwriting on the 32GB card.
Q: F770, F750 and X500 which one is the best?
A: Hi there! While the F770 has the most amount of features, it is a matter of preference and if you have specific features you're looking for. Please contact us regarding your preferences for a dash cam so we can provide you with a tailored recommendation. We can be directly contacted by phone (1-844-865-9273) or email ([email protected]). Thinkware Customer Support
A: Hi there! Although the connector for the F770 is different from the F750 and X500 rear-view camera (TWA-X500F750R), they are compatible. Please let us know if you have additional questions by contacting us directly by phone (1-844-865-9273) or email ([email protected]). Thinkware Customer Support
Q: Is it good for trucks and does it have night vision
A: Hi there. It will largely depend on the truck but the X500 is compatible with most non-commercial vehicles. While the X500 does not have a dedicated night vision mode, its sensor adjusts brightness for night time recording. Please let us know if you have additional questions by contacting us directly by phone (1-844-865-9273) or email ([email protected]). Thinkware Customer Support
A: Hi there. The X500 is not compatible with non-Thinkware accessories. We recommend increasing the volume setting on the dash cam instead by going to the main menu -> "Settings" -> "System Settings". Please let us know if you have additional questions! We can be contacted by phone (1-844-865-9273) or email ([email protected]). Thinkware Customer Support
Q: do I need any extra cables to install the rear camera or does it come with the this kit?
A: comes with it
A: Hi there, Thank you for contacting Thinkware. Q1: For parking mode, the dash cam has two security features that prevent car battery drainage. Firstly, users can set the "Time Setting for Stop Recording" on the dash cam in parking mode. Secondly, the dash cam has a battery voltage setting for stop recording. Depending on the set voltage, if the vehicle drops below that threshold, the dash cam will automatically turn itself off. Q2: For the North American market, we have not received such inquiries. However, this does not mean that our dash cam users are not susceptible to a stolen dash cam. Please take caution with all of your belongings. Kind regards, Thinkware Customer Support
A: Hi Becky. The X500 can be installed accordingly to record vandalism from the side of your vehicle. For the purpose of catching vandals, we strongly recommend users to hardwire their dash cam to allow the dash cam to continue recording when parked. We hope this helps! Please let us know if you have additional questions. We can be contacted by phone (1-844-865-9273) or email ([email protected]). Thinkware Customer Support
