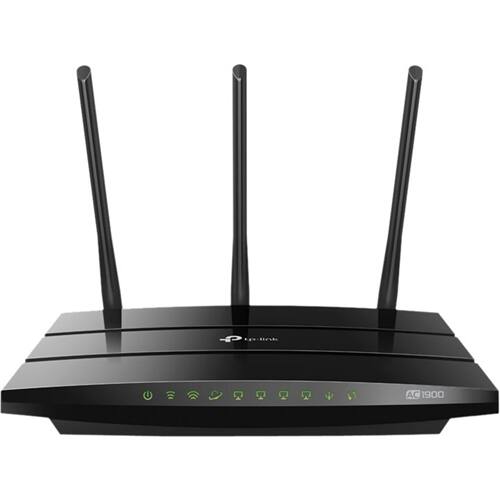

TP-Link - Archer AC1900 Dual-Band Wi-Fi 5 Router - Black
Model: ARCHER C90
SKU: 6345930
This item is no longer available in new condition. See similar items below
- Key Specs
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 1900 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- General
- Brand: TP-Link
- Model Number: ARCHER C90
- Product Name: Archer AC1900 Dual-Band Wi-Fi 5 Router
- Color: Black
- Security
- Data Encryption: true
- Encryption Type: WPA, WPA2, WPA-PSK, WPA2-PSK (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: SPI (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Parental Controls: true (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Network
- Quality Of Service (QoS) Traffic Prioritization: true (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Band Technology: Dual (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number of Antennas: 4
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 5 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AC, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Number of 2.4Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. Because the 2.4 GHz band is used to transmit wireless signals to a wide variety of devices, there is often high amounts of traffic on that stream. But with multiple streams, each can be designated to a specific device for optimal performance. For example, if one 2.4 GHz stream is assigned to one device, such as a desktop computer, it leaves the remaining streams open for guest users, devices that use more data, or devices with specific band compatibility.)
- Number of 5.0Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. The 5.0 GHz band provides high speed, short-range data transmission and typically has less traffic than the 2.4 GHz band. With multiple streams, each can be designated to a specific device for optimal performance. For example, if one 5.0 GHz stream is assigned to one device, such as a streaming media player, it leaves the remaining streams open for guest users, devices that need less data, or devices with specific band compatibility.)
- Ethernet Switch: true (Connects multiple devices to expand the Local Area Network (LAN).)
- Transport Protocol: PPTP, L2TP, PPPoE, FTP, DHCP, DDNS (The protocol used for connection-oriented transmissions, flow control, etc. within the transport layer of the network.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- Integrated Modem: true
- Wireless: true
- Ports
- Number Of WAN Ports: 1 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): RJ-45, USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Wi-Fi Speed: 1900 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Dimensions
- Product Height: 1.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 6.3 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 9.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.2 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 840030700095
Increase Wi-Fi range and boost speeds with this TP-Link wireless Gigabit router. The 5GHz band accelerates downloads with speeds of up to 1300Mbps, while the 2.4GHz band supports speeds of up to 600 Mbps. This TP-Link wireless Gigabit router uses beamforming and MU-MIMO technology to extend Wi-Fi range and maximize speeds across multiple devices simultaneously.
- Wireless-AC technology: Promotes rapid performance and optimal coverage.
- Up to 1.9 Gbps data transfer speed: For fast, efficient operation.
- Dual-band 2.4GHz/5.0GHz frequency: Delivers a fast response when transferring files.
- 4 high-performance antennas for thorough coverage: Large, overlapping Wi-Fi patterns remove dead spots and widen the router's range.
- MU-MIMO technology: MU-MIMO gives every compatible device its own dedicated full-speed Wi-Fi connection, so that multiple devices can connect at the same time without slowing down the network.
- 1 USB 2.0 port: Allows you to connect a printer and enjoy 3G and 4G file sharing.
- Parental control: Lets you automatically block specific content on connected devices.
- Complies with a variety of standards: Including FCC, RoHS and RCM.
- Gigabit Ethernet connectivity: Offers a high-speed wired network connection.
- Auto detecting and auto sensing: To simplify device connectivity.
- DoS attack prevention: Helps block intruders from accessing sensitive information.
- Encryption: Includes 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK and WPA2-PSK to keep your network secure.
- QoS (Quality of Service): Keeps track of network traffic to help determine the priority of applications.
- Browser-based setup: Lets you quickly install the router using your compatible cell phone, tablet or computer.
- Plug-and-play operation: Makes setup simple.
- Wireless-AC technology: Promotes rapid performance and optimal coverage.
- Up to 1.9 Gbps data transfer speed: For fast, efficient operation.
- Dual-band 2.4GHz/5.0GHz frequency: Delivers a fast response when transferring files.
- 4 high-performance antennas for thorough coverage: Large, overlapping Wi-Fi patterns remove dead spots and widen the router's range.
- MU-MIMO technology: MU-MIMO gives every compatible device its own dedicated full-speed Wi-Fi connection, so that multiple devices can connect at the same time without slowing down the network.
- 1 USB 2.0 port: Allows you to connect a printer and enjoy 3G and 4G file sharing.
- Parental control: Lets you automatically block specific content on connected devices.
- Complies with a variety of standards: Including FCC, RoHS and RCM.
- Gigabit Ethernet connectivity: Offers a high-speed wired network connection.
- Auto detecting and auto sensing: To simplify device connectivity.
- DoS attack prevention: Helps block intruders from accessing sensitive information.
- Encryption: Includes 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK and WPA2-PSK to keep your network secure.
- QoS (Quality of Service): Keeps track of network traffic to help determine the priority of applications.
- Browser-based setup: Lets you quickly install the router using your compatible cell phone, tablet or computer.
- Plug-and-play operation: Makes setup simple.
Whats Included
- Network cable
- TP-Link Archer AC1900 Dual-Band Wi-Fi 5 Router
- Network cable
- TP-Link Archer AC1900 Dual-Band Wi-Fi 5 Router
A: Yes, definitely. That’s what I connected mine to.
Q: Does this work with Summit broadband.
A: Yes, as long as you have an existing Ethernet connection that provides Internet, such as a modem. You can then connect the router to the modem via Ethernet and enjoy robust, dual-band AC1900 WiFi in your home. Regards, TP-Link Support
Q: IS THIS A DOCSIS 3.1 MODEM?
A: No, this is a dual-band AC1900 WiFi router, not a modem.
Q: What chipset is used in this router? Does this router have a Dual-Core processor? Thanks
A: undefined
Q: Is this router compatible with FiOS
A: I did a quick check and you can use WAN port and still get TV through your cable, so this router is fine. You will need to call into fios and they will remotely activate the WAN port for you. That is what I had to do when I "cut the cable" I hope this helps.
Q: What is the range for this router?
A: Full strength in our 2000SF single-level house. Signal is good at least to the end of our driveway on the opposite side of our house. So, perhaps 80 feet. But this so depends on placement and the structure and materials in your home.
Q: Does this work with Charter/SPECTRUM?
A: Yes. Connected the router to an approved cable modem. At least where I live, Spectrum will provide a router capability for an extra $5/month. I prefer to use my router.
Q: Do I need a separate cable modem with this?
A: Yes a cable modem is needed separately
