UGREEN - Docking Station with Dual 4K HDMI Display, USB-C Laptop Dock for HP, Thinkpad, Dell and More (100W PD, 10Gbps USB A&C) - Space Gray
UGREEN - Docking Station with Dual 4K HDMI Display, USB-C Laptop Dock for HP, Thinkpad, Dell and More (100W PD, 10Gbps USB A&C) - Space Gray
FREE shipping to
About This Item
- Key Specs
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 4K (2160p)
- Number of DisplayPort Outputs (Total): 0
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- General
- Brand: UGREEN
- Model Number: CM498
- Product Name: Docking Station with Dual 4K HDMI Display, USB-C Laptop Dock for HP, Thinkpad, Dell and More (100W PD, 10Gbps USB A&C)
- Color: Space Gray
- Display
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 4K (2160p)
- Maximum Supported Refresh Rate: 240Hz (The number of frames per second the device can support, expressed as a frequency. Higher rates help produce smooth, seamless pictures.)
- Ports
- Display Connector(s): 2 x HDMI 2.0 (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 0
- Number of HDMI Ports (Total): 2
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)

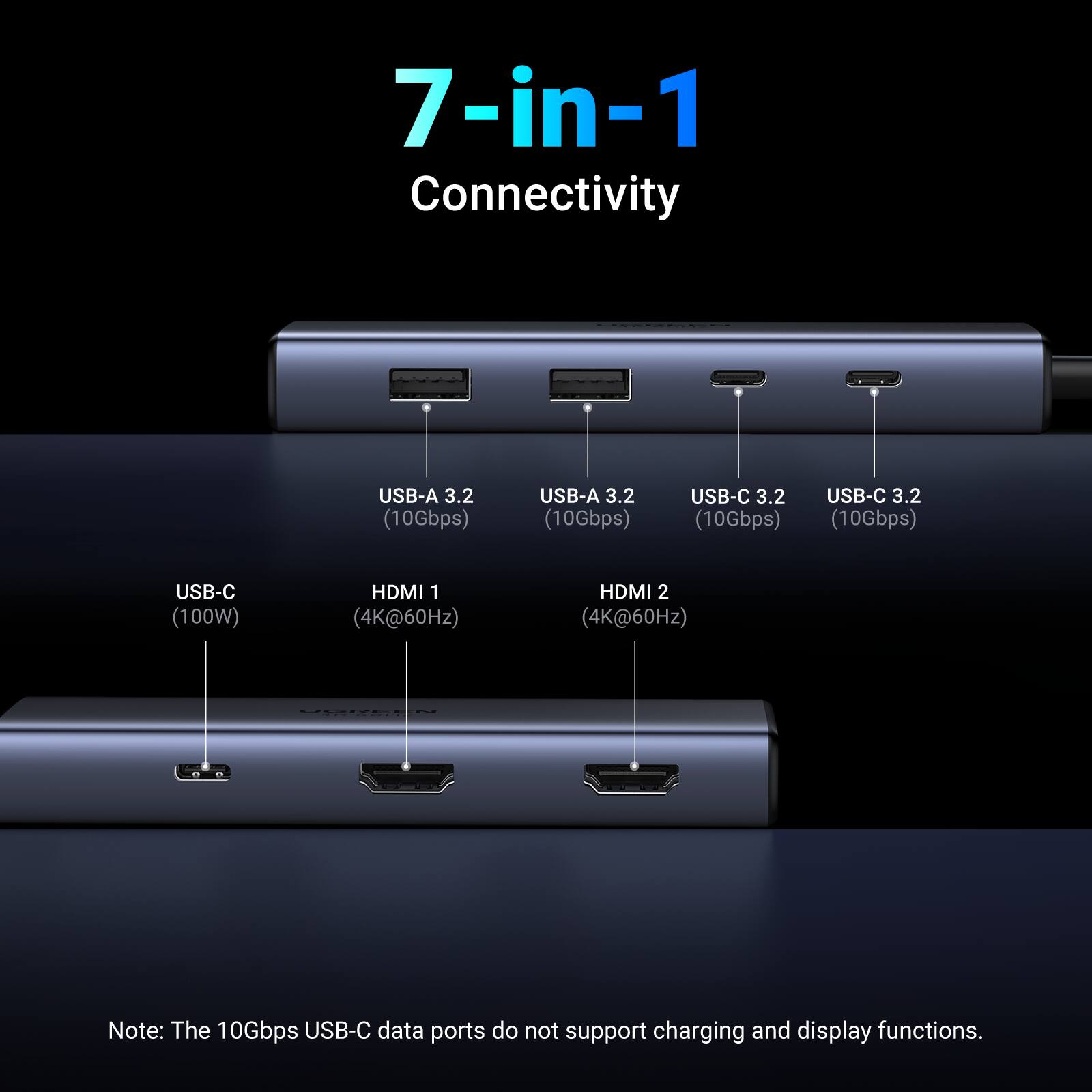

- Number of USB Ports (Total): 4
- USB Ports: 2 x USB-A 3.2, 2 x USB-C 3.2 (The number and type of USB ports the product has.)
- Power
- Powered: true
- Power Supply Input: USB-C
- Maximum Input Power: 100 watts (The maximum amount of power allowed to come into the device.)
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- Power Supply Output: USB-C (The connector type(s) used by the device to send electrical power to another device.)
- Maximum Output Power: 85 watts (The maximum amount of power produced or allowed to flow through the device.)
- Compatibility
- Maximum Data Speed: 10000 megabits per second
- Brand Compatibility: Dell, HP, Lenovo, Microsoft
- Model Compatibility: XPS, ThinkPad, ThinkBook, Surface Book, and More
- Features
- Material: Aluminum Alloy
- Dimensions
- Product Height: 0.49 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 3.1 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 0.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2.5 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2-Year Warranty
- Warranty - Labor: 2-Year Warranty
- Other
- UPC: 850053593260
Transform your laptop into a powerful dual-monitor workstation. This 7-in-1 UGREEN USB-C docking station delivers two 4K@60Hz HDMI outputs for expansive screen real estate, 100W Power Delivery to keep your device fully charged, and four 10Gbps USB ports for ultra-fast data transfers. Built with a premium aluminum body for durability and efficient heat dissipation, it offers seamless, high-performance connectivity—perfect for professionals using HP, ThinkPad, Dell, and other USB-C laptops.

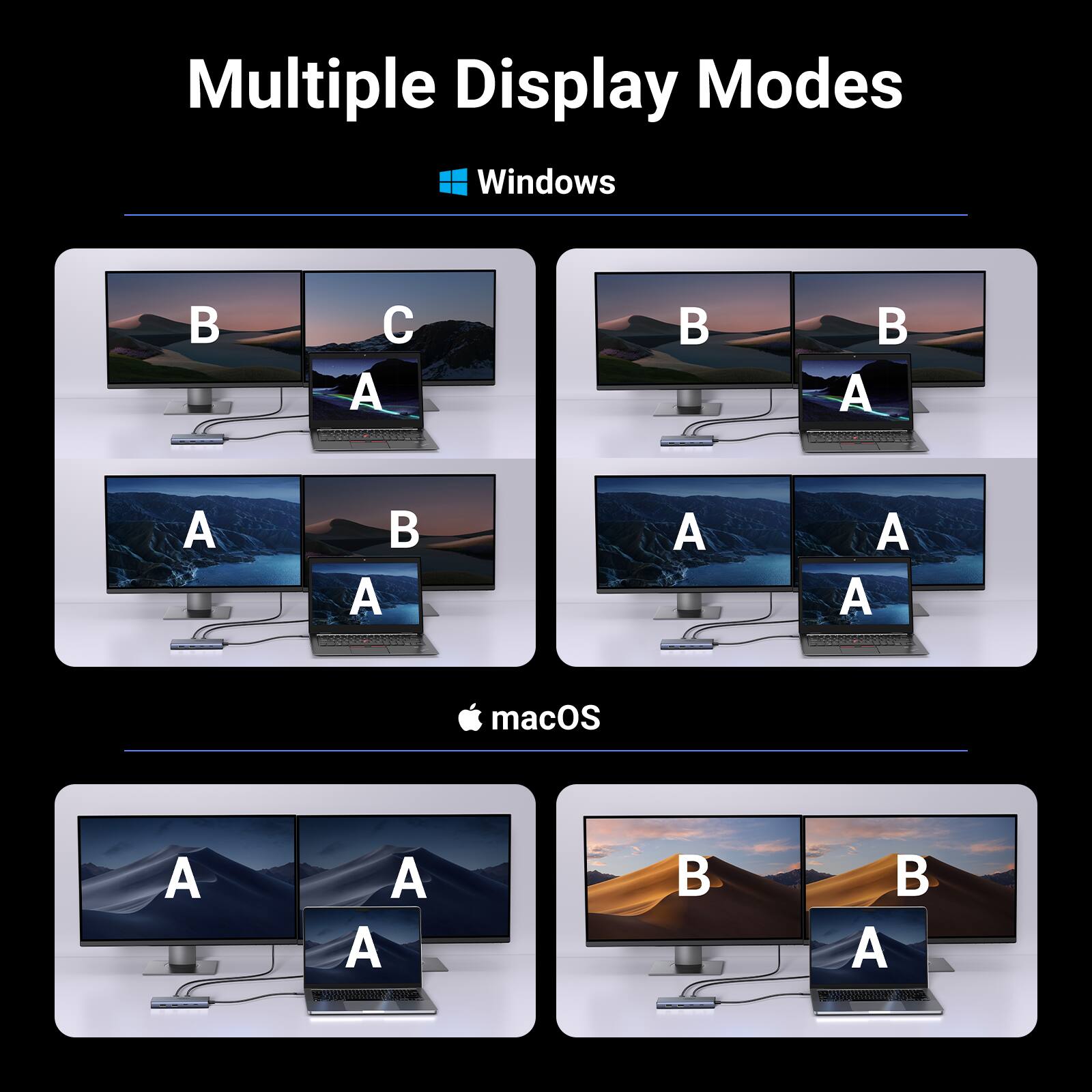

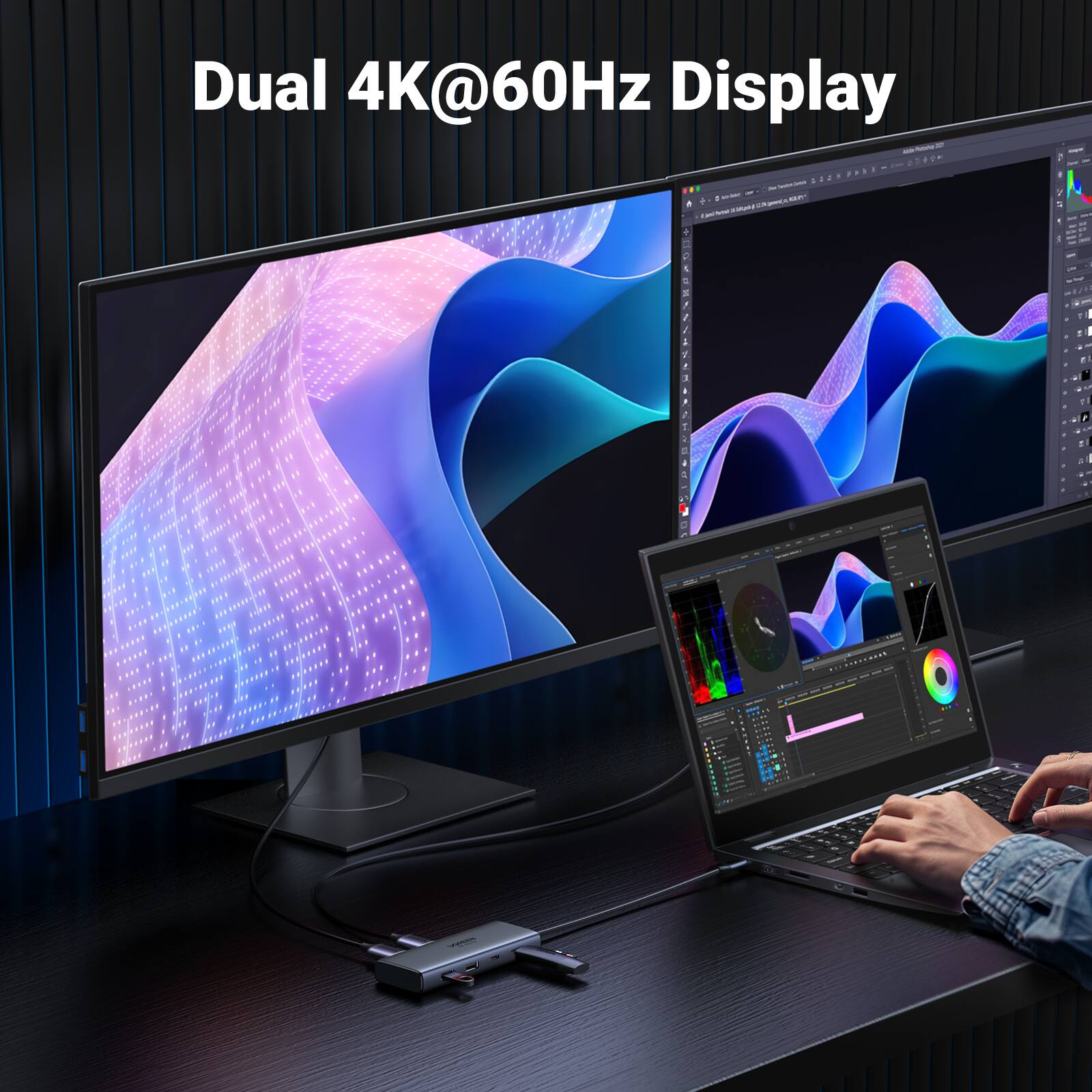

- Dual 4K HDMI @ 60Hz with MST Support: Extend your workspace across two external monitors in stunning 4K resolution. Supports Multi-Stream Transport (MST) on Windows for true extended desktop mode. For macOS, dual displays operate in mirror mode only.

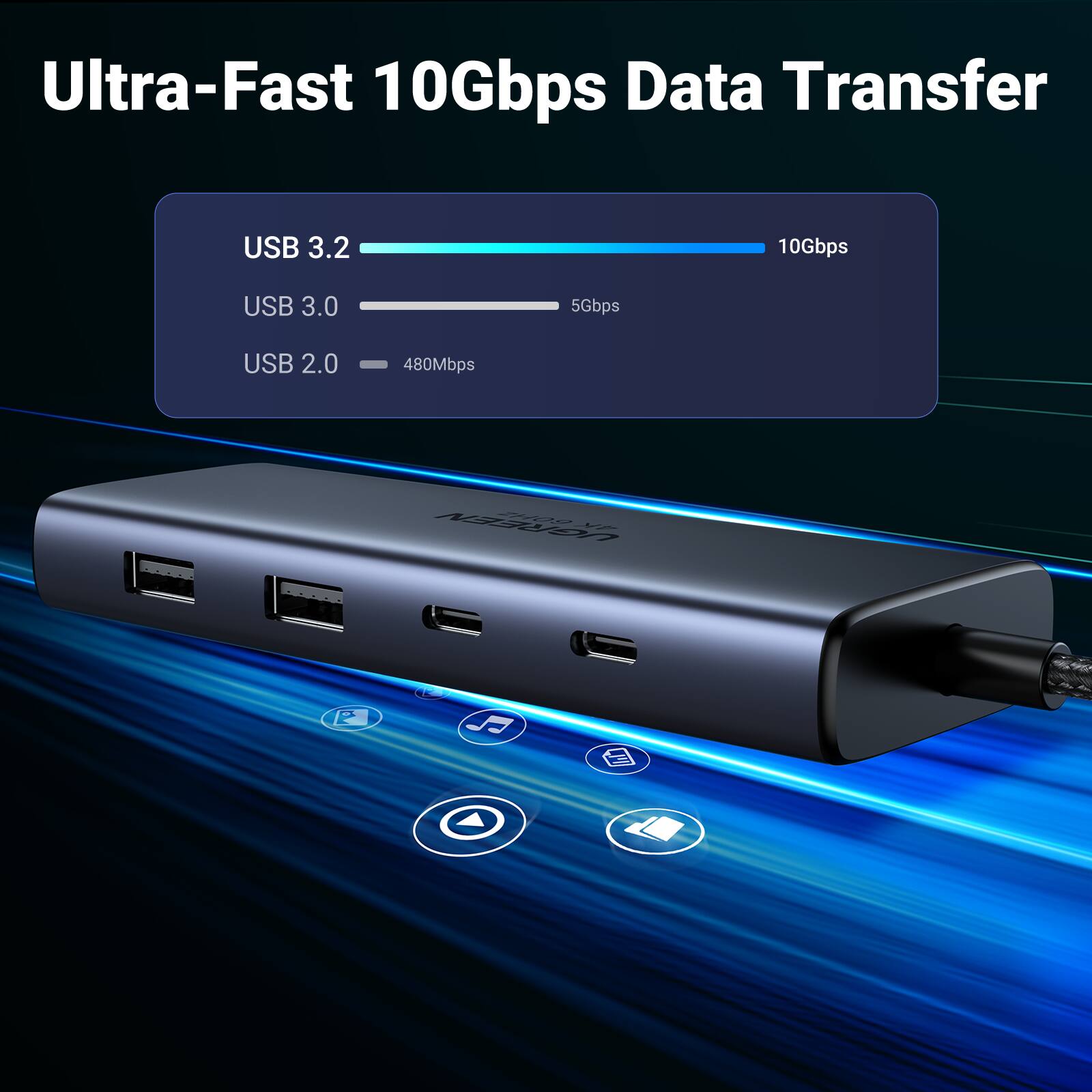

- 10Gbps Ultra-Fast Data Transfer: Move large files, videos, and projects in seconds with four high-speed USB 3.2 Gen 2 ports—two USB-A and two USB-C—each supporting transfer rates up to 10Gbps.

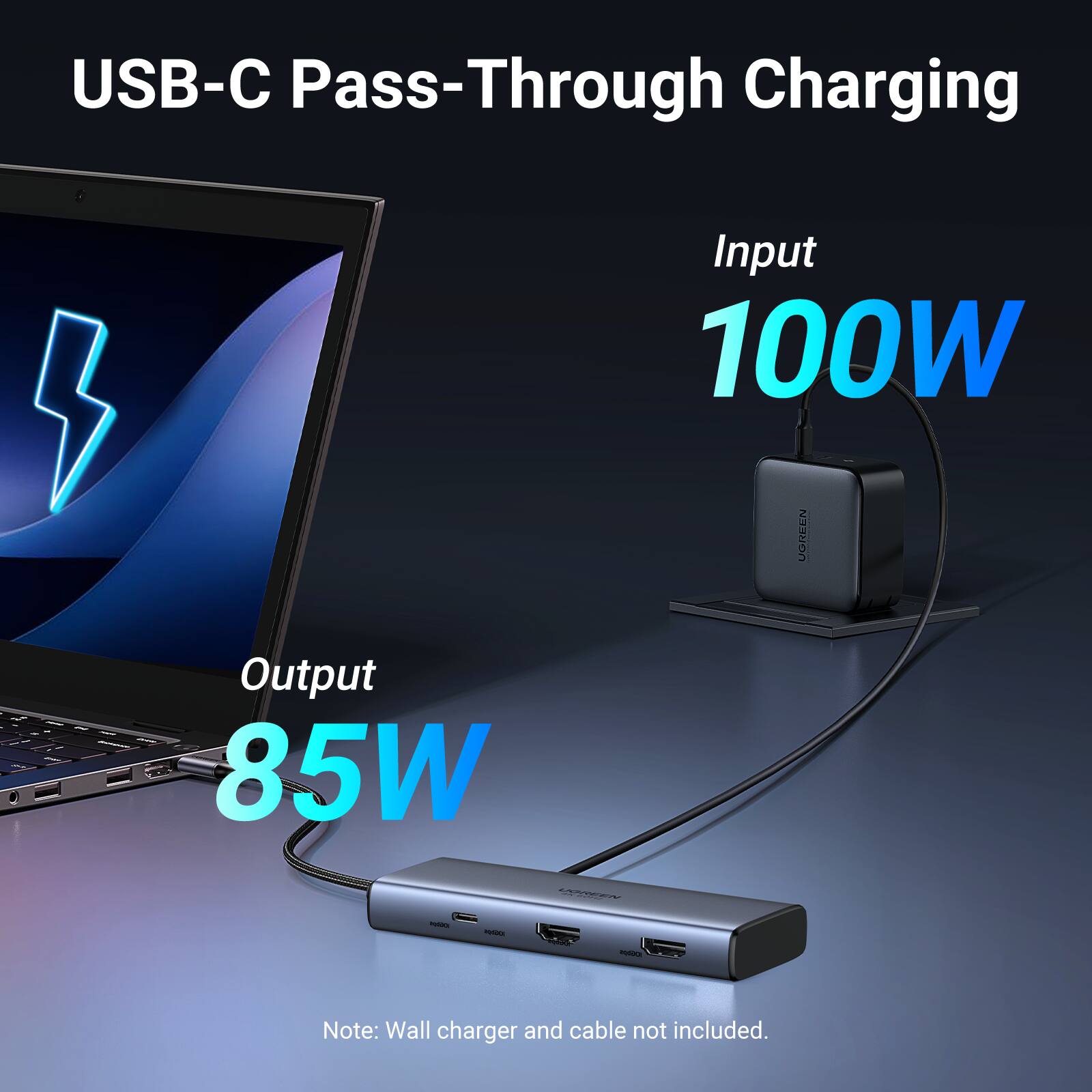

- 100W Power Delivery Pass-Through: Keep your laptop powerfully charged with up to 100W PD input, ensuring uninterrupted performance while all connected devices and ports remain active.
- Aluminum Alloy Cooling Design: Crafted from aerospace-grade aluminum for efficient heat dissipation and lasting stability, even during extended multi-tasking and high-load workflows.
- Broad Compatibility: Works seamlessly with most USB-C laptops including ThinkPad X1, ZenBook, Chromebook, Surface, and more. Note: Extended dual-screen mode is supported on Windows via MST. Mac users will experience display mirroring across both monitors. If you are a Mac user needing two independent external displays, this dock may not be suitable for your setup.
Whats Included
- 1 X UGREEN 7-in-1 Docking Station, 1 X User Manual, 1 X Warranty Card
