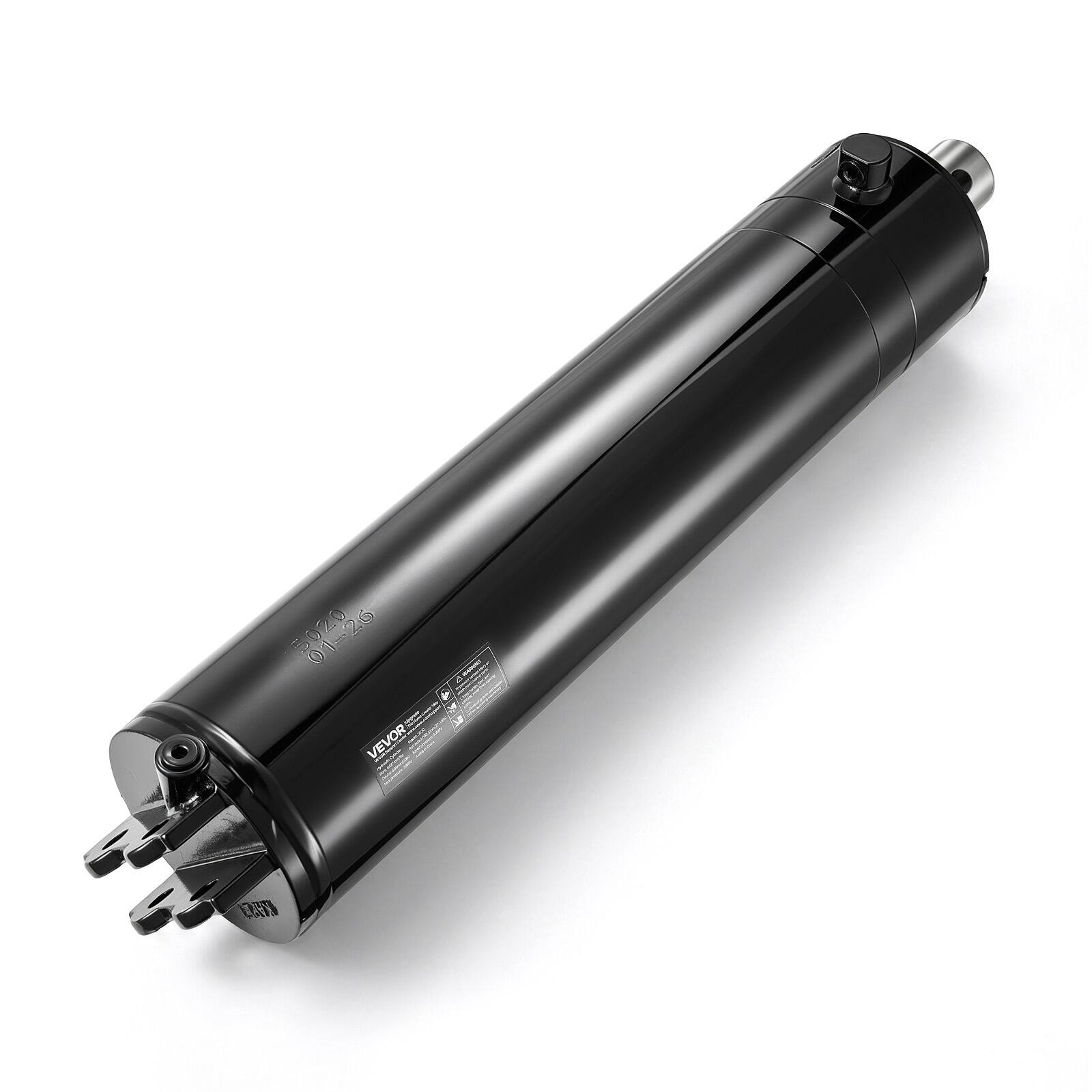

VEVOR - Double Acting Hydraulic Cylinder, 5" Bore x 20" Stroke, Max 4500PSI Hydraulic Cylinder, Heavy-Duty Welded Cross Tube - Black
Model: 5020
SKU: 12894822
Reviews coming soon
Reviews coming soon
With high-pressure capacity and powerful hydraulic force, this double acting hydraulic cylinder delivers smooth, powerful push-pull motion to help agricultural equipment operate more efficiently.
Bore: 5 in (127 mm), Stroke: 20 in (508 mm), Retracted Length: 27.5 in (698.5 mm), Extended Length: 47.5 in (1206.5 mm), Port Size: SAE #6, Pin Hole Diameter: 0.63 in
Driven by hydraulic pressure on both sides of the piston, this double-acting hydraulic cylinder delivers stable, controlled push-and-pull motion for smoother agricultural machinery operation
Built for demanding workloads, this hydraulic cylinder supports 2900 PSI rated pressure and up to 4500 PSI max pressure, delivering steady hydraulic force to improve equipment operating efficiency
This cross tube hydraulic cylinder supports up to 28219 lbs (12.8 Ton) column load capacity while delivering 25 Ton push force and 21 Ton pull force (at 20 MPa), providing reliable power for pushing and pulling applications
Built with a high-seal hydraulic structure, chrome-plated piston rod, and high-temperature baked coating to reduce leakage, resist wear and corrosion, and ensure stable performance in demanding work conditions
