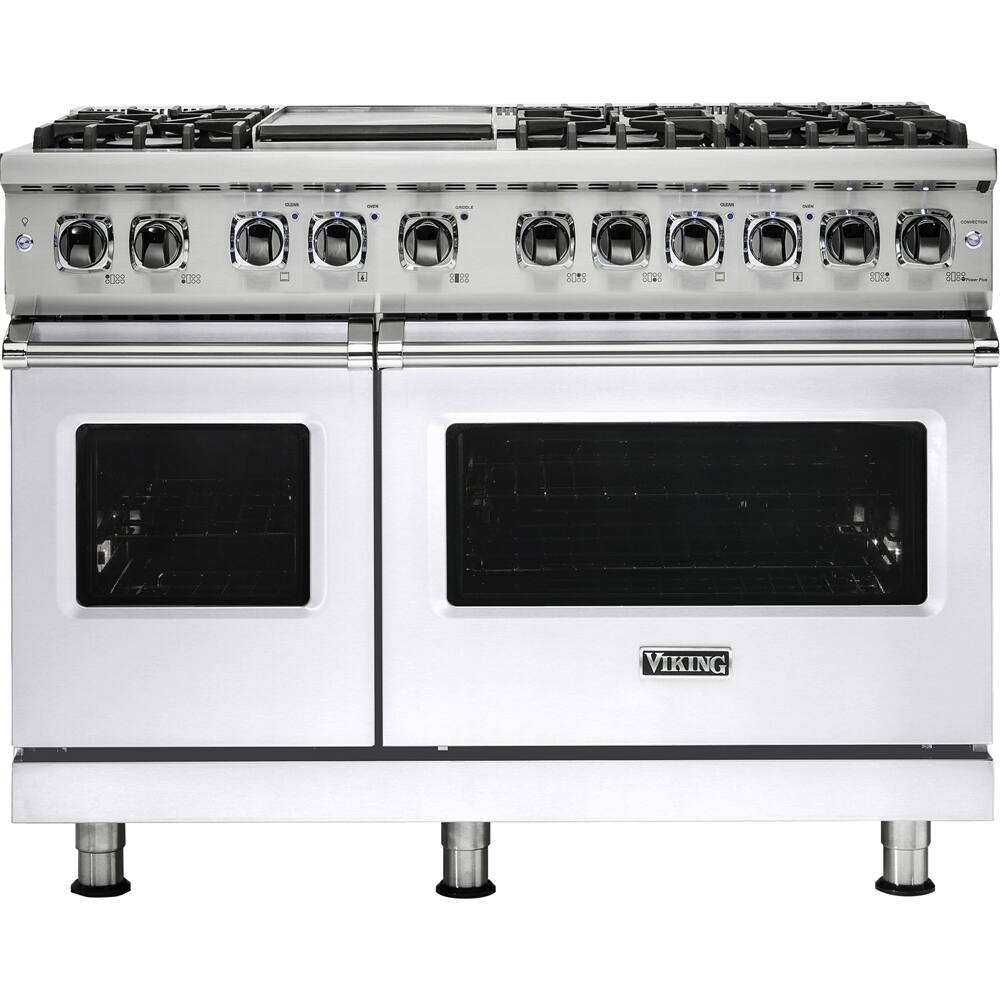

Viking - 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range - White
- Key Specs
- Color Finish: White
- Product Height: 36 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 25 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 2/3 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Single/Double Oven: Double Oven
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 6
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Viking
- Model Number: VDR5486GWHLP
- Product Name: 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range
- Color: White
- Color Finish: White
- Dimensions
- Product Height: 36 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 25 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 2/3 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 575 pounds (The out of box weight of the item.)
- Capacity
- Oven 1 Capacity: 2.6 cubic feet
- Oven 2 Capacity: 4.7 cubic feet
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Gas Type: Liquid propane
- Range Power Source: Dual fuel
- Ignition Type: Electric
- Soft Close Door: true
- Control Type: Backlit knob
- Oven Control Location: Front panel
- Oven Light: true
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Convection, Bake, Broil, Defrost, Dehydrate
- Oven Settings: Time Bake
- Oven Features
- Convection Type: Single-fan (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Single/Double Oven: Double Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Oven 1
- Oven 1 Location: Left
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Racks: 2
- Number of Oven 1 Rack Positions: 6
- Oven 2
- Oven 2 Location: Right
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Racks: 3
- Number of Oven 2 Rack Positions: 6
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Porcelain
- Number of Burners: 6
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): VSH Pro sealed, TruPowerPlus, griddle (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Griddle Included: true
- Griddle Type: Integrated (A griddle surface may either replace the burner grates on the cooktop or be able to be placed on top. Either type can typically be attached and removed as needed. Some griddles also feature a ribbed, grill-like side that can be reversed for even more cooking options.)
- Burner Rating
- Burner 1 Rating: 15000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 15000 british thermal units
- Burner 3 Rating: 15000 british thermal units
- Burner 4 Rating: 15000 british thermal units
- Burner 5 Rating: 15000 british thermal units
- Burner 6 Rating: 18500 british thermal units
- Total Maximum BTU Rating: 91000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Electrical
- Amperage: 50 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: NA (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 800284020547
Make delicious meals with this 48-inch Viking Professional dual fuel range. Its six VariSimmer burners include one with 18,500 BTUs of power for recipes that require intense heat, and its 12-inch griddle is thermostatically controlled for even cooking. Bake desserts while roasting a main entree in the 7.3 cu. ft. double convection oven of this Viking Professional dual fuel range.
- 6 cooktop burners: Provide between 8,000 and 23,000 BTUs to meet various cooking requirements.
- Porcelain-enamel cooktop surface: Offers a durable design.
- Bi-directional Convection Fan: Maximum airflow throughout the oven for faster cooking times and more flavorful results.
- Self-cleaning oven: Conveniently eliminates the need to scrub by doing the cleaning for you.
- Dual Oven Design: Accomodates multiple cooking tasks and provides flexibilty when cooking a wide range of food at different temperatures.
- Cook pancakes, eggs, grilled sandwiches and other foods: The stovetop griddle lets you prepare a variety of foods and can be removed for easy cleanup.
- Interior oven light: Lets you keep an eye on food being cooked without opening the oven door and letting heat escape.
- White color: Match your existing décor with this color.
- Safety features: Include automatic flame reignition.
- Free delivery on appliance orders $399 and up: Gas appliances may require special installation, which will not be included with delivery. Call 1-888-BEST BUY (1-888-237-8289) to find out more and to purchase installation.
- Required parts sold separately: Find essential parts for installation in the accessories section on this page.
- Level the appliance: Our home delivery teams offer anti-tip bracket installation at no additional charge. This bracket is essential for safe operation, and Best Buy won't be able to complete your connections without it.
- Need more information?: See what's included with home delivery and installation.
Whats Included
- (1) Regular Rack
- (2) Tru-Glide Rack
- 3 x rack
- Island trim kit
- Viking Professional 5 Series VDR5486GWHLP
Q: Can I purchase an extended warranty for this range?
A: Yes, you can purchase an extended warranty for this range. Viking Range, LLC offers a "Residential Plus" warranty that covers the product, its components, and accessories for a period of ninety (90) days from the date of original retail purchase. This warranty excludes use of the product in all commercial locations.
Q: What safety features does this range include?
A: The Viking 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range includes several safety features to prevent potential hazards and ensure user safety. These features include an exclusive one-piece tooled and porcelainized cooking surface that contains spills for easy cleaning, halogen lights that illuminate the oven cavity with less glare, and a concealed bake element for easier cleaning. Additionally, the range is equipped with an anti-tip device to prevent it from tipping over and causing injuries.
Q: What are the dimensions of this range, including the depth with and without the handle?
A: The dimensions of the range are 36 inches in height, 48 inches in width, and 25.7 inches in depth without the handle. With the handle, the depth is 28.6875 inches.
Q: Does this range have a self-cleaning feature, and if so, what type of cleaning method does it use?
A: Yes, this range does have a self-cleaning feature. It uses an automatic pyrolytic self-cleaning cycle, which reaches elevated temperatures to burn off soil and deposits. During this process, an integral smoke eliminator helps reduce odors.
Q: How many oven rack positions are there in each oven?
A: The 18” left-hand oven is equipped with two standard tilt-proof racks, while the 30”, 36”, 48” right-hand, and both 60” W. ovens are equipped with three tilt-proof racks. All ovens have six rack positions.
Q: Does this range have a downdraft ventilation system?
A: The Viking 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range does not have a downdraft ventilation system.
Q: What is the maximum BTU output of the most powerful burner on this range?
A: The most powerful burner on this Viking range is the right front burner, which has a maximum BTU output of 18,500. This burner is equipped with Viking's exclusive TruPower Plus™ technology, which provides extra power for rapidly boiling large quantities of liquid or achieving high-temperature frying.
Q: Is this range compatible with any smart home devices or app-controlled?
A: The Viking 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range is not compatible with any smart home devices or app- controlled features. The product specifications clearly state "App Compatible: false" and "App-Controlled: false". Therefore, this range cannot be integrated into a smart home system or controlled through an app.
