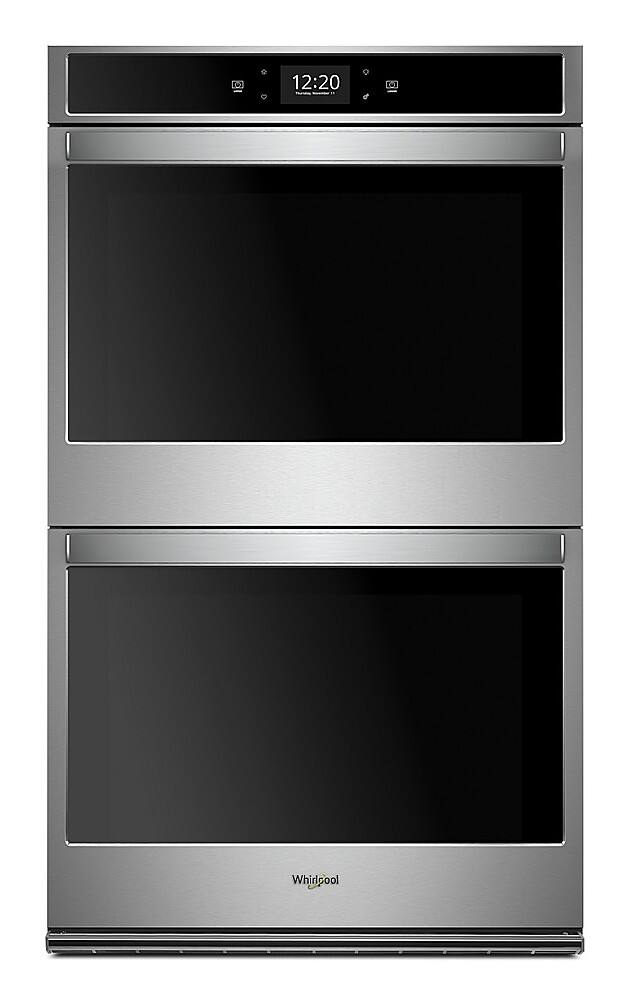

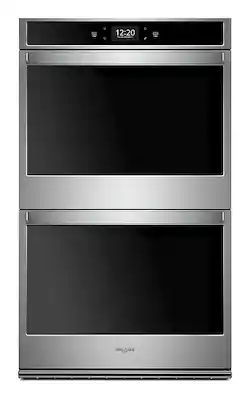

Whirlpool - 27" Built-In Electric Convection Double Wall Oven with Air Fry when Connected - Stainless Steel
Model: WOD77EC7HS
SKU: 6181303
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 51 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 3/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 26 7/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Google Home, Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Whirlpool
- Model Number: WOD77EC7HS
- Product Name: 27" Built-In Electric Convection Double Wall Oven with Air Fry when Connected
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 51 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 3/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 27 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 26 7/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door 90 Degrees Open: 42 3/4 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 258 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 50 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 25 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 4.3 cubic feet
- Oven 2 Capacity: 4.3 cubic feet
- Features
- Oven Type: Double wall oven
- Oven Power Source: Electric
- Fingerprint Resistant: true
- Control Type: Touchscreen
- Clock Display: true
- Oven Light: true
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Design
- Display Type: LCD
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Delay Clean Option: true
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Keep Warm Setting: true
- Timer: true
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: true
- Oven 1 Specification
- Oven 1 Location: Lower
- Oven 1 Interior Height: 18 inches
- Oven 1 Interior Depth: 19 inches
- Oven 1 Cavity Material: Porcelain
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Rack Positions: 3
- Number of Oven 1 Racks: 4
- Oven 1 Bake Element: 2800 watts
- Oven 1 Broil Element: 3600 watts
- Oven 2 Specification
- Oven 2 Location: Upper
- Oven 2 Interior Height: 18 inches
- Oven 2 Interior Depth: 19 inches
- Oven 2 Cavity Material: Porcelain
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Rack Positions: 3
- Number of Oven 2 Racks: 2
- Oven 2 Bake Element: 2800 watts
- Oven 2 Broil Element: 3600 watts
- Electrical Specification
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 230 volts (Amount of power needed to support an electrical current.)
- Wattage: 8000 watts (Measurement of electrical power.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: Cancer and Reproductive Harm (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Google Home, Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 883049444871
Get the right settings every time with this smart self-cleaning double wall oven. Use Scan-to-Cook technology to start cooking frozen foods in the built-in wall oven using your smartphone or tablet. Because most days every second counts, the touchscreen provides instant access to the settings your family uses most.
- Automatic Feature Updates: Select Whirlpool Smart Appliances get smarter over time with new cycles like Air Fry Mode and automatic updates to enhance performance. Once your appliance is connected, it downloads updates and adds new cycles as they’re released.
- Voice Control with the Google Assistant: Control your kitchen no matter what you’ve got on your hands using simple voice commands with the Google Assistant.
- Scan-to-Cook Technology: Get the right settings every time. Scan a frozen food barcode with your smartphone or tablet and send recommended or customized cooking instructions straight to your oven for dinner done the way your family wants it.
- Touchscreen: Get instant access to the settings you use most with an all-new touchscreen that learns, adapts and suggests customized presets based on your family's routines.
- Multi-Step Cooking: Make multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to the oven all at once.
- Frozen Bake™ Technology: Skip preheating and cook frozen favorites like pizza and lasagna faster with preprogrammed settings that automatically adjust cooking times for you.
- True Convection with Third Heating Element: Cook foods faster with the addition of a third element plus a fan that distributes hot air evenly over, under and around food so dinner is ready when they are.
- Convection Conversion: Easily get the right convection cooking temperature. Your oven automatically converts traditional recipes for convection cooking, adjusting cooking times and temperatures for you.
- Remote Start: With remote start enabled, use your smartphone or tablet to remotely turn your oven on so it's heated up and ready to cook meals when you are.
- Party Mode: Start preparing for guests from your smartphone or tablet. With remote start enabled, this mode automatically turns on the Keep Warm setting so dishes stay ready to serve.
- Keep Warm Setting: Keep dishes from getting cold with this setting that delivers low heat to the oven. Control it remotely or manually so food stays warm and ready to serve whether you're home or away.
- Enhanced Troubleshooting: Get immediate support for quick solutions by using your smartphone or tablet to access troubleshooting videos.
- Fingerprint Resistant: Resists fingerprints and smudges with steel that easily wipes clean. Available in Black Stainless Steel.
- Guided Service: Keep track of scheduled appointments and make sure issues are known using the mobile app to send data from the appliance directly to Whirlpool brand customer service.
- Self-Close Door: Keep doors from shutting too quickly with the smooth, quiet mechanism of self-close doors.
- Temperature Sensor: Get evenly baked food with a sensor that monitors oven temperature and adjusts the cooking elements.
- Rapid Preheat: Save time with 20% faster preheating. A rear fan combined with the use of all of the elements helps to heat the oven quickly. (Single-rack baking with Rapid Preheat option versus three-rack without option.)
- Control Lock Mode: Use your smartphone or tablet to remotely disable the control panel to avoid unintended use.
- Tap Touch Controls: Clean these controls as easily as you use them.
- FIT System: Whirlpool® wall ovens come with the parts to fit, right out of the box, guaranteed. If your new wall oven doesn’t fit, Whirlpool brand will pay up to $300 toward cabinet modification.
- Extra-Large Window: Keep an eye on your meal through the extra-large oven window.
- Scan-to-Connect Technology: You don't need to be a tech expert to connect your new appliance. Simply open the Whirlpool app, add your appliance and follow the guided experience to get up and running quickly.
- Automatic Feature Updates: Select Whirlpool Smart Appliances get smarter over time with new cycles like Air Fry Mode and automatic updates to enhance performance. Once your appliance is connected, it downloads updates and adds new cycles as they’re released.
- Voice Control with the Google Assistant: Control your kitchen no matter what you’ve got on your hands using simple voice commands with the Google Assistant.
- Scan-to-Cook Technology: Get the right settings every time. Scan a frozen food barcode with your smartphone or tablet and send recommended or customized cooking instructions straight to your oven for dinner done the way your family wants it.
- Touchscreen: Get instant access to the settings you use most with an all-new touchscreen that learns, adapts and suggests customized presets based on your family's routines.
- Multi-Step Cooking: Make multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to the oven all at once.
- Frozen Bake™ Technology: Skip preheating and cook frozen favorites like pizza and lasagna faster with preprogrammed settings that automatically adjust cooking times for you.
- True Convection with Third Heating Element: Cook foods faster with the addition of a third element plus a fan that distributes hot air evenly over, under and around food so dinner is ready when they are.
- Convection Conversion: Easily get the right convection cooking temperature. Your oven automatically converts traditional recipes for convection cooking, adjusting cooking times and temperatures for you.
- Remote Start: With remote start enabled, use your smartphone or tablet to remotely turn your oven on so it's heated up and ready to cook meals when you are.
- Party Mode: Start preparing for guests from your smartphone or tablet. With remote start enabled, this mode automatically turns on the Keep Warm setting so dishes stay ready to serve.
- Keep Warm Setting: Keep dishes from getting cold with this setting that delivers low heat to the oven. Control it remotely or manually so food stays warm and ready to serve whether you're home or away.
- Enhanced Troubleshooting: Get immediate support for quick solutions by using your smartphone or tablet to access troubleshooting videos.
- Fingerprint Resistant: Resists fingerprints and smudges with steel that easily wipes clean. Available in Black Stainless Steel.
- Guided Service: Keep track of scheduled appointments and make sure issues are known using the mobile app to send data from the appliance directly to Whirlpool brand customer service.
- Self-Close Door: Keep doors from shutting too quickly with the smooth, quiet mechanism of self-close doors.
- Temperature Sensor: Get evenly baked food with a sensor that monitors oven temperature and adjusts the cooking elements.
- Rapid Preheat: Save time with 20% faster preheating. A rear fan combined with the use of all of the elements helps to heat the oven quickly. (Single-rack baking with Rapid Preheat option versus three-rack without option.)
- Control Lock Mode: Use your smartphone or tablet to remotely disable the control panel to avoid unintended use.
- Tap Touch Controls: Clean these controls as easily as you use them.
- FIT System: Whirlpool® wall ovens come with the parts to fit, right out of the box, guaranteed. If your new wall oven doesn’t fit, Whirlpool brand will pay up to $300 toward cabinet modification.
- Extra-Large Window: Keep an eye on your meal through the extra-large oven window.
- Scan-to-Connect Technology: You don't need to be a tech expert to connect your new appliance. Simply open the Whirlpool app, add your appliance and follow the guided experience to get up and running quickly.
Whats Included
- Whirlpool 27" Built-In Electric Convection Double Wall Oven with Air Fry when Connected
- Whirlpool 27" Built-In Electric Convection Double Wall Oven with Air Fry when Connected
Q: What are the measures, full height, wide and depth of this appliance ?
A: Hello Pirolo! Here are the dimensions on this model. Depth 26 3/8", Height 51 1/2", Width 27", Depth Closed Excluding Handles 24 1/2", Depth Closed Including Handles 26 3/8", Depth With Door Open 90 Degree 42 3/4". Thank you for your inquiry on our Whirlpool appliances.
A: Hello Preeti, Please reach out to Best Buy Customer Care at 1-888-237-8289 for further assistance. We hope this helps.
A: Hello Scotty! This model is Stainless Steel. We hope this helps.
A: Hello! We are sorry to hear this. This model is a double oven with two bigger ovens. Thank you for letting us know and wie will pass this information along to have this updated.
Q: Does the oven have a roast feature
A: MBS, this Whirlpool Wall Oven does have a roast option. Thank you for your interest in our Whirlpool Appliances!
Q: Do these ovens have Fingerprint Resistant Stainless Steel like Refrigerator Model #WRT311FZDZ?
A: Hi georgia1234, the Wall Ovens are mostly glass fronts with Stainless Steel trim, so they will not have the fingerprint resistant stainless steel, however, the color will match your other appliances that do have the fingerprint resistant stainless finishes. We utilize that finish for appliances with large surfaces of stainless steel. We hope this helps!
A: Hello Christie. We apologize for any confusion. Model WOD77EC7HV is a Double Oven. There is no Microwave.
A: Hello DDuehring. We apologize for any misinformation. This model is a Double Oven.
