Whirlpool - 30 inches - Externally Vented - Wall Range Hood - Black
Color
BlackDelivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishBlackProduct Height4 15/16 inchesProduct Width29 15/16 inchesProduct Depth18 1/2 inchesExhaust Vent LocationTopVent TypeDucted
- Key Specs
- Color Finish: Black
- Product Height: 4 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Whirlpool
- Model Number: WVU17UC0JB
- Product Name: 30" Externally Vented Range Hood
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 4 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 2 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 2
- Control Type: Rocker
- Integrated Light(s): true
- Bulb Type Required: LED
- Bulb(s) Included: true
- Performance
- Maximum Operating Sound Level: 18 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Electrical Specification
- Amperage: 0.9 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 883049527314
Keep your kitchen smelling fresh with this 30-inch Whirlpool ventilation hood. The full-width dishwasher-safe filters trap grease and particulates for optimum airflow, while LED light provides reliable cooktop illumination. This black Whirlpool ventilation hood boasts a powerful yet quiet two-speed fan for efficient elimination of smoke and odors, and the FIT system coupled with the under-cabinet mounting design ensures easy, seamless installation.
How to Measure for a New Appliance
A little measuring now can help you avoid delivery headaches later.
Watch the video ›
- 270 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 2 fan-speed settings: Allow you to adjust ventilation to meet your needs.

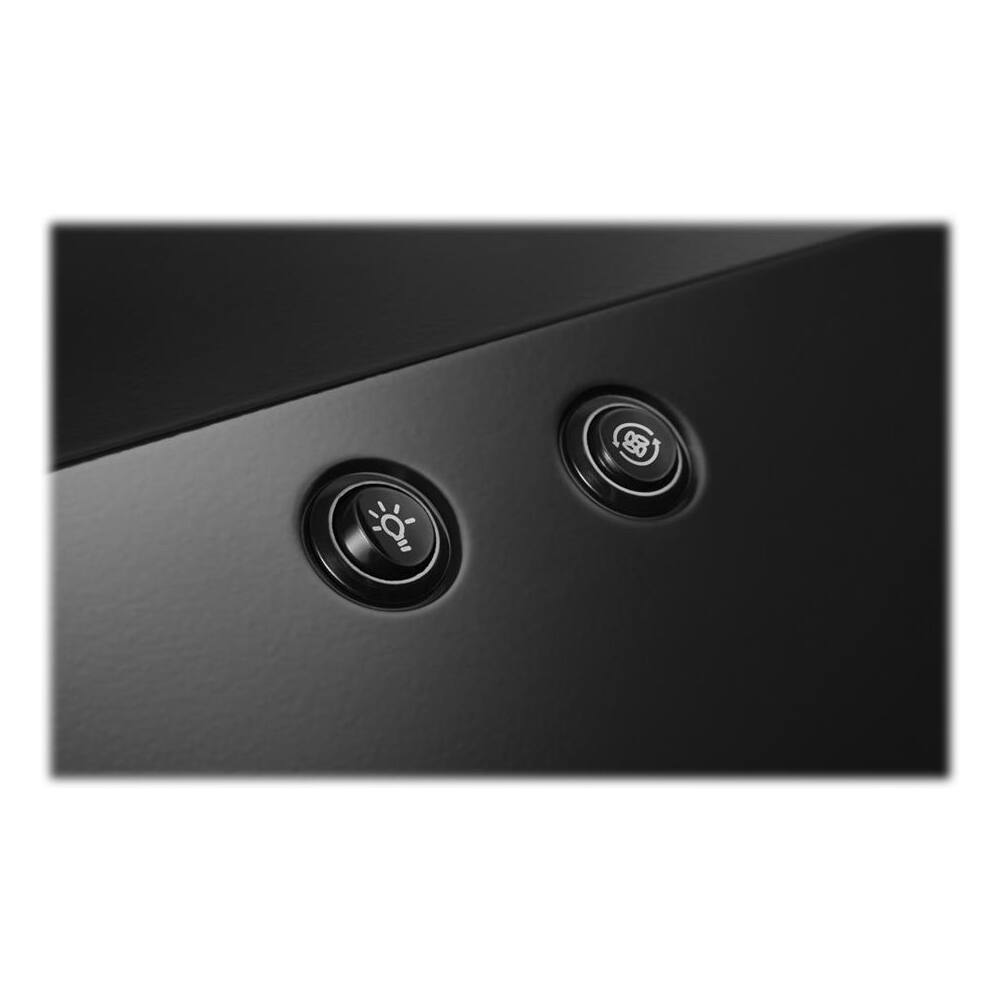

- Rocker controls: Offer simple operation.
- LED light shines down on the cooktop: To illuminate your workspace.
- Black finish: Offers a stylish look.
- Designed to fit standard 7" round ductwork: For ease of installation.
- 270 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 2 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Rocker controls: Offer simple operation.
- LED light shines down on the cooktop: To illuminate your workspace.
- Black finish: Offers a stylish look.
- Designed to fit standard 7" round ductwork: For ease of installation.
Whats Included
- Whirlpool 30" Externally Vented Range Hood
- Whirlpool 30" Externally Vented Range Hood
Product Manuals
Q: Can this replace a microwave that is mounted above the range?
A: Yes. That’s how ours is installed
Q: What is the Grease filter model number?
A: Hi Jackie123, the grease filter on this model is washable and reusable. They should be cleaned using warm water, dishwashing liquid, and a non abrasive brush. You can find the instructions on how to wash them on page 10 of the Owner's Manual. If you would like to replace the filter, that part number is W11369459. Hope this helps!
Q: Why does the filters continue to fall off. Can you tell me how to install so this doesn’t continue.
A: There is a slot on one side of screen. It should go to the front. There is a tab on black thing it fits in. May have to play with the tab as I can not get it to move in or out like it appears capable of doing. Hope this helps.....
A: This model is 270 CFM.
A: Hello, This Range Hood, model WVU17UC0JS, may be Directly Wired or installed using a Power Cord Kit. Please follow the Owner's Manual for additional information. https://tinyurl.com/2bm4rdnv Thank you for your inquiry on our Whirlpool® appliances.
Q: Does Best Buy install units and do duct work? Is pvc safe for exhaust chimney?
A: Hello Ranger, Please reach out to Best Buy Customer Care at 1-888-237-8289 for further assistance. We hope this helps.
A: Right side. Im sure its long enough it can reach.
Q: Are there variable speeds for the fan and brightness for the lights?
A: Not for light. Fan have but low speed itself is very noisy.
Compare similar products
Keep your kitchen smelling fresh with this 30-inch Whirlpool ventilation hood. The full-width dishwasher-safe filters trap grease and particulates for optimum airflow, while LED light provides reliable cooktop illumination. This black Whirlpool ventilation hood boasts a powerful yet quiet two-speed fan for efficient elimination of smoke and odors, and the FIT system coupled with the under-cabinet mounting design ensures easy, seamless installation. How to Measure for a New Appliance A little measuring now can help you avoid delivery headaches later.
The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air recirculation. The hood is equipped with a 230 MAX Blower CFM designed for years of trouble free service, an easy to clean grease filter, and control switches for fan speed and light activation.
Enjoy seamless installation with this Whirlpool range hood. The FIT system requires no cutting or measuring for simple attachment, and the incandescent bulbs illuminate the stovetop, so you can prepare food with ease. This Whirlpool range hood works quietly to get rid of smoke and odors, letting conversations take place.How to Measure for a New ApplianceA little measuring now can help you avoid delivery headaches later.
The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air recirculation. The hood is equipped with a 230 MAX Blower CFM designed for years of trouble free service, an easy to clean grease filter, and control switches for fan speed and light activation.
| Pros for Whirlpool - 30 inches - Externally Vented - Wall Range Hood - Black | |||
|---|---|---|---|
| Performance, Appearance, Ease of use, Installation, Style | Ease of use, Performance, Lighting, Fit, Color | Appearance, Noise Level, Ease of Installation, Price, Light | There were no pros for this product— |
| Cons for Whirlpool - 30 inches - Externally Vented - Wall Range Hood - Black | |||
| Noise Level | There were no cons for this product— | Fan Power, Suction, Size | There were no cons for this product— |
Specs
Reviews
Customers are saying
Customers praise the 30" Externally Vented Range Hood for its easy installation process. Many customers mentioned how simple it was to set up. However, some customers noted that the range hood can be noisy when it starts up.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 4 out of 5 stars
Range Hood
Excellent match for standard 4/5 burner stove. Removing the filter is bit difficult
This review is from Whirlpool - 30 inches - Externally Vented - Wall Range Hood - Stainless Steel
Posted by Naveen
- Rated 4 out of 5 stars
Kitchen necessities
Looks nice, works great! Didn't cost a fortune....
This review is from Whirlpool - 30 inches - Externally Vented - Wall Range Hood - Stainless Steel
Posted by DianeM
- Rated 5 out of 5 stars
Whirlpool 30in Vented Range Hood
After one month the vented Whirlpool Range Hood works good without any problems but is a little on the nosey side.
This review is from Whirlpool - 30 inches - Externally Vented - Wall Range Hood - Stainless Steel
Posted by KimC
