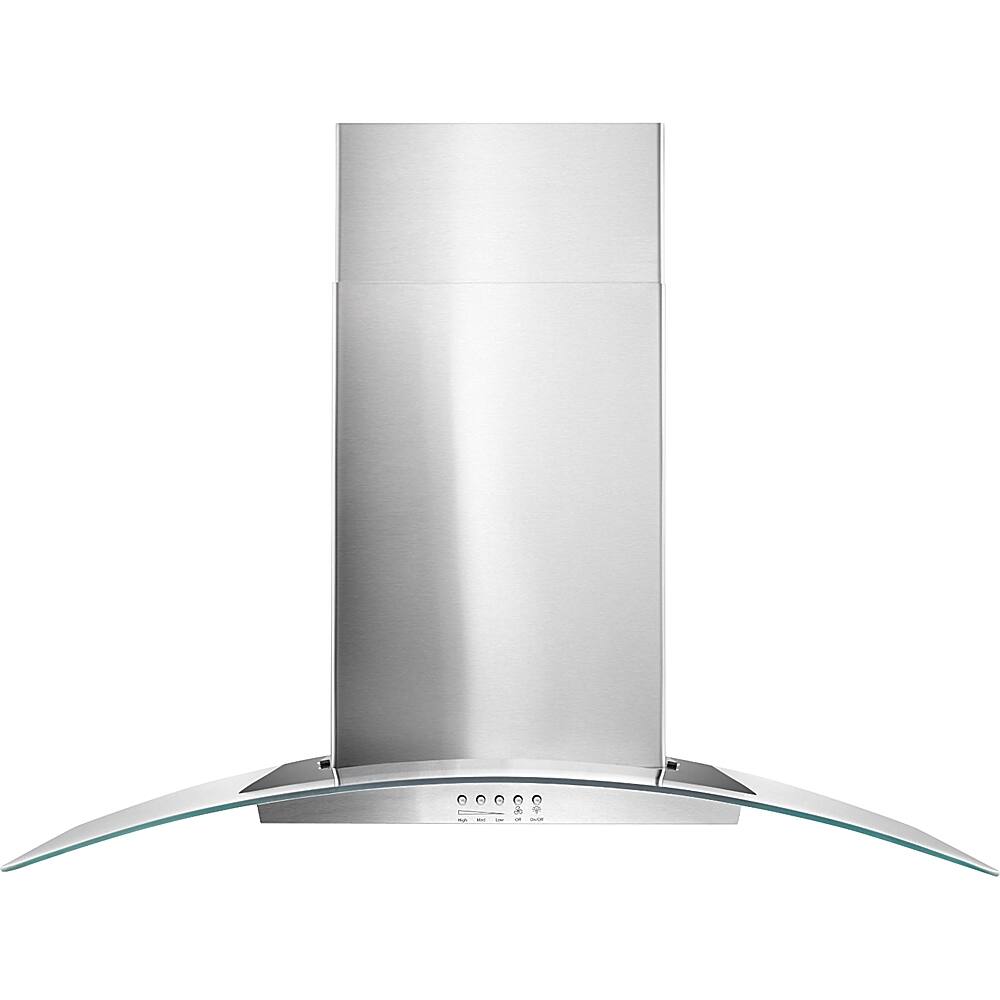

Whirlpool - 36 inches - Convertible - Wall Range Hood - Stainless Steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 28 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Whirlpool
- Model Number: WVW51UC6FS
- Product Name: 36" Convertible Glass Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 28 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 52 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 6 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 3
- Bulb Type Required: LED
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 400 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Filter Info
- Filter Material: Aluminum
- Dishwasher-Safe Filter: false
- Removable Grease Filter: true
- Number of Filters: 1
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 883049402079
With three fan speeds, this 400 CFM motor class wall mount kitchen hood provides the right ventilation for every meal you prepare and looks good while doing so. Long-lasting LED task lighting shines a bright light to show you what's cooking, and a grease filter helps traps unwanted grease and odors. The range hood's convertible ventilation means you can vent vapors and odors outside or filter them and recirculate the air, depending on your kitchen ventilation system setup. When venting at low speed, sound levels can get as low as 44 dBA.
- LED Task Lighting: Bright, long-lasting LED task lighting makes it easy to see what you're cooking.
- Grease Filter: The grease filter helps trap unwanted grease and helps remove odors.
- 3-Speed, 400 CFM Motor Class: Three fan speeds provide the right amount of ventilation for every meal you prepare. (Performance varies based on installation. Resources available at aham.org.)
- Convertible Ventilation (Recirculating or Vented): Vent vapors and odors outside or filter them and recirculate the air, depending on your kitchen's setup.
- 44 dBA (.7 Sones) at Low Speed: Keep the kitchen quiet, even when venting at the highest speed. At maximum speed, sound level is 66 dBA (5.5 sones). (When configured for outside ventilation.)
- LED Task Lighting: Bright, long-lasting LED task lighting makes it easy to see what you're cooking.
- Grease Filter: The grease filter helps trap unwanted grease and helps remove odors.
- 3-Speed, 400 CFM Motor Class: Three fan speeds provide the right amount of ventilation for every meal you prepare. (Performance varies based on installation. Resources available at aham.org.)
- Convertible Ventilation (Recirculating or Vented): Vent vapors and odors outside or filter them and recirculate the air, depending on your kitchen's setup.
- 44 dBA (.7 Sones) at Low Speed: Keep the kitchen quiet, even when venting at the highest speed. At maximum speed, sound level is 66 dBA (5.5 sones). (When configured for outside ventilation.)
Whats Included
- Damper, mounting hardware, grease filter
- Light bulbs
- Owner's manual
- Whirlpool 36" Convertible Glass Range Hood
- Damper, mounting hardware, grease filter
- Light bulbs
- Owner's manual
- Whirlpool 36" Convertible Glass Range Hood
A: In this case convertible means that it can be used over an island, not needed to be hung on the wall. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our Whirlpool appliances!
Q: What is the sound rating for the fan.....decibels? Give range if available.
A: MT, This Range Hood has a 44dBA at working speed.
A: Hello IpUSer. Please visit https://bit.ly/3dBdeQJ and refer to pages 4-5 for more information. We hope this helps!
Q: Can this be mounted over an island cooktop?
A: Cheddar, yes this can be.
Q: What is the width of the shroud ?
A: Hello, please see page 5 of the Installation Instructions for the dimensions bit.ly/44qNHTr Thank you for your inquiry on our Whirlpool appliances.
A: Hello! We can only recommend this be installed per the Owner's manual. bit.ly/3rldY5W Thank you for your inquiry on our Whirlpool appliances.
Q: What is the exact width? I am just a tad over 36" between cabinets
A: Hello Trip! The model WVW51UC6HV, 36" Concave Glass Wall Mount Range Hood width is 36 inches. We hope this helps!
A: Hi DP, this indicates there are two ways to use the lighting. On page 13 of the Owner's Manual, linked here: https://bit.ly/3pGof9Y you will find manual operation of the Task Lighting, then an "Ambient Lighting" setting. We hope this helps!
